UVP ChemStudio Plus Imaging Systems for larger samples include a Transilluminator, VisionWorks software a UV protection shield and a 25 x 26 cm illuminated area
Gel Doc Systems

Gel and Blot Imager; Plus, 6.0 MP, UVP ChemStudio, Analytik Jena, 230 V

  • ChemStudio Plus 230V gel and blot imaging system for larger samples; requires external computer control
  • Excitation range: 400 to 800 nm
  • Includes UV Transilluminator, slide down UV shield, emission filter, high-sensitivity camera and VisionWorks Software
  • Camera resolution: 6.0 MP
  • Configurable model accommodates high-power multispectral xenon light source and NIR laser modules

• Wavelength: 400 to 800 nm

• Configuration: Plus

• Manufacturer SKU: 849-97-0851-04

• Unit of Measure: EA

Read more
Manufacturer SKU: 849-97-0851-04
Manufactured By: Analytik Jena
Warranty: Three-Year Manufacturer Warranty for Parts & Labor
Print
Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Chat

Want a quote quickly ?

Submit a QuickQuote request
Terra Part # 2808-54
$60,824
Usually ships in 6-10 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2808-54
78822
Gel and Blot Imager; Plus, 6.0 MP, UVP ChemStudio, Analytik Jena, 230 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
  • ChemStudio Plus 230V gel and blot imaging system for larger samples; requires external computer control
  • Excitation range: 400 to 800 nm
  • Includes UV Transilluminator, slide down UV shield, emission filter, high-sensitivity camera and VisionWorks Software
  • Camera resolution: 6.0 MP
  • Configurable model accommodates high-power multispectral xenon light source and NIR laser modules
  • Provides high-resolution and sensitive imaging: western blots, fluorescent westerns, protein blots, DNA and protein gels, blue light gels, colony plates and plants
  • ChemStudio Plus touch features: stand-alone system for imaging larger samples sizes in genomic and proteomic applications with integrated, slide down UV-Protection shield, 15.6” integrated, multi-touch computer, Slide2Hide door, lens (25mm, f/0.95 (695 camera) or 42.5mm, f/0.95 (815 camera) and a 25 x 26 cm illumination area
  • Overhead white, red, green, and blue LEDs come as standard in the series
  • Optional: upgrade NIR modules with laser-based source for NIR application:  660 nm and 787 nm and eLITE
  • Imaging applications: chemiluminescence, fluorescence, gel documentation, colormetric and multiplex
  • Two camera options with deep cooling and efficient photon-to signal conversion capture high quality images
  • Used in imaging of DNA and protein gels with fluorescent and non-fluorescent stains
  • Imaging time: 1-5 seconds for fluorescent Western blotting
  • Features:
  • Five-position automated filter wheel
  • Illumination: Thin-Line Transilluminator, (302 nm) with High/Low intensity control
  • Darkroom features: UV On indicator light, USB port (6 additional), access port for optional UVP eLITE Light Source, software control of filter and illumination control
  • Pixel Resolution: 2184 x 1472 - 3296 x 2472
  • Gray Scales: 65,536
  • Cooling from ambient: -57°C / -60°C
  • CCD sensor; 16 bit Sensor Bit Depth (A/D)
  • User-controlled image enhancement tools and application-based icon for ease of use
  • Templates and macros for custom-one-touch workflows
  • Included items with UVP ChemStudio Plus #849-97-0851-04 Western Blot Imager: Ethidium bromide filter, VisionWorks® Software for image capture, enhancement and analysis (unlimited licenses), Flash drive with VisionWorks® Software (license free), UVP Fluorescent Focus Target, UVP Chemi Tray (black), UV Gel Tray, UV Protection Shield, Empty flash drive for data and image storage, Keyboard and mouse (touch screen systems only)
  • Available ChemStudio accessories expand application capabilities: Transilluminators, Converter Plates, Emission Filters, Printer and printer accessories
Show more

• Wavelength: 400 to 800 nm

• Configuration: Plus

• Manufacturer SKU: 849-97-0851-04

• Unit of Measure: EA

• Electrical Specifications: 230 V

• Dimensions, Product: 19" W x 17" D x 32" H

Show more

Manuals & Resources

Products similar to this one
  1. Single intensity benchtop UV Transilluminator compatible with MultiDoc-It and PhotoDoc-It Imaging Systems | 1016-50 displayed
    Group of 12 products
    Benchtop UVP UV Transilluminators by Analytik Jena From
    $1,118
  2. Lightweight benchtop hood with TFM-20 High Performance UV Transilluminator includes Capture Software for automatic report generation | 1014-82 displayed
    Group of 4 products
    DigiDoc-It® Imaging System by UVP From
    $4,955
Other products you may find relevant
  1. Single slide capacity InnoScan 910 Microarray Scanner with 2-color fluorescence and 532 nm and 635 wavelengths | 3031-36 displayed
    Group of 3 products
    InnoScan® 910, 910AL and 1100AL High-Speed Fluorescence Microarray Scanners by Arrayit From
    $111,038
  2. ArrayPix Fluorescence Microplate Microarray Scanner scans 96 microarrays in less than 3 minutes | 3031-31 displayed
    Group of 2 products
    ArrayPix™ Microplate Microarray Fluorescence & Colorimetric Plate Scanners by Arrayit From
    $35,549
  3. Accuris myVolt Touch Electrophoresis Power Supply with an auto-rotating LCD display features a 2 x 2 inch touchscreen control panel | 2808-08 displayed
    Group of 2 products
    myVolt Touch Electrophoresis Power Supply by Accuris From
    $550
  4. Sartorius 8-Channel Electronic Pipette provide precise results with easy-to-learn functions | 5702-52 displayed
    Group of 14 products
    Picus Electronic Pipettes by Sartorius From
    $1,031
  5. Developed to cater to the growing needs of the research, pharmaceutical, and clinical communities | 3030-01 displayed
    Group of 4 products
    SOLO Automated Pipettor by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days
  6. FlaskScrubber Vantage with 99.97% HEPA filtration removes airborne particulates ideal for use in contamination-sensitive lab applications; complies with ADA cas
    Labware Washer; Free-Standing, Flasks, FlaskScrubber Vantage, 230 V
    $19,951
    Usually Ships in 20 - 25 days
Buy Accessories
  1. Transilluminator; UVP Visi-White, LED, Imaging Area 28 x 28 cm, Analytik Jena
    Transilluminator; UVP Visi-White, LED, Imaging Area 28 x 28 cm, Analytik Jena
    $763
    Increase Down Increase Up
  2. Transilluminator; UVP Visi-Blue, LED, Imaging Area 24.5 x 24.5 cm, Analytik Jena
    Transilluminator; UVP Visi-Blue, LED, Imaging Area 24.5 x 24.5 cm, Analytik Jena
    $1,378
    Increase Down Increase Up
  3. Transilluminator; UVP Visi-White, LED, Imaging Area 16.8 x 21 cm, Analytik Jena
    Transilluminator; UVP Visi-White, LED, Imaging Area 16.8 x 21 cm, Analytik Jena
    $1,369
    Increase Down Increase Up
  4. Transilluminator; UVP Visi-Blue, LED, Imaging Area 16.8 x 21 cm, Analytik Jena
    Transilluminator; UVP Visi-Blue, LED, Imaging Area 16.8 x 21 cm, Analytik Jena
    $2,025
    Increase Down Increase Up
  5. UVP eLITE Xenon Kit for UVP Gel Doc Systems, 100/115 V, Analytik Jena
    UVP eLITE Xenon Kit for UVP Gel Doc Systems, 100/115 V, Analytik Jena
    $11,579
    Increase Down Increase Up
  6. UVP eLITE Xenon Kit for UVP Gel Doc Systems, 230 V, Analytik Jena
    UVP eLITE Xenon Kit for UVP Gel Doc Systems, 230 V, Analytik Jena
    $12,780
    Increase Down Increase Up
  7. UVP eLITE Motorized Kit, Epi-Light fibers, 115 V, Analytik Jena
    UVP eLITE Motorized Kit, Epi-Light fibers, 115 V, Analytik Jena
    $8,875
    Increase Down Increase Up
  8. Converter Plate; UVP Visi-White, Filter Size 25 x 26 cm, Analytik Jena
    Converter Plate; UVP Visi-White, Filter Size 25 x 26 cm, Analytik Jena
    $500
    Increase Down Increase Up
  9. #38-0200-01 with a filter size of 21 x 26 cm | 1016-14 displayed
    Converter Plates; UVP Visi-Blue, Filter Size 25 x 26 cm, 460-470nm, Analytik Jena In stock
    $618
    Increase Down Increase Up
  10. Converter Plate; UVP Visi-White, Filter Size 16.8 x 21 cm, Analytik Jena
    Converter Plate; UVP Visi-White, Filter Size 16.8 x 21 cm, Analytik Jena
    $438
    Increase Down Increase Up
  11. Converter Plate; UVP Visi-Blue, Filter Size 16.8 x 21 cm, 460- 470 nm, Analytik Jena
    Converter Plate; UVP Visi-Blue, Filter Size 16.8 x 21 cm, 460- 470 nm, Analytik Jena
    $648
    Increase Down Increase Up
  12. Emission Filter; 580 - 630 nm, Analytik Jena
    Emission Filter; 580 - 630 nm, Analytik Jena
    $397
    Increase Down Increase Up
  13. Emission Filter; 510 - 560 nm, SYBR© Green, Analytik Jena
    Emission Filter; 510 - 560 nm, SYBR© Green, Analytik Jena
    $397
    Increase Down Increase Up
  14. Emission Filter; 520 - 620 nm, SYBR© Gold, Analytik Jena
    Emission Filter; 520 - 620 nm, SYBR© Gold, Analytik Jena
    $420
    Increase Down Increase Up
  15. Emission Filter; 465 - 495 nm, CFP mice, Analytik Jena
    Emission Filter; 465 - 495 nm, CFP mice, Analytik Jena
    $1,705
    Increase Down Increase Up
  16. Emission Filter; 503 - 523 nm, GFP mice, Analytik Jena
    Emission Filter; 503 - 523 nm, GFP mice, Analytik Jena
    $1,705
    Increase Down Increase Up
  17. Emission Filter; 513 - 557 nm, Cy2®, FITC, FAM™, GFP, SYBR® Gold, Analytik Jena
    Emission Filter; 513 - 557 nm, Cy2®, FITC, FAM™, GFP, SYBR® Gold, Analytik Jena In stock
    $1,407
    Increase Down Increase Up
  18. Emission Filter; 565 - 625 nm, Alexa555®, Cy3®, SYPRO®, Orange®, Analytik Jena
    Emission Filter; 565 - 625 nm, Alexa555®, Cy3®, SYPRO®, Orange®, Analytik Jena
    $1,705
    Increase Down Increase Up
  19. Emission Filter; 645 nm, Alexa568®, SYPRO® Red, TexasRed®, Analytik Jena
    Emission Filter; 645 nm, Alexa568®, SYPRO® Red, TexasRed®, Analytik Jena
    $1,555
    Increase Down Increase Up
  20. Emission Filter; 668 - 722 nm, Alexa633®, Cy5®, Analytik Jena
    Emission Filter; 668 - 722 nm, Alexa633®, Cy5®, Analytik Jena
    $1,705
    Increase Down Increase Up
  21. Emission Filter; 700 - 740 nm, IRDye 680, CF 680, Analytik Jena
    Emission Filter; 700 - 740 nm, IRDye 680, CF 680, Analytik Jena
    $1,705
    Increase Down Increase Up
  22. Emission Filter; 767 - 807 nm, Alexa750®, Cy7®, Analytik Jena
    Emission Filter; 767 - 807 nm, Alexa750®, Cy7®, Analytik Jena
    $1,705
    Increase Down Increase Up
  23. Emission Filter; 780 nm, long pass: Alexa750®, Analytik Jena
    Emission Filter; 780 nm, long pass: Alexa750®, Analytik Jena
    $1,673
    Increase Down Increase Up
  24. Emission Filter; 800 nm, long pass: IRDye800, CE770, Analytik Jena
    Emission Filter; 800 nm, long pass: IRDye800, CE770, Analytik Jena
    $1,705
    Increase Down Increase Up
  25. UV Gel-Tray; Transparent Acrylic, 6.6" x 8.26", for preparaive tasks on Transilluminator
    UV Gel-Tray; Transparent Acrylic, 6.6" x 8.26", for preparaive tasks on Transilluminator
    $122
    Increase Down Increase Up
  26. UV Gel-Tray; Transparent Acrylic, 11.5" x 9", for preparaive tasks on Transilluminator
    UV Gel-Tray; Transparent Acrylic, 11.5" x 9", for preparaive tasks on Transilluminator
    Request Quote
    Increase Down Increase Up
  27. #85-0002-01 with a length of 20cm | 1016-17 displayed
    UVP Gel-Ruler; for Analytik Jena Bio Imaging Systems
    Request Quote
    Increase Down Increase Up
  28. #85-0002-01 with a length of 20cm | 1016-17 displayed
    UVP Gel-Cutter, for Analytik Jena Bio Imaging Systems
    Request Quote
    Increase Down Increase Up
  29. Gel-Scooper; UV Transparent, Scoop Size 14 x 15 cm, for Analytik Jena Bio Imaging Systems
    Gel-Scooper; UV Transparent, Scoop Size 14 x 15 cm, for Analytik Jena Bio Imaging Systems
    Request Quote
    Increase Down Increase Up
  30. Focus Target; Fluorescent, Analytik Jena
    Focus Target; Fluorescent, Analytik Jena
    $12
    Increase Down Increase Up
  31. Face Shield; UV Light protection, ANSI-Z87.1 1986 Compliant, Analytik Jena
    Face Shield; UV Light protection, ANSI-Z87.1 1986 Compliant, Analytik Jena
    $85
    Increase Down Increase Up
  32. #89-0069-06 | 1016-04 displayed
    Printer; UVP Digital Thermal, Mitsubishi P95DE, for Analytik Jena BioImaging Systems
    Request Quote
    Increase Down Increase Up
  33. Printer Thermal Paper; K95HG, High Glossy, 5 rolls, for Analytik Jena Printer
    Printer Thermal Paper; K95HG, High Glossy, 5 rolls, for Analytik Jena Printer
    $298
    Increase Down Increase Up
  34. Printer Thermal Paper; KP65HM, High Contrast, 4 rolls, for Analytik Jena Printer
    Printer Thermal Paper; KP65HM, High Contrast, 4 rolls, for Analytik Jena Printer
    $196
    Increase Down Increase Up

Features and Benefits

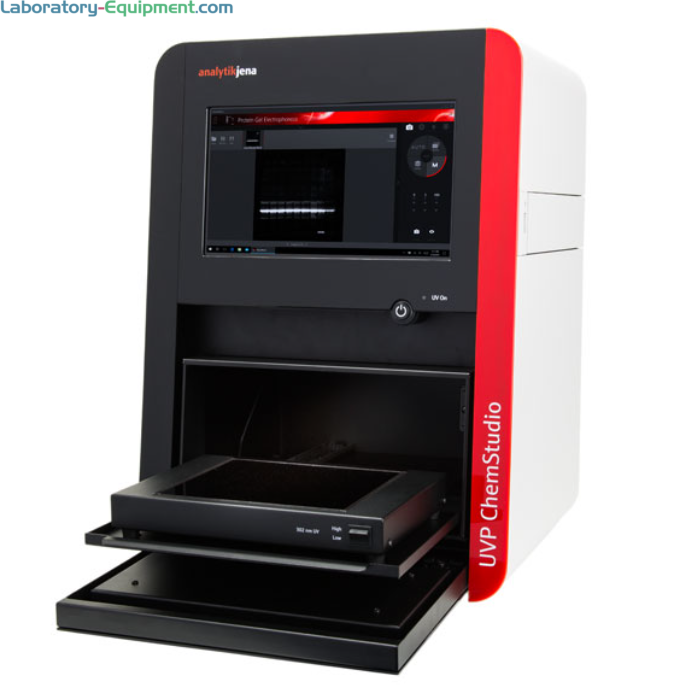

ChemStudio Imaging Systems with high-intensity UV Transilluminator by Analytik Jena

Thin-Line Transilluminator

Included high-intensity UV Transilluminator for Stain-Free gels produces a variable intensity 302nm UV light

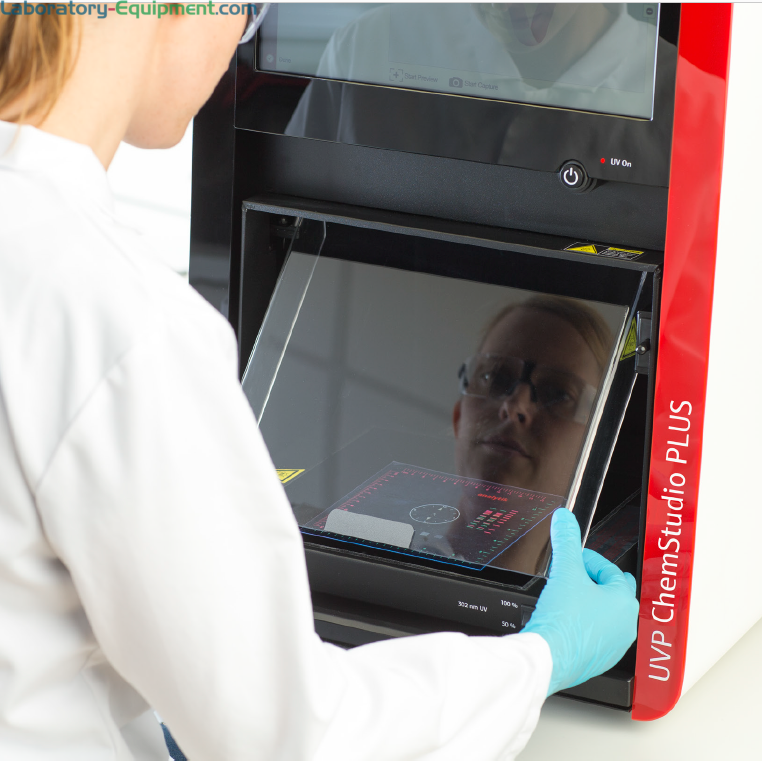

UVP ChemStudio Imaging System UV Protection Shield with Operator by Analytik Jena

UV Protection Shield

Protects users from UV during operation of ChemStudio; Plus Touch models feature an integrated, slide down UV shield
Products similar to this one
  1. Single intensity benchtop UV Transilluminator compatible with MultiDoc-It and PhotoDoc-It Imaging Systems | 1016-50 displayed
    Group of 12 products
    Benchtop UVP UV Transilluminators by Analytik Jena From
    $1,118
  2. Lightweight benchtop hood with TFM-20 High Performance UV Transilluminator includes Capture Software for automatic report generation | 1014-82 displayed
    Group of 4 products
    DigiDoc-It® Imaging System by UVP From
    $4,955
Other products you may find relevant
  1. Single slide capacity InnoScan 910 Microarray Scanner with 2-color fluorescence and 532 nm and 635 wavelengths | 3031-36 displayed
    Group of 3 products
    InnoScan® 910, 910AL and 1100AL High-Speed Fluorescence Microarray Scanners by Arrayit From
    $111,038
  2. ArrayPix Fluorescence Microplate Microarray Scanner scans 96 microarrays in less than 3 minutes | 3031-31 displayed
    Group of 2 products
    ArrayPix™ Microplate Microarray Fluorescence & Colorimetric Plate Scanners by Arrayit From
    $35,549
  3. Accuris myVolt Touch Electrophoresis Power Supply with an auto-rotating LCD display features a 2 x 2 inch touchscreen control panel | 2808-08 displayed
    Group of 2 products
    myVolt Touch Electrophoresis Power Supply by Accuris From
    $550
  4. Sartorius 8-Channel Electronic Pipette provide precise results with easy-to-learn functions | 5702-52 displayed
    Group of 14 products
    Picus Electronic Pipettes by Sartorius From
    $1,031
  5. Developed to cater to the growing needs of the research, pharmaceutical, and clinical communities | 3030-01 displayed
    Group of 4 products
    SOLO Automated Pipettor by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days
  6. FlaskScrubber Vantage with 99.97% HEPA filtration removes airborne particulates ideal for use in contamination-sensitive lab applications; complies with ADA cas
    Labware Washer; Free-Standing, Flasks, FlaskScrubber Vantage, 230 V
    $19,951
    Usually Ships in 20 - 25 days

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.

Hide
You need at least 2 products to compare Compare Clear All
Compare Products
