Terra Part # 6921-87
$17,829
Usually ships in 20-25 business days

Want it faster ? Read about FasTrak

Terra Part # 6921-87
78070
$17,829
Usually ships in 20-25 business days

Want it faster ? Read about FasTrak

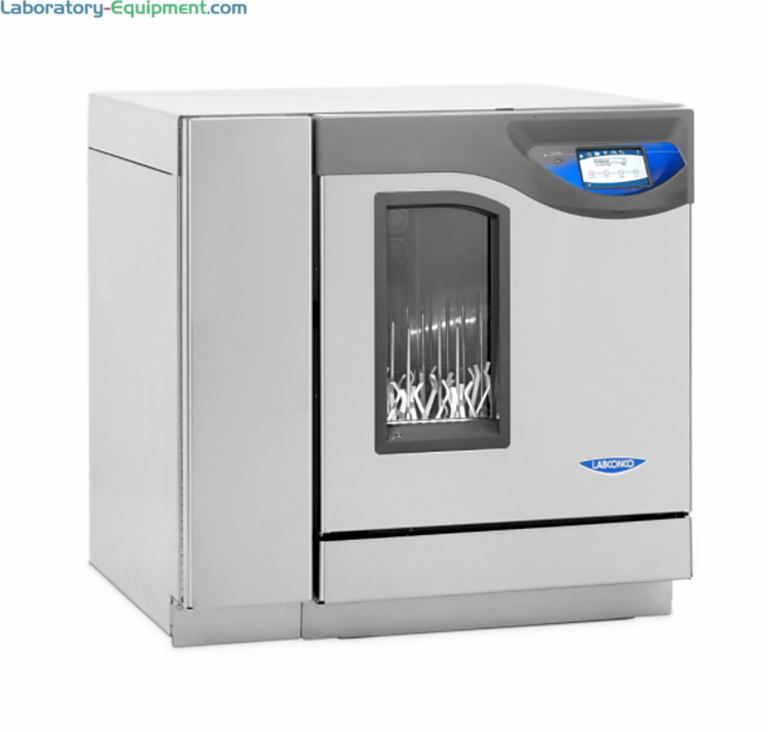

• ADA-compliant narrow-neck labware washer for contamination-sensitive research applications

• 99.97% efficient HEPA filter forced air drying removes 0.3 micron airborne particulates

• Wash temperature of 199° F (93° C) removes lipids and sanitizes glassware

• Programmable parameters and settings: 200 user-set, 12 factory-installed, 8 pure water rinses

Includes: lower spindle rack with holders, small spindle kit, viewing window, LED light

• Height range: 32.2 – 36.1

• Material: 304 stainless steel exterior side, top, door, tank, upper and lower wash arms; safety glass viewing window; aluminum-back insulation, fiberglass thermal blanket

• Brilliant 5” color touch screen display with CleanWorks OS measures water quality and enables users to control wash parameters and settings

• Steam generator removes stubborn contaminants

• Pump at 96 gal/min (363 L/min)

• Synchronous drain pump: up to 4.2 gal/min (16 L/min)

Included components: Lower spindle rack with 18 glassware holders, small spindle accessory kit, 36 adjustable height clips and plugs, 10 small spindles with clips, 12 spindle arm plugs, manual via USB thumb drive, quick installation guide with Allen wrench, 6 leveling feet, 2 anchoring screws, 1 hose clamp, 2 kick panel extension, 3 #10-24 x 3/4” hex head screws

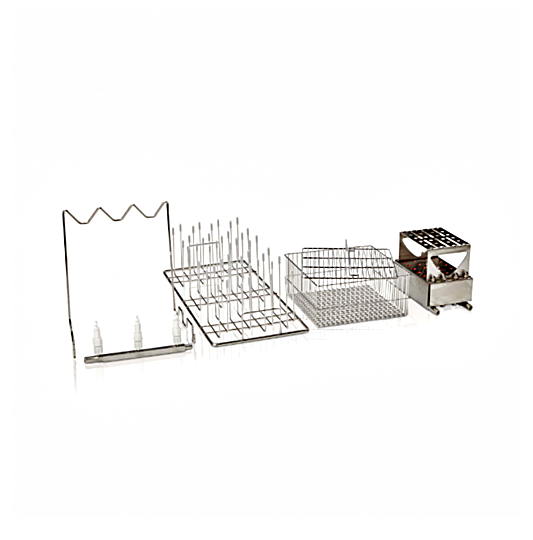

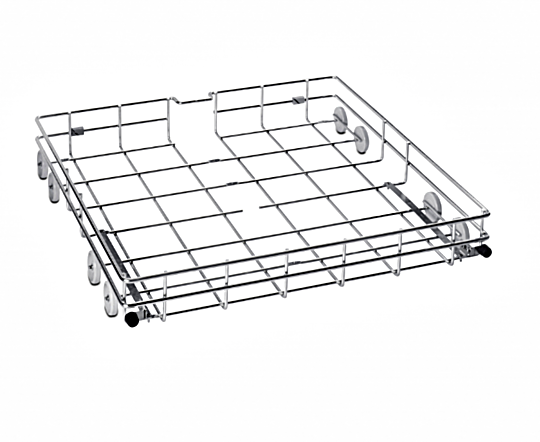

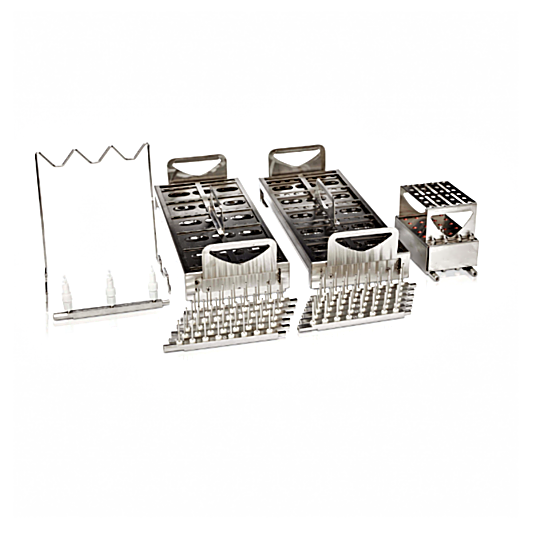

Options: Upper and lower Standard and Spindle Racks, baskets and inserts, glassware holders, base stand, freestanding-to-mobile conversion kits, drain water cooling kits, LabSolutions detergents and rinse, WaterPro RO Systems

12 factory-set programs: rinse, plastic, glass, glass plus, life scientific, analytical, intense, extreme, dry only, Eco wash, clean washer, CleanPoint

• Calibratable setpoints: temperature, fill volume, conductivity, detergent dispensing

• HEPA-filtered force air drying programmable up to 240 minutes and up to 80° C (176° F)

• Purified water pump

Conformance: UL Standard 61010-1, CAN/CSA C22.2 No. 61010-1, CE Conformity marking (230V, 50/60 Hz models), conforms with ADA-height casework

Features: self-diagnostics (helps in servicing and troubleshooting), password protection, delayed start up to 12 hours, one-piece fine mesh particle drain filter (one-piece and tool-free), 4 leveling feet. Factory-installed drain hose and band clamp, electronic door latch with SpeedVent facilitates quicker drying, detergent dispenser, automatic liquid and rinse aid dispensers with peristaltic pumps, remote email monitoring of washer, CleanPoint monitor saves water, 62 decibels noise level, 6 ml rinse aid solution dispenser senses levels, IQ/OQ available, Ethernet data output

Required components (sold separately):

• Dedicated electrical circuit (select based on model): 20A for single-phase 208/230V, 50/60 Hz; 30A for

• three-phase 208/230V, 50/60 Hz

• Hot water connection with a male ¾-11½ GHT hose fitting

• Recommended inlet water temperature 120° F (49° C)

• Water consumption per fill 3.4 gal (12.9 L)

• Hot tap water pressure of 20-120 psi (138-827 kPa)

• Hot water inlet flowrate of ≥1.25 gpm (4.7 lpm), pure water inlet flowrate ?0.9 gpm (3.4 lpm)

• Optional purified water pressure 0 psi (0 kPa)

Labware Type: Flasks

Door Style: Glass Window

Configuration: Free-Standing

Integral Heater: Yes

Manufactured by: Labconco

Manufacturer SKU: 422101013

Unit of Measure: EA

Marks & Listings: CE, UL, ADA Height

Electrical Specifications: 230 V, 16.5 A, 3 Ph, 50/60 Hz

Weight, Product: 240 lb

Dimensions, Product: 32.2" W x 27.8" D x 32.2" H

Features and Benefits

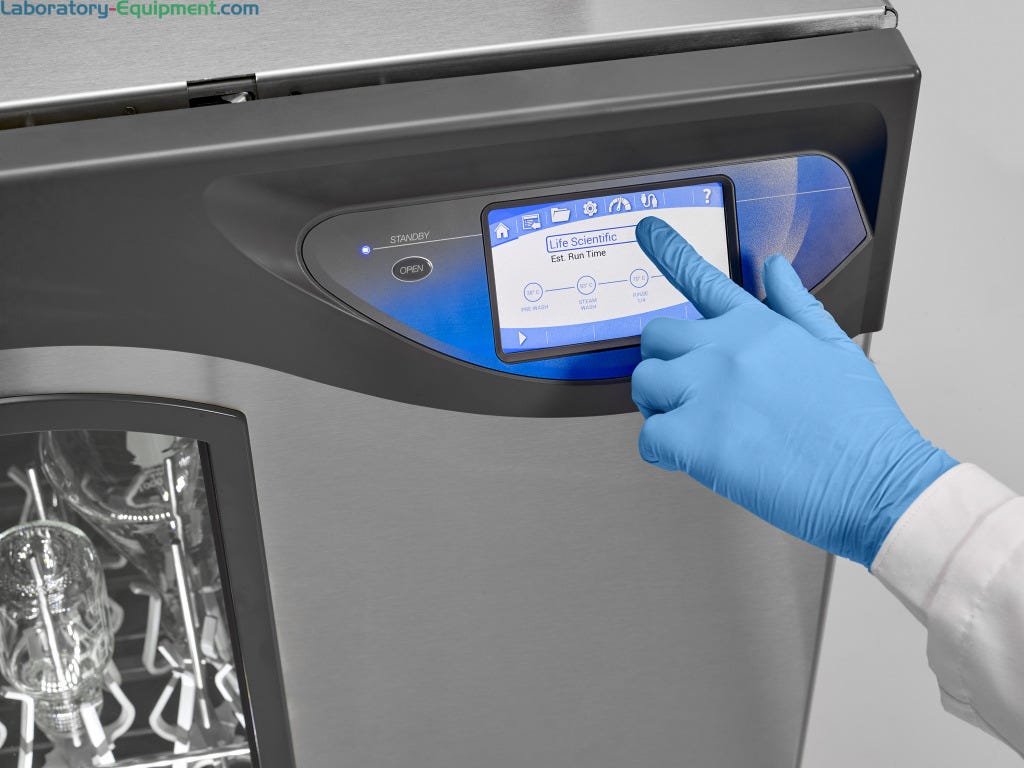

CleanWorks Interface

Intuitive 5” color touchscreen display with CleanWorks interface provides total user control over parameters and settings

Side Compartment

Conveniently houses detergents used in washing narrow-neck lab glassware and flasks

Designed for Narrow-Neck Glassware

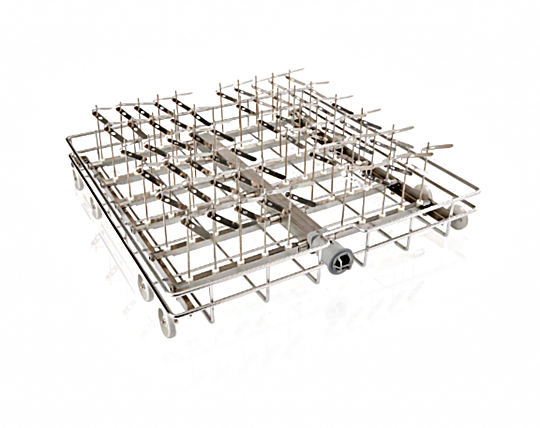

FlaskScrubber Vantage includes a stainless steel lower spindle rack with glass holders for narrow-neck and flasks
