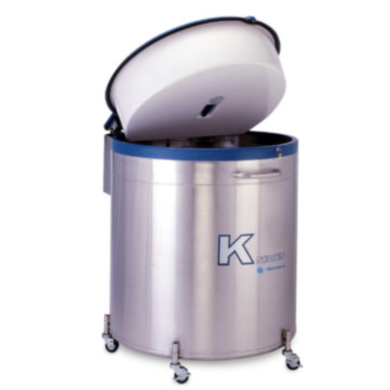

TW K Series 38K Cryostorage Freezer with a 590L and 38350 2ml vial capacity for LN2 sample storage in liquid or vapor phase; controller included in select model
Cryogenic Storage

Cryogenic Storage; 38K Base Unit, 590 L, IC Biomedical

  • TW 38K LN2 storage freezer for liquid or vapor phase provides easy access to stored samples and materials
  • Stainless steel exterior
  • Designed for easy access to stored samples and materials
  • Optional 38K Step Platform available
  • Features intuitive touch controls, modular design and superior vacuum performance

• Vessel Application: Cryogenic Storage

• 2 mL Vial Capacity: 38350

• Model: K Series

• Material: Stainless Steel

• Design: Free Standing

• Lockable: Yes

• Rack System: Optional

• Liquid Nitrogen Capacity: 590 L

• Static Hold Time: 74 days

• Manufacturer SKU: 38K

• Evaporation Rate: 8 L/day

• Neck Diameter: 39" dia.

• Vial Capacity Range: >10,000

• Unit of Measure: EA

Read more
Manufacturer SKU: 38K
Manufactured By: IC Biomedical
Warranty: Five-Year Manufacturer-Warranty
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6900-65
Terra Part # 6900-65
$25,956
Accessories related to Terra Part # 6900-65
47379
Cryogenic Storage; 38K Base Unit, 590 L, IC Biomedical
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Usually ships in 35-40 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • TW 38K LN2 storage freezer for liquid or vapor phase provides easy access to stored samples and materials
  • Stainless steel exterior
  • Designed for easy access to stored samples and materials
  • Optional 38K Step Platform available
  • Features intuitive touch controls, modular design and superior vacuum performance
  • Specifications:
  • LN2 Capacity (L): 590
  • Static Hold Time (Days):73
  • Evap. Rate (Liters/Day): 8.0
  • Necktube Dia. (in): 39.0
  • Internal Height (in): 29.0
  • Internal Diameter (in): 39.0
  • Full (lbs.): 1616
  • Capacity:
  • 2 ml Plastic Vials: 38350
  • # of 100/81 Cell Racks: 28
  • # of 25 Cell Racks: 6
  • # of Shelves N/A: 13
  • Box Shape / Size Vials Per Box: Square 3 x 3/25
  • 0.50cc straws, 10/goblet, 2-13mm goblets/cane, two-tier turn-table inventory control: 114000
  • Blood bag inventory control system and capacity details are available upon request
  • TW 38K model formerly by Taylor Wharton (Worthington Industries)
  • Made in U.S.A.

• Vessel Application: Cryogenic Storage

• 2 mL Vial Capacity: 38350

• Model: K Series

• Material: Stainless Steel

• Design: Free Standing

• Lockable: Yes

• Rack System: Optional

• Liquid Nitrogen Capacity: 590 L

• Static Hold Time: 74 days

• Manufacturer SKU: 38K

• Evaporation Rate: 8 L/day

• Neck Diameter: 39" dia.

• Vial Capacity Range: >10,000

• Unit of Measure: EA

• Electrical Specifications: 120 V

• Weight, Product: 565 lb

• Dimensions, Product: 39" W x 42" D x 49" H

• Weight, Shipping: 605 lb

• Dimensions, Shipping: 48"W x 48"D x 55"H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Workstations & Tables
    Workstations & Tables
  2. Chairs & Stools
    Chairs & Stools
  3. Metro Shelving Systems
    Metro Shelving Systems
  4. Carts
    Carts
  5. Fully autoclavable cryogenic storage box with hinged lid by MTC Bio
    Group of 3 products
    Cryogenic Storage Boxes by MTC Bio From
    As low as $36
    Some ship in 2 - 4 days

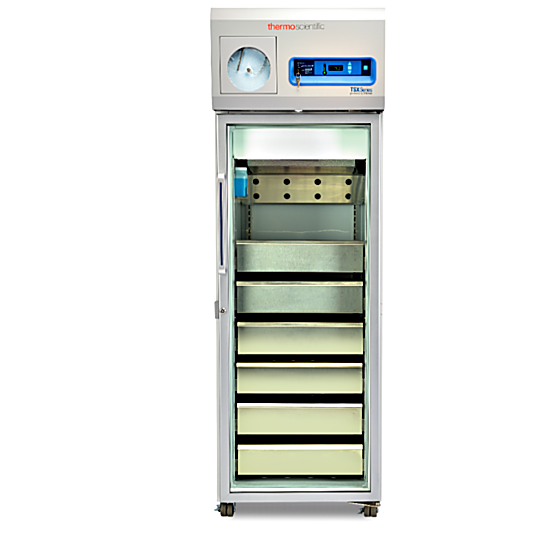

  6. FDA and UL 11.5 cu. ft. TSX HP blood bank refrigerator stores 192 blood bags, meets AABB requirements and V-drive detects usage patterns | 1621-16 displayed
    Group of 4 products
    TSX Series High-Performance Blood Bank Refrigerators by Thermo Scientific From
    As low as $9,576
    Some ship in 10 - 16 days

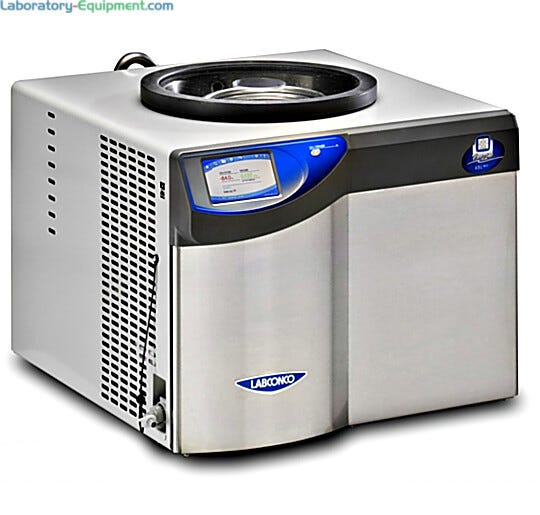

  7. FreeZone 4.5L and 8L -84C Freeze Dryers with aPTFE collector coil by Labconco lyophilize samples with low eutectic points | 6923-32A displayed
    Group of 4 products
    FreeZone 8 Liter -50°C Benchtop Freeze Dryers by Labconco From
    As low as $12,289
    Some ship in 18 - 22 days

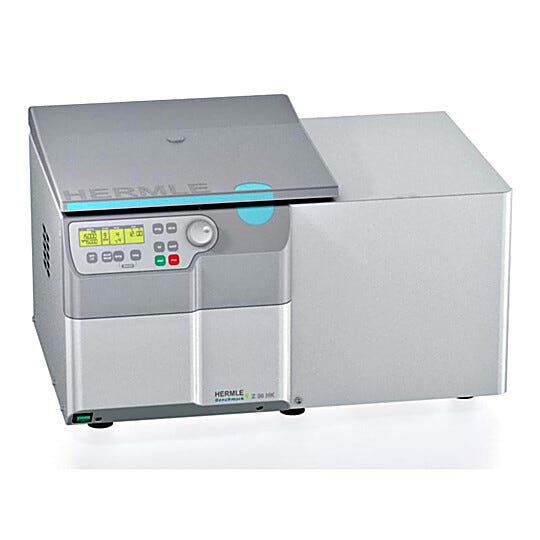

  8. Hermle’s Super Speed refrigerated centrifuge benchtop model | 2824-49 displayed
