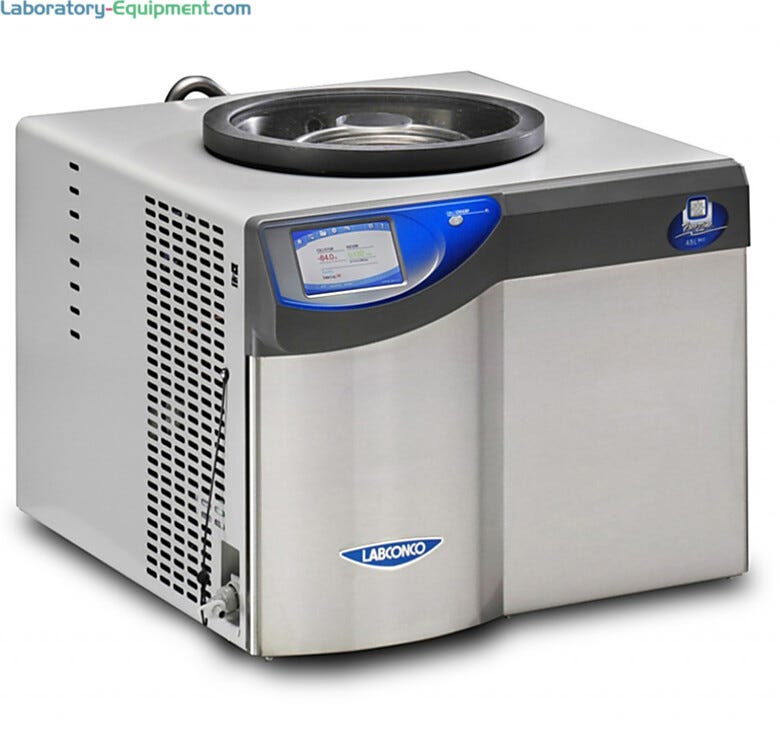

FreeZone 4.5L and 8L -84C Freeze Dryers with aPTFE collector coil by Labconco lyophilize samples with low eutectic points | 6923-32A displayed
Freeze Dryers
Product Group:
6923-PP-05
6923-PP-05

8-Liter FreeZone Benchtop Freeze Dryers by Labconco

Manufactured By: Labconco
Warranty: One-Year Manufacturer Warranty
  • Benchtop 8-L FreeZone Freeze Dryers with Lyo-Works operating system with choice of upright stainless or PTFE-coated stainless steel (for additional corrosion resistance) collector coil and chamber
  • Removes 4-liters of water in 24 hours
  • Refrigerator temperature: -50° C for aqueous samples
  • Requires rotary vane vacuum pump, tray dryers and freeze dry glassware
  • Lyo-Works Operating System: user-friendly 5" capacitive touchscreen, real time display (collector temperature, vacuum level and optional End-Zone detection system), data logging and monitoring, start-up mode for collector cool down, auto or manual vacuum pull-down, up to 30 program storage capacity, USB port and Ethernet connection, useful control icons for included accessories

• Manufactured by: Labconco

• Unit of Measure: of 1

Read more
Manufactured By: Labconco
Warranty: One-Year Manufacturer Warranty
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Material

Sort Order:
Collector Temperature

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part #Price Ships in
115 V PTFE -50°C 700802000 6923-26 $13,712 36-38 Days2
115 V Stainless Steel -50°C 700801000 6923-25 $12,729 36-38 Days3
230 V PTFE -50°C 700802010 6923-26-220 $13,712 36-38 Days4
230 V Stainless Steel -50°C 700801010 6923-25-220 $12,729 36-38 Days5
Voltage
Material
Collector Temperature
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
CONFIGURE & ADD TO CART
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Free shipping in contiguous USA
Some ship in:
Usually Ships in:
Back to product group
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Benchtop 8-L FreeZone Freeze Dryers with Lyo-Works operating system with choice of upright stainless or PTFE-coated stainless steel (for additional corrosion resistance) collector coil and chamber
  • Removes 4-liters of water in 24 hours
  • Refrigerator temperature: -50° C for aqueous samples
  • Requires rotary vane vacuum pump, tray dryers and freeze dry glassware
  • •  Lyo-Works Operating System: user-friendly 5" capacitive touchscreen, real time display (collector temperature, vacuum level and optional End-Zone detection system), data logging and monitoring, start-up mode for collector cool down, auto or manual vacuum pull-down, up to 30 program storage capacity, USB port and Ethernet connection, useful control icons for included accessories
  • Features of benchtop 8L FreeZone Lyophilizers:
  • 8-liter collector capacity for moderate sample loads
  • Material: brushed stainless steel and glacier white powder-coated steel exterior, ¾" thick acrylic collector lid, silicone tubing, neoprene gasket
  • Upright stainless-steel collector chamber for quick and easy defrost
  • Moisture sensor: detects moisture in drain line and prevents refrigeration or vacuum start-up
  • Hot gas defrost with auto shut off at +60° C (+140° F)
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into system when power is shut off; automatic restart if power outage is less than five minutes; will not automatically restart if power outage is more than five minutes and collector warms above safe limits
  • Pump protection: automatically shuts down if 5 mBar is not reached during start up, patented drain line sensor detects moisture (before damaging pump), vacuum break valve prevents oil backstreaming during power outage
  • Conformance: UL Standard 61010-1, CAN/CSA C22.2 No. 61010-1
  • Additional features: HCFC-Free Refrigerant, on/standby switch, ¾" OD vacuum connection, 50" of ¾" ID vacuum hose and two clamps, USB port and Ethernet connection, quick disconnect drain hose fitting, three-wire electrical cord with region-specific plug configurations; rear-mounted electrical receptacle for vacuum pump connection
  • Required: Vacuum pump with a displacement of at least 98 L/min, 0.02 mBar ultimate pressure and fitting suitable for 3/4" ID vacuum hose
  • Options and accessories: Lyph-Seal Tray Dryer (115V or 230V),3" diameter port for connection of drying accessories, freeze dry glassware, FreeZone cart

• Manufactured by: Labconco

• Unit of Measure: of 1

Show more
Features & Benefits

Features and Benefits

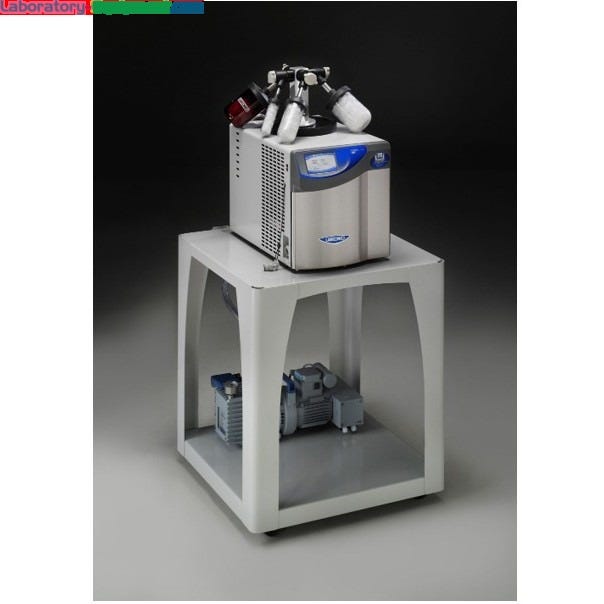

FreeZone Cart

Available cart with a maximum load of 450 lbs. for storage or transport of FreeZone benchtop and Triad freeze dryers; bottom shelf accommodates vacuum pump, and optional caster for easy mobility
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Labconco FreeZone Vacuum Pump

    Labconco Rotary Vane Vacuum Pump for FreeZone

    Compatible with Labconco FreeZone Freeze Dryers, CentriVap Concentrators, and Precise or Protector glove boxes requiring vacuum service.

  • Drying Chamber, 12-port, for FreeZone systems

  • FreeZone Freeze Dry Glasswares by Labconco

    FreeZone Freeze Dry Glasswares by Labconco

    Clear Fast-Freeze Flasks by Labconco, compatible with FreeZone Freeze Dryers, are available in a variety of volume capacities; glass flasks withstand temperatures up to 490º C and include a rubber top, a glass bottom and filter paper.
