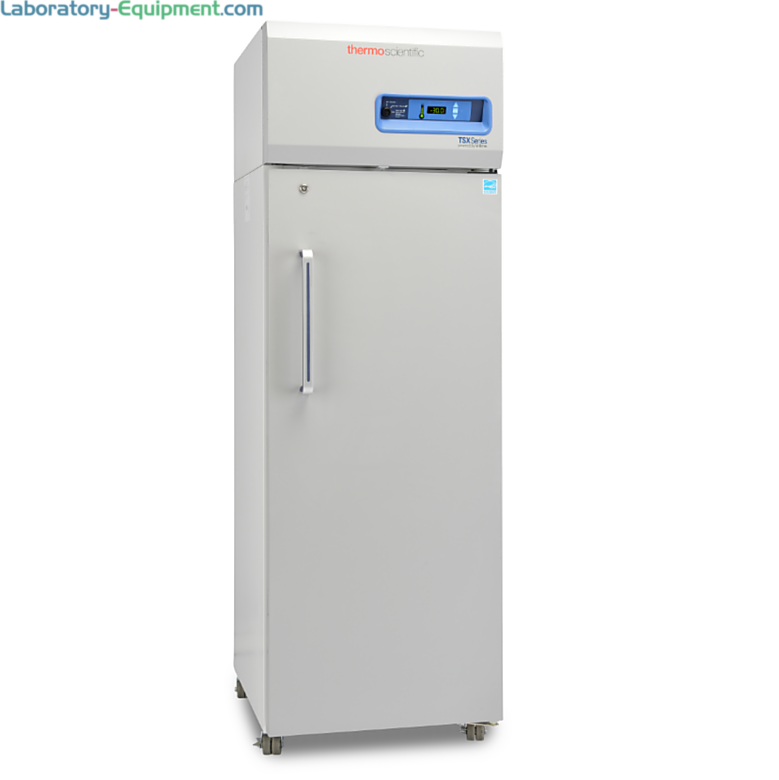

EnergyStar 11.5 cu. ft. freezer with V-Drive and non-invasive automatic defrost includes 4 shelves; stores reagents, vaccines, siRNA and other lab materials | 1621-24 displayed
Low Temperature Freezers,Vaccine Cold Storage Equipment
Product Group:
1620-PP-08
1620-PP-08 77940

TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific

  • Minus 30°C auto defrost freezers with V-Drive for clinical, biological and lab-grade storage
  • Non-invasive automatic defrost feature time and temperature guided cycle
  • Temperature range: -35° to -15°C
  • Suited for storing SARS-CoV-2 virus vaccines requiring a -30°C setpoint
  • Includes shelves and four 2” casters (two lockable)
Read more
cULus Logo ULus Logo Energy Star SNAP Compliant
Manufactured By: Thermo Fisher
Warranty: 2-Years for parts and labor; 8-Years for V-Drive Compressor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Capacity

Sort Order:
Specialty

Sort Order:
Set Point Temperature

Sort Order:
Door Style

Sort Order:
Freezer Temperature Range

Sort Order:
Manufacturer SKU

Sort Order:
Capacity Range

Sort Order:

 Terra Part # Price Ships in
11.5 cu. ft. Auto Defrost -30°C Single Solid -35°C to -15­°C TSX1230FA 9 - 15 cubic feet 1621-24 77943 $7,976 10-16 Days 2
51.1 cu. ft. Auto Defrost -30°C Double Solid -35°C to -15­°C TSX5030FA >24 cubic feet 1621-27 77946 $12,962 10-16 Days 3
23.3 cu. ft. Auto Defrost -30°C Single Solid -35°C to -15­°C TSX2330FA 18 to 24 cubic feet 1621-25 77944 $9,511 10-16 Days 4
29.2 cu. ft. Auto Defrost -30°C Single Solid -35°C to -15­°C TSX3030FA >24 cubic feet 1621-26 77945 $10,354 10-16 Days 5
Capacity
Specialty
Set Point Temperature
Door Style
Freezer Temperature Range
Manufacturer SKU
Capacity Range
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Minus 30°C auto defrost freezers with V-Drive for clinical, biological and lab-grade storage
  • Non-invasive automatic defrost feature time and temperature guided cycle
  • Temperature range: -35° to -15°C
  • Suited for storing SARS-CoV-2 virus vaccines requiring a -30°C setpoint
  • Includes shelves and four 2” casters (two lockable)
  • Features: intuitive microprocessor control with setpoint security and alarms, includes shelves, solid doors, ergonomic door handle, door lock, interior lighting, self-closing door with 90° stop and manufactured in an award-winning zero-waste to landfill facility
  • Stores reagents, pharmaceuticals, biological, siRNA molecules, primers, COVID-19 specimens and fetal bovine serum (FBS)
  • V-Drive technology saves energy and provides maximum protection by detecting door opening and other usage patterns requiring variance of compressor speed for temperature stability required in COVID-19 vaccine development, testing and sample processing
  • Non-invasive auto defrost prevents ice build-up supporting sample protection and sustainability objectives
  • Forced-air circulation delivers temperature uniformity and quick temperature recovery
  • Certifications/Compliance: UL, cUL, SNAP and EnergyStar
  • SNAP Compliant Refrigerants: Natural, R290 refrigerant and water-blown foam
  • GMP Clean Room Class A / ISO 6 (ISO EN 14644-1) compatible with appropriate pre-install preparation
  • Whisper quiet operation: 52 dBA
  • Energy-efficient models use up to 50% less energy usage compared to other models
  • Lower HVAC costs due to less heat emission into the environment*
  • Options: chart recorder, alarm and recorder monitoring, Smart-Vue
  • Also available in 208V-230V freezer models
Show more

Show more

Low Temperature Freezers

  • Compare TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific Comparison chart for TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific
Compare TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific
Compare capacity, rack capacity, included shelves and door configuration for TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific | 1620-PP-08 displayed Comparison chart for TSX Series High-Performance -30°C Auto Defrost Freezers by Thermo Fisher Scientific
Features & Benefits

Features and Benefits

Learn More: Revco Plasma Freezers
Print Copy Copied

Industry and Applications for -30°C Revco High-Performance Plasma Freezers

Lockable doors option available on all Revco Plasma Freezers

Ideal for use in hospitals, physician's offices, blood banks and clinical labs, Revco Plasma Storage Freezers provide reliable short-term and long-term storage of plasma bags and samples. These units are an ideal storage solution for blood banks performing blood separation. The positive airflow system enables optimum temperature stability and models recover factory-preset temperature quickly after door openings.

Safety features such as audio/visual alarms and lockable doors give labs an added layer of safety and security.

Model UFP430A UFP1230A UFP2330A UFP3030A UFP5030A
Type Undercounter Space-Saver Upright Upright Upright
Capacity 4.9 cu. ft./139L 11.5 cu. ft./326L 23.3 cu. ft./659L 29.2 cu. ft./826L 51.1 cu. ft./1447L
Cabinet Type Undercounter Space Saver Upright Upright Upright
Plasma Box
Capacity (250ml)		 78 273 532 665 1064
Drawer Dividers 2 Included 7 Included 7 Included 7 Included 14 Included
Doors/Type Single/Solid Single/Solid Single/Solid Single/Solid Double/Solid
Internal
Dimensions*		 20"W x 20.5"D x 20"H
(508 x 521 x 508 mm)		 20"W x 21"D x 52.4"H
(508 x 533 x 1331 mm)		 24"W x 29"D x 58"H
(610 x 229 x 1473 mm)		 30"W x 29"D x 58"H
(762 x 737 x 1473 mm)		 52.5"W x 29"D x 58"H
(1336 x 737 x 1473 mm)
External
Dimensions		 24"W x 29"D x 34"H
(610 x 734 x 864 mm)		 24"W x 29.3"D x 73.6"H
(610 x 744 x 1869 mm)		 28"W x 37.2"D x 79.2"H
(711 x 945 x 2012 mm)		 36.4"W x 37.2"D x 79.2"H
(925 x 945 x 2012 mm)		 56.5"W x 37.2"D x 79.2"H
(1435 x 945 x 2012 mm)
Plug 5-15P 5-15P 5-20P 5-20P 5-20P
Access Port 1" Access Port - - - -
Inkless
Chart  Recorder		 - Yes Yes Yes Yes
Operating Temp. -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F)
Compressor Heavy-duty, industrial-grade, hermetically sealed
Cabinet/Chamber
Material		 High impact powder paint coating
Defrost Automatic
Insulation CFC-Free
Temp. Control Microprocessor
Refrigerant CFC Free
Compliance Meet UL requirements; TUV criteria; AABB, ANRC, and FDA guidelines
Electrical 115 volts, 60 Hz
Warranty 2-year warranty on parts and labor with an additional 2-years on compressor only
*Height dimensions without caster installation

V-Drive Technology

Quick temperature recovery and energy efficient cold storage for pharmaceutical, vaccines and medical samples

Ergonomic Usage

Ergonomic door handle designed with a soft touch grip

Non-Invasive Defrost

Prevents ice build-up by defrosting freezer without impacting the internal temperature to protect sample integrity
