Select Product

Voltage

Capacity

Temperature Range

Convection Type

Sensor Type

Manufacturer SKU

Terra Part #PriceShips in
120/240 V 1.6 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 H3565-45 2824-69 77969 $4,5323-5 Days2
120/240 V 6.35 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 H3565-180 2824-70 77970 $5,3723-5 Days3
120/240 V 6.35 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 H3565-180HD 2824-71 77971 $6,7163-5 Days4
120/240 V 6.35 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 H3565-180HDO2 2824-72 77972 $9,2363-5 Days5
Voltage
Capacity
Temperature Range
Convection Type
Sensor Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary

Product Details

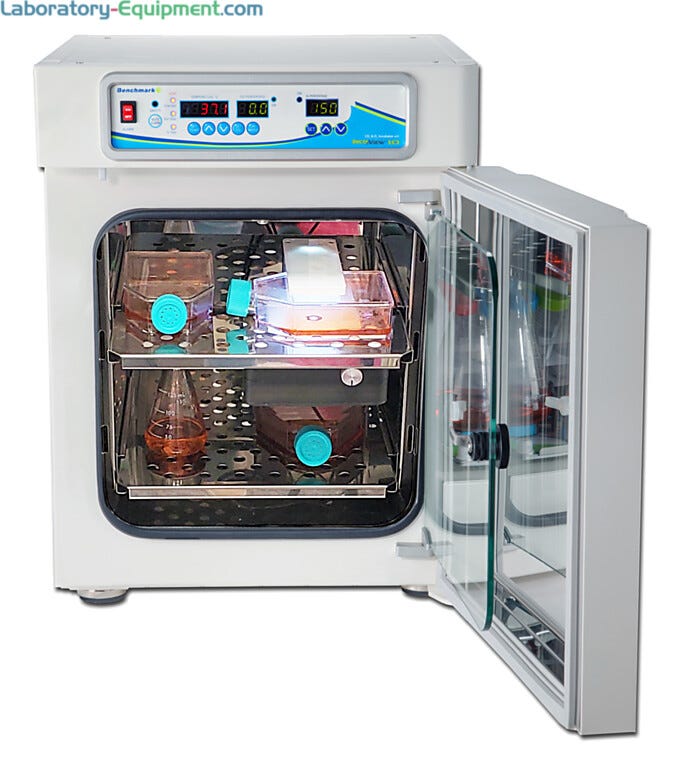

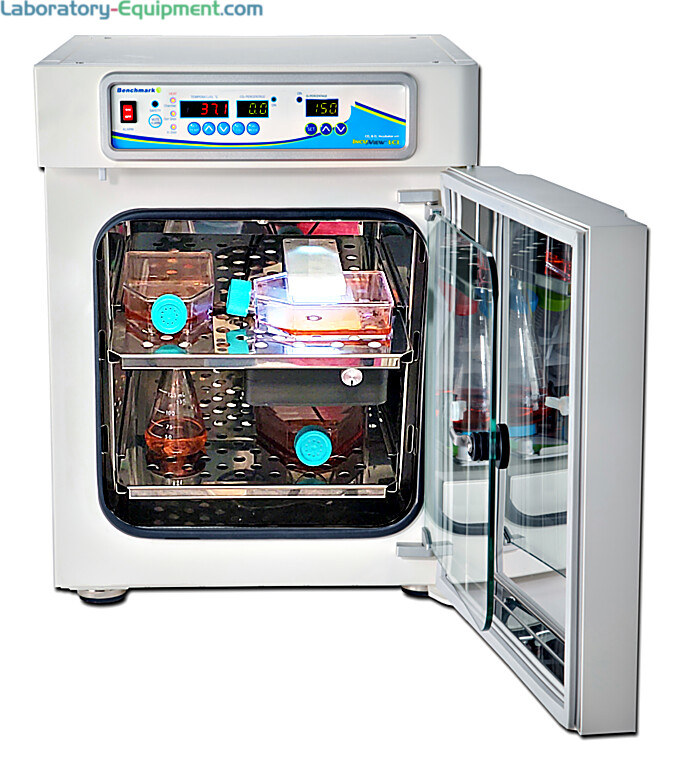

• Provides precise temperature and CO2 control

• Heat distribution system combines six sided heating with a low speed internal fan

• Uniform air circulation throughout the chamber protects environment with minimal temperature fluctuations within 0.1°C

• Seamless Design for easy cleaning with stainless steel rounded chamber

• Models available in 45 Liter and 180 Liter chamber capacity (see specified model features below)

Dual Beam IR Sensor: Infrared CO2 sensor provides accurate measurements and control over the CO2 density

IncuView™ LCI (live cell imaging): first of its kind technology that uses an internal microscope that connects wirelessly to the large external integrated display for real-time cell viewing; cells can also be monitored remotely through WiFi enabled device.

• Cell viewing requires optional IncuView Integrated Microscope shelf (sold separately).

• Microprocessor provides advance monitoring and control for temperature and CO2 percentage, with alarm alerts feature in the event of deviation.

• Temperature Range: Ambient 5° to 60°C

• Temperature Accuracy: ±0.1°C

• Temperature Uniformity: ± 0.4°C

• Temperature Stability: 0.1°C

• Temperature Increments: 0.1°C

• CO2 Range:0 to 20%

• CO2 Increment: 0.1%

• CO2 Accuracy: ± 0.1%

Model H3565-45 (45 liter capacity)

• Chamber Dimensions:13.2" W x 14.2" D x 15.4" H (33.5 x 36.1 x 39.2 cm)

• Exterior Dimensions: 16.5" W x 18.3" D x 21.8" H (42 x 46.5 x 55.3 cm)

• Weight: 77 lbs (35kg)

• Power Consumption: 300W

Model H3565-180 (180 liter capacity)

• Chamber Dimensions: 18.7" W x 20.8" D x 28" H (47.3 x 52.8 x 71 cm)

• Exterior Dimensions: 22" W x 26.2" D x 37.2" H (56 x 66.5 x 94.5 cm)

• Weight: 172lbs (78kg)

• Power Consumption: 420W

Model H3565-180HD (180 liter capacity)

• Feature high heat decontamination cycle that exposes the chamber to 125°C for 8 hours to eliminate the risk of unhealthy cells.

• Chamber Dimensions: 18.7" W x 20.8" D x 28" H (47.3 x 52.8 x 71 cm)

• Exterior Dimensions: 22" W x 26.2" D x 37.2" H (56 x 66.5 x 94.5 cm)

• Weight: 172lbs (78kg)

• Power Consumption: 700W

Model H3565-180HDO2 (180 liter capacity)

• Features unique 6 Compartments design with a split inner glass door for easy sample access that eliminates opening the entire door, reducing the risk of sample contamination.

• High Heat Decontamination cycle that exposes the chamber to 125°C for 8 hours to eliminate the risk of unhealthy cells.

• Chamber Dimensions: 18.7" W x 20.8" D x 28" H (47.3 x 52.8 x 71 cm)

• Exterior Dimensions: 22" W x 26.2" D x 37.2" H (56 x 66.5 x 94.5 cm)

• Weight: 172lbs (78kg)

• Power Consumption: 700W

• O2 range:0.5 to 20%

• O2 Accuracy: ±0.3%

Incubators

  • SureTherm CO2 Incubators by Benchmark Scientific SureTherm CO2 Incubators by Benchmark Scientific
SureTherm CO2 Incubators by Benchmark Scientific

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Stainless Steel Incubator Shelf
    Additional shelf for 45 liter and 180 liter SureTherm CO2 incubators.
  • SureTherm Incubators Stacking Kits
    Stacking Kits available for both 45 liter and 180 liter incubators.
  • H2300 Regulator by Benchmark Scientific
    Optional regulators, required for connecting CO2 or O2 source
