120 V General Protocol Stainless Steel 2.6 cu. ft. Ambient +5°C to 75°C Gravity Heratherm 51028063 <6 cubic feet 1799-89 54365 $2,269 5-7 Days 2
Ships Free Free shipping in contiguous USA In stock
120 V General Protocol Stainless Steel 4 cu. ft. Ambient +5°C to 75°C Gravity Heratherm 51028064 <6 cubic feet 1799-91 54366 $2,815 5-7 Days 3
Ships Free Free shipping in contiguous USA In stock
120 V General Protocol Stainless Steel 6.8 cu. ft. Ambient +5°C to 75°C Gravity Heratherm 51028065 6 to 12 cubic feet 1799-93 54367 $3,336 5-7 Days 4
Ships Free Free shipping in contiguous USA In stock
Voltage
Type
Material
Capacity
Temperature Range
Convection Type
Model
Manufacturer SKU
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

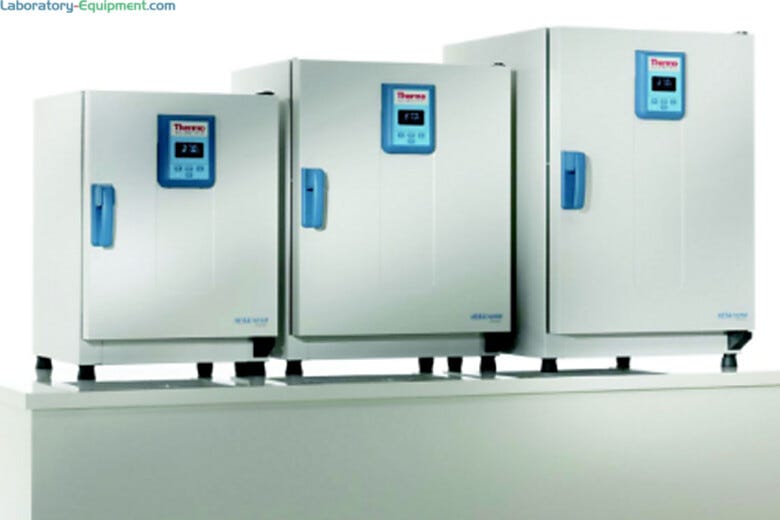

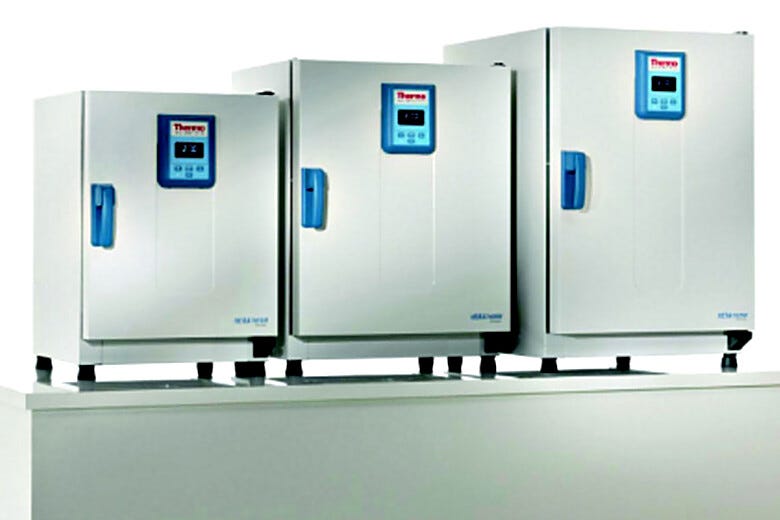

  • Benchtop and large capacity Heratherm General Protocol Microbiological Incubators with gravity convection for gentle heating without drying out samples
  • Ideal for use in biological, pharmaceutical, clinical, food and general research applications
  • Stainless steel interior with rounded edges simplifies cleaning
  • Intuitive interface and large vacuum fluorescent display
  • High degree of temperature uniformity, stability and accuracy
  • Includes two removable shelves (additional shelves sold separately)
  • Incubator units include 2 shelves, see product descriptions for max shelf accomodation

Incubators

  • Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
  • Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
  • Heratherm Large Capacity General Protocol Microbiological Incubators Heratherm Large Capacity Microbiological Incubators
  • Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific Thermo Scientific Microbiological Incubators
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific
Features & Benefits

Features and Benefits

Learn More: Incubator Specifications

Industry Applications for Heratherm General Protocol Microbiological Incubators

  • Clinical and Medical labs: microbiological diagnostic testing
  • Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
  • Food: screening for bacteria contaminants
  • Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins
Model 51028063 51028064 51028065
Chamber Volume 2.6 cu. ft. (75L) 4.0 cu. ft. (117L) 6.85 cu. ft. (195L)
External Dimensions 22.2"W x 20.9"D x 28.3"H
(565 x 530 x 720 mm)
25.2"W x 32.3"D x 22.2"H
(640 x 820 x 565 mm)
25.2"W x 36.2"D x 29.1"H
(640 x 920 x 738 mm)
Internal Dimensions 16.3"W x 13.9"D x 20"H
(414 x 354 x 508 mm)
18.3"W x 23.9"D x 16.3"H
(464 x 608 x 414 mm)
18.3"W x 27.9"D x 23.2"H
(464 x 708 x 589 mm)
Footprint 3.2 sq. ft. (0.3m2) 3.9 sq. ft.(0.9m2) 5.1 sq. ft. (0.47m2)
Number of Shelves 2 included (13 max) 2 included (16 max) 2 included (19 max)
Max Shelf Load 55 lbs. (25kg) 55 lbs. (25kg) 65lbs. (30kg)
Rated power 300 Watts 540 Watts 720 Watts
Max Current 2.5 amps 4.5 amps 6 amps
Energy Consumption
at 37°C
21 Watts 26 Watts 31 Watts
Temperature Range Ambient +5° to 75°C
Convection Technology Gravity Convection
Spatial Temperature Deviation ± 0.6°C at 37°C (uniformity)
Electrical (plug standard) 100 - 240 50/60hz (NEMA 5-15)
Temperature Deviation Over Time (Stability) ± 0.2°C
Interface RS232
Certifications/Compliance cCSAus, CE
Warranty Two-Year Manufacturer Warranty
Standard Features Rounded corners, microprocessor control, automatic Overtemperature alarm, access port, stackable, stainless steel interior, RS232 interface, internal glass door, easy calibration routine

Large Capacity Heratherm Microbiological Incubator Small, Left Access Port

Small Access Left Port (0.94” diameter) compatible with Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific: 1711-46 Large Access Left port with 2.28” diameter also available.

Heratherm Large Capacity Microbiological Incubator Top Access Port

Top Access Port for Heratherm Large Capacity Microbiological Incubators.

Rounded Inner Chamber Corners

Heratherm Microbiological Incubators by Thermo Fisher Scientific feature a corrosion-resistant stainless steel inner chamber with rounded corners for easy cleaning

Adjustable Shelving System

Thermo Fisher Scientific designed Heratherm Microbiological Incubators with an adjustable shelving system for optimum storage capacity; additional stainless steel perforated shelves are sold separately.

Fluorescent Vacuum Display

Heratherm Series Microbiological Incubators by Thermo Fisher Scientific feature a vacuum fluorescent display that shows temperature setting and timer

Internal Duplex Outlet

Internal socket connects electrical devices such as stirrers and shakers.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • SS Perforated Shelves for Heratherm Microbiological Incubators

    2.3 cu. ft. Heratherm Advanced Protocol Security Microbiological Incubators accommodate a maximum of 13 shelves with a 55 lb. shelf load; additional shelf sizes available.
  • Particle filter for External Sample Sensor

    Particle Filter for External Sample Sensor ensures compliance by providing independent verification of sample temperatures; compatible with all Heratherm Advanced Protocol Microbiological Incubators.
  • Fresh Air Particle Filter for Heratherm Microbiological Incubators

    Fresh Air Particle Filter reduces contaminants and maintenance by filtering fresh air into Heratherm Advanced Protocol Security Microbiological Incubator prior to heating.
