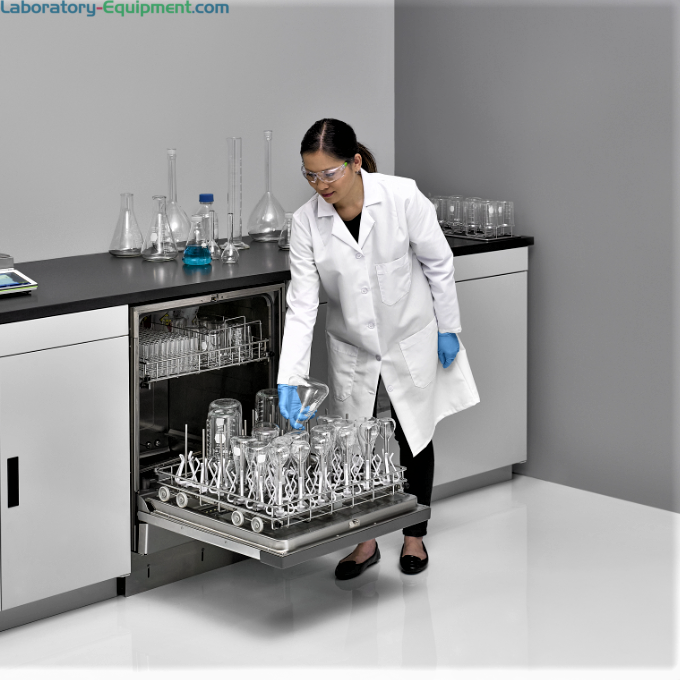

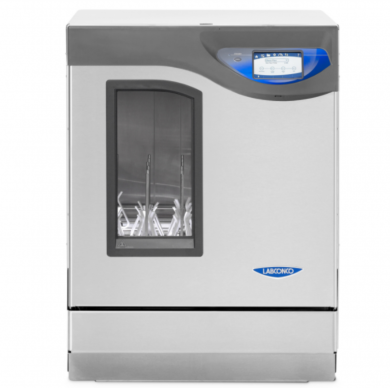

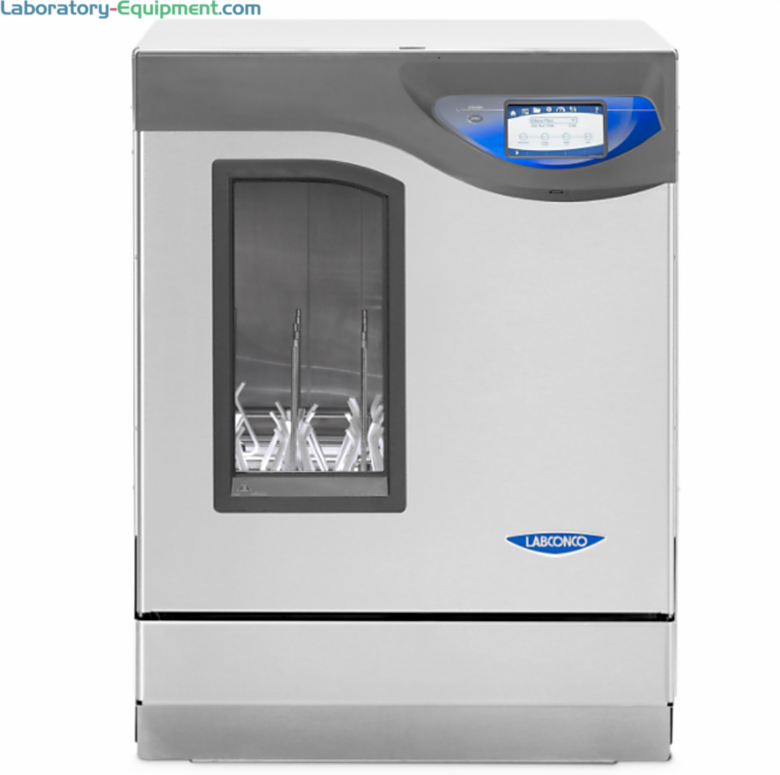

• ADA undercounter Labconco labware washer with viewing window and LED light heats up to 199° F (93° C)
• SteamScrubber model for beakers and wide-neck lab glassware includes upper and lower racks
• Features: CleanWorks OS, steam generator, dual pumps, rack options, SpeedVent Technology shortens drying time, robust heating, 5” color touchscreen interface, four leveling feet, factory-installed drain hose and band clamp, clear and specific alarm displays, USB output, user-configurable delayed start up to 12 hours, self-diagnostics, detergent dispenser (powder or liquid), IQ/OQ protocol
• Water temperature: 199° F (93° C
• Requires dedicated 20A circuit
• Factory-set programs: rinse only, plastic, glass, glass plus, life scientific, analytical, dry only, eco wash, clean washer
• Calibratable setpoints: temperature, fill volume an detergent dispensing
• Security: password protection protects from unauthorized changes
• Material: 304 stainless steel door, tank and racks, glass, aluminum-back insulation and fiberglass thermal blanket
• Region: U.S. and Canada
• Particle drain filter: one-piece fine mesh stainless steel
• Pump at 96 gal/min (363 L/min) for 115V models
• Synchronous drain pump: up to 4.2 gal/min (16 L/min)
• Forced air drying: programmable up to 240 minutes and from 25-80° C (77-176° F)
• Purified water pump brings non-pressurized purified water into tank (up to eight pure water rinses
• Rinse aid solution dispenser: Level-sensing 6ml
• Noise level: 62 dBA
• Conformance: UL Standard 61010-1, CAN/CSA C22.2 No. 61010-1, CE Conformity marking (230V, 50/60 Hz models), conforms with ADA-height casework
• Required components (sold separately):
• Dedicated electrical circuit: 20A
• Hot water connection with a male ¾-11½ GHT hose fitting
• Recommended inlet water temperature 120° F (49° C)
• Water consumption per fill 3.4 gal (12.9 L)
• Hot tap water pressure of 20-120 psi (138-827 kPa)
• Hot water inlet flowrate of ≥1.25 gpm (4.7 lpm), pure water inlet flowrate ?0.9 gpm (3.4 lpm)
• Optional purified water pressure 0 psi (0 kPa)
• Accessories (sold separately): base stand, upper and lower standard and spindle racks, baskets and inserts, freestanding-to-mobile conversion kits, glassware holders, LabSolutions detergents and rinse, Drain Water Cooling Kits, WaterPro® RO System
