3030-45
Terra Part # 3030-45
Request Quote
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Terra Part # 3030-45
60761
Request Quote
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Features and Benefits

Integrates with Many Lab Equipment

Main Features of SoftLinx Automation Software

Intuitive Interface

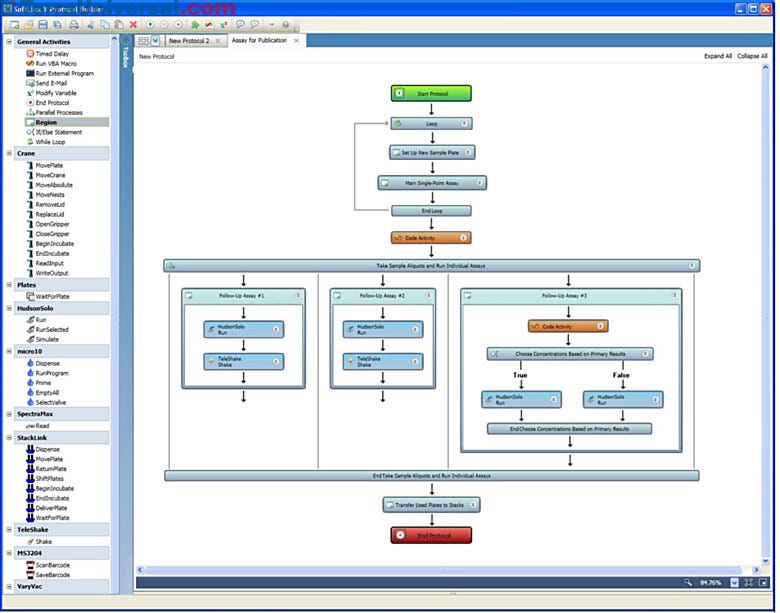

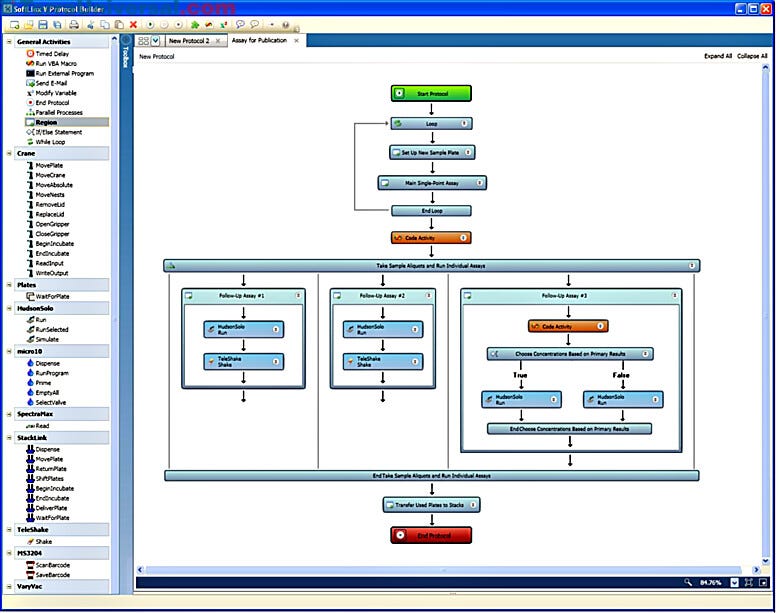

The easy-to-use interface features a drag-and-drop flowchart-like interface allowing lab programmers to create and/or customize new protocols by adding and deleting individual steps. A series of independent or interdependent methods can also be defined.
Flexible Programming
SoftLinx converts large integrated systems into a combination of small virtual workcells. This automated software allows the user to program select lab instruments currently needed for a specific operation. SoftLinx also allows users to start and run additional methods (even while another method is running) , using the same instruments, whether pre-planned or not.
Convenient Scheduling
SoftLinx promotes an efficient lab by synchronizing the operation of various instruments with a scheduling feature that allows the run of complex protocols. SoftLinx will deploy liquid handling robots, run any instrument independently, or maximize the productivity of certain programmed protocols while a particular lab instrument is unavailable.
Predictive
SoftLinx has a “simulate” mode that provides a graphical display of plate movement timing allowing programmers to build and edit protocols prior to an actual run with the instrument.
Features of SoftLinx Automation Software
  • Multi-tasking executable program with built-in dynamic scheduling
  • Connectivity to > 100 lab automation devices with Hudson-supplied interfaces
  • Icon-based drag-and-drop configuration and method editing
  • Individual icons for each connected laboratory instrument
  • Capable of simultaneously executing multiple method threads and multiple methods
  • Simple “VCR”-type buttons for starting and stopping methods
  • Real-time display of all workcell actions during operation of the system
  • Supports full recovery from unscheduled shutdowns or interruptions
  • Superior context sensitive help system
  • Encrypted password entry and password change feature for all users
  • Multi-level user access and permissions
  • Data Audit trail to log all user-permitted actions
  • Allows operators to add plates to a run already in progress
  • Supports parallel assays, resulting in higher throughput
  • Facilitates accurate event timing, such as incubation periods
  • Complex methods can be built using functions, such as loops, if-then statements, math and string functions, and timers for incubations.
  • 21CFR Part 11 compatible
List of SoftLinx Integrations
Below is the latest available list of laboratory instruments that can be integrated with SoftLinx Automation Software.

Advanced Liquid Handling Systems Flow Cytometers Misc. Integrations
Bar Code Readers & Printers High Content Screening Multi-Mode Plate Readers
Basic Liquid Handling & Pipetting Stations QPCR/Thermocyclers Other Readers
Balances Incubators/Freezers Plate Sealers
Centrifuges Liquid Dispensers Scintillation & Luminescence Counters
Microplate Washers
