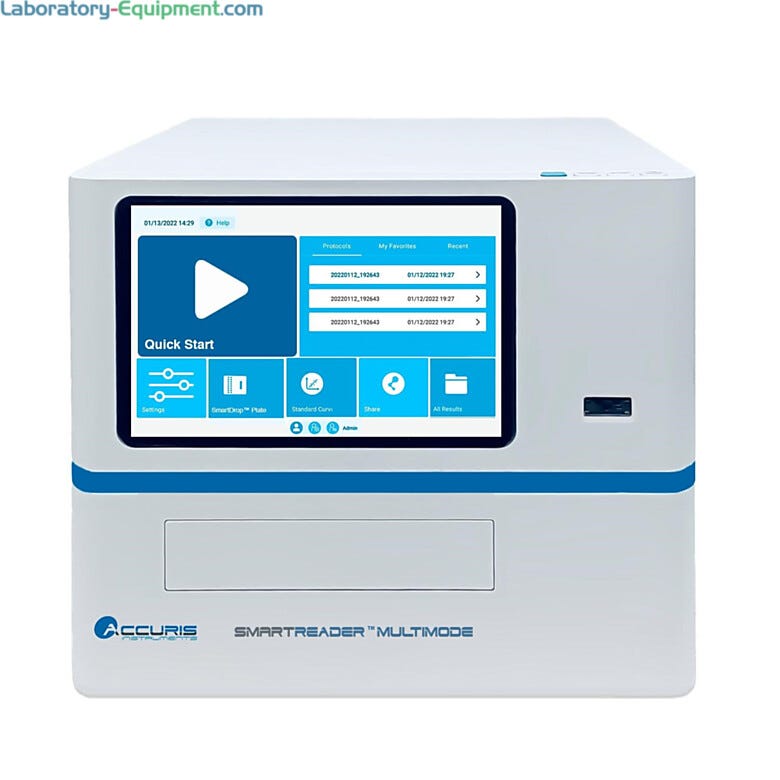

SmartReader Multimode Microplate Reader by Accuris accepts various well-plates for absorbance, luminescence and fluorescence applications | 2824-PP-09 displayed
Microplate Equipment
Product Group:
2824-PP-09
2824-PP-09 83714

SmartReader Multimode Microplate Readers by Benchmark Scientific

  • Intuitive SmartReader Multimode Microplate Readers with a 10” touchscreen for UV-visible absorbance, fluorescence (FI, FRETF), and luminescence (Glow, Flash) applications
  • Stand-alone system ideal for growing needs of advanced life science labs
  • Processes assays in standard 96-well plates and accepts 6-, 12-, 24-, 48- and 381-well plates
  • Built-in plate shaker with linear, orbital, and double-orbital shaking modes; incubator for top heating from ambient +4°C to 45°C
  • Includes: three filter modules
Read more
Manufactured By: Benchmark
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
115 V SmartReader MR9620 2824-86 83715 $22,800 2-4 Days 2
Ships Free Free shipping in contiguous USA
230 V SmartReader MR9620-E 2824-85 83717 $22,800 2-4 Days 3
Ships Free Free shipping in contiguous USA
Voltage
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Intuitive SmartReader Multimode Microplate Readers with a 10” touchscreen for UV-visible absorbance, fluorescence (FI, FRETF), and luminescence (Glow, Flash) applications
  • Stand-alone system ideal for growing needs of advanced life science labs
  • Processes assays in standard 96-well plates and accepts 6-, 12-, 24-, 48- and 381-well plates
  • Built-in plate shaker with linear, orbital, and double-orbital shaking modes; incubator for top heating from ambient +4°C to 45°C
  • •  Includes: three filter modules
  • Top heating prevents condensation during use of microplates with lids
  • Self-diagnostic test upon startup followed by automatic system calibration ensures consistent results of a wide range of assays
  • Data transfer: export files via XLS or SCV via flash drive, FTP server or optional PC software
  • Optional PC Software for remote programming and operation via cable connection, Automatic Injection Modules
  • Equipped with high-performance optical systems
  • Windows compatible
  • Specifications:
  • Measurement Technologies: Absorbance, Fluorescence, Luminescence
  • Display: 10” LCD color touchscreen display
  • Plate Formats; 6, 12, 24, 48, 96 & 384-well microplates
  • Shaking (low, medium, high): Linear (4.7 Hz, 7.0 Hz, 13.5 Hz), orbital, and double orbital (240 – 1200 rpm)
  • Incubation Range: RT +4 °C to 45 °C
  • Temperature uniformity: ± 0.5°C @ 37°C
  • Communication Ports: 2 USB A type ports / 1 USB B type port, 1 Ethernet port, RS232 interface (AIM connection)
  • Data capacity: 10GB
  • UV-Visible Absorbance:
  • Applications: ELISA Assays, Colorimetric Assays (Bradford, Lowry, etc.), Enzyme Kinetics, Spectral Scanning, DNA and RNA Analysis, and more
  • Monochromator-based
  • Light Source: High Energy Xenon Flash Lamp
  • Detector: Photodiode
  • Wavelength Accuracy: 2 nm
  • Wavelength Repeatability: 0.2 nm
  • Bandwidth (FWHM): > 2.5 nm
  • Wavelength Range: 200 – 1000 nm, 1nm steps
  • Absorbance: 0.0 – 4.0 OD
  • Resolution: 0.0001 OD
  • Accuracy @ 450nm: 96-precision mode; ± (1.0 %+0.003Abs) @ (0.0-2.0Abs]; ± 2.0 % @ (2.0-3.0Abs]
  • Repeatability @ 450nm: CV < 1.0 % or SD< 0.003 Fast; (0.0-3.0Abs]; CV < 0.5 % or SD< 0.003 Accurate; (0.0-3.0Abs]
  • Stray Light: 0.1 % @ 220 nm
  • Stability @ 450nm: < 0.005 Abs (0.0 - 2.0 Abs], < 2% (2.0 - 3.0 Abs]
  • Linearity @ 450nm: R2 > 0.999 @ [0.0-3.0Abs]
  • Measurement Speed: 96 well: Fast mode: < 15 s; Precise Mode < 28 s
  • Fluorescence:
  • Included Filter Cartridges: (EX / EM): 470 / 525nm; 523 / 564nm; 624 / 692nm
  • Reading Mode: Top Reading
  • Excitation Light Source: High Energy Xenon Flash Lamp
  • Detector: Photo Multiplier Tube (PMT)
  • Detection Limit: ≤ 1 pM
  • Wavelength Range: EX: 200 – 1000 nm; EM: 270 – 850 nm
  • Linear Dynamic Range: 6 logs
  • Luminescence:
  • Detector: Photo Multiplier Tube (PMT)
  • Detection Limit: 15 amol / well
  • Linear Dynamic Range: 6 logs
  • Crosstalk: ≤ 0.005%
  • Available Accessories:
  • Automatic Injection Module #MR9620-AIM
  • SmartDrop Accessory Plate #MR9610-SDP
  • SmartReader PC Security Software (21 CFR Part 11 Compliant) #MR9620-CFR
Show more

Show more
Features & Benefits

Features and Benefits

Well-Plate Capacity

Processes assays in standard 96-well plates and also accommodates 6, 12, 24, 48 and 384 well plates

Fluorescence

Includes three bar-coded filter modules for most common excitation and emission wavelengths needed for fluorescence assays; automatic loading of wavelength data

Luminescence

Processes flash and glow assays and an optional photo multiplier tube enhances sensitivity of weak signals and prevents strong saturation of strong signals for an ideal detection range

Data Transfer and PC Software

Included USB flash drive enables XLS or CSV file transport, and software allows remote programming and operation via a cable connection; optional FDA 21 CFR Par

SmartDrop Accessory Plate by Accuris, #MR9610-SDP

Accuris SmartDrop Accessory Plate for fast UV Absorbance of up to 16 nucleic acid and protein sample droplets; for use with SmartReader Series Microplate Readers
