- Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8
- 100% stainless steel filter fan unit emits a continuous flow of HEPA/ULPA-filtered air from the ceiling
- Unit includes double-wall construction, which triples product lifespan and totally eliminates cleaning of accessories
- Biosafe design exceeds USP <797> and <800> standards for sterile drug compounding
- Air return slots along the bottom of the chamber circulate air back through the HEPA/ULPA filter
- CleanMount design allows for installation without drilling and prevents cleanroom shutdown for rapid servicing or replacement
6705-PP-03
6705-PP-03 71477
Smart® CleanMount® Pass-Throughs with Recirculating HEPA/ULPA Filtration
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details

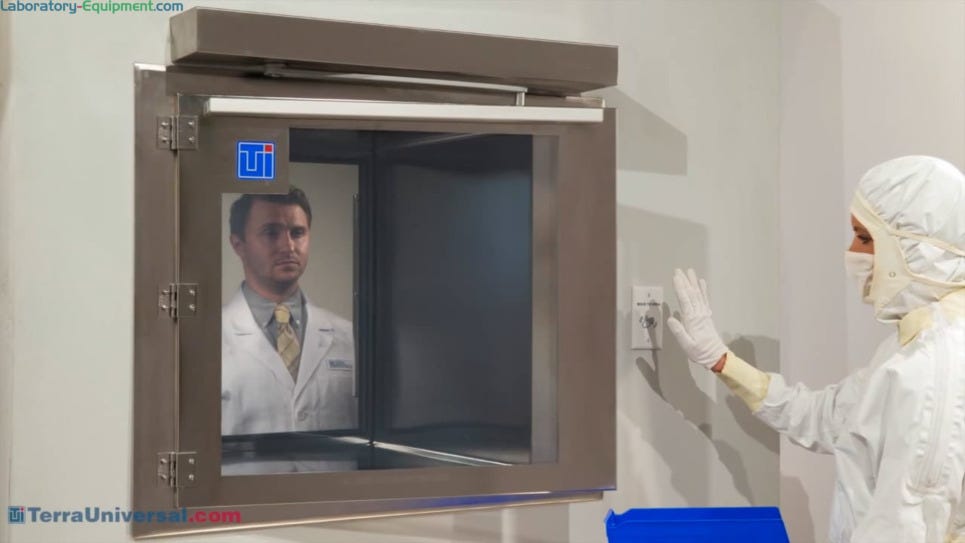

Watch Terra's Smart Pass-Through Video- Smart® Pass-Through Chambers by Terra Universal

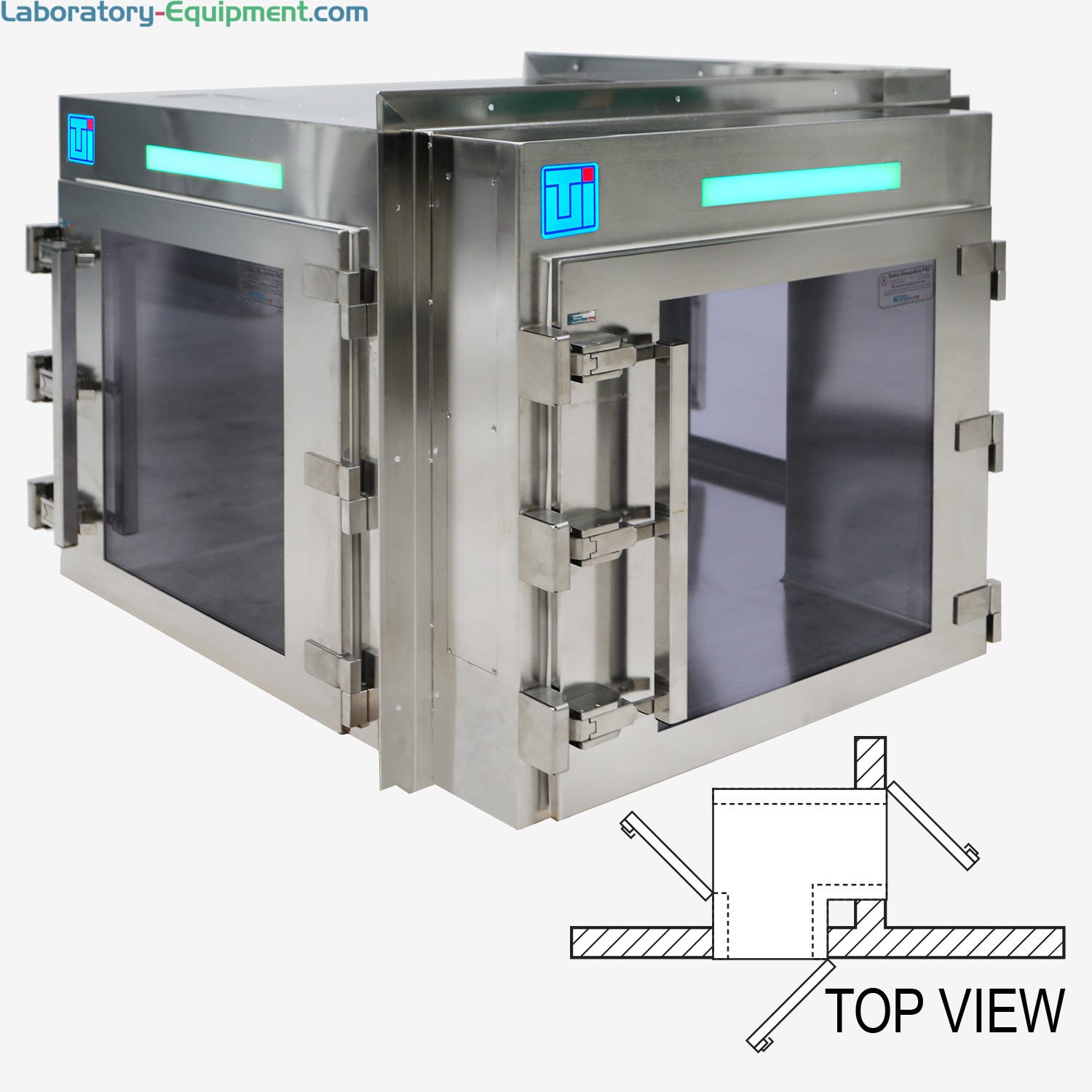

- Smart® Pass-Through with "T" Shape 3-Door Design for USP 800 Hazardous Compounding
- Hands-Free, Automatic Pass-Through Door
- Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H
- of 14Start Over

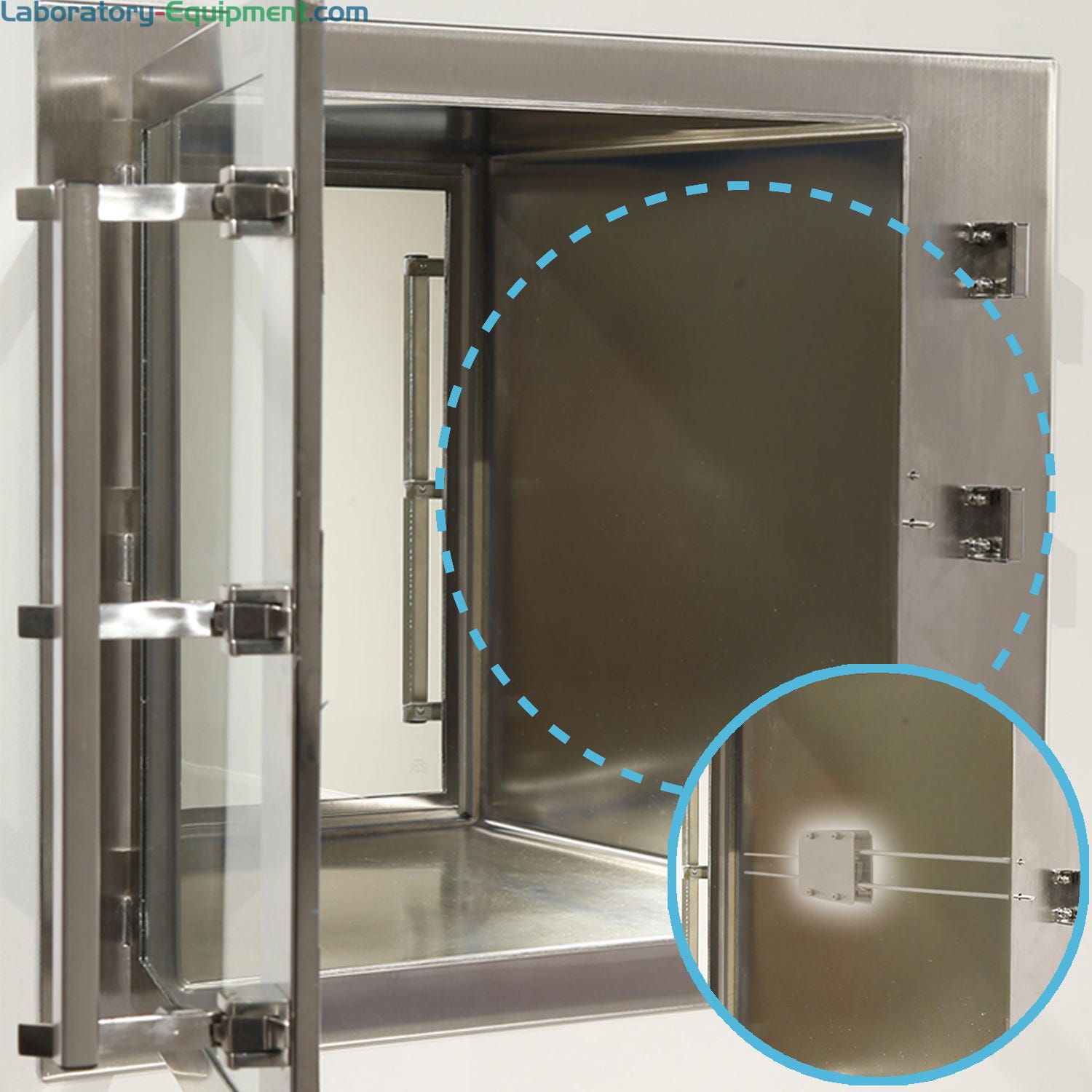

Smart Passthroughs have an electronic interlock and are double-walled, tripling product lifespan and eliminating cleaning value-added accessories. Watch Terra's Smart Pass-Through Video Cleanroom passthrough with smart control system reduces foot traffic, improve cleanliness, safety, productivity and much more. Hidden electronic interlock allows only one door to open at a time to prevent cross-contamination.
Features & Benefits
Features and Benefits
Durable Double Wall Construction
BioSafe double-wall construction triples unit lifespan and totally eliminates cleaning of accessories
Lift-Off, Non-Shedding Door Hinges
Non-shedding, barrel-type door hinges allow the doors to lift off for thorough cleaning and decontamination (no tools required). Unlike industry standard continuous designs, these hinges comply with strict ISO levels.

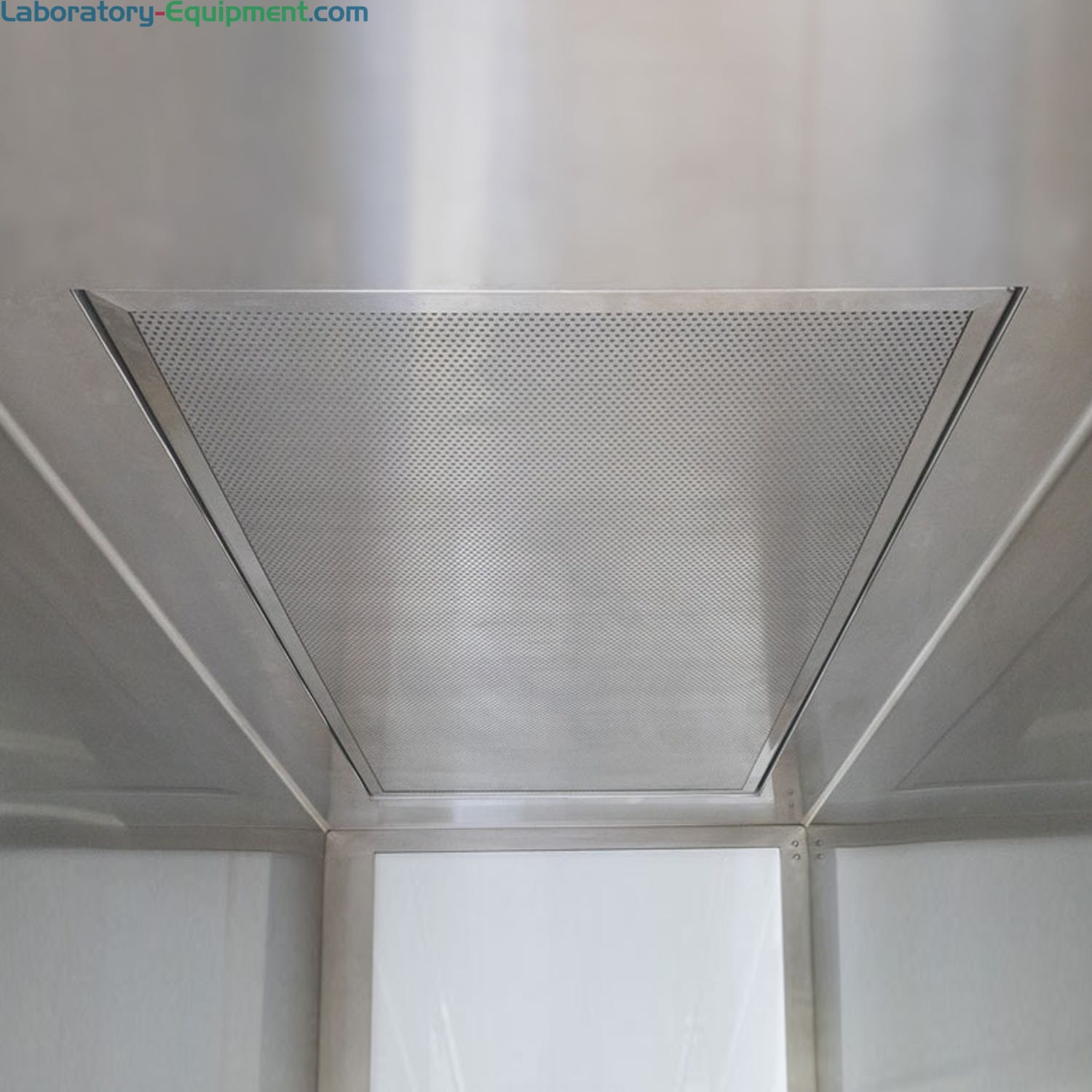

All Stainless Steel FFU with Removable Filter Replacement Screen
The pass through includes an all-stainless steel filter fan unit with a screen for easy HEPA filter replacement. The screen is held in place by double roller catches, which allow the screen to be easily popped out of the ceiling to access the HEPA filter.
Recirculating HEPA Filtration Diagram
By recirculating the interior air, airborne particles are rapidly removed by successive passes through the HEPA filter. Recirculation also minimizes pressure buildup that can cause leakage into an adjacent positive-pressure cleanroom.
Smart® Cleanroom Pass-Through with Full-Glass Doors
Hygienic and damage resistant full tempered glass doors are specifically designed for healthcare, pharmaceutical, and GMP manufacturing applications to help achieve FDA compliance. The outside surface of the tempered glass door is frameless to minimize cracks and crevices where particulates or microbes can colonize.
Air Return Slots for Recirculating HEPA Filtration
Air return slots along bottom interior of the cleanroom passthrough cabinet circulate air back through the built-in fan and HEPA filter to remove airborne particles inside the chamber.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Pass Through Racks
Designed to be installed into any pass through. Install these racks within minutes with no special tools. Simply tighten a compression screw. Forgot to order racks before? No problem!-

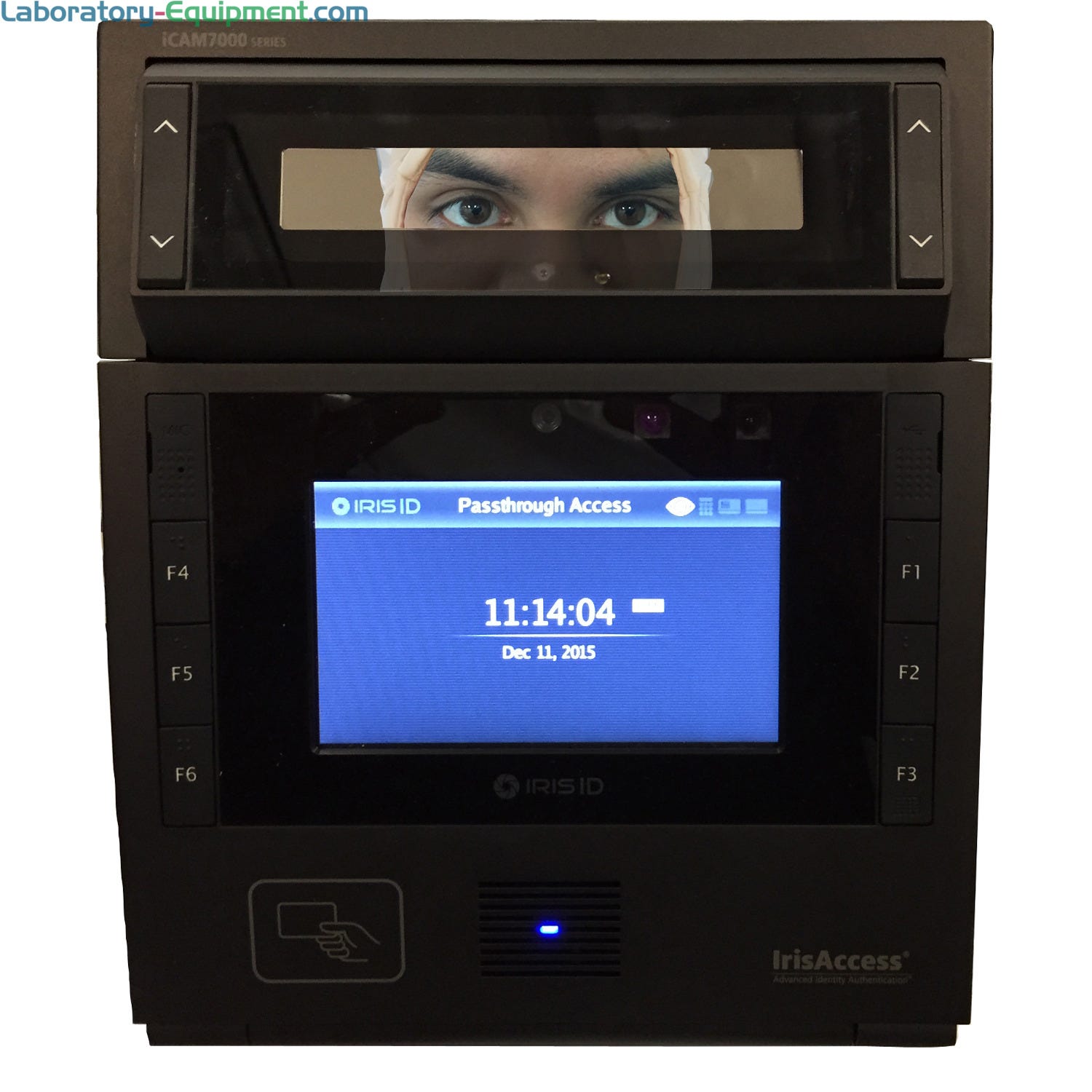

Iris Scanner
Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader). -
Intercom System
Built-in intercom system lets users easily call and communicate between rooms. No more knocking on windows, shouting, or awkward sign language. -

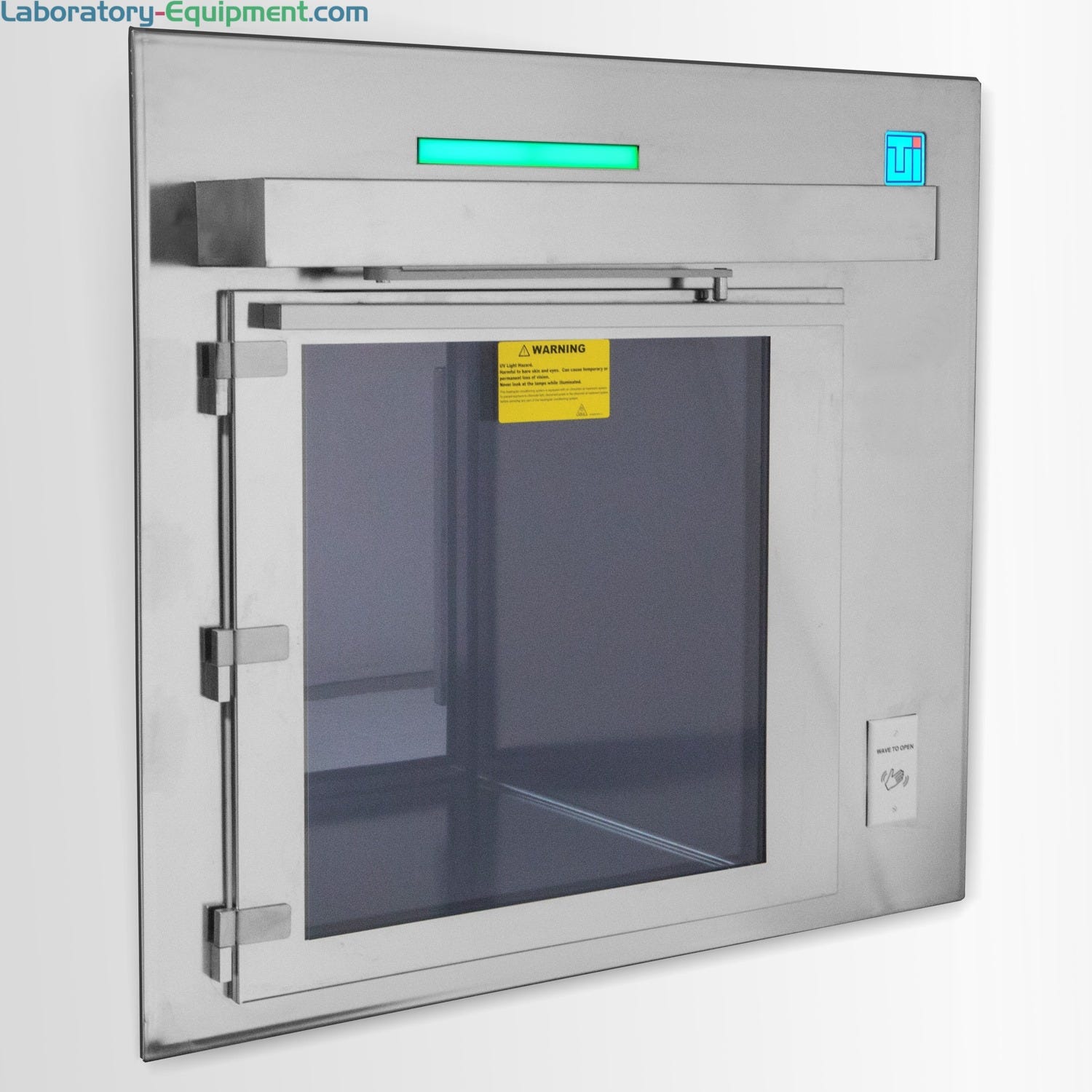

Automatic Door
Hands-free operation of the pass-through door, governed by the electronic interlock; automatically closes based on delay timer. -

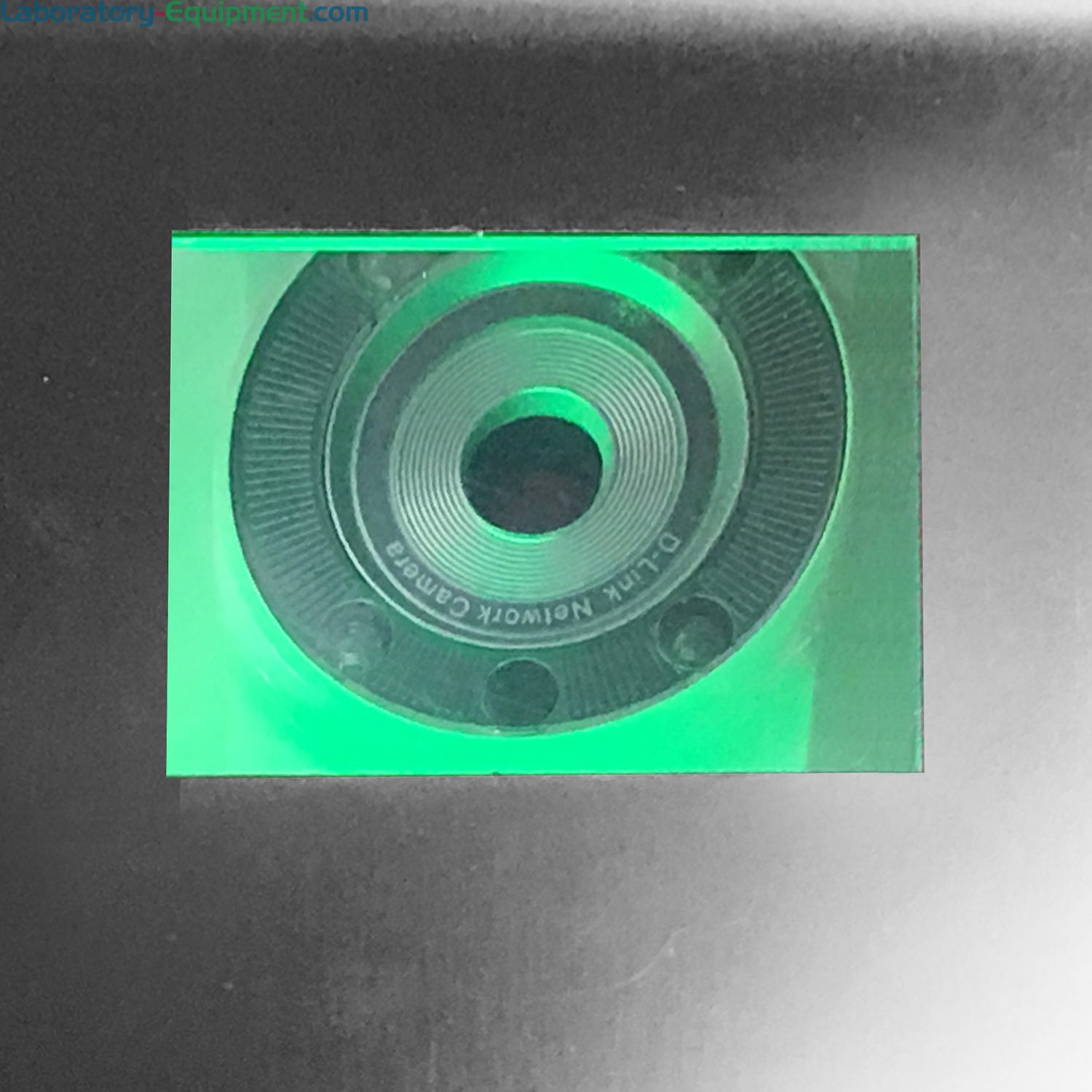

Video Camera
Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber. -
Infrared Load Sensor
Infrared beams detect objects placed inside the transfer chamber and connect to a remote alarm located up to 200 feet away from the pass through chamber. The crossed red lines depict the non-visible trigger lines between the IR transmitters and receivers. -
Support Brackets for Pass-Through Chambers
Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself. -

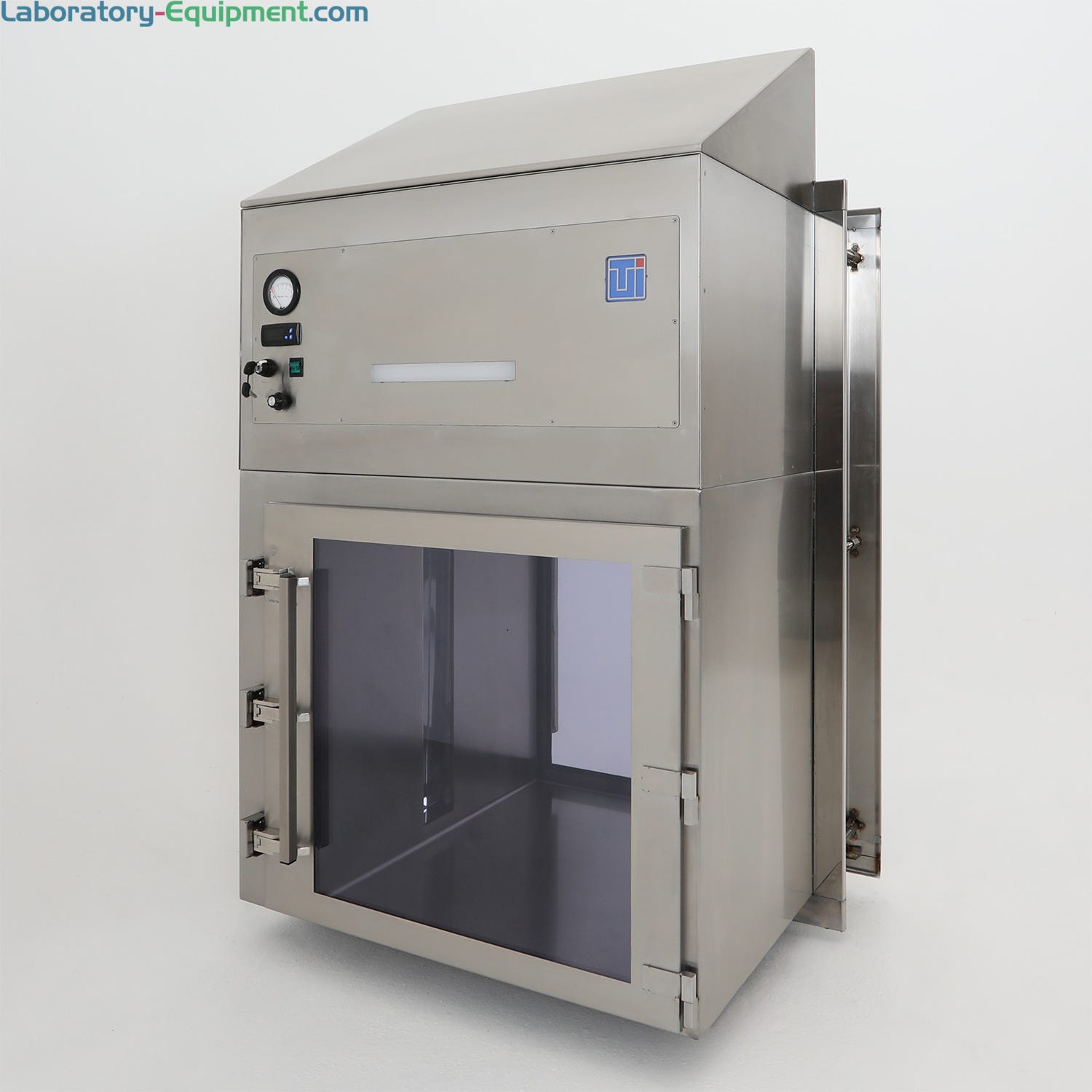

Available UV & LED lights
Lights are recessed with a transparent lens for easy cleaning; UV-C module neutrailizes microbes using a timed disinfection cycle.
