Select Product

Voltage

Width

Base Stand

Sash Opening

UV Lamp

Manufacturer SKU

Terra Part #PriceShips in
110/115 V48"Included8"Included304481101 3652-03A 78556 $15,36817-23 Days2
110/115 V48"Included8"Optional304480101 3652-01A 78554 $14,74317-23 Days3
110/115 V48"Included10"Included304411101 3652-07A 78560 $15,36817-23 Days4
110/115 V48"Included10"Optional304410101 3652-05A 78558 $14,74317-23 Days5
110/115 V48"Optional8"Included304481001 3652-02A 78555 $14,73017-23 Days6
110/115 V48"Optional8"Optional304480001 3652-00A 78553 $14,10117-23 Days7
110/115 V48"Optional10"Included304411001 3652-06A 78559 $14,73017-23 Days8
110/115 V48"Optional10"Optional304410001 3652-04A 78557 $14,10117-23 Days9
110/115 V72"Included8"Included304681101 3652-11A 78565 $18,36017-23 Days10
110/115 V72"Included8"Optional304680101 3652-09A 78563 $17,73917-23 Days11
110/115 V72"Included10"Included304611101 3652-15A 78568 $18,36017-23 Days12
110/115 V72"Included10"Optional304610101 3652-13A 78566 $17,73917-23 Days13
110/115 V72"Optional8"Included304681001 3652-10A 78564 $17,69617-23 Days14
110/115 V72"Optional8"Optional304680001 3652-08A 78561 $17,06717-23 Days15
110/115 V72"Optional10"Included304611001 3652-14A 78567 $17,69617-23 Days16
110/115 V72"Optional10"Optional304610001 3652-12A 78562 $17,06717-23 Days17
Voltage
Width
Base Stand
Sash Opening
UV Lamp
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary

Product Details

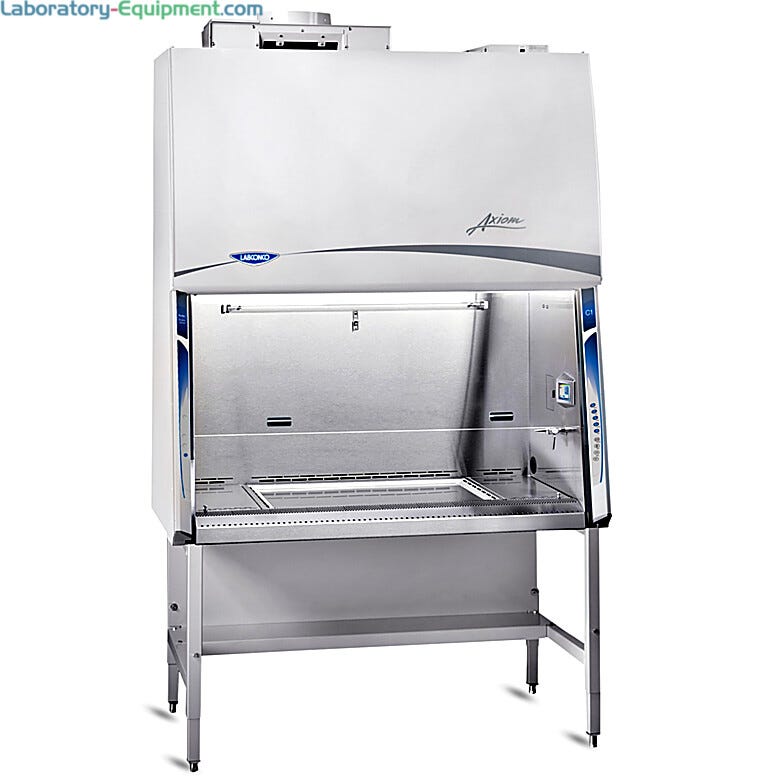

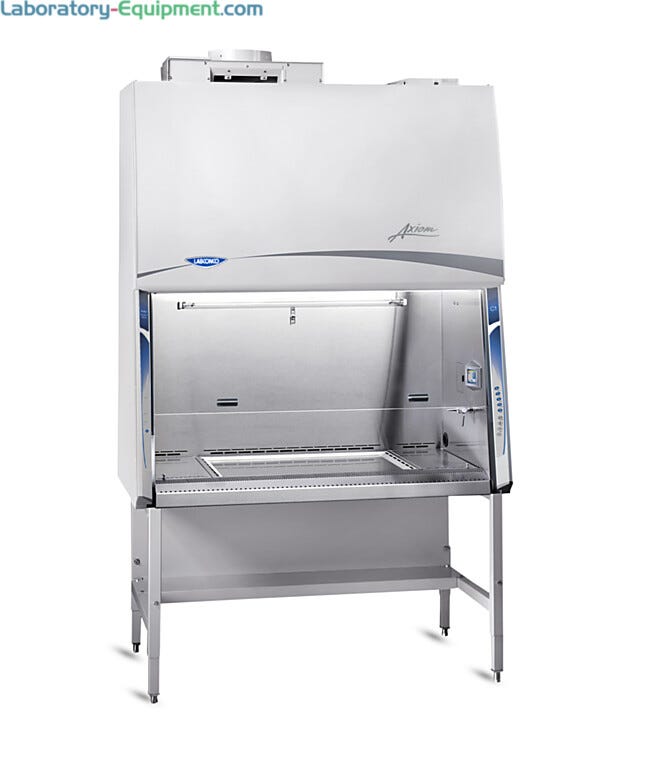

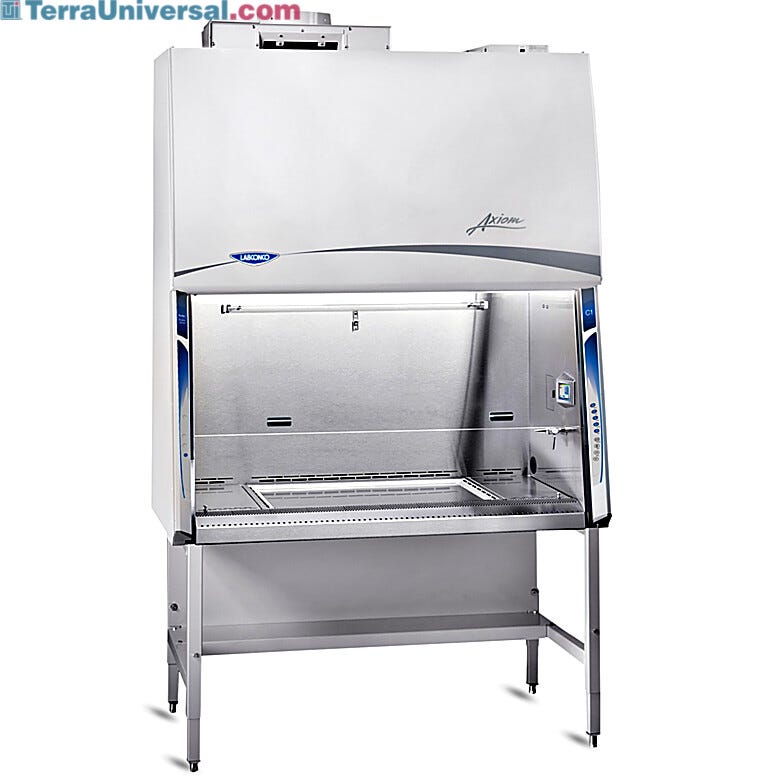

• ADA compliant Purifier Axiom C1 BSC with OmniFlex features dual Type A2 and Type B2 modes

• For Biosafety Level (BSL)1, 2, and 3 containment or BSL 4 with PPE

• Select models include base stand and/or built-in options (UV, Vacu-Pass and service fixture)

• Intuitive MyLogic Operating System shows clear status information on LCD display

• Chem-Zone work surface helps protect operators working with hazardous vapors

Conformance: NSF/ANSI Standard 49 Listed; ADA-compliant operation UL Standard 61010-1; ISO 5 conditions per ISO 14644-1 and 2; CAN/CSA 22.2 No. 61010-1; CE Conformity Marking (230V models)

Type A mode for routine microbiological applications and cell culture work

Type B mode for handling hazardous chemicals

• Filters hazardous aerosols and particulates for personnel, product and environmental protection

• Included connection discharges HEPA filtered exhaust air directly back to the lab

Sash design: 10° angled fully-closing, 1/4" tempered safety glass sash with counterbalanced, anti-racking and easy-to-lift mechanism

Required: Base stand (NSF-Approved, powder-coated steel non-welded )

• Material: 304 stainless steel work surface, leak-tight stainless steel interior, powder-coated steel exterior, safety glass sash,

Exclusive Labconco features of Purifier Axiom C1 BSC:

• Omni-Flex™ two mode design for Type A and Type B modes

• MyLogic™ Operating System

• LCD information system: Smart-Start™, Night-Smart™, Filter Life Remaining” bar graph for each HEPA filter, status line alarm and alerts when filter life diminishes to 20% and 0%

• Chem-Zone™ work surface with a dedicated direct exhaust for use with hazardous vapors or radionuclides

• Fully scannable 99.99+% supply and exhaust HEPA filters (99.999% ULPA filters option available)

• Dual Electronically Commutated Motors (ECM)

• Constant Airflow Profile™ (CAP) Technology airflow monitoring system

• Active Protection Protocol prevents flow of air into the lab by operating exhaust blowers for up to five minutes, in the event of exhaust system failure

• Enhanced containment with Air-Wave™ Entry System and Contain-Air™ Negative Pressure Channel

• Two electrical duplex receptacles and touchpad positioned on right side

• Reserve-Air™ Secondary Airflow Slots* on curved waterfall design stainless steel inlet grille

• Removable 3-piece work surface (304 stainless steel)

Additional benefits: Low static pressure and volumetric rate exhaust requirements in Type B mode (no need for dedicated exhaust system), safe negative pressure design, glare-free LED lighting (located outside contaminated work area), bright 0-150 footcandle, Interval/elapsed timer for experiment monitoring, electronic security lock with access code(optional activation),

Options:

• NSF-Approved, powder-coated steel non-welded telescoping base stand with feet (not assembled)

Accessory Package: UV lamp (254 nm), service fixture(s) with ball-type valve(s) and Vacu-Pass™ Cord & Cable Portal

• Type B mode: 10" diameter stainless steel manual damper

• Bag-In/Bag-Out Package: Exhaust Filter for use with radionuclides or harmful chemicals

Features & Benefits

Features and Benefits

ADA-Compliant Touchpad Controls

The touchpad controls, mounted on the right-hand side of the hood, allow operators to manually toggle the blowers, lights, and power receptacles.

Inclined, Ergonomic Inlet Grille

The curved inlet grille provides comfortable support for the operator’s forearms while working within the hood. The airflow inlet pattern is designed to compensate for any airflow restrictions caused by the operator blocking the slots.

Hidden Power Receptacle

The cover to the electrical outlet is flush with the hood’s interior surface for easy cleaning. The hinges are dampened so that the cover closes gently when released.

Omni-Flex™ (Convertible Exhaust) Design

Converting between Type A and Type B operation is simple. Connect ductwork and install the plate on the left side of the exhaust collar (as shown) for Type B exhaust. Remove the ductwork and install the plate on the right side for Type A.

Directly Exhausted Work Zone

Chem-Zone directly exhausts hazardous vapors and chemicals via a dedicated HEPA filter, and dished work surface contains spills

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Telescoping Base Stand with Fixed Feet
    Tubular, epoxy-coated steel frame base stands are adjustable to eight height positions in 1” increments from 27.5" to 34.5”; used with Labconco BSCs, hoods and enclosures
  • Hydraulic Lift Base Stand
    Electric height adjustment from 25.5" to 33.5” ideal for operators of varying heights and wheelchair-bound users; compatible with Labconco BSCs, hoods and enclosures
  • Remote Blower
    Labconco offers energy-efficient remote blowers with an ECM motor that handle airflow from 250 CFM to 3200 CFM satisfying various exhaust requirements
  • UV Sterilization Lamp
    Germicidal UV lamps keep clean the interior of Labconco biosafety cabinets, hoods and benches by breaking up chemical bonds and denaturing RNA and DNA
  • Vacu-Pass™ Cord & Cable Port Kit
    NSF-approved port for power cords and vacuum tubing for use with Labconco biosafety cabinets and hoods; 4 closed-cell neoprene plugs for 1/8, 1/4, 3/8 or 1/2 inch cords or cables
  • Service Fixture Kit
    Available service fixture with a serrated hose tip valve, ball valve, a control handle and instructions for plumbing to services; compatible with Labconco Axiom BSCs and Purifier Logic Hoods
