Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Product Details

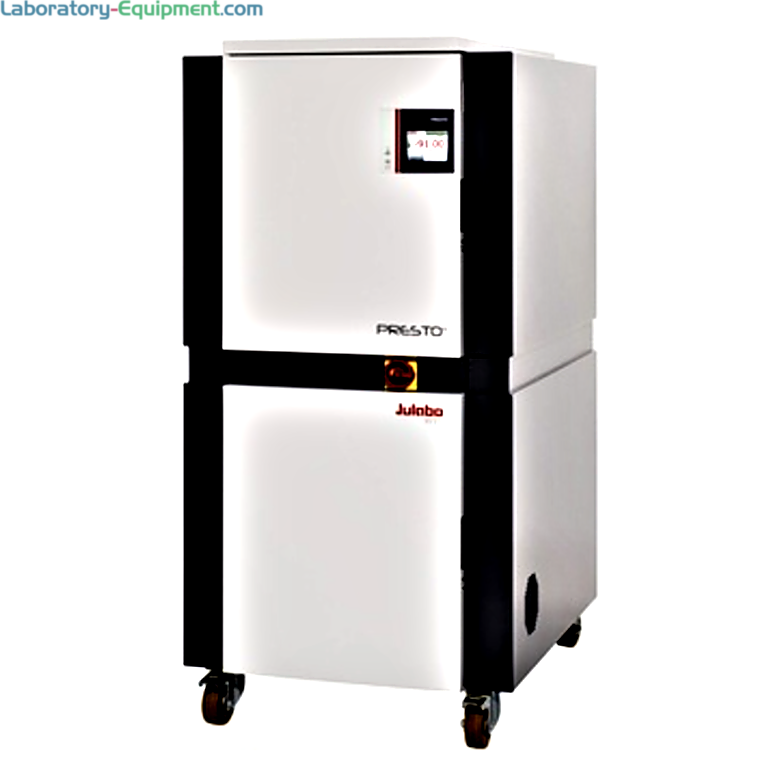

  • PRESTO W91tt Process System delivers dynamic high-precision temperature control and quickly compensates exothermic and endothermic reactions
  • Features an 11 kW cooling capacity for dynamic temperature changes down to -91 °C, and 3 bar pumping pressure
  • Extraordinary heating, cooling and pumping performances
  • •  Applications: ready to embed into pilot plants; ideal for use in material and component testing
  • •  Integrated: external PT100 sensor connection, 5.7" TFT touchscreen interface, programmer (8 x 60 steps)
  • Features and specifications for 480V model #9421912.17.TT
  • Long-life span with permanent internal monitoring and self-lubricating pumps
  • Interfaces enable various remote control across networks enabling integration into higher-level control systems
  • Integrated 5.7" industrial color touchscreen displays for simple control of essential settings
  • Heating capacity kW: 36
  • Pump capacity flow rate (L/min): 0-80
  • Pump capacity flow pressure (PSI): 1.5 to 43.5
  • Pump pressure: 3 bar
  • Cooling:
  • 2-stage water cooling of compressor
  • Cooling water temperature max.: 35 °C
  • Cooling water pressure max. PSI: 87
  • Cooling water difference pressure PSI: 7.3
  • Cooling capacity: up to 11 kW
  • Cooling water consumption l/min: 16 to 43
  • Temperature
  • Temperature display resolution setting: 0.01 °C
  • Working temperature range: -91 ºC to +250 ºC
  • Temperature stability:  ±0.05 °C to ±0.2 °C
  • Ambient temperature range: +5 °C to +40 °C
  • Temperature display resolution: 0.01 °C
  • Absolute temperature calibration: 3-point calibration
  • Volumes
  • Internal usable expansion volume: 40
  • Minimal process volume: 28
  • Active heat exchanger volume: 16
  • Cooling Water Connection: G¾ in.
  • Additional features: alarm output, interface for SD memory card, M38x1.5 male (pump connection), 74 dBA sound, gear pump, one magnetically coupled pump
  • Classification III (FL), IP 21
  • Optional Accessories:
  • Analog connections, RS485, Profibus DP
  • Second external Pt100 sensor connection

Manufacturer SKU: 9421912.17.TT

Heating Capacity: 36 kW

Model: PRESTO W91tt

Unit of Measure: EA

Electrical Specifications: 480 V, 3P(N), 60 Hz

Weight, Product: 1,918 lb

Dimensions, Product: 37.4" W x 50" D x 74.8" H

Dimensions, Shipping: 43.4" W x 56" D x 80.8" H
