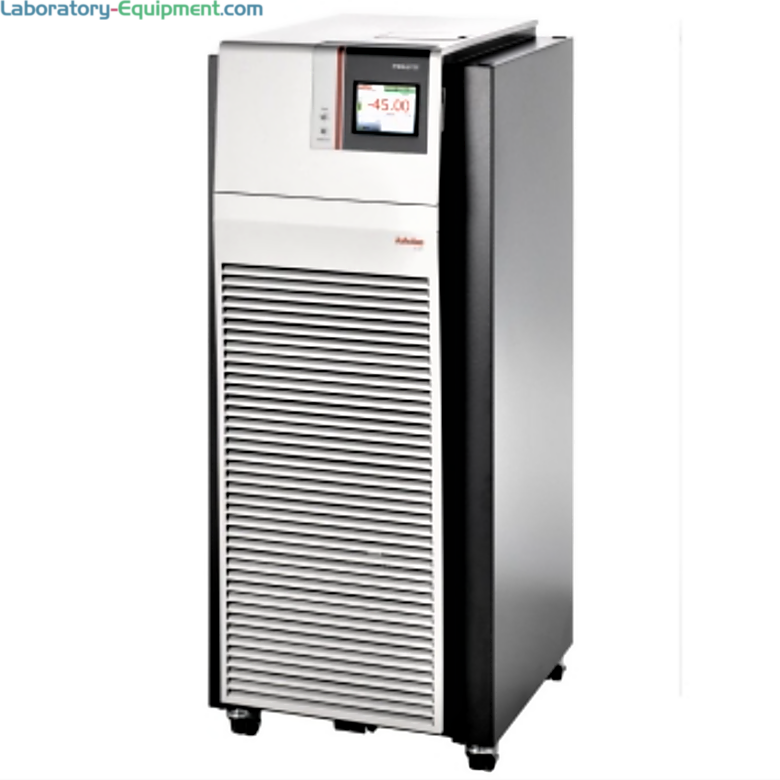

PRESTO A45 and A45t Air-Cooled Process System by Julabo for dynamic temperature control for components and material testing in automotive and space industries | 2440-PP-03 displayed
Circulators
Product Group:
2440-PP-03
2440-PP-03 82592

PRESTO A45 and A45t Air-Cooled Temperature Control Process Systems by Julabo

  • PRESTO A45 and A45t air-cooled processing systems provide high-precision temperature control in automotive and aerospace components and materials testing
  • Cools water supply and quickly compensates exothermic and endothermic reactions
  • Long-life span ensured by exothermic and endothermic reactions
  • Various interfaces enable many remote control possibilities
  • Includes external Pt100 sensor connection (optional second Pt100 sensor), 5.7” industrial color TFT touchscreen
Read more
Stocked
Manufactured By: Julabo
Warranty: One-Year Manufacturer Warranty (One-Year Additional Warranty with Product Registration)
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
208-230V PRESTO A45 9420452.16 2440-10 82586 $51,782 5-7 Days 2
In stock
208-230V PRESTO A45 9420452.16.T 2440-11 82590 $55,834 5-7 Days 3
In stock
Voltage
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • PRESTO A45 and A45t air-cooled processing systems provide high-precision temperature control in automotive and aerospace components and materials testing
  • Cools water supply and quickly compensates exothermic and endothermic reactions
  • Long-life span ensured by exothermic and endothermic reactions
  • Various interfaces enable many remote control possibilities
  • •  Includes external Pt100 sensor connection (optional second Pt100 sensor), 5.7” industrial color TFT touchscreen
  • Industries: aerospace and automotive
  • Applications for temperature control of test specimens: DC/DC converters| inverters, electric motors, pumps & pump drives, electronic components, batteries, charging systems, coupling components, airbags, injection nozzles, and other components
  • Perfectly simulates environmental conditions
  • Specifications:
  • Heating capacity: 5.5 kW (PRESTO A45), 10 kW (PRESTO 45t)
  • Cooling capacity up to 3.5 kW
  • Analog connections, RS485, Profibus DP (optional)
  • Removable ventilation grid
  • Temperature stability ±0.05 °C ... ±0.1 °C
  • Pump pressure up to 3 bar, max. flow rate 80 l/min
  • Viscosity max: cSt 50
  • Pump capacity flow rate l/min: 0 ... 80
  • Pump capacity flow pressure psi: 1.5 ... 43.5
  • Power consumption A 23
  • Refrigerant R449A (Global warming potential 1397)
  • Filling weight g: 1050
  • Carbon dioxide equivalent: 1.46685 t
  • Sound pressure level dbA: 69
  • IP Code: IP 20
  • Integrated programmer: 8 x 60 steps
  • Absolute temperature calibration (ATC): 3-point calibration
  • Temperature values:
  • Temperature display resolution: °C 0.01
  • Working temperature range °C -45 ... +250
  • Temperature stability °C ±0.05 ... ±0.1
  • Ambient temperature °C +5 ... +40
  • Volumes:
  • Internal usable expansion volume: 7.5
  • Minimal process volume: 7.5
  • Active heat exchanger volume: 3.5
  • Features: various user levels, 100% cooling capacity, intelligent temperature control, temperature control features, eternal Pt100 sensor connection, electronically adjustable pump states or pressure value and automatic adjustment, various interfaces (integrated USB, Ethernet, RS232, SD card, and alarm off), continuous operation up to +40 °C, automatic switch-off in event of high temperature or low liquid level, environmentally friendly materials
  • Centrifugal pump (1 magnetically coupled)
  • Classification III according to DIN12876-1 enables safe operation, even with flammable fluids
  • Classification III (FL) according to DIN 12876-1 for flammable bath fluid
  • Adjustable high temperature cut-off for internal tank and for integrated expansion vessel
  • Integrated Black-Box function permits fast diagnosis by the Julabo service team
  • Available Julabo consultation and comprehensive manuals
