Terra Part # 3700-80
Usually ships in 20-22 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3700-80
Oven; 0.7 cu. ft., Vacuum with LED Readout, Squaroid, Stainless Steel, 120 V
Product Details
  • Maximum Temperature: 220°C
  • Chamber Dimensions: 10"W x 12"D x 10"H (254 x 305 x 254 mm)
  • Includes hydraulic thermostat controling temperatures to 220°C
  • Features high-limit thermostat guarding against overheating
  • Radiant wall heating provides more even chamber temperatures
  • Analog controls with digital LED read out

Type: Vacuum

Maximum Temperature: 220°C

Material: Stainless Steel

Capacity: 0.7 cu. ft.

Convection Type: Vacuum

Controls: Analog

Model: Squaroid

Manufacturer SKU: 3608-5

Capacity Range: <4 cubic feet

Unit of Measure: EA

Electrical Specifications: 120 V, 600 W, 1 Ph, 60 Hz

Weight, Product: 130 Lbs

Dimensions, Product: 19.875"W x 16"D x 16.25"H

Weight, Shipping: 170 Lbs

Dimensions, Shipping: 25.875"W x 22"D x 22.25"H

Package Type: Crate

Buy Accessories

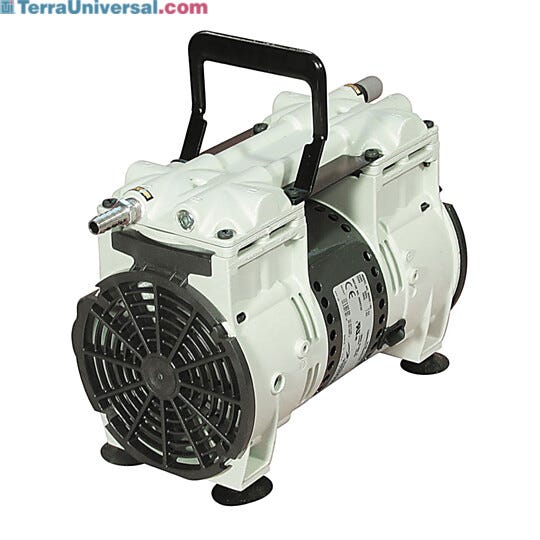

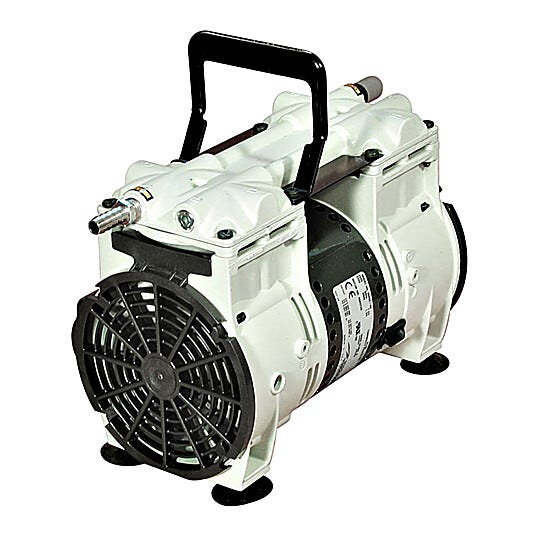

  1. Welch's oil-free standard duty vacuum pump are lightweight, compact and quiet pumps that provide continuous oil-free pumping without corrosion  |  7906-50 displayed
    Vacuum Pump; Standard Duty Wobl Piston, Welch, 230 V Ships Free Free shipping in contiguous USA In stock
    Increase Down Increase Up
  2. Vacuum control module automatically controls pump operation to maintain stable vacuum levels inside a vacuum chamber.
    Vacuum Control Module; 120 V Quick Ship+ Available In stock soon
    Increase Down Increase Up

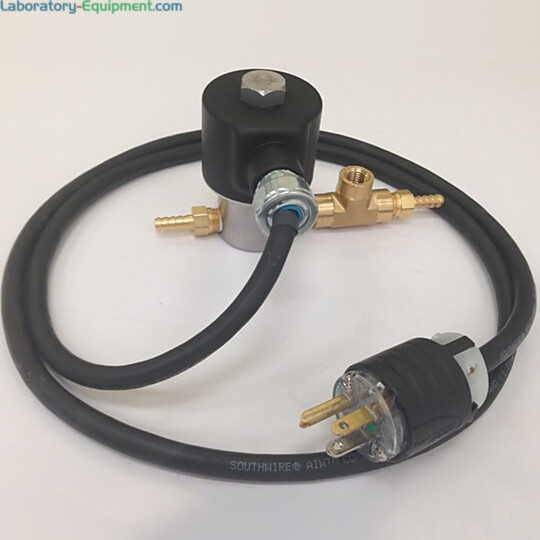

  3. Vacuum ovens include fitting adapter, fitting seal, vacuum fitting clamp and solenoid valve w/fittings  |  5400-24 displayed
    Increase Down Increase Up
  4. Equipment Testing
    Request Quote
    Increase Down Increase Up

  • Thermo Fisher Scientific Squaroid Vacuum Oven Vacuum Oven by Thermo Fisher Scientific

Features and Benefits

Learn More: Vacuum Ovens

Specifications for Standard Vacuum Ovens

  • Temperature resolution: ±1.5°C
  • Temperature Uniformity: ±5.0°C at 100°C 25in.Hg
  • Plug Type: Nema 5-15
  • Material: silicone door gasket, corrosion-resistant stainless-steel tubing, powder-coated heavy-gauge steel exterior
  • Vacuum fittings located on front of unit
  • LED Display
  • Glass door protected with Polycarbonate safety shield
  • Silicone door gasket and positive latch door maintains seal at every vacuum level (vacuum grease recommended)
  • Built-in high-limit thermostat guards against overheating
  • Radiant warm-wall heating provides more even chamber temperatures
Free Air Displacement cfm(l/min.)@60Hz 2.3 (65)
m3/h(l/min.)@50Hz 3.4 (57)
Utl. Pressure, torr(mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Mechanism Piston
Type of Duty Standard
Motor Horsepower, watts 1/3 (250)
Tubing Needed, I.D. in.(mm) 1/4 ((7)
Intake/Exhaust thread NPT 1/4
Weight, lbs.(kg) 16.5 (7.5)
Overall Dimensions in.(cm) LxWxH 11.7(29.7) x 7.2(18.3) x 9.5(24.1)

Solenoid Vacuum Control Chart

All Turnkey Connection Kits include a solenoid vacuum valve and all necessary hosing, clamps, adapters and other connection hardware for the specified application. Draws power from the Vacuum Control Module.
