3700-01
Terra Part # 3700-01
$13,766
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3700-01
60437
Oven; 3.9 cu. ft., Forced Air, SMO5CR-2, Stainless Steel, 240 V
Product Details
  • Maximum Temperature: 270°C
  • Material: Stainless steel interior, exterior and shelves; high-temperature silicone door gasket
  • Interior Dimensions: 17"W x 20"D x 20.1"H (43.2 x 50.8 x 51.0 mm)
  • Shelves: Includes 2(adjustable and perforated); Holds maximum of 8
  • Heat-up (min.): 10 to 110°C (35 to 180°C)
  • Temperature Recovery Time: 4 minutes to reach 110°C
  • Temperature Uniformity: +/-1.0°C at 110°C
  • Temperature Range: Ambient +20°C to 270°C
  • Fully welded stainless steel interior
  • Watlow Controller with 40-step soak profile and ramp (4 files with 10 steps per file)
  • Easy to clean three adjustable air intake and exhaust ducts that uses either room or recirculated air
  • 3.5” of high-temperature, wrap-around insulation
  • HEPA Filter (Class E11 - > 95% Retention)
  • Horizontal Air Flow
  • Encapsulated Insulation
  • Nitrogen Purging
  • Built-in Overtemperature Protection
  • Two separate LED displays shows time and temperature (shows setpoint or process information by the second)
  • Nitrogen inlet port
  • Includes: 2 perforated shelves, 4 shelf slides and 4 leveling feet

Type: Cleanroom Compliant

Maximum Temperature: 270°C

Material: Stainless Steel

Capacity: 3.9 cu. ft.

Convection Type: Forced Air

Model: SMO5CR-2

Manufacturer SKU: SMO5CR-2

Capacity Range: <4 cubic feet

Unit of Measure: EA

Electrical Specifications: 240 V, 12 A, 2,200 W, 50/60 Hz

Weight, Product: 340 Lbs

Dimensions, Product: 35"W x 29"D x 38"H

Weight, Shipping: 528 Lbs

Dimensions, Shipping: 41"W x 35"D x 44"H

Package Type: Crate

Buy Accessories
  1. Equipment Testing
    Request Quote
    Increase Down Increase Up

  • Shel Lab Stainless Steel Cleanroom Oven Closed Stainless Steel Cleanroom Oven by Shel Lab

Features and Benefits

SMO5CR-2 Cleanroom Oven Features

Additional Features of Cleanroom Ovens

  • HEPA Filter (Class E11 - > 95% Retention)
  • Horizontal Air Flow
  • Encapsulated Insulation
  • Easy to clean three adjustable air intake and exhaust ducts uses room or recirculated air
  • Nitrogen inlet port prevents contamination during purging
  • Built-in Overtemperature Protection
  • Note: Units are not designed for placement in Class I, II and III environments as defined by the U.S. National Electric Code
Interior Dimensions (W x D x H) 17.0 x 20.0 x 20.1 in. (431.8 x 508 x 510.54 mm)
Exterior Dimensions (W x D x H) 35.0 x 29.0 x 38.0 in. (889 x 736.6 x 965.2 mm)
Capacity 3.9 cu. ft./ 110 liters
Electrical 220-23-V, 2200w, 12A
Material Stainless steel interior, exterior and shelves
Heat-up (min.) 10 to 110°C (35 to 180°C)
Temperature Recovery Time 4 minutes to reach 110°C
Temperature Uniformity ±1.0°C at 110°C
Temperature Range 15°C above ambient to 200°C
Shelves Includes 2; Holds maximum of 8
Compliance
  • CAN/CSA C22.2 No. 61010-1:2012
  • CAN/CSA C22.2 No. 61010-2-010 + R:2009
  • UL 61010A-2-010:2002
  • UL 61010-1:2012
  • EN 61010-1:2010
  • EN 61010-2-010:2003

Cleanroom Oven Illustration

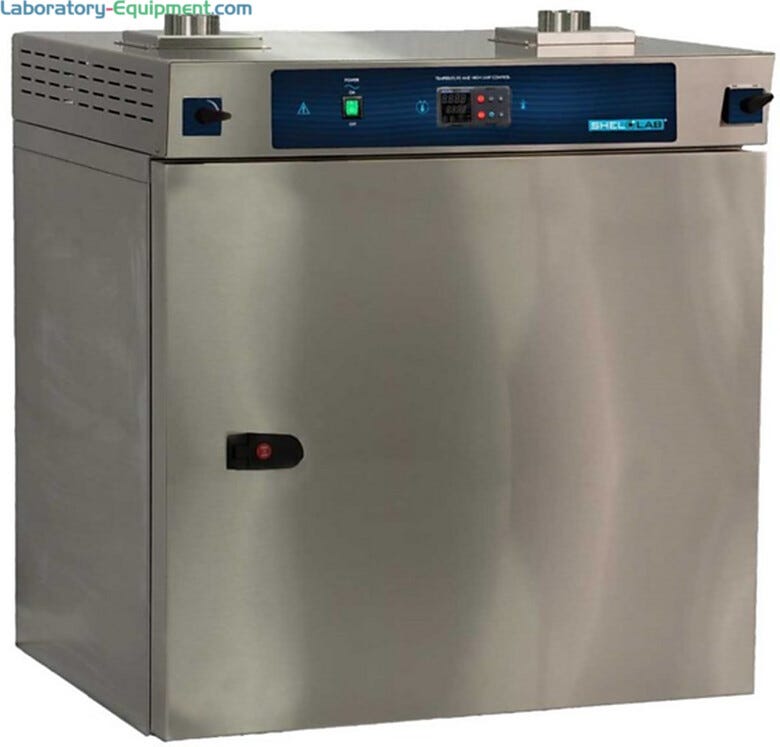

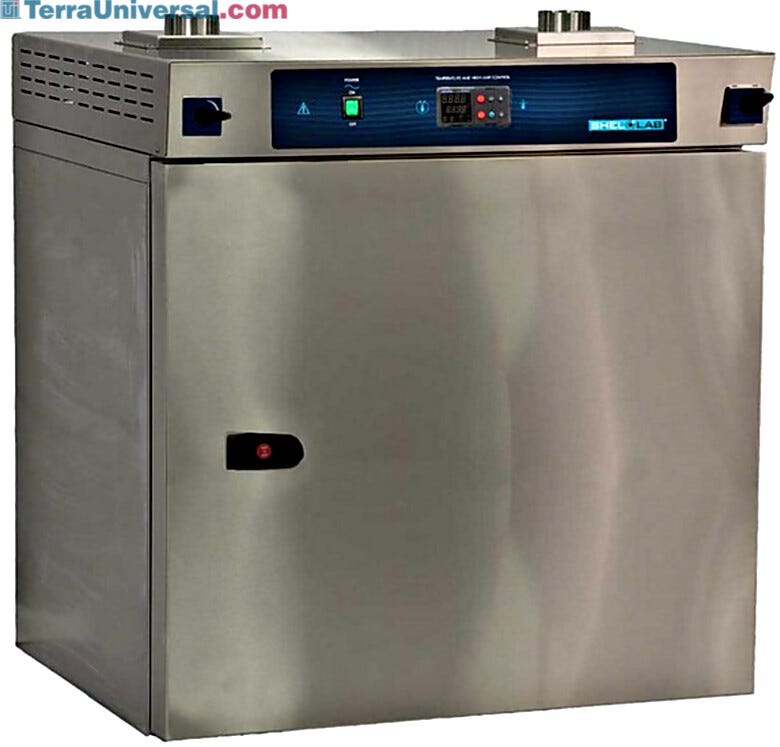

Ideal for high-temperature cleanroom applications, the SMO5CR-2 cleanroom oven includes a HEPA filter, a Watlow Controller and three adjustable air intake and exhaust ducts.

Stainless Steel Cleanroom Oven with Shelves

Shel Lab Stainless Steel Cleanroom Ovens made with fully welded 20 gauge stainless steel interior and exterior include 2 perforated shelves and 4 shelf slides
