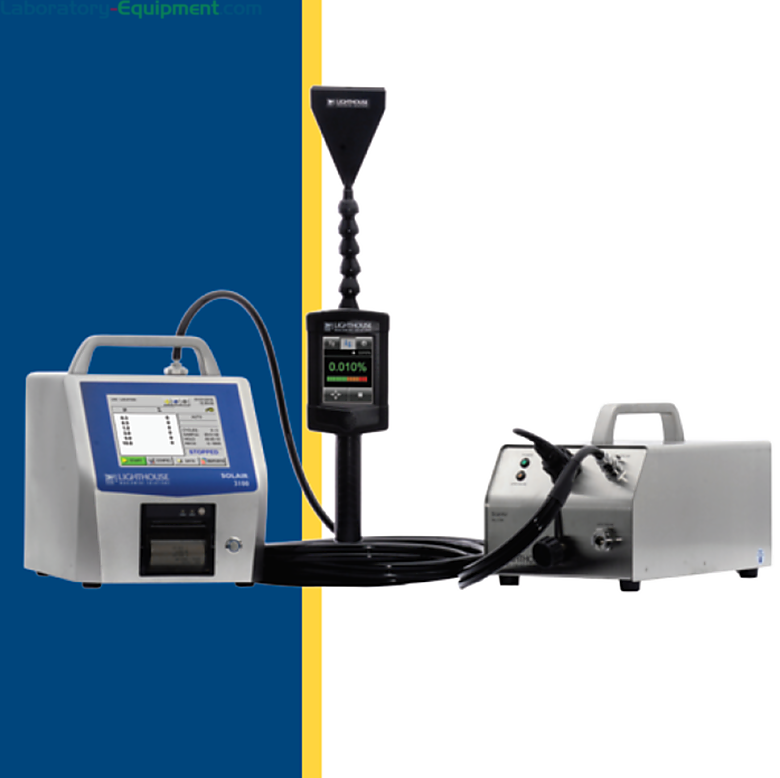

ScanAir Pro requires a diluter and the Solair Particle Counter for HEPA/ULPA and PTFE media filter testing | 1510-58 displayed

ScanAir Pro Air Filter Testing System by Lighthouse

  • Available Certified ISO Grade™ Designs: ISO 7, ISO 8

• Design: Portable

• Manufactured by: Lighthouse Worldwide

• Dew Point Temperature Range: [xxx]

• Unit of Measure: EA of 1

Read more
ISO 7 Icon Ships Free
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
1510-58
Terra Part # 1510-58
$3,349*
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Accessories related to Terra Part # 1510-58
77851
ScanAir Pro Air Filter Testing System by Lighthouse
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Ships Free Free shipping in contiguous USA
Usually ships in 15-20 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade™ Designs: ISO 7, ISO 8
  • ScanAir Pro portable contamination detection system
  • Tests and scans PTFE fiberglass and other filter media for leaks
  • Upstream and downstream mode measurement
  • Flexible multi-function system enables usage for other applications
  • Applications: HEPA filter and PTFE media filters, scan filter media for leaks, cleanroom classification, filter efficiency testing
  • Features: Adjustable scan head, facilitates ISO 14644-1 compliance testing, remote start/stop button, remote power and alarm LED, 3-meter 10ft. cable, 3.8" touchscreen user interface
  • Remote start/stop button for hands-free operation of particle counting
  • Includes: Manual on CD, USB cable, AC adapter, purge filter, headphone jack and carry case
  • Material: stainless steel enclosure
  • Application: filter leak testing
  • Ideal for use with hard-to-reach places such as ladders or scissor lifts
  • Remote features: start/stop, power and alarm LEDs, audible and visual alarm
  • Flow rate: 1 CFM
  • Communication mode: Solair Particle Counter
  • Probe cable/tubing length: 3 meters (10 foot)
  • Optional: Printed operating manual, LMS Express Software
  • Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95%non-condensing
  • Storage: 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing
  • Solair Particle Counter and diluter required

• Design: Portable

• Manufactured by: Lighthouse Worldwide

• Dew Point Temperature Range: [xxx]

• Unit of Measure: EA of 1

• Weight, Product: 2.6 lb

• Dimensions, Product: 3" W x 8.8" D x 5" H

Show more
