• Detection Channels: 6 Channels
• Detection Range: 0.5 - 10 μm
• Counting Efficiency: 50% @ 0.5 μm; 100% for particles > 1.5 X first channel particle size
• Manufacturer SKU: ApexZ50
Particle Counter; ApexZ50, Portable Airborne, Lighthouse
Read more
Warranty: Two-Year Manufacturer Warranty
Print
Want a quote quickly ?
Submit a QuickQuote requestAccessories related to Terra Part # 1510-52
77842

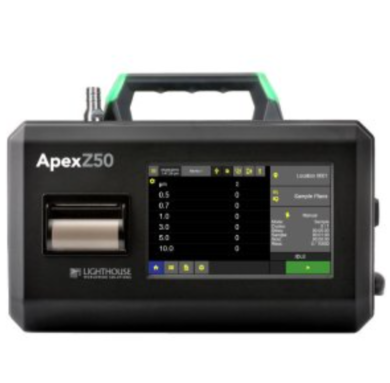

Particle Counter; ApexZ50, Portable Airborne, Lighthouse
- Six-channel model: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
- Includes two removable and rechargeable Li-Ion batteries with an 8-hour nominal use
- Use in ISO Class 2 or Grade A ultra-clean areas and in ISO Class 3 cleanroom environments
- Laser diode mode monitoring system with self-diagnostics and sealed VHP compatible enclosure
- Integrates easily with your current SOP processes and built-in cleanroom certification reports
- Includes: USB flash drive with lanyard, ISO probe 1 CFM, ISP clamp, zero count filter, 24 VDC 5.0 amp power adapter and power cord, 10 feet of Beveline XX tubing 13/8” ID x 1/2” OD, 1 li-Ion smart battery included (2 battery slot capacity), 2x rolls of printer paper, Operators Manual on USB flash drive, Calibration Certificate
- Options: USB Barcode Scanner, Temperature & humidity probe, 1 CFM isokinetic sample probe, high pressure diffuser (ported or vented), li-Ion batteries, Beveline XX tubing, external battery charger w/AC power cord, printed operators manual, carry case
- Features: Extreme Life Laser Diode laser source, designed for ISO 21501-4 Compliance, 7”(8.89 cm), 1200 x 800 IPS color touch screen, user configurable warnings and alarms, RGB light pipe for status and alarms integrated in handle, automates workflow and eliminates sample errors, material compatible with chemical cleaners, simplifies daily workflow
- Functions as a wireless or real-time particle sensor
- 21 CFR Part 11 Compliant assure traceability and data security, 10 customizable user access levels
- Self-Diagnostics: Laser Power/Current/Supply, Flow out-of-range, No flow, PA Background/Supply/Health
- Concentration Limits: 300,000 particles / ft3 @ 10% coincidence loss
- Battery: 2x Li-Ion battery slot capacity, removable and rechargeable, 8 hours nominal use, 50% duty cycle no printing
- Data Storage: 10,000 Sample Records, 2500 Locations, 250 Groups, 500 Presets, 500 Sample Plans, 500 Certifications, 100 Reports, 250 Users
- Enclosure: Chemically Resistant Polycarbonate blend, conductive lining, VHP compatible
- Zero Count Level: < 1 count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C)
- Count Modes: Sample, Concentration, Beep, Quick Certification
- Communication: Ethernet, USB standard, Wi-Fi (802.11 b/g/n)
- Supporting Software: LMS Express, LMS Express RT, LMS Pharma, LMS Professional, LMS XChange
- Environmental Sensors: Temperature/Relative Humidity probe: 0 to 150°F (-17.8 to 65.6°C) ±1.8°F (0.5°C), 0-100% ± 2% RH
- Speakers: 2x adjustable up to 70 dB to indicate status and alerts
- Printer: Embedded panel-mount printer, also available without printer
- Reports: FED 209E, ISO 14644-1:1999, ISO 14644-1:2015, & EU GMP regulatory pass/fail reports on screen or printer
- Sample Inlet: 1/2 inch Inlet nozzle
- Sample Output: Internally filtered to HEPA standards (>99.97% @ 0.3 μm); with rotatable exhaust fitting for directed flow
- Vacuum Source: Internal blower, automatic flow control
- Power: External power supply: 24 VDC, 5 A max draw
• Detection Channels: 6 Channels
• Detection Range: 0.5 - 10 μm
• Counting Efficiency: 50% @ 0.5 μm; 100% for particles > 1.5 X first channel particle size
• Manufacturer SKU: ApexZ50
• Marks & Listings: CE
• Weight, Product: 8.5 lb
• Dimensions, Product: 6.23" W x 12.76" D x 8.88" H
Manuals & Resources
Products similar to this one
Some ship in 5 - 10 days
Some ship in 5 - 10 days
Some ship in 5 - 10 days
Some ship in 5 - 10 days
Other products you may find relevant
Usually Ships in 20 - 24 days
Buy Accessories
Lighthouse ApexZ Series Portable Particle Counters by LWS- Physical Features of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
- Technologically Advanced System of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
- GMP Workflow Activation of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
- Paths to Paperless Data - Lighthouse ApexZ Portable Airborne Particle Counters by LWS
- Adding Users to Lighthouse ApexZ Portable Airborne Particle Counters by LWS
- Load Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS
- Backup Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS
- Grid View of ApexZ Portable Airborne Particle Counters by LWS
- Using Room, Recipes & Locations on Lighthouse ApexZ Particle Counters by LWS
- Setting up Main Data View on ApexZ Particle Counters by LWS
- Exporting Data to USB Key - ApexZ Particle Counters by LWS
- Home Screen Orientation of Lighthouse ApexZ Particle Counters by LWS
- WiFi Connection - Lighthouse ApexZ Particle Counters by LWS
- Generating Custom Reports - Lighthouse ApexZ Particle Counters by LWS
Product overview video of Lighthouse ApexZ Series Portable Particle Counters by LWS Lighthouse ApexZ Series Portable Particle Counters by LWS Showcases general product features and benefits
Video highlights the design and build of ApexZ models with an emphasis on the HEPA filter exhaust port, easy wipe down, battery life and integrated alarm Physical Features of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Lighthouse ApexZ Portable Particle Counters – Physical Features
Video lists connectivity, safety, WiFi, and database management features Technologically Advanced System of Lighthouse ApexZ Portable Airborne Particle Counters by LWS ApexZ Particle counter technologically advanced features: IFI enabled, active directory, ad groups, self-diagnosis API connectivity and CIF file sharing
Video shows how to activate GMP workflow feature on ApexZ Particle Counters GMP Workflow Activation of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Details various features such as the SOP driven workflow, audit trail of ApexZ models for data integrity in cleanroom monitoring
How to connect ApexZ to LMS Express Software and common internet file sharing enabling users to maintain data integrity and using a paperless system
Paths to Paperless Data - Lighthouse ApexZ Portable Airborne Particle Counters by LWS Video on how to create paperless data management with ApexZ Portable Airborne Particle Counters by LWS
Paths to Paperless Data - Lighthouse ApexZ Portable Airborne Particle Counters by LWS Video on how to create paperless data management with ApexZ Portable Airborne Particle Counters by LWS
Quick tutorial on adding new users to ApexZ Particle Counters; Shows step-by-step instructions using touchscreen display and keyboard Adding Users to Lighthouse ApexZ Portable Airborne Particle Counters by LWS Shows step-by-step instructions using touchscreen display and keyboard
Step-by-step video tutorial on how to load instrument configuration on Lighthouse ApexZ Portable Particle Counters Load Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS Shows how to use settinsg on 7” touchscreen display

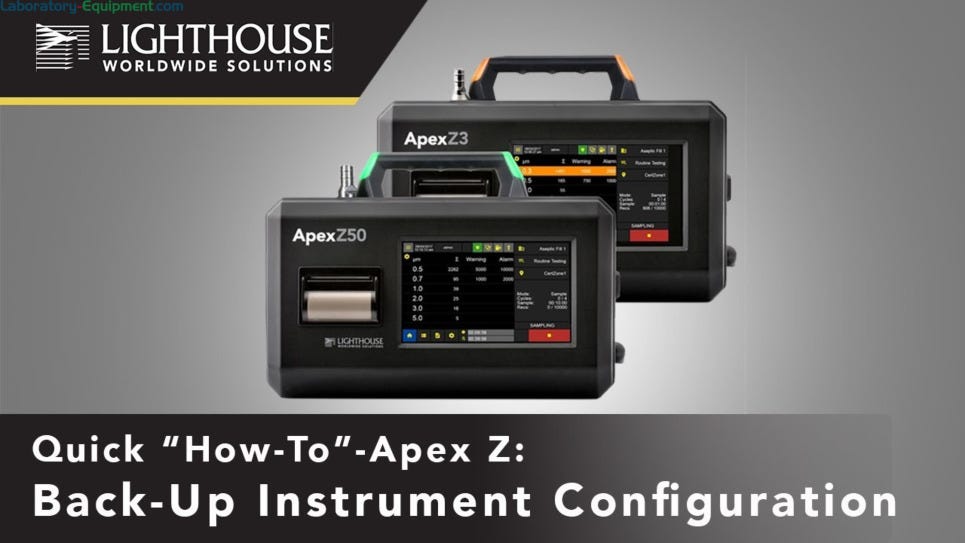

Shows step-by-step instructions on 7” touchscreen display on how to export using USB configuration Backup Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS Quick video tutorial on how to backup instrument configuration on Lighthouse ApexZ Particle Counters
Video tutorial on the benefits of using the grid view feature of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Grid View of ApexZ Portable Airborne Particle Counters by LWS Shows how to access the grid view feature on the 7” touchscreen display of ApexZ models
Video tutorial on how to use recipe settings when moving ApexZ Particle Counters to another environmental or cleanroom location Using Room, Recipes & Locations on Lighthouse ApexZ Particle Counters by LWS Shows how to efficient set recipes with step-by-step instruction
Video tutorial on how to customize main data view on ApexZ3 and ApexZ50 models Setting up Main Data View on ApexZ Particle Counters by LWS Step-by-step instruction using the 7” touchscreen display
Video tutorial on exporting data using a USB key and how to filter data and export on ApexZ3 model Exporting Data to USB Key - ApexZ Particle Counters by LWS Shows how to use filters column and which icons to use during export
Overview of ApexZ3 and ApexZ50 features and design elements; Shows how to navigate interface when configuring settings, data filtering, room recipes and more Home Screen Orientation of Lighthouse ApexZ Particle Counters by LWS Shows how to navigate interface when configuring settings, data filtering, room recipes and more
Video tutorial on how to connect Lighthouse ApexZ Particle Counters by LWS to WiFi WiFi Connection - Lighthouse ApexZ Particle Counters by LWS Step-by-step instruction on how to configure WiFi connection
Video tutorial on how to generate custom reports using ApexZ3 model Generating Custom Reports - Lighthouse ApexZ Particle Counters by LWS Shows how to navigate ApexZ Series interface and 7” touchscreen
