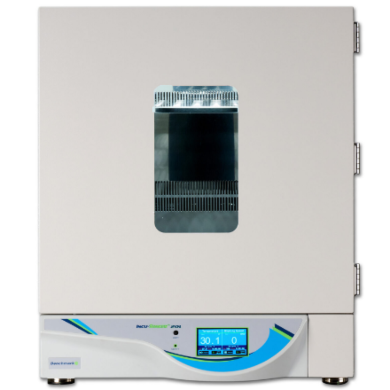

Incu-Shaker 20LR Stackable Shaking Incubator w/ non-slip rubber mat, 18" x 18" Platform, 30-300 rpm, 4° to 60°C, Benchmark Scientific, H3022-E, 230 V
Product Details
  • 230V High-capacity H3022-E Incu-Shaker 20LR Stackable Shaking Incubators with a built-in powerful compressor for cooling to 4°C up to 60°C
  • Features an 18" by 18" non-slip rubber mat platform and stainless steel chamber for temperature uniformity
  • Increased chamber size with a 22" height fits up to four 5-liter Erlenmeyer flasks at once
  • Brushless induction motor and high-grade 304 stainless steel chamber provide temperature accuracy within ±0.1°C
  • •  Includes pull-out adjustable stainless steel; optional Magic Clamps for flasks, and universal magnetic platform H1010-MR
  • Stackable (up to 2 units), space-efficient design provide high-throughput in small labs while conserving floor space
  • Ideal in culture growth and other applications
  • Advanced, computer-designed motor isolation system minimizes noise and vibration at all speed levels even when two units are stacked
  • Proprietary heat distribution technology maintains precise temperature throughout the chamber
  • Included adjustable stainless steel pull-out shelf maximizes chamber usage space by accommodating (above the platform) Petri dishes, culture plates, staining trays and other smaller vessels
  • Designed for tool less addition of clamps when used with patented Magic Clamps for magnetic attachment of Erlenmeyer flasks and test tube racks
  • Years of trouble-free operation even under continuous usage of heavy loads
  • Access port located on left side of the unit for external temperature monitoring and connection of power cable into the chamber (without compromising integrity of chamber)
  • Specifications for Incu-Shaker 20LR #H3022-E, 230V:
  • Temperature Range: 4°C to 60°C
  • Temperature Accuracy: ±0.1°C at 37°C
  • Temperature Uniformity (chamber): ±0.5°C at 37°C
  • Temperature Increment: 0.1°C
  • Speed Range: 30 to 300 rpm
  • Speed Increment: 1 rpm
  • Mixing Orbit: 19mm (3/4 in.)
  • Time Range: 1 min. to 48 hours (or continuous)
  • Platform Dimensions: 18 x 18 in. (45 x 45 cm)
  • Chamber Volume: 149L
  • Chamber Material: High-grade 304 stainless Steel
  • Maximum Capacity:
  • 125 ml flasks: 36
  • 250 ml flasks: 25
  • 500 ml flasks: 16
  • 1000 ml flasks: 9
  • 2000 ml flasks: 5
  • 2.8L Fernbach: 5
  • 3000 ml flasks: 4
  • 5000 ml flasks: 4
  • List of Benchmark Scientific Erlenmeyer Flasks and Accessories:
  • F4060-B: Flask, Erlenmeyer, 125mL, Polycarbonate, baffled bottom w/ vented screw cap, Sterile, individually wrapped, 24/CS
  • F4061-B: Flask, Erlenmeyer, 250mL, Polycarbonate, baffled bottom w/ vented screw cap, Sterile, individually wrapped, 12/CS
  • F4062-B: Flask, Erlenmeyer, 500mL, Polycarbonate, baffled bottom w/ vented screw cap, Sterile, individually wrapped, 12/CS
  • F4063-B: Flask, Erlenmeyer, 1000mL, Polycarbonate, baffled bottom w vented screw cap, Sterile, individually wrapped, 6/CS
  • F4060-F: Flask, Erlenmeyer, 125mL, PETG, flat bottom w / vented screw cap, sterile, individually wrapped, 24 / CS
  • F4061-F: Flask, Erlenmeyer, 250mL, PETG, flat bottom w/ vented screw cap, Sterile, individually wrapped, 12/CS
  • F4062-F: Flask, Erlenmeyer, 500mL, PETG, flat bottom w / vented screw cap, Sterile, individually wrapped, 12/CS
  • F4063-F: Flask, Erlenmeyer, 1000mL, PETG, flat bottom w / vented screw cap, Sterile, individually wrapped, 6/CS
  • F4086: Flask, Erlenmeyer/Fernbach, Styrene Butadiene, 2.8L, baffled bottom w / vented screw cap, Sterile, individually wrapped, 6 / CS
  • F4087:     Flask,  Erlenmeyer/Fernbach, Styrene Butadiene,5.0L, baffled bottom w / vented screw cap, Sterile, individually wrapped, 4 / Styrene Butadiene, 5.0 liter, baffled bottom w / vented screw cap, Sterile, individually wrapped, 4 / CS
  • F4067: Cap for 125mL and 250mL Erlenmeyer Flasks, pkg. of 10, includes filter.
  • F4068: Cap for 500mL and 1000mL Erlenmeyer Flasks, pkg. of 10, includes filter
  • F4069: Cap for 2.8 and 5.0L Jumbo Flasks, pkg. of 10, includes filter

Shaking Speed: 30-300 rpm

Temperature Range: 4° to 60°C

Model: Incu-Shaker 20LR

Manufactured by: Benchmark Scientific

Platform Size: 18" x 18"

Manufacturer SKU: H3022-E

Unit of Measure: EA

Electrical Specifications: 230 V, 50 Hz

Weight, Product: 330 lb

Dimensions, Product: 23.6" W x 34.3" D x 28.7" H

Dimensions, Shipping: 30" W x 39.5" D x 37" H

Buy Accessories
  1. H1010-MR MAGic Clamp Universal Platform (18" x 18") for flasks and tubes by Benchmark Scientific compatible with Incu-Shaker 10L/10LR and Orbi-Shaker and Orbi-S  |  2823-01 displayed
    $359
    Increase Down Increase Up
  2. H1000-MR-CMB MAGic Clamp Adjustable Flask Clamp for 125, 250 and 500 ml Erlenmeyer flasks compatible with Benchmark Scientific Incu- and Orbi-Shakers  |  2823-34 displayed
    $46
    Increase Down Increase Up
  3. H1000-MR-50 MAGic Clamp Magnetic Clamp for 50 ml Erlenmeyer flask by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker models  |  2817-02 displayed
    $33
    Increase Down Increase Up
  4. H1000-MR-125 MAGic Clamp Flask Clamp for 125 ml Erlenmeyer flask by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker models  |  2817-03 displayed
    $35
    Increase Down Increase Up
  5. H1000-MR-250 Magic Clamp Flask Clamp for 250 ml Erlenmeyer flask by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker models  |  2817-04 displayed
    $39
    Increase Down Increase Up
  6. H1000-MR-500 Magic Clamp Flask Clamp for 50ml Erlenmeyer flask by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker models  |  2817-05 displayed
    $39
    Increase Down Increase Up
  7. H1000-MR-1000 Magic Clamp Flask Clamp by Benchmark Scientific for 1000 ml Erlenmeyer flask; compatible with Incu-Shaker and Orbi-Shaker models  |  2817-06 displayed
    $60
    Increase Down Increase Up
  8. H1000-MR-2000 MAGic Clamp magnetic clamp by Benchmark Scientific fits up to five 2000 ml Erlenmeyer flasks; compatible with Incu-Shaker 10L/10 LR and Orbi-Shake  |  2823-07 displayed
    $77
    Increase Down Increase Up
  9. H1000-MR-3000 MAGic Clamp Magnetic Clamp for 2.8 Fernbach or 3000 ml Erlenmeyer flasks by Benchmark Scientific compatible with Incu-Shaker 10L/10LR and Orbi-Sha  |  2823-14 displayed
    $97
    Increase Down Increase Up
  10. H1000-MR-MP MAGic Clamp magnetic clamp for one microplate or deep-well plate by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker Jr. models  |  2823-26 displayed
    $84
    Increase Down Increase Up
  11. H1000-MR-T15 MAGic Clamp 32 x 15ml Tube Rack by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker models  |  2823-05 displayed
    $157
    Increase Down Increase Up
  12. H1000-MR-T50 MAGic Clamp 15 x 50 ml Tube Rack by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker models  |  2823-04 displayed
    $157
    Increase Down Increase Up
  13. H1000-MR-1550 Magic Clamp Tube Rack combination rack for 20 x 50 ml and 30 x 15 ml tubes by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker mod  |  2817-07 displayed
    $157
    Increase Down Increase Up
  14. H1000-MR-T600 MAGic Clamp Tube Rack for 4 x 500 ml or 600 ml conical by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker models  |  2823-06 displayed
    $182
    Increase Down Increase Up
  15. H1000-MR-TSR MAGic Clamp tilted holder for 15 mL and 50 mL tube racks by Benchmark Scientific compatible with Incu-Shaker and Orbi-Shaker Jr. models  |  2823-31 displayed
    $119
    Increase Down Increase Up

Shakers

  • MagicClamp Video for Benchmark Scientific Shakers Magic Clamp Video for Benchmark Scientific Shakers
MagicClamp Video for Benchmark Scientific Shakers

Features and Benefits

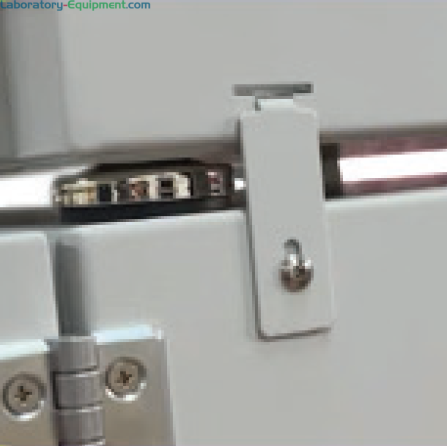

Stackable

Included sturdy mounting brackets enable stacking of two models ideal for use in small labs to increase throughput and save floor space

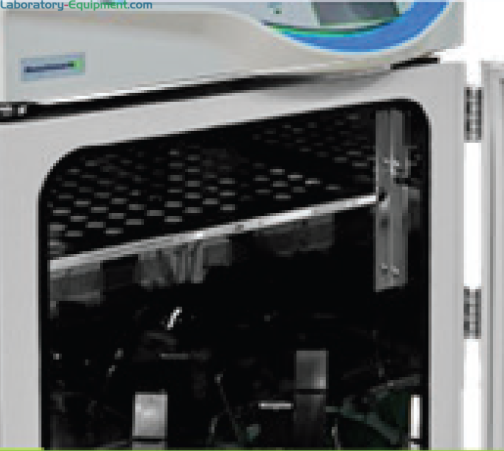

Static Incubation

In addition to shaking incubation, included pull-out, adjustable stainless steel shelf fits Petri dishes and cell culture plates for static incubation

Stainless Steel Chamber

New feature of Incu-Shaker 20L and 20LR models is the 304 stainless steel chamber for temperature uniformity and a capacity of up to 36 125ml flasks

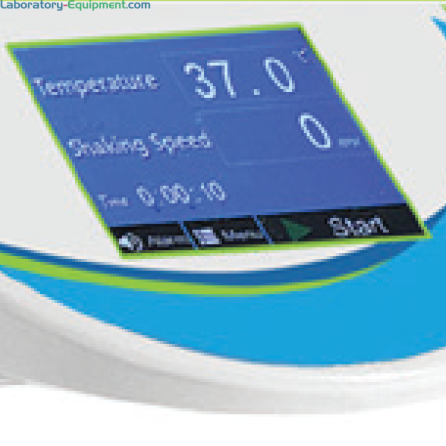

Touch-Screen Controls

Displays and controls shaking speed, time and temperature via the full-color touchscreen, and software with advanced programming allows calibration, alarm deviations and linking of consecutive programs
