Horizontal Gel; 120/240 V, IBI

IB53000B DNA Start-Up Kit

• Construction:
  • Buffer tank is constructed of 3/8" thick, cast acrylic
  • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
• Overall: 70 mm(H) x 165 mm(W) x 305 mm(L)
• Gel Dimensions: 100 mm x 150 mm
• Distance between the electrodes: 27cm
• Maximum Sample Capacity: 780 samples (4 combs, 20 samples each)
• Buffer Capacity: 500ml

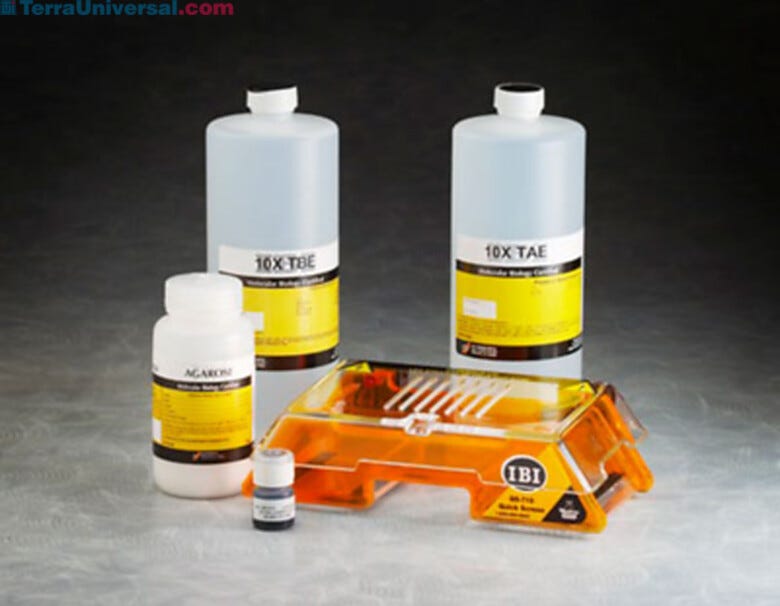

• Includes
  • IB53000 MP1015 Horizontal System
  • IB01010 6X Loading Dye - 5ml
  • IB70150 10X TBE Buffer Concentrate - 1L
  • IB70160 10X TAE Buffer Concentrate - 1L
  • IB70040 100g Agarose

The IB57000B DNA Start-Up Kit

• Construction:
  • Buffer tank is constructed of 3/8" thick, cast acrylic
  • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
• Overall: 83 mm(H) x 267 mm(W) x 394 mm(L)
• Gel Dimensions: 250 mm x 250 mm
• Distance between the electrodes: 35cm
• Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
• Buffer Capacity: 1500ml
• Includes
  • IB57000 HR2525 Horizontal System
  • IB01010 6X Loading Dye - 5ml
  • IB70150 10X TBE Buffer Concentrate - 1L
  • IB70160 10X TAE Buffer Concentrate - 1L
  • IB70040 100g Agarose

IB94000B MAGELIN Start-Up Kit

Vertical electrophoresis Protein Lab Start-Up Kits is made from the IB94000 MaGELin protein system designed to run 10 x10cm cast-your-own polyacrylamide gels or various other pre-cast gels in a dual running format. This kit also includes high quality IBI molecular biology reagents for your protein system needs. Included is one liter of 10X Tris-Glycine-SDS running buffer, a 5ml bottle of 2X protein loading dye, and 2L of Coomassie Blue stain.

• Construction:
  • Inner Gel Support - Molded ABS
  • Clamp assemblies - Molded polycarbonate
  • Buffer chamber - 3/8" cast acrylic
  • Gaskets - Extruded silicone
• Overall Size: 170 mm (L) x 170 mm (W) x 180 mm (H)
• Gel Dimensions: 80 mm (L) x 100 mm (W) in pre-cast  100 mm (L) x 100 mm (W) in hand cast
• Buffer tank minimum capacity: 35cm
• Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
• Buffer tank maximum capacity: 850ml
Includes:
• IB94000 MAGELIN Protein System
• IB01190 2X Loading Dye - 5ml
• IB01110 10X SDS Tris-Glycine Buffer - 1L
• IB01032 Coomassie Blue Stain - 2L

IB53000B DNA Start-Up Kit

• Construction:
  • Buffer tank is constructed of 3/8" thick, cast acrylic
  • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
• Overall Size: 70 mm(H) x 267 mm(W) x 394 mm(L)
• Gel Dimensions: 250 mm x 250 mm
• Buffer tank minimum capacity: 35cm
• Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
• Buffer tank maximum capacity: 500ml

The IB57000B DNA Start-Up Kit

• Construction:
  • Buffer tank is constructed of 3/8" thick, cast acrylic
  • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
• Overall Size: 83 mm(H) x 267 mm(W) x 394 mm(L)
• Gel Dimensions: 250 mm x 250 mm
• Buffer tank minimum capacity: 35cm
• Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
• Buffer tank maximum capacity: 1500ml

The IB94000B MAGELIN Start-Up Kit

• Construction:
  • Inner Gel Support - Molded ABS
  • Clamp assembles - Molded polycarbonate
  • Buffer chamber - 3/8" cast acrylic
  • Gaskets - Extruded silicone
• Overall Size: 170 mm(H) x 170 mm(W) x 180 mm(L)
• Gel Size: 80 mm(H) x 100 mm(W) in pre-cast 100 mm(H) x 170 mm(W) in hand-cast
• Buffer tank minimum capacity: 350 ml
• Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
• Buffer tank maximum capacity: 850ml
