Select Product

Voltage

Gel Type

Gel Dimensions

Buffer Capacity

Manufacturer SKU

Terra Part #PriceShips in
120/240 V Agarose 100 x 150 mm 500 mL IB53000B 1017-00 49054 $4355-7 Days2
Stocked
120/240 V Polyacrylamide 80 x 100 mm 850 mL IB94000B 1017-02 49056 $5295-7 Days3
Stocked
240 V Agarose 250 x 250 mm 1500 mL IB57000B 1017-01 49055 $5885-7 Days4
Stocked
Voltage
Gel Type
Gel Dimensions
Buffer Capacity
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary

Product Details

• Horizontal and vertical electrophoresis systems for DNA and protein analysis

• DNA and Protein Start-Up Kits contain the necessary equipment, buffers and reagents for low and high-throughput labs

• MP-1015 Multi-Purpose DNA Start-Up Kit: economical general purpose horizontal electrophoresis system with a patented vented lid ideal for use in extended high-resolution linear runs

• HR-2525 High Resolution DNA Start-Up Kit: horizontal electrophoresis system used for separating nucleic acids in agarose gels, screening PCR fragment, RFLP analysis, genomic and DNA separations

• MAGELIN Mini Protein Start-Up Kit: protein electrophoresis system runs two gels simultaneously and transforms into a dedicated Western transfer system

Features & Benefits

Features & Benefits

Included Items in Start-Up Kits

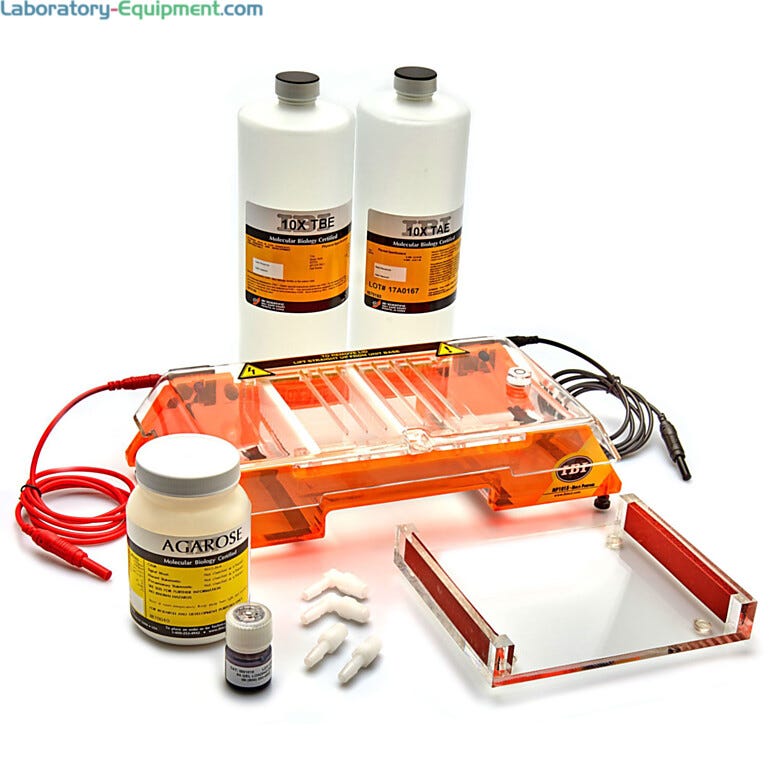

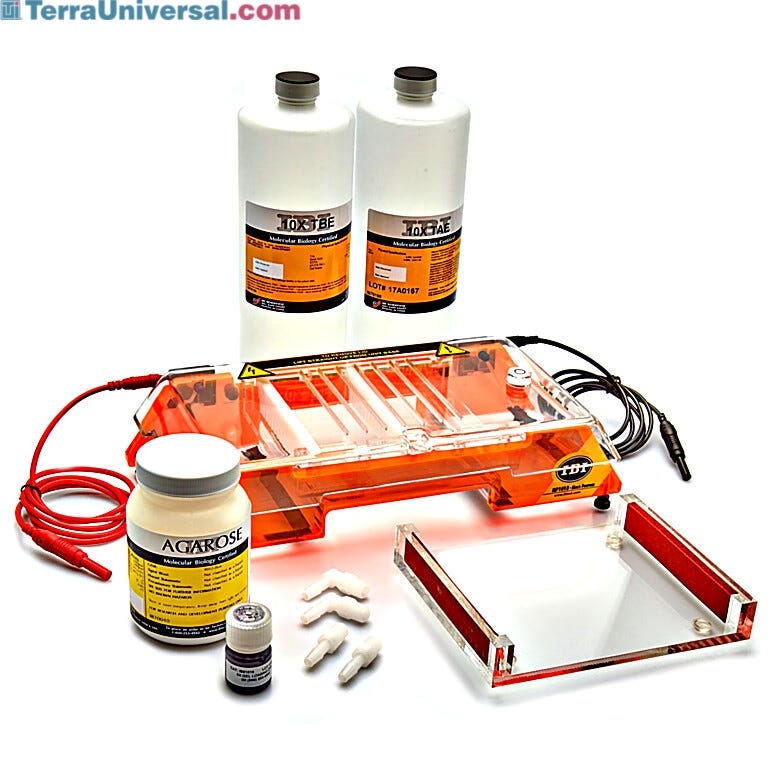

IB53000B DNA Start-Up Kit

  • Construction:
    • Buffer tank is constructed of 3/8" thick, cast acrylic
    • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
  • Overall: 70 mm(H) x 165 mm(W) x 305 mm(L)
  • Gel Dimensions: 100 mm x 150 mm
  • Distance between the electrodes: 27cm
  • Maximum Sample Capacity: 780 samples (4 combs, 20 samples each)
  • Buffer Capacity: 500ml
  • Includes
    • IB53000 MP1015 Horizontal System
    • IB01010 6X Loading Dye - 5ml
    • IB70150 10X TBE Buffer Concentrate - 1L
    • IB70160 10X TAE Buffer Concentrate - 1L
    • IB70040 100g Agarose
The IB57000B DNA Start-Up Kit
  • Construction:
    • Buffer tank is constructed of 3/8" thick, cast acrylic
    • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
  • Overall: 83 mm(H) x 267 mm(W) x 394 mm(L)
  • Gel Dimensions: 250 mm x 250 mm
  • Distance between the electrodes: 35cm
  • Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
  • Buffer Capacity: 1500ml
  • Includes
    • IB57000 HR2525 Horizontal System
    • IB01010 6X Loading Dye - 5ml
    • IB70150 10X TBE Buffer Concentrate - 1L
    • IB70160 10X TAE Buffer Concentrate - 1L
    • IB70040 100g Agarose
IB94000B MAGELIN Start-Up Kit

Vertical electrophoresis Protein Lab Start-Up Kits is made from the IB94000 MaGELin protein system designed to run 10 x10cm cast-your-own polyacrylamide gels or various other pre-cast gels in a dual running format. This kit also includes high quality IBI molecular biology reagents for your protein system needs. Included is one liter of 10X Tris-Glycine-SDS running buffer, a 5ml bottle of 2X protein loading dye, and 2L of Coomassie Blue stain.

  • Construction:
    • Inner Gel Support - Molded ABS
    • Clamp assemblies - Molded polycarbonate
    • Buffer chamber - 3/8" cast acrylic
    • Gaskets - Extruded silicone
  • Overall Size: 170 mm (L) x 170 mm (W) x 180 mm (H)
  • Gel Dimensions: 80 mm (L) x 100 mm (W) in pre-cast  100 mm (L) x 100 mm (W) in hand cast
  • Buffer tank minimum capacity: 35cm
  • Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
  • Buffer tank maximum capacity: 850ml
  • Includes:
  • IB94000 MAGELIN Protein System
  • IB01190 2X Loading Dye - 5ml
  • IB01110 10X SDS Tris-Glycine Buffer - 1L
  • IB01032 Coomassie Blue Stain - 2L
IB53000B DNA Start-Up Kit
  • Construction:
    • Buffer tank is constructed of 3/8" thick, cast acrylic
    • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
  • Overall Size: 70 mm(H) x 267 mm(W) x 394 mm(L)
  • Gel Dimensions: 250 mm x 250 mm
  • Buffer tank minimum capacity: 35cm
  • Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
  • Buffer tank maximum capacity: 500ml
The IB57000B DNA Start-Up Kit
  • Construction:
    • Buffer tank is constructed of 3/8" thick, cast acrylic
    • Casting tray bottom is constructed of UV transmittance cast acrylic to allow viewing of the gel with a UV light source
  • Overall Size: 83 mm(H) x 267 mm(W) x 394 mm(L)
  • Gel Dimensions: 250 mm x 250 mm
  • Buffer tank minimum capacity: 35cm
  • Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
  • Buffer tank maximum capacity: 1500ml
The IB94000B MAGELIN Start-Up Kit
  • Construction:
    • Inner Gel Support - Molded ABS
    • Clamp assembles - Molded polycarbonate
    • Buffer chamber - 3/8" cast acrylic
    • Gaskets - Extruded silicone
  • Overall Size: 170 mm(H) x 170 mm(W) x 180 mm(L)
  • Gel Size: 80 mm(H) x 100 mm(W) in pre-cast 100 mm(H) x 170 mm(W) in hand-cast
  • Buffer tank minimum capacity: 350 ml
  • Maximum Sample Capacity: 300 samples (6 combs, 50 samples each)
  • Buffer tank maximum capacity: 850ml
