- Have the benefits of Advanced Protocol Ovens plus the benefit of additional safety features
- Stainless steel interior meets demanding requirements in pharmaceutical and clinical laboratories
- Benchtop designs are available in Gravity or Mechanical Convection Technology
- Option to choose from coated or stainless-steel exterior
Ovens
3616-PP-01
3616-PP-01 71491

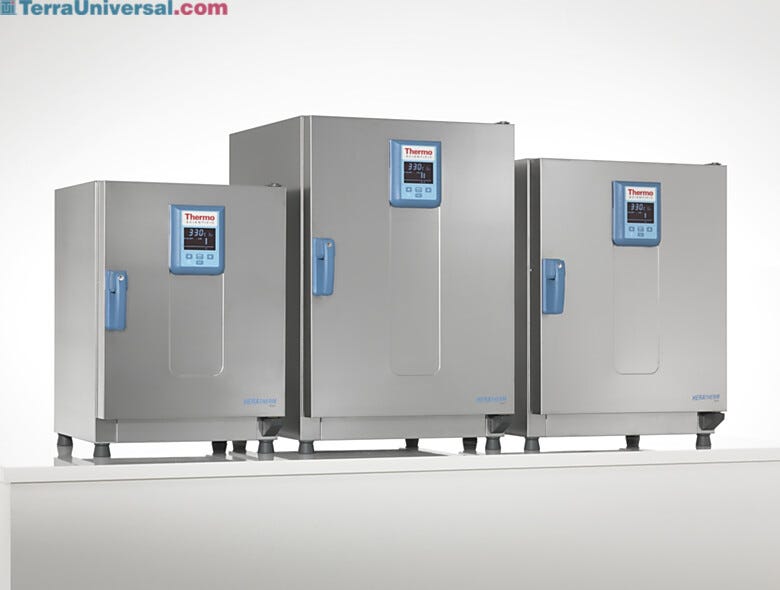

Heratherm Advanced Protocol Security Ovens by Thermo Fisher Scientific
Read more
Manufactured By: Thermo Fisher
Warranty: 1 year parts, 90 days labor
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
- Have the benefits of Advanced Protocol Ovens plus the benefit of additional safety features
- Stainless steel interior meets demanding requirements in pharmaceutical and clinical laboratories
- Benchtop designs are available in Gravity or Mechanical Convection Technology
- Option to choose from coated or stainless-steel exterior
- Door lock prevents accidental opening, disruption and tampering
- Door alarm notifies operator when door is left open
- Provides temperature range from 50°C to 330 °C for a variety of laboratory drying applications
- Energy efficient auto-dry function deactivates when samples are dry
- Automatic overtemperature and undertemperature alarm ensures correct temperature
- Optional: Socket for independent sample sensor
Heratherm General Protocol Ovens
Heratherm General Protocol Ovens are available in gravity and mechanical convection models in three different sizes | 3700-87 displayed Heratherm General Protocol Ovens The Gravity Convection Economy Ovens saves energy while the double wall construction maintains uniform temperatures. Units deliver gentle heating and drying of lightweight samples such as powders, lightweight films and granular material.
Features & Benefits
Features & Benefits
Gravity and Mechanical Convection Models
Print Copy Copied
Gravity Convection Advanced Protocol Security Ovens
Models provide temperature stability of at least ±0.4°C at 150°C and temperature uniformity of ±3.5°C or better Low turbulence gentle heating and drying of delicate samples sensitive to airflow.
Application: Gentle drying of electronics, pharmaceutical preparations, soil, sand, powders, paper and textile; gently cures paint adhesives, plastics and metals; vulcanization of rubber; heated storage of pills and drugs.
Mechanical Convection Advanced Protocol Security Ovens
Models provide temperature stability of at least ±0.3°C at 150°C and temperature uniformity of ±2.9°C or better as well as optimal temperature distribution and accuracy. Units have fast temperature recovery when door is opened and closed.
Application: Fast drying of glassware and material testing of cables and plastics
Additional Features
- Controller: Programmable Microprocessor control with vacuum flourescent display
- Material: Stainless-steel AISI 304 interior
- Timer: Weekly / Real Time / Hour
- Temperature Range: 50° to 330°C
- Max Shelf Load: 55 lbs. (25kg)
- Timer with daily or weekly on/off cycles extends operational options
- Programmable Controller for temperature ramps and dwells
- Stores up to 10 repeatable programs and up to 10 steps within each program
- Application flexibility with adjustable 5-speed fan
- Access ports permits connection of sensors for independent data monitoring and RS232 interface
- Simple calibration routine ensure temperature accuracy after long-term progressive use
- Boost function accelerates heating process and eliminates the need to operate oven 24/7
- Electronically controlled fresh air damper
- Stackable benchtop units with a compact footprint/volume ratio
- Large fluorescent display for clear viewing
- Easy to use microprocessor-based touch button controls
- Easy to clean corrosion-resistant inner chamber with rounded corners
- 180° door opening for easy access to samples and cleaning
- Two-Year Manufacturer Parts and Service Warranty
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
Additional Wire Mesh Shelf
Stainless steel shelf for Heratherm large capacity ovens. Load weight is 400lbs; purchase individually. -
Support Stands with Casters
Optional casters for Heratherm Oven provides mobility to an otherwise large oven -
Stacking Kits for Heratherm Ovens
Available stacking kits for Thermo Fisher Heratherm Ovens to reduce space consumption. -
Fresh Air Filter
Fresh air particle filter for connection to the fresh air vent (intake) for all Heratherm Ovens -
Shelving for Gravity and Mechanical Convection Ovens
Heratherm General Protocol Ovens provide optional shelf accessories in wire, perforated or reinforced steel shelves.
