HERAcell 150i & 240i CO2 Incubators provide the ideal in vitro environment to optimize cell growth

Incubators,Cell Culture Equipment

HERAcell® 150i & 240i CO2 Incubators by Thermo Fisher Scientific

Manufactured By: Thermo Fisher

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Voltage All 120 V Sort Order: Descending Ascending	Type All CO2 Sort Order: Descending Ascending	Material All Epoxy-Coated Steel Stainless Steel Sort Order: Descending Ascending	Capacity All 5.3 cu. ft. Sort Order: Descending Ascending	Temperature Range All Ambient +3°C to 55°C Sort Order: Descending Ascending	Convection Type All Air Jacket Sort Order: Descending Ascending	Sensor Type All Infrared (IR) Thermocoupler (TC) Sort Order: Descending Ascending	Model All Heracell Sort Order: Descending Ascending	Manufacturer SKU All 51026283 51026534 51026282 51026406 Sort Order: Descending Ascending	Terra Part #	Price	Ships in
120 V	CO2	Epoxy-Coated Steel	5.3 cu. ft.	Ambient +3°C to 55°C	Air Jacket	Thermocoupler (TC)	Heracell	51026283	3615-42 57067	$11,336	5-7 Days	2	In stock
120 V	CO2	Stainless Steel	5.3 cu. ft.	Ambient +3°C to 55°C	Air Jacket	Infrared (IR)	Heracell	51026534	3615-44 57069	$12,955	5-7 Days	3	In stock
120 V	CO2	Stainless Steel	5.3 cu. ft.	Ambient +3°C to 55°C	Air Jacket	Infrared (IR)	Heracell	51026406	3615-50 60042	$11,012	10-20 Days	4
120 V	CO2	Stainless Steel	5.3 cu. ft.	Ambient +3°C to 55°C	Air Jacket	Thermocoupler (TC)	Heracell	51026282	3615-49 60041	$9,474	10-20 Days	5

Voltage

Type

Material

Capacity

Temperature Range

Convection Type

Sensor Type

Model

Manufacturer SKU

* *

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Available Accessories

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

HERAcell 150i & 240i CO2 Incubators provide the ideal in vitro environment to optimize cell growth
Stackable units deliver excellent parameter recovery rates to enhance cell growth
Choose from thermal conductivity or infrared sensor technology
Available in stainless steel or copper inner chamber
Features ContraCon 90°C moist heat decontamination for effective cleaning and operation
Thermo conductivity (TC) sensor features accurate gas sensor technology
Infrared (IR) sensor features split-beam technology for precise CO2 control during temperature and humidity fluctuations

Direct heat provide even temperature distribution for optimum culturing conditions

iCAN touchscreen for easy setting, clear visibility of parameters and convenient unit performance evaluation

Select models with 100% solid copper inner chamber provides antimicrobial protection on contact; ideal for shared-use environments

Smooth inner casing with rounded corners for easy cleaning and disinfection

Integral humidity water reservoir for high rH with up to five times the recovery times compared to conventional water pans

Incubators

Thermo Fisher Scientific Heracell Incubator
Heracell Dual Chamber Copper Incubator
CO2 Incubation Expert on Heracell Incubators

HERAcell 240i CO2 Incubator by Thermo Fisher Scientific | 3615-45 displayed Thermo Fisher Scientific Heracell Incubator HERAcell 240i CO2 Incubator by Thermo Fisher Scientific.

HERAcell 150i & 240i CO2 Incubators provide the ideal in vitro environment to optimize cell growth Heracell Dual Chamber Copper Incubator HERAcell 150i & 240i CO2 Incubators provide the ideal in vitro environment to optimize cell growth.

CO2 Incubation expert demonstrates and explains the benefits of the Thermo Scientific Incubator CO2 Incubation Expert on Heracell Incubators Short interview with an expert in CO2 incubation and the fundamentals of the Thermo Scientific Heracell incubator

Features & Benefits

Features and Benefits

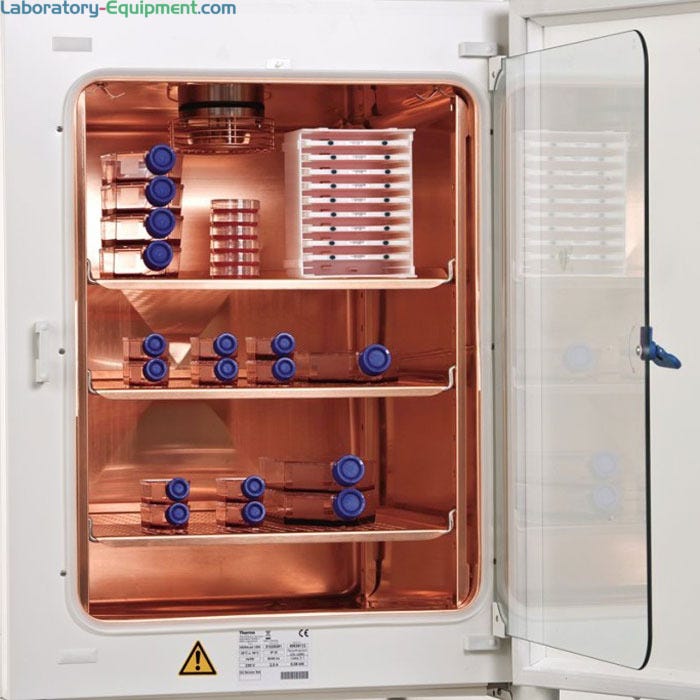

Thermo Fisher Copper Interior Incubator

Select models of Heracell 150i and 240i CO2 Incubators feature durable and easy-to-clean 100% pure copper interior chamber for anti-microbial protection ideal for cell culturing.

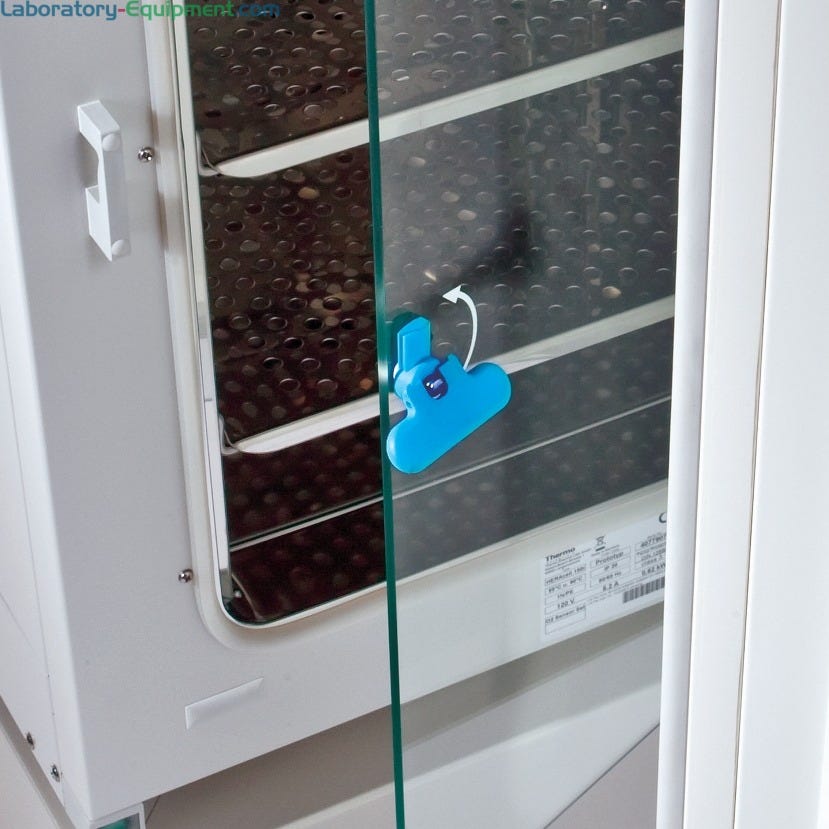

Latching Inner Glass Door

Inner glass door can be hinged left or right and the reliable door latch ensures door closure to protect samples

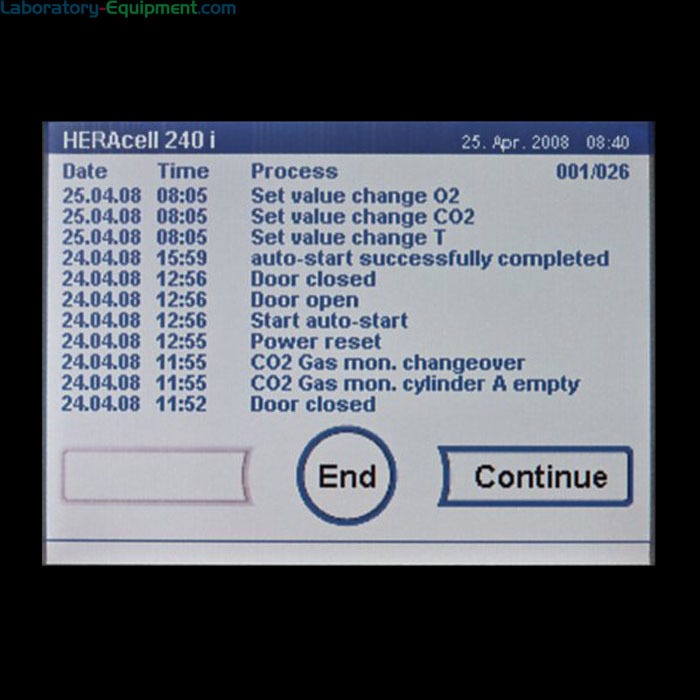

iCAN Touchscreen

iCAN Touchscreen delivers information quickly and easily allowing operators to easily set up and review parameters and performance trends.

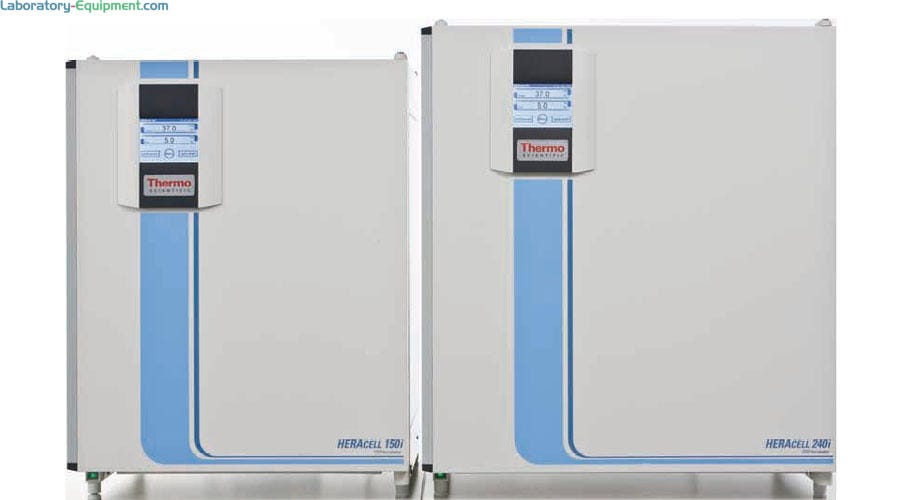

Stackable CO2 Incubators

Heracell 150i and 240i CO2 incubators by Thermo Fisher Scientific are stackable units that maximize space in small labs.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Learn More
Universal Base Stands Offer Excellent Versatility

Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
Universal Stand Adjusts to Fit a Wide Range of Equipment

Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.

Other products you may find relevant

Buy Accessories

Manuals & Resources

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Model	HERAcell 1501	HERAcell 240i
Exterior Dimensions W x D x H	25.1 x 30.8 x 24.1 in. (638 x 782 x 612 mm)	30.7 x 32.8 x 36.8 in. (780 x 833 x 935 mm)
Interior Dimensions W x D x H	18.5 x 20.9 x 23.9 in. (470 x 531 x 607 mm)	23.9 x 23.0 x 26.4 in. (607 x 584 x 671)
Internal Volume	150L (5.3 cu. ft.)	240 (8.4 cu. ft.)
Weight	154 lbs. (70 kg)	178 lbs. (81 kg)
Shelves Dimensions W x D	16.7 x 18.3 in. (423 x 465 mm)	22.0 x 19.7 (560 x 500 mm)
No. of Shelves Standard/Maximum	3 Standard 10 Maximum	3 Standard 12 Maximum
Max. Load per Shelf	22 lbs. (10 kg)
Total Load per Shelf	66 lbs. (30 kg)
Shelves Half Width W x D	—	10.2 x 19.7 in. (260 x 500 mm)
No. of Shelves Standard/Maximum	—	6 Standard 16 Maximum
Max. Load per Shelf	—	11 lbs. (5 kg)
Total Load per Shelf	—	66 lbs. (11 kg)
Interior Chamber	Solid Copper/Stainless Steel
Shelves and Fan Impeller	Solid Copper/Stainless Steel
ContraCon decontamination routine	verified by accredited laboratories
Decontamination phase, on all surfaces °C/hrs.	90/9
Period (ambient temperature 20°C)	25 hours
Efficiency spectrum	bacteria, fungi, spores (USP 23), mycoplasma
Temperature	Air Jacket Temperature Control
Temperature Control Range °C	TA* +3 … 55
Temperature deviation, time/spatial	± 0.1/± 0.5 K
Ambient temperature range °C	+18 … 33
Constant humidity*** %rH	95 ± 3
Fill amount/water quality	Max. 3 distilled/autoclaved and demineralized	Max 4.5 distilled/autoclaved and demineralized
Measure and control range Vol. – %	0 … 20
Control accuracy Vol. – %	± 0.1
Inlet pressure bar	0.8 … max. 1
Gas purity %	99.5, medical quality min.
Measure and control range Vol. – %	1..21/5..90
Control accuracy Vol. – %	±0.2
Inlet pressure bar	0.8…max. 1
Gas purity %	99.5; medical quality min.
Rated voltage V	1/N/PE AC; 230 (120)
Rated output kW	0.58 (0.62)	0.64 (0.65)
Rated frequency Hz	50/60
Heat emission to environment at 37°C kWh/h	0.06	0.07
With ContraCon, kWh/h	0.11	0.25
Ambient Temperature Determined according to DIN 12880 for the standard configuration. Refer to calibration instructions for details. **Relative humidity inside incubator may increase during incubation of open culture vessels

Model

HERAcell 1501

HERAcell 240i

Exterior Dimensions
W x D x H

25.1 x 30.8 x 24.1 in.
(638 x 782 x 612 mm)

30.7 x 32.8 x 36.8 in.
(780 x 833 x 935 mm)

Interior Dimensions
W x D x H

18.5 x 20.9 x 23.9 in.
(470 x 531 x 607 mm)

23.9 x 23.0 x 26.4 in.
(607 x 584 x 671)

Internal Volume

150L (5.3 cu. ft.)

240 (8.4 cu. ft.)

Weight

154 lbs. (70 kg)

178 lbs. (81 kg)

Shelves Dimensions W x D

16.7 x 18.3 in.
(423 x 465 mm)

22.0 x 19.7
(560 x 500 mm)

No. of Shelves
Standard/Maximum

3 Standard
10 Maximum

3 Standard
12 Maximum

Max. Load per Shelf

22 lbs. (10 kg)

Total Load per Shelf

66 lbs. (30 kg)

Shelves Half Width W x D

—

10.2 x 19.7 in.
(260 x 500 mm)

No. of Shelves
Standard/Maximum

—

6 Standard
16 Maximum

Max. Load per Shelf

—

11 lbs. (5 kg)

Total Load per Shelf

—

66 lbs. (11 kg)

Interior Chamber

Solid Copper/Stainless Steel

Shelves and Fan Impeller

Solid Copper/Stainless Steel

ContraCon decontamination routine

verified by accredited laboratories

Decontamination phase, on all surfaces °C/hrs.

90/9

Period (ambient temperature 20°C)

25 hours

Efficiency spectrum

bacteria, fungi, spores (USP 23), mycoplasma

Temperature

Air Jacket Temperature Control

Temperature Control Range °C

TA* +3 … 55

Temperature deviation, time**/spatial**

± 0.1/± 0.5 K

Ambient temperature range °C

+18 … 33

Constant humidity*** %rH

95 ± 3

Fill amount/water quality

Max. 3
distilled/autoclaved and demineralized

Max 4.5
distilled/autoclaved and demineralized

Measure and control range Vol. – %

0 … 20

Control accuracy Vol. – %

± 0.1

Inlet pressure bar

0.8 … max. 1

Gas purity %

99.5, medical quality min.

Measure and control range Vol. – %

1..21/5..90

Control accuracy Vol. – %

±0.2

Inlet pressure bar

0.8…max. 1

Gas purity %

99.5; medical quality min.

Rated voltage V

1/N/PE AC; 230 (120)

Rated output kW

0.58 (0.62)

0.64 (0.65)

Rated frequency Hz

50/60

Heat emission to environment at 37°C
kWh/h

0.06

0.07

With ContraCon, kWh/h

0.11

0.25

*Ambient Temperature
**Determined according to DIN 12880 for the standard configuration. Refer to calibration instructions for details.
***Relative humidity inside incubator may increase during incubation of open culture vessels
