Select Product

Voltage

Material

Configuration

Collector Temperature

Options

Manufacturer SKU

Terra Part #PriceShips in
120 V 6L PTFE Benchtop -50°C PTFE Collector 7752021 6923-47 60205 $10,29918-22 Days2
120 V 6L Stainless Steel Benchtop -50°C 7752020 6923-45 60203 $9,34218-22 Days3
240 V 6L Stainless Steel Benchtop -50°C 7752040 6923-45-220 60207 $9,46318-22 Days4
220 V 6L PTFE Benchtop -50°C PTFE Collector 7752041 6923-47-220 60209 $10,43818-22 Days5
120 V 6L PTFE Console -50°C Tray Dryer/PTFE Collector 700622000 6923-48A 73365 $31,87218-22 Days6
240 V 6L PTFE Console -50°C Tray Dryer/PTFE Collector 700622010 6923-48A-220 73366 $31,87218-22 Days7
120 V 6L Stainless Steel Console -50°C 700611000 6923-49A 73367 $10,32518-22 Days8
240 V 6L Stainless Steel Console -50°C 700611010 6923-49A-220 73368 $10,32518-22 Days9
120 V 6L Stainless Steel Console -50°C Purge Valve 700611100 6923-50A 73369 $11,28818-22 Days10
240 V 6L Stainless Steel Console -50°C Purge Valve 700611110 6923-50A-220 73370 $11,28718-22 Days11
120 V 6L Stainless Steel Console -50°C Purge Valve/Mini Chamber 700611200 6923-51A 73371 $12,93218-22 Days12
240 V 6L Stainless Steel Console -50°C Purge Valve/Mini Chamber 700611210 6923-51A-220 73372 $12,93218-22 Days13
120 V 6L Stainless Steel Console -50°C Purge Valve/Shell Freezer 700611300 6923-52A 73374 $14,87618-22 Days14
240 V 6L Stainless Steel Console -50°C Purge Valve/Shell Freezer 700611310 6923-52A-220 73375 $14,87618-22 Days15
120 V 6L PTFE Console -50°C Purge Valve/PTFE Collector 700612100 6923-53A 73376 $12,30618-22 Days16
240 V 6L PTFE Console -50°C Purge Valve/PTFE Collector 700612110 6923-53A-220 73378 $12,30618-22 Days17
120 V 6L PTFE Console -50°C Purge Valve/Mini Chamber/PTFE Collector 700612200 6923-54A 73379 $13,95518-22 Days18
240 V 6L PTFE Console -50°C Purge Valve/Mini Chamber/PTFE Collector 700612210 6923-54A-220 73380 $13,95518-22 Days19
120 V 6L PTFE Console -50°C Purge Valve/Shell Freezer/PTFE Collector 700612300 6923-55A 73381 $15,89118-22 Days20
240 V 6L PTFE Console -50°C Purge Valve/Shell Freezer/PTFE Collector 700612310 6923-55A-220 73382 $15,89118-22 Days21
120 V 6L Stainless Steel Console -50°C Stoppering Tray Dryer 700621000 6923-56A 73383 $30,85718-22 Days22
240 V 6L Stainless Steel Console -50°C Stoppering Tray Dryer 700621010 6923-56A-220 73384 $30,85718-22 Days23
120 V 6L Stainless Steel Console -50°C Purge Valve/Tray Dryer 700621100 6923-57A 73385 $31,81418-22 Days24
240 V 6L Stainless Steel Console -50°C Purge Valve/Tray Dryer 700621110 6923-57A-220 73386 $31,81418-22 Days25
120 V 6L PTFE Console -50°C Purge Valve/Tray Dryer/PTFE Collector 700622100 6923-58A 73387 $32,82918-22 Days26
240 V 6L PTFE Console -50°C Purge Valve/Tray Dryer/PTFE Collector 700622110 6923-58A-220 73388 $32,82918-22 Days27
120 V 6L PTFE Console -50°C PTFE Collector 700612000 6923-59A 73391 $11,34718-22 Days28
240 V 6L Stainless Steel Console -84°C 710611030 6922-08A-220 73445 $13,04025-29 Days29
240 V 6L PTFE Console -84°C PTFE Collector 710612030 6922-09A-220 73446 $14,05525-29 Days30
240 V 6L Stainless Steel Console -84°C Purge Valve 710611130 6922-10A-220 73447 $13,99825-29 Days31
240 V 6L PTFE Console -84°C Purge Valve/PTFE Collector 710612130 6922-11A-220 73448 $15,01725-29 Days32
240 V 6L Stainless Steel Console -84°C Purge Valve/Mini Chamber 710611230 6922-12A-220 73449 $15,64725-29 Days33
240 V 6L PTFE Console -84°C Purge Valve/Mini Chamber/PTFE Collector 710612230 6922-13A-220 73450 $16,66225-29 Days34
120 V 6L Stainless Steel Console -84°C 710611000 6923-60A 73451 $13,04030-34 Days35
240 V 6L Stainless Steel Console -84°C 710611010 6923-60A-220 73452 $13,04030-34 Days36
120 V 6L Stainless Steel Console -84°C Purge Valve 710611100 6923-61A 73453 $13,99830-34 Days37
240 V 6L Stainless Steel Console -84°C Purge Valve 710611110 6923-61A-220 73454 $13,99830-34 Days38
120 V 6L Stainless Steel Console -84°C Purge Valve/Mini Chamber 710611200 6923-62A 73456 $15,64730-34 Days39
240 V 6L Stainless Steel Console -84°C Purge Valve/Mini Chamber 710611210 6923-62A-220 73457 $15,64730-34 Days40
120 V 6L PTFE Console -84°C Purge Valve/PTFE Collector 710612100 6923-63A 73458 $15,01730-34 Days41
240 V 6L PTFE Console -84°C Purge Valve/PTFE Collector 710612110 6923-63A-220 73459 $15,01730-34 Days42
120 V 6L PTFE Console -84°C Purge Valve/Mini Chamber/PTFE Collector 710612200 6923-64A 73460 $16,66230-34 Days43
240 V 6L PTFE Console -84°C Purge Valve/Mini Chamber/PTFE Collector 710612210 6923-64A-220 73461 $16,66230-34 Days44
120 V 6L PTFE Console -84°C PTFE Collector 710612000 6923-65A 73463 $14,05530-34 Days45
240 V 6L PTFE Console -84°C PTFE Collector 710612010 6923-65A-220 73464 $14,05530-34 Days46
Voltage
Ice Holding Capacity
Material
Configuration
Collector Temperature
Options
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Lab Equip will quote.
Custom-configured product: Lab Equip will quote.
Select a product line for product summary

Product Details

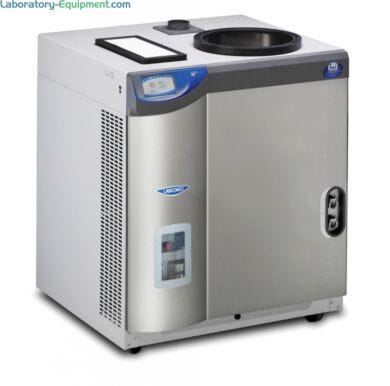

• FreeZone 6-Liter Console Freeze Dryers by Labconco in two collector cooling temperatures for aqueous and low eutectic point samples

• Console models with Stoppering Tray feature front viewing window, inner chamber space for a vacuum pump and space for a large tray dryer

• Features: large touch screen display, data logging, temperature sensors, manual or programmed tray dryers shelf temperature control, end point detection, USB port and Ethernet connection, vacuum break valve and patented moisture sensor and upright stainless steel collector coil

• Available options: purge valve, mini vacuum drying chamber, shell freezer (for -50° C only)

• Required accessories: vacuum pump, drying chambers and freeze dry glasswares

• Material: stainless steel collector coil and glacier white, powder-coated steel exterior

• Removes 4L of water in 24 hours

• Collector temperature: -50° C (-58° F) or -84° C (-119° F)

• Ice Holding Capacity: 6 liter

• ¾" thick collector lid with neoprene gaskets

• Touchscreen: 5” full color Lyo-Works touch screen display provides convenient programming and useful insights

• Program storage: 30 with up to 16 steps each

Lyophilizers

  • FreeZone 6 Liter -50C Console Freeze Dryer by Labconco FreeZone 6 Liter -50C Console Freeze Dryer by Labconco
  • FreeZone 6 Liter -84C Console Freeze Dryer by Labconco FreeZone 6 Liter -84C Console Freeze Dryer by Labconco
  • Labconco FreeZone 6L -50C Console Freeze Dryer with Stoppering Tray Labconco FreeZone 6L -50C Console Freeze Dryer with Stoppering Tray
FreeZone 6 Liter -50C Console Freeze Dryer by Labconco
FreeZone 6 Liter -84C Console Freeze Dryer by Labconco
Labconco FreeZone 6L -50C Console Freeze Dryer with Stoppering Tray

Features & Benefits

Features & Benefits

FreeZone 6L Features

Additional Features

  • 3” diameter port (for connecting drying accessories)
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents changes to programs and other system parameters
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • On/standby switch
  • Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
  • USB port (side-mounted) and Ethernet connection (rear-mounted)
  • Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector
  • Rear-mounted electrical receptacle for vacuum pump connection
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into the system in event of power outage
-50°C Collector Temperature
  • For aqueous samples
  • Single 1/3 hp HCFC/CFC-free refrigeration system
  • Removes over 2 liters of water in 24 hours
-84°C Collector Temperature
  • For samples with low eutectic points including acetonitrile
  • Two 1/3 hp HCFC/CFC-free refrigeration system
  • Removes 4 liters of water in 24 hours

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Rotary Vane Vacuum Pump for FreeZone
    Compatible with Labconco FreeZone Freeze Dryers, CentriVap Concentrators, and Precise or Protector glove boxes requiring vacuum service.
  • Drying Chamber, 12-port, for FreeZone systems
  • FreeZone Freeze Dry Glasswares by Labconco
    Clear Fast-Freeze Flasks by Labconco, compatible with FreeZone Freeze Dryers, are available in a variety of volume capacities; glass flasks withstand temperatures up to 490º C and include a rubber top, a glass bottom and filter paper.
