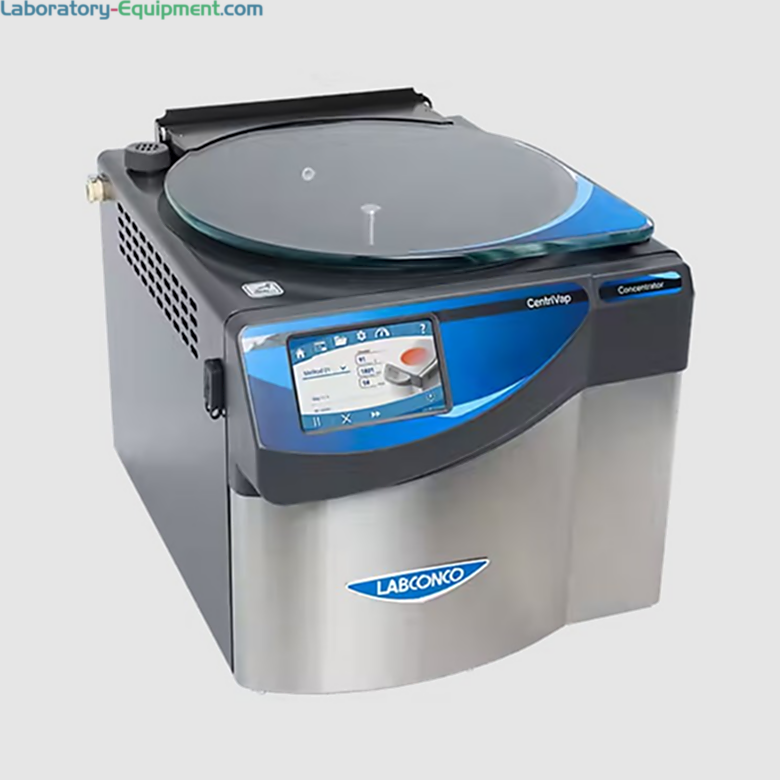

Configurable CentriVap Pro Vacuum Concentrators with glass lid supercharge lab sample workflow by rapidly concentrating multiple small samples using centrifugal force, vacuum and heat
Processes up to 312 sample tubes or six standard microtiter plates with stackable rotors
Refrigerated model cools to -10 °C with a heater that warms to +100 °C to reach user defined temperatures
Acid-resistant model for safe processing of 0.1 to 1% TFA, hydrochloric acid, acetic acid, hydrobromic acid, ammonium hydroxide and sodium hydroxide
300W Heat boost model for quick chamber heating and faster sample processing supplies a controlled amount of heat from OFF up to 100° C in one-degree increments
Configurable CentriVap Pro Vacuum Concentrators with glass lid supercharge lab sample workflow by rapidly concentrating multiple small samples using centrifugal force, vacuum and heat
Processes up to 312 sample tubes or six standard microtiter plates with stackable rotors
• Refrigerated model cools to -10 °C with a heater that warms to +100 °C to reach user defined temperatures
• Acid-resistant model for safe processing of 0.1 to 1% TFA, hydrochloric acid, acetic acid, hydrobromic acid, ammonium hydroxide and sodium hydroxide
• 300W Heat boost model for quick chamber heating and faster sample processing supplies a controlled amount of heat from OFF up to 100° C in one-degree increments
VaporWorks OS for greater user control over vacuum pressure, chamber temperature, run time, rotor speed, programming, diagnostics, data and more; enables unlimited library of sample methods
Features: 5" color touchscreen display, ethernet and wireless connectivity, accepts stackable sample rotors, detects rotor imbalance, configurable, data management (supports CSV and PDF file formats), in-run visual sample monitoring with optional CentriZap Pro Strobe Light, chamber preheat, smart dry and endpoint assist, pre-program menu, audible alarm
Applications: heat-sensitive samples such as RNA and proteins, biomarker identification, drug analysis, environmental compound detection, food safety, and nutrition research
Ideal for use in pharma research, biochemistry, and analytical chemistry laboratories
Controlled centrifugal force, vacuum and temperature
Material: powder-coated aluminum chamber, solvent-resistant glass lid (lid latch with safety sensor)
Built-in vacuum delay allows the rotor to achieve speed before applying vacuum
Built-in vacuum gauge allows for accurate vacuum pressure readings and control
Brushless motor
Rotor speed from 500 to 1800 RPM
Natural gas refrigerant reduces environmental impact
Modes for small-scale lyophilization and vacuum desiccation (when used with a rotary vane vacuum pump
Performs efficient concentration and drying of samples in various analytical techniques

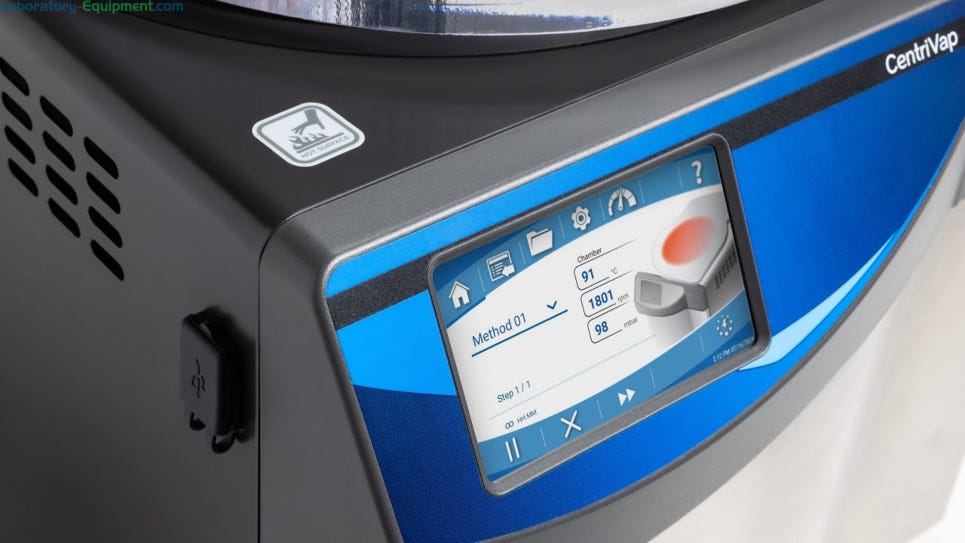

Centrivap Pro Centrifugal Vacuum Concentrator by Labconco
Video of Centrivap Pro Vacuum Concentrator by LabconcoCentrivap Pro Centrifugal Vacuum Concentrator by LabconcoVideo features operation and available accessories for Labconco Centrivap Pro Vacuum Concentrators used in lab prep work

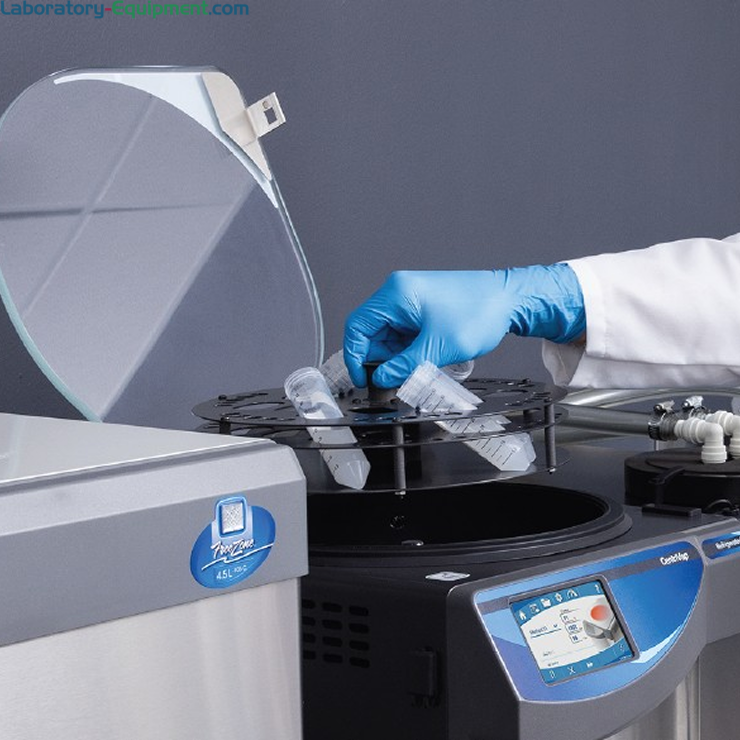

Protects CentriVap Pro by alerting user of minor issues and stops unit upon detection of extreme rotor imbalance

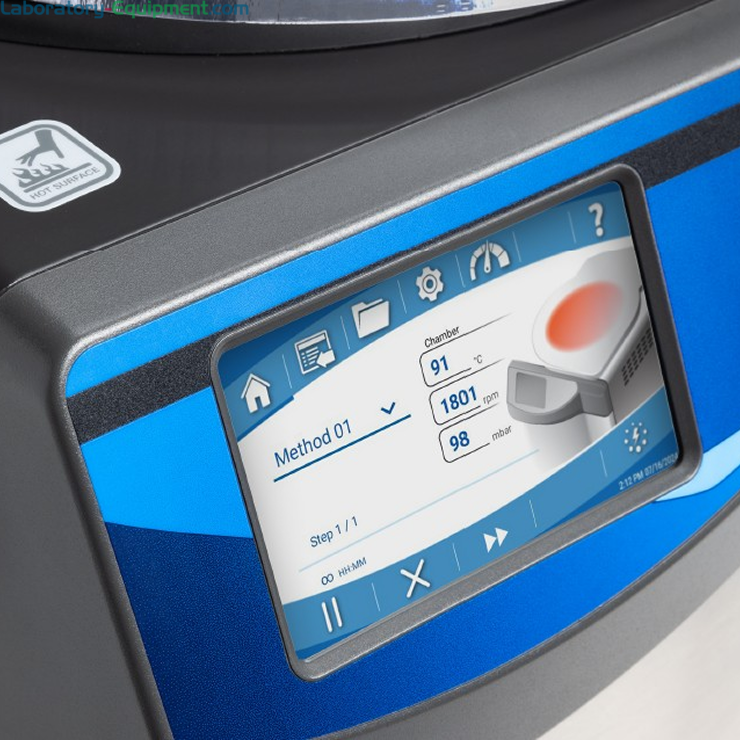

Display and Wireless Connectivity
5" LCD full-color touchscreen display and wireless connectivity enable easy navigation and automatic software updates and alerts

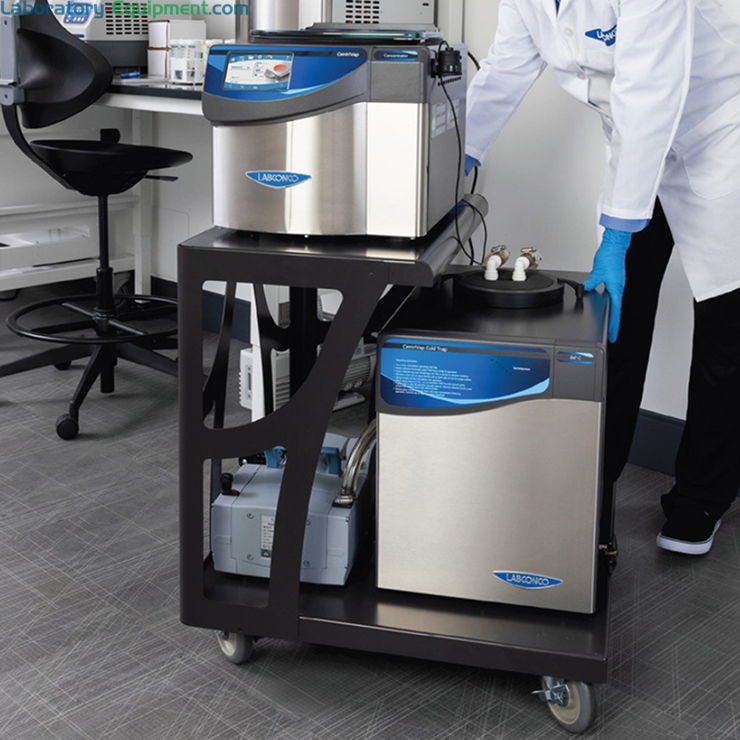

Versatile System Configuration
CentriVap Pro models easily configure with a diverse selection of cold traps, rotors, vacuum pumps, secondary traps and mobile carts for easy transport and application flexibility
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Labconco -50°C Centrivap Pro Cold Trap
Labconco -50°C Centrivap Pro Cold Trap for samples containing water; available with acrylic or stainless-steel lid

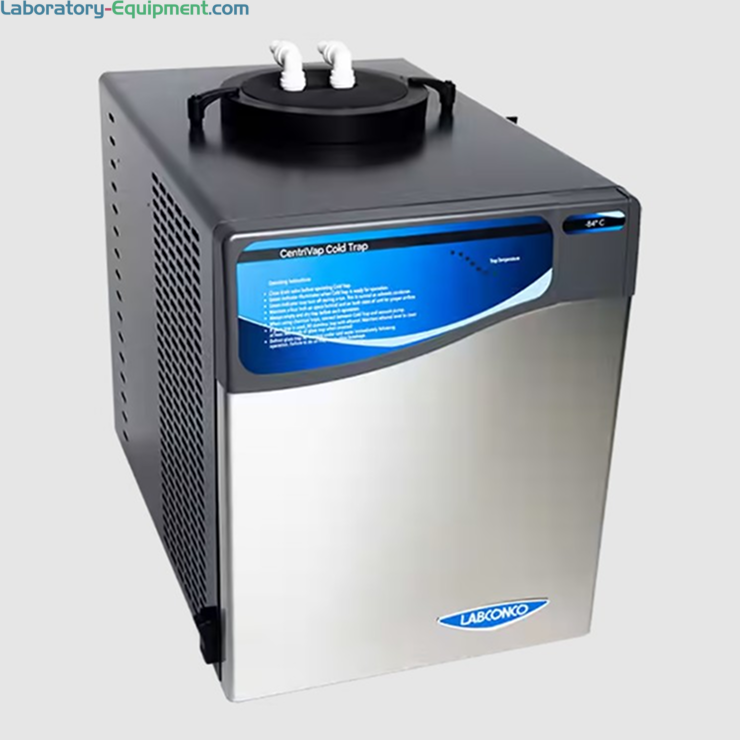

Labconco -84°C Centrivap Pro Cold Trap
Labconco -84°C Centrivap Pro Cold Trap for low eutectic point samples containing water or acetonitrile; available with acrylic or stainless-steel lid

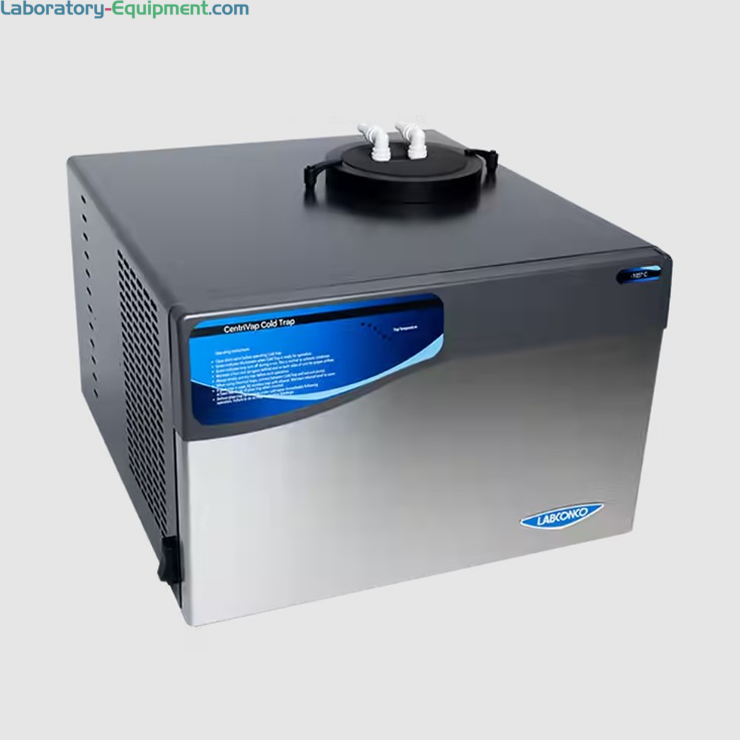

Labconco -105°C Centrivap Pro Cold Trap
Labconco -105°C Centrivap Pro Cold Trap for low eutectic point samples available with an acrylic or stainless-steel lid
Labconco Rotary Vane Vacuum Pump for FreeZone
Compatible with Labconco FreeZone Freeze Dryers, CentriVap Concentrators, and Precise or Protector glove boxes requiring vacuum service.
