2828-22
Terra Part # 2828-22
$7,780
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2828-22
77109

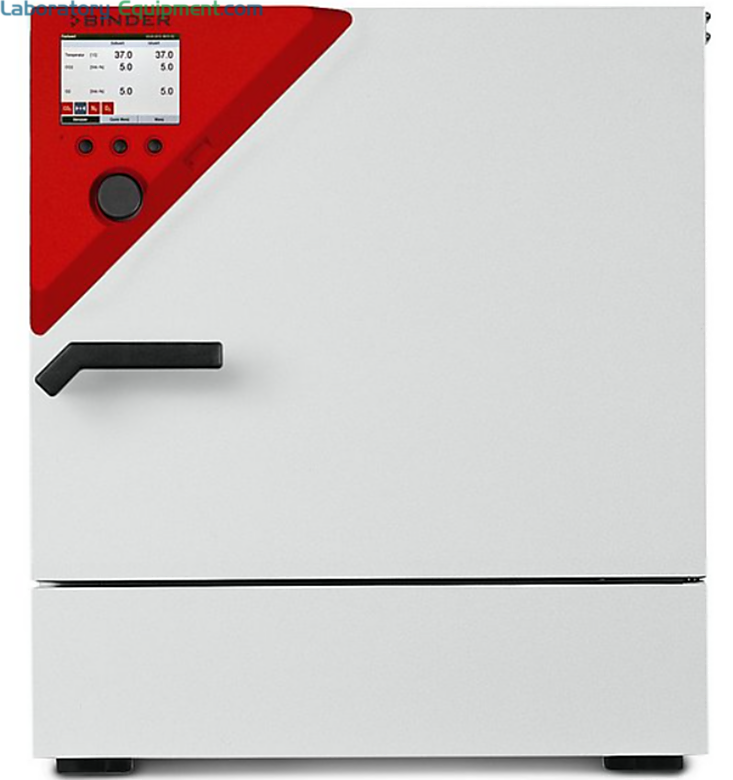

Incubator; CO2, CB 60, 1.9 cu. ft., Binder, 110/120 V
Product Details
  • Compact CB-60 model with hot air sterilization and heat sterilizable CO2 sensor
  • Ideal for complex cell cultivation experiments; provides high humidity levels and low evaporation
  • Minimizes risk of contamination
  • Seamless stainless steel interior is fanless and easy-to-clean
  • Includes two perforated stainless steel shelves
  • Auto-sterilization with hot air at 180 °C
  • Humidity range: up to 95% RH
  • Temperature range: room temperature plus 7 °C to 60 °C
  • CO2 control range: 0.2 to 20
  • Double-pan humidification system with condensation protection
  • CO2 gas-mixing jet with Venturi effect
  • Hot-air sterilizable CO2 sensor with infrared technology
  • CB-60 features: LCD color display, lockable door handle, seamless, stainless steel chamber, stackable when used with a stacking adapter, tightly-sealed inner door made of tempered safety glass, visual and audible alarms, Ethernet, internal data recording, USB interface, zero-voltage alarm contact
  • Options: Access port with silicone plug,  Analog output 4-20 mA, Calibration certification (temperature, expanded, temperature and CO2), quick sample access (CB models)

Temperature Range: +7°C to 60°C

Type: CO2

Manufactured by: Binder

Model: CB 60

Capacity: 1.9 cu. ft.

Sensor Type: Infrared (IR)

Manufacturer SKU: 9040-0089

Interior Material: Stainless Steel

Unit of Measure: EA

Electrical Specifications: 110/120 V, 16 A, 50/60 Hz

Dimensions, Product: 22.85" W x 21.47" D x 28.37" H

Buy Accessories
  1. Small 12"H powder-coated steel desiccator stand; optional casters simplify positioning and cleaning
    $531
    Increase Down Increase Up
  2. Small 12"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    $662
    Increase Down Increase Up

Features and Benefits

Seamless Stainless Steel Interior

Easy-to-clean inner chamber with a seamless stainless steel interior helps mitigate cross-contamination

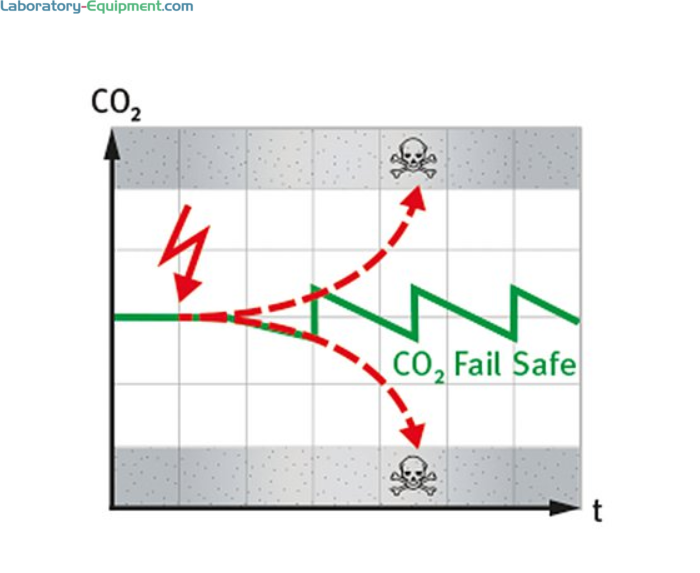

CO2 Automatic Diagnosis

CB models feature a fail-safe CO2 automatic diagnostic system to protect the pH of cell culture

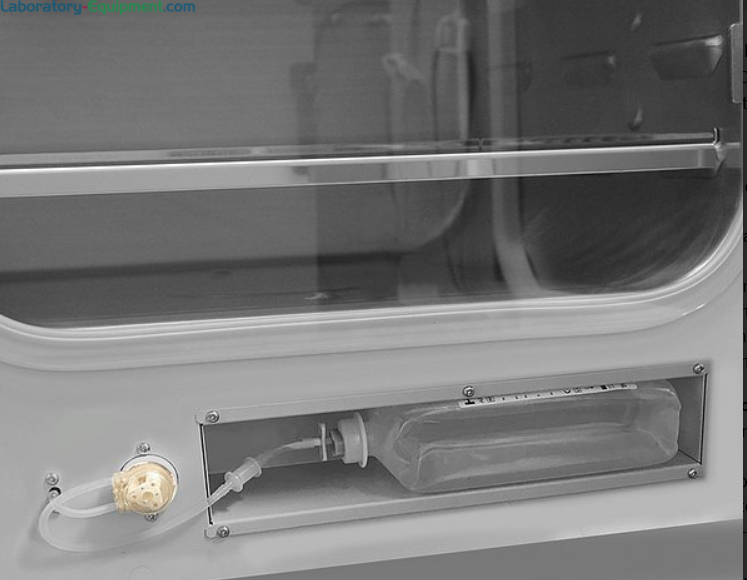

Optional Active Humidification

CB models with active humidification provide high humidity values from 90% to 95% RH while minimizing evaporation
