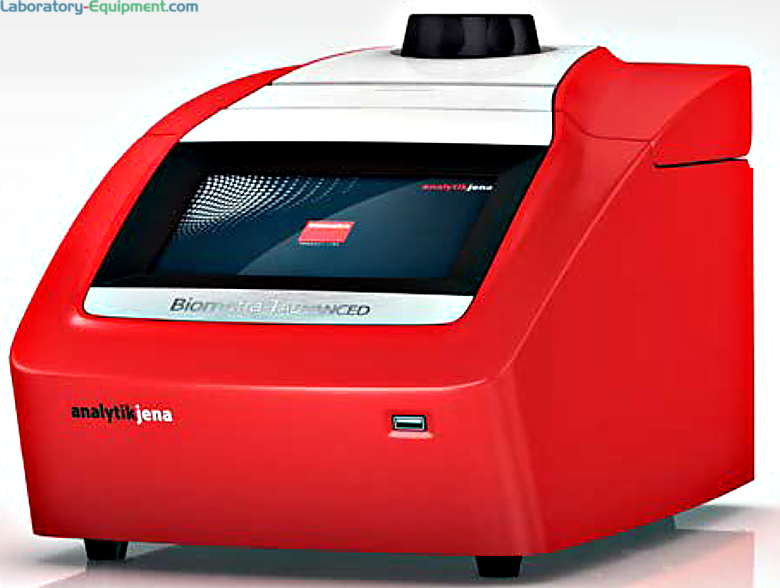

Biometra TAdvanced PCR Thermal Cyclers with gradient and twin block options provide easy block exchanges; with silver or aluminum blocks on select models
Thermal Cyclers

Thermal Cycler; 96 Well, Silver, Gradient, PCR, Biometra TAdvanced, Analytik Jena, 115 V

  • Biometra Tadvanced 96S PCR Thermal Cycler #846-4-070-251 with quick block exchange and gradient feature for high demand applications
  • Block Material: Silver for higher heating rates up to 8 °C/s
  • Capacity: 96 x 0.2 mL tubes/96-well microtiter plate/12 x 8-well strips, 0.2 mL
  • Gradient temperature range: 20 °C to 99 °C
  • Maximum/minimum gradient: 30 °C/0.1 °C

• Amplification Method: Standard PCR

• Gradient Function: Yes

• Block Capacity: 96 Well

• Plug Type: US Plug

• Manufacturer SKU: 846-4-070-241

• Block Material: Silver

• Unit of Measure: EA

Read more
Manufacturer SKU: 846-4-070-241
Manufactured By: Analytik Jena
Warranty: Three-Year Manufacturrer Warranty
Print
Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Chat

Want a quote quickly ?

Submit a QuickQuote request
Terra Part # 2829-81
$11,824
Usually ships in 7-11 business days

Want it faster ? Read about FasTrak

Terra Part # 2829-81
79077
$11,824
Usually ships in 7-11 business days

Want it faster ? Read about FasTrak

Save For LaterAdd to Compare
Details & Specs
Manuals & Resources
Related Products
  • Biometra Tadvanced 96S PCR Thermal Cycler #846-4-070-251 with quick block exchange and gradient feature for high demand applications
  • Block Material: Silver for higher heating rates up to 8 °C/s
  • Capacity: 96 x 0.2 mL tubes/96-well microtiter plate/12 x 8-well strips, 0.2 mL
  • Gradient temperature range: 20 °C to 99 °C
  • Maximum/minimum gradient: 30 °C/0.1 °C
  • Block coating: gold coating for corrosion protection
  • Includes: Protocol Wizard software and block module
  • Silver block module features: quick adaptation to temperature changes maximizes speed and achieves outstanding temperature uniformity
  • Gradient function features: optimizes new primer pair by identifying the ideal annealing temperature, programs gradients with a defined temperature difference between rows or columns of sample block
  • Biometra TAdvanced Series features: fast ramping, best accuracy, block control (RAC), high-performance Smart Lid (HPSL) maintains constant contact pressure, one-touch automatic lid-opening mechanism, whisper quiet operation, interface (2 USB A, Ethernet), automatic restart after power failure, quick block exchange
  • Protocol Wizard software features: pre-installed program templates for specific polymerases, 350 programs at 6 steps in up to 90 user directories, multi-step programming enables user to edit parameters within a single screen, PCR control app (enables connection to a smart phone or tablet), quick-start list of programs, extended self-test checks all relevant features, data management (direct spreadsheet and graphical programming), language( English, German, Chinese)
  • GLP-compliant operation: retains run log files, documents extended self-test documents PCR runs (saves error messages and results)
  • Biometra TAdvanced Applications: standard PCR application, DNA amplification by PCR, amplifies nucleic acids
  • Environmental conditions: 15 °C to 35 °C, 70 % air humidity, max. 2,000 m above sea level
  • Programming modes: Graphical, gradient and spreadsheet
  • Temperature range:3 °C to 99 °C
  • Maximum heating rate: 8.0 °C/s
  • Temperature uniformity at 55 °C after 15 s: ± 0.15 °C
  • Control Accuracy: ± 0.1 °C
  • Display 7" color touchscreen
  • Very Low Noise Level: 45 dB
  • Heated lid temperature range: 30 °C to 110 °C
Show more

• Amplification Method: Standard PCR

• Gradient Function: Yes

• Block Capacity: 96 Well

• Plug Type: US Plug

• Manufacturer SKU: 846-4-070-241

• Block Material: Silver

• Unit of Measure: EA

• Electrical Specifications: 115 V, 850 W, 50/60 Hz

• Weight, Product: 33 lb

• Dimensions, Product: 10.9" W x 18" D x 10.4" H

Show more

Manuals & Resources

Products similar to this one
  1. Biometra's TRIO PCR Thermal Cycler features three samples blocks to amplify separate assays in parallel
    Group of 6 products
    Biometra TRIO Thermal Cyclers by Analytik Jena From
    $14,338

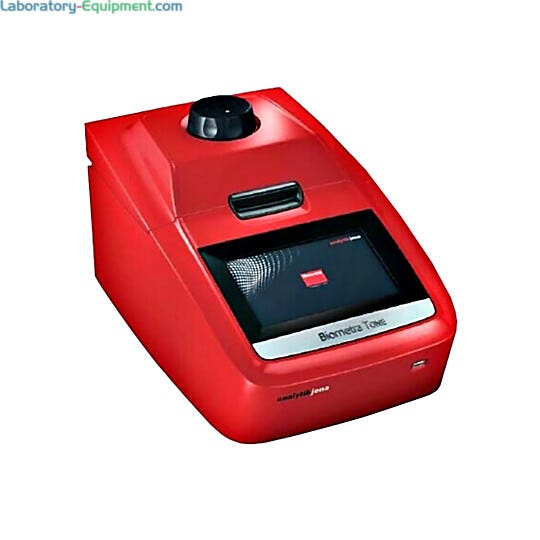

  2. Biometra's TOne thermal cycler is available with a Linear Gradient Tool to optimize primer annealing temperatures. | 1014-80 displayed
    Group of 2 products
    Biometra TOne Thermal Cyclers by Analytik Jena From
    $6,177
  3. The qTower 3 Auto provides homogeneous excitation, detection and a two year device warranty | 1016-67 displayed
    Group of 4 products
    qTOWER 3 Real-Time PCR Thermal Cyclers by Analytik Jena From
    Request Quote
Other products you may find relevant
  1. Pure•Amp™ PCR Plate; 0.1 mL, Low Profile, Non-skirted, compatible with most popular thermal cyclers | 2830-19 displayed
    Group of 9 products
    Pure•Amp™ PCR Plates by MTC Bio From
    $74
    Some ship in 3 - 5 days
  2. UVP GelStudio includes a Transilluminator, VisionWorks software, overhead white, green, red and blue LEDs, UV protection shield; 16.8 x 21 cm illuminated area
    Group of 8 products
    UVP GelStudio DNA Gel Documentation Imaging Systems by Analytik Jena From
    $10,995
  3. UVP ChemStudio Imaging Systems include a Transilluminator, VisionWorks software and a UV protection shield; external computer required
    Group of 16 products
    UVP ChemStudio Western Blot Imaging Systems by Analytik Jena From
    $25,846
  4. UVP GelSolo with a transilluminator and UV-safe gel viewing window streamlines gel imaging and analysis with VisionWorks software; 11.6” touch screen
    Group of 14 products
    UVP GelSolo UV Gel Documentation Systems by Analytik Jena From
    $7,360

Thermal Cyclers

  • Analytic Jena Video of Biometra TAdvanced and Biometra Trio Thermal Cyclers Analytic Jena Video of Biometra TAdvanced and Biometra Trio Thermal Cyclers
Analytic Jena Video of Biometra TAdvanced and Biometra Trio Thermal Cyclers
Overview of design, navigation and interface of Biometra TAdvanced and Biometra Trio Thermal Cyclers Analytic Jena Video of Biometra TAdvanced and Biometra Trio Thermal Cyclers Design benefits, features and operation of Biometra TAdvanced and Biometra Trio Thermal Cyclers by Analytik Jena

Features and Benefits

Quick-block exchange feature of Analytik Jena high-performance Biometra TAdvanced PCR Thermal Cycler

Quick Block Exchange (OBE)

OBE technology changes different block formats in a few seconds enabling application flexibility; no tools required
High-performance smart lid of Analytik Jena high-performance Biometra TAdvanced PCR Thermal Cycler

High-Performance Smart Lid

Height-adjustable lid optimized to heat twice as fast and reliable contact pressure between reaction tubes and the thermoblock prevents condensation
Program Templates for Biometra TAdvanced PCR Thermal Cyclers by Analytik Jena

Program Templates

Protocol Wizard software with program templates for a specific sample block can be adapted for specific experiments or used with current application
