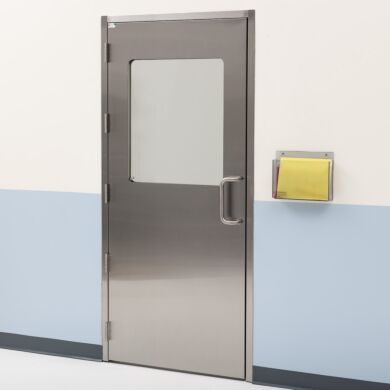

Left-hand swing stainless steel door with partial view tempered glass window | 6602-79A-L displayed

Base Part # 6602-76A-R

Door, Pre-Hung; Manual Single Right Swing, 42" W x 84" H, BioSafe®, 304 or 316 Stainless Steel, Half Window

  • Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Doors and frames are designed to fit flush with an existing wall for easy cleaning

• Type: Pre-Hung

• Opening Action: Single Right Swing

• Opening Width: 42"

• Opening Height: 84"

• Door Panel: 304 or 316 Stainless Steel

• Number of Hinges: 5

• Core Material: Solid XPS bonded core

• Window Pane: Tempered glass

• Door Gauge: 16 gauge

• Lock Prep Type: None

• Frame Construction: fully-welded, 16 gauge, single rabbet

• Window Size: Half Window

• Door Frame: CleanSeam™ 304 or 316 Stainless Steel

• Fire-Rating: None

• Operation: Manual

• Door Construction: CleanSeam™ Welded

• Unit of Measure: EA

Read more
ULus Listed UL Leak Rating BioSafe classic logo ISO 5 Icon
Terra Part #: 6602-76A-R
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
VIEW SPECS Download Manual
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
System Summary
Door, Pre-Hung; Manual Single Right Swing, 42" W x 84" H, BioSafe®, 304 or 316 Stainless Steel, Half Window
Door, Pre-Hung; Manual Single Right Swing, 42" W x 84" H, BioSafe®, 304 or 316 Stainless Steel, Half Window

In stock

$4,396 / system Total Cost Per System $4,396

Usually ships in 10-10 business days
Want it faster? Read about FasTrak
Configure this system from components at left.
You specify number of systems in cart.
You can edit configuration in cart.
Save For Later
Selected Items
    Customize Door, Pre-Hung; Manual Single Right Swing, 42" W x 84" H, BioSafe®, 304 or 316 Stainless Steel, Half Window

    Included Parts

    Components that are included with this system.
    Door, Pre-Hung; Manual Single Right Swing, 42
    Door, Pre-Hung; Manual Single Right Swing, 42" W x 84" H, BioSafe®, 304 or 316 Stainless Steel, Half Window 6602-76A-R 1 required
    $4,396
    Increase Down Increase Up
    Automatic Door Bottom Gasket Upgrade
    Automatic Door Bottom Gasket Upgrade
    1 Included
    Electromagnetic Door Interlock Diagram

    Door Interlocks

    Choose your desired type of smart electromagnetic interlock.
    None
    Remove
    Smart® Electromagnetic Multi-Door Interlock System
    Smart® Electromagnetic Multi-Door Interlock System
    $1,526
    Increase Down Increase Up
    Remove
    Smart® Wireless Electromagnetic Two-Door Interlock
    Smart® Wireless Electromagnetic Two-Door Interlock In stock soon
    $1,326
    Increase Down Increase Up
    Remove

    Lock Prep

    Optional lock prep configurations
    None
    Remove
    Door Lock Prep, Handle and Lockset; Cylindrical
    Door Lock Prep, Handle and Lockset; Cylindrical Only 7 left in stock
    $113
    Increase Down Increase Up
    Remove
    Door Lock Prep, Handle and Lockset; Mortise
    Door Lock Prep, Handle and Lockset; Mortise
    Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
    Request Quote
    Increase Down Increase Up
    Remove
    Door Exit Push Bar and Lever Handle
    Door Exit Push Bar and Lever Handle
    $489
    Increase Down Increase Up
    Remove

    Automatic Door Operator

    Convert door to an automatic door with hands free operation.
    Swing Door Operator, For 28
    Swing Door Operator, For 28" to 44" Door Width Quick Ship+ Available In stock
    $2,873
    Increase Down Increase Up

    Hinge Options

    Additional door hinge options.
    Door Hinge Option; Double-Action Spring Door Hinge
    Door Hinge Option; Double-Action Spring Door Hinge
    Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
    Request Quote

    Services

    Select services to request details and quotes.
    Service, ISO Grade™ Certificate, ISO 5
    Service, ISO Grade™ Certificate, ISO 5
    Request Quote
    UL Listing Declaration for Leak-Rated Cleanroom Doors
    UL Listing Declaration for Leak-Rated Cleanroom Doors
    Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
    Request Quote
    316 Stainless Steel Design Upgrade
    316 Stainless Steel Design Upgrade
    Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
    Request Quote
    Frosted Glass Panel Upgrade
    Frosted Glass Panel Upgrade
    Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
    Request Quote
    Warranty; 5 Year, Door, Parts
    Warranty; 5 Year, Door, Parts
    Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
    Request Quote
