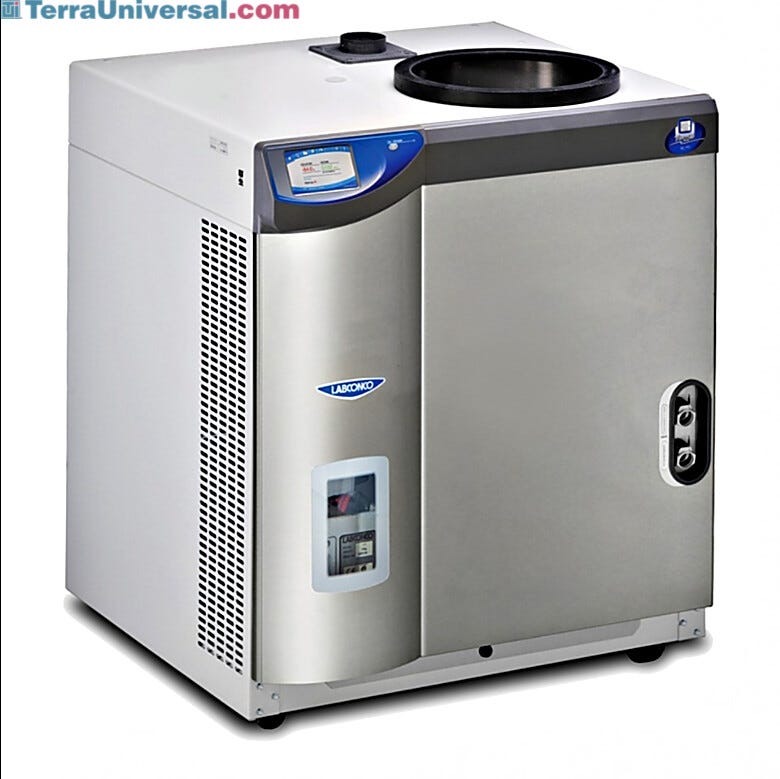

FreeZone 6 Liter -84C Console Freeze Dryer by Labconco for lyophilizing low eutectic point samples | 6923-60A displayed
Freeze Dryers

Labconco 6L FreeZone Console Freeze Dryer, -84°C, PTFE-Coated Stainless Steel, Purge Valve, 710612130, 230V Schuko

Manufacturer SKU: 710612130+CRATESKL
Manufactured By: Labconco
Warranty: One-Year Manufacturer Warranty
  • 230V Mobile 6L FreeZone Console Freeze Dryer with a PTFE-coated stainless-steel collector coil and purge valve withstands corrosive compounds when lyophilizing moderate sample loads
  • Refrigeration temperature: -84° C for low eutectic point samples containing water or acetonitrile
  • Features Lyo-Works operating system, a removable two-piece front panel with viewing window, a spacious interior cabinet that accommodates required vacuum pump (sold separately), and casters for easy transport
  • Required: chemically resistant rotary vane pump, combination pump or scroll pump with a displacement of at least 98 L/min, 0.02 mBar ultimate pressure and fitting suitable for 3/4" ID vacuum hose
  • Removes 4L of water in 24 hours

• Ice Holding Capacity: 6L

• Aqueous or Solid Samples?: Low Eutectic Point

• Material: PTFE

• Included Accessories: Purge Valve

• Model: FreeZone

• Manufactured by: Labconco

• Collector Temperature: -84°C

• Manufacturer SKU: 710612130

• Unit of Measure: EA

Read more
Manufacturer SKU: 710612130+CRATESKL
Manufactured By: Labconco
Warranty: One-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6922-11A-220
Terra Part # 6922-11A-220
$18,718
Accessories related to Terra Part # 6922-11A-220
73448
Labconco 6L FreeZone Console Freeze Dryer, -84°C, PTFE-Coated Stainless Steel, Purge Valve, 710612130, 230V Schuko
View Shopping Cart View Quote Cart
Configure & Add to Cart
Terra Part # 6922-11A-220 $18,718
Configure & Add to Cart
Usually ships in 36-38 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • 230V Mobile 6L FreeZone Console Freeze Dryer with a PTFE-coated stainless-steel collector coil and purge valve withstands corrosive compounds when lyophilizing moderate sample loads
  • Refrigeration temperature: -84° C for low eutectic point samples containing water or acetonitrile
  • Features Lyo-Works operating system, a removable two-piece front panel with viewing window, a spacious interior cabinet that accommodates required vacuum pump (sold separately), and casters for easy transport
  • Required: chemically resistant rotary vane pump, combination pump or scroll pump with a displacement of at least 98 L/min, 0.02 mBar ultimate pressure and fitting suitable for 3/4" ID vacuum hose
  • Removes 4L of water in 24 hours
  • Lyo-Works Operating System: user-friendly and full-color 5" capacitive touchscreen, real time display (collector temperature, vacuum level and optional End-Zone detection system), data logging and monitoring, start-up mode for collector cool down, auto or manual vacuum pull-down, up to 30 program storage capacity, USB port and Ethernet connection, useful control icons for included accessories
  • Mobile 6L FreeZone Console Lyophilizer #710612130:
  • Purge Valve: optimizes performance before or after freeze drying
  • Material: brushed stainless steel and glacier white powder-coated steel exterior with blue accents, ¾" thick acrylic collector lid, silicone tubing, neoprene gasket
  • Moisture sensor: detects moisture in drain line and prevents refrigeration or vacuum start-up
  • Hot gas defrost with auto shut off at +60° C (+140° F)
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into system when power is shut off; automatic restart if power outage is less than five minutes; will not automatically restart if power outage is more than five minutes and collector warms above safe limits
  • Additional features: HCFC-Free Refrigerant, on/standby switch, ¾" OD vacuum connection, 50" of ¾" ID vacuum hose and two clamps, USB port and Ethernet connection, quick disconnect drain hose fitting, three-wire electrical cord with region-specific plug configurations; rear-mounted electrical receptacle for vacuum pump connection
  • Conformance: UL Standard 61010-1, CAN/CSA C22.2 No. 61010-1
  • Options and accessories: Lyph-Seal Tray Dryer (115V or 230V), 3" diameter port for connection of drying accessories, freeze dry glassware

• Ice Holding Capacity: 6L

• Aqueous or Solid Samples?: Low Eutectic Point

• Material: PTFE

• Included Accessories: Purge Valve

• Model: FreeZone

• Manufactured by: Labconco

• Collector Temperature: -84°C

• Manufacturer SKU: 710612130

• Unit of Measure: EA

• Marks & Listings: CE

• Electrical Specifications: 230 V, 10 A, 50 Hz

• Weight, Product: 273 lb

• Dimensions, Product: 31.8" W x 29.6" D x 36.6" H

• Weight, Shipping: 299 lb

• Dimensions, Shipping: 38.2" W x 34" D x 42.3" H

• Package Type: Vendor

Show more
Frequently Used Together
  1. Laboratory Evaporators & Concentrators
    Group of 122 products
    Laboratory Evaporators & Concentrators

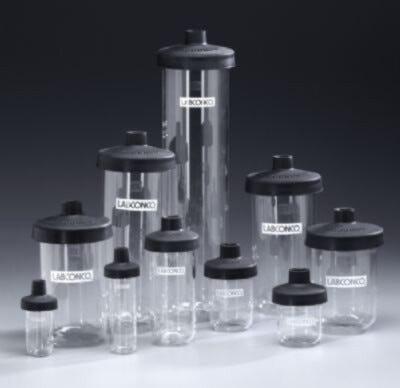

  2. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds. | 3647-87 displayed
    Fast-Freeze Flask, 40ml, for FreeZone systems
    $101
    Usually Ships in 5 - 7 days
  3. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 80ml, for FreeZone systems
    $143
    Usually Ships in 5 - 7 days
  4. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 120ml, for FreeZone systems
    $195
    Usually Ships in 5 - 7 days
  5. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 150ml, for FreeZone systems
    $200
    Usually Ships in 5 - 7 days
  6. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 600ml, for FreeZone systems
    $293
    Usually Ships in 5 - 7 days
  7. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 300ml, for FreeZone systems
    $236
    Usually Ships in 5 - 7 days
  8. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 900ml, for FreeZone systems
    $318
    Usually Ships in 5 - 7 days
  9. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 1200ml, for FreeZone systems
    $354
    Usually Ships in 5 - 7 days
  10. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 2000ml, for FreeZone systems
    $418
    Usually Ships in 5 - 7 days
Add-Ons, Replacement Parts & Services
  1. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    Universal® Adjustable Desiccator Stand; Powder-Coated Steel, 26" - 32"W x 25" - 36"D x 5.5"H In stock
    $703
    Increase Down Increase Up
  2. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Universal® Adjustable Desiccator Stand; 304 Stainless Steel, 26" - 32"W x 25" - 36"D x 5.5"H In stock
    $881
    Increase Down Increase Up
  3. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    Universal® Adjustable Desiccator Stand; Powder-Coated Steel, 26" - 32"W x 25" - 36"D x 12" - 20"H In stock
    $703
    Increase Down Increase Up
  4. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Universal® Adjustable Stand; 26" - 32"W x 25" - 36"D x 12" - 20"H, 304 or 316L SS In stock
    $881
    Increase Down Increase Up
  5. Labconco Lyph-Seal Tray Dryer includes four heated shelves and a sample temperature probe
    Labconco Lyph-Seal Tray Dryer by 230V, 780401010
    $9,653
    Increase Down Increase Up
  6. Warranty; 1 Year, Labconco
    Warranty; 1 Year, Labconco
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: FreeZone 6L
Print Copy Copied

Additional Features

  • 3" diameter port (for connecting drying accessories)
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents changes to programs and other system parameters
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • On/standby switch
  • Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
  • USB port (side-mounted) and Ethernet connection (rear-mounted)
  • Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector
  • Rear-mounted electrical receptacle for vacuum pump connection
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into the system in event of power outage
-50°C Collector Temperature
  • For aqueous samples
  • Single 1/3 hp HCFC/CFC-free refrigeration system
  • Removes over 2 liters of water in 24 hours
-84°C Collector Temperature
  • For samples with low eutectic points including acetonitrile
  • Two 1/3 hp HCFC/CFC-free refrigeration system
  • Removes 4 liters of water in 24 hours
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Labconco FreeZone Vacuum Pump

    Labconco Rotary Vane Vacuum Pump for FreeZone

    Compatible with Labconco FreeZone Freeze Dryers, CentriVap Concentrators, and Precise or Protector glove boxes requiring vacuum service.

  • Drying Chamber, 12-port, for FreeZone systems

  • FreeZone Freeze Dry Glasswares by Labconco

    FreeZone Freeze Dry Glasswares by Labconco

    Clear Fast-Freeze Flasks by Labconco, compatible with FreeZone Freeze Dryers, are available in a variety of volume capacities; glass flasks withstand temperatures up to 490º C and include a rubber top, a glass bottom and filter paper.
Similar Products
  1. FreeZone 2.5 Liter -84C Benchtop Freeze Dryers by Labconco with Lyo-Works OS data collection and a stainless steel or PTFE collector coil | 6923-PP-01 displayed
    Group of 10 products
    2.5-Liter FreeZone Benchtop Freeze Dryers by Labconco From
    As low as $7,919
    Some ship in 36 - 38 days
  2. Labconco FreeZone 4.5L Benchtop Freeze Dryers with Lyo-Works and choice of stainless-steel or PTFE collector coil for light to moderate sample loads | 6923-34A displayed
    Group of 14 products
    4.5-Liter FreeZone Benchtop Freeze Dryers by Labconco From
    As low as $10,349
    Some ship in 36 - 38 days
  3. FreeZone 4.5L and 8L -84C Freeze Dryers with aPTFE collector coil by Labconco lyophilize samples with low eutectic points | 6923-32A displayed
    Group of 4 products
    8-Liter FreeZone Benchtop Freeze Dryers by Labconco From
    As low as $12,729
    Some ship in 36 - 38 days
  4. Labconco FreeZone 12L Console -50C Freeze Dryer with Stoppering Tray lyophilizes moderate to large loads of aqueous samples | 6923-75A-220 displayed
    Group of 15 products
    12-Liter FreeZone Console Freeze Dryers by Labconco From
    As low as $17,716
    Some ship in 36 - 38 days
  5. FreeZone 18 Liter -50C Console Freeze Dryers by Labconco lyophilize aqueous samples and remove 10L of water in 24 hours; built-in options available | 6923-86A-220 displayed
    Group of 6 products
    18-Liter FreeZone Console Freeze Dryers by Labconco From
    As low as $22,478
    Some ship in 36 - 38 days

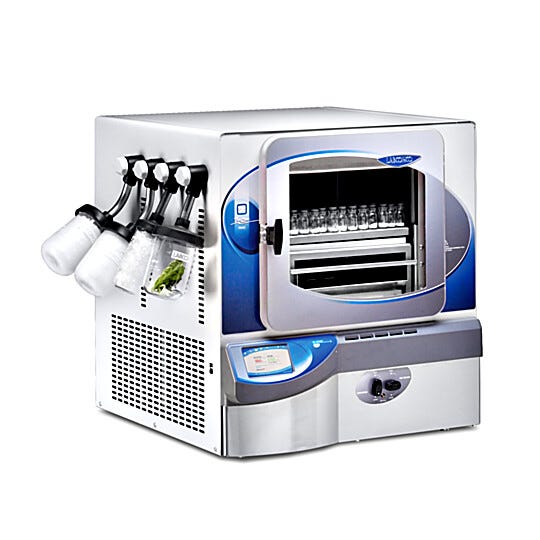

  6. FreeZone Triad 2.5 Liter -84C° Benchtop Freeze Dryer by Labconco handles multiple types of lyophilization, Lyo-Works OS data collection and a stainless steel co | 6923-36-220 displayed
    Labconco FreeZone Triad Benchtop Freeze Dryer 2.5L -84°C 794001010
    $31,148
    Usually Ships in 51 - 53 days
Frequently Used Together
  1. Laboratory Evaporators & Concentrators
    Group of 122 products
    Laboratory Evaporators & Concentrators
  2. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds. | 3647-87 displayed
    Fast-Freeze Flask, 40ml, for FreeZone systems
    $101
    Usually Ships in 5 - 7 days
  3. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 80ml, for FreeZone systems
    $143
    Usually Ships in 5 - 7 days
  4. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 120ml, for FreeZone systems
    $195
    Usually Ships in 5 - 7 days
  5. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 150ml, for FreeZone systems
    $200
    Usually Ships in 5 - 7 days
  6. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 600ml, for FreeZone systems
    $293
    Usually Ships in 5 - 7 days
  7. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 300ml, for FreeZone systems
    $236
    Usually Ships in 5 - 7 days
  8. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 900ml, for FreeZone systems
    $318
    Usually Ships in 5 - 7 days
  9. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 1200ml, for FreeZone systems
    $354
    Usually Ships in 5 - 7 days
  10. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 2000ml, for FreeZone systems
    $418
    Usually Ships in 5 - 7 days
Add-Ons, Replacement Parts & Services
  1. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    Universal® Adjustable Desiccator Stand; Powder-Coated Steel, 26" - 32"W x 25" - 36"D x 5.5"H
    $703
    Usually Ships in 1 - 3 days
  2. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Universal® Adjustable Desiccator Stand; 304 Stainless Steel, 26" - 32"W x 25" - 36"D x 5.5"H
    $881
    Usually Ships in 1 - 3 days
  3. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    Universal® Adjustable Desiccator Stand; Powder-Coated Steel, 26" - 32"W x 25" - 36"D x 12" - 20"H
    $703
    Usually Ships in 1 - 3 days
  4. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Universal® Adjustable Stand; 26" - 32"W x 25" - 36"D x 12" - 20"H, 304 or 316L SS
    $881
    Usually Ships in 1 - 3 days
  5. Labconco Lyph-Seal Tray Dryer includes four heated shelves and a sample temperature probe
    Labconco Lyph-Seal Tray Dryer by 230V, 780401010
    $9,653
    Usually Ships in 26 - 28 days
  6. Warranty; 1 Year, Labconco
    Warranty; 1 Year, Labconco
    Request Quote

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
