6923-93
Terra Part # 6923-93
$9,653
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Accessories related to Terra Part # 6923-93
89877

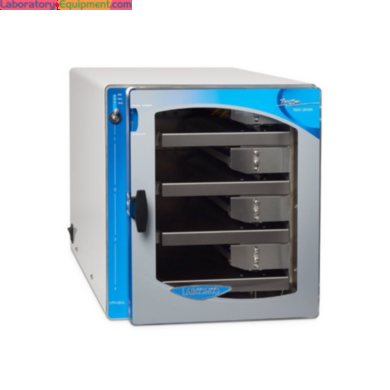

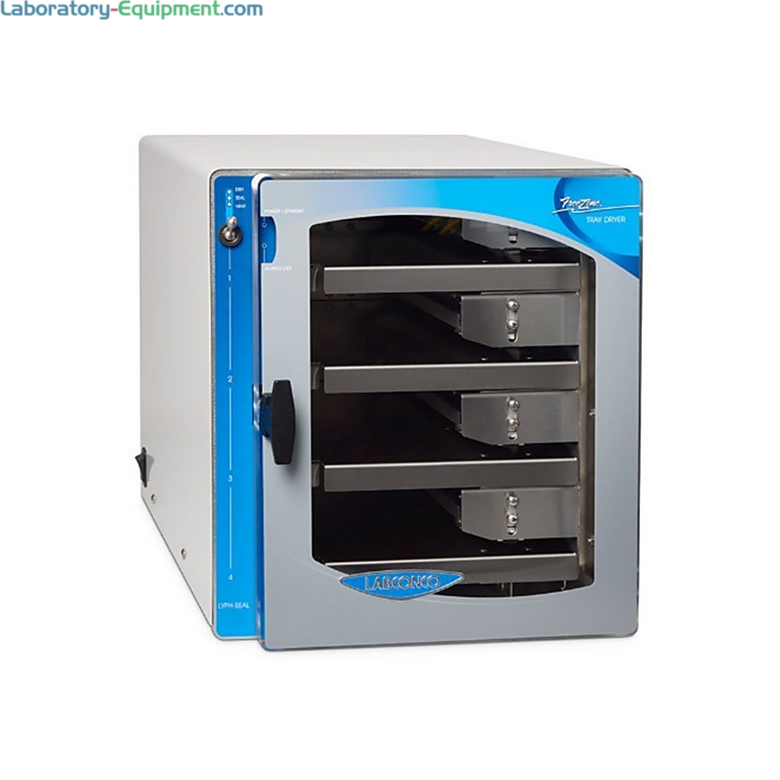

Lyph-Seal Tray Dryer by Labconco, 230V, 780401010
Usually ships in 18-22 business days

Want it faster ? Read about FasTrak

Product Details
  • 230V Lyph-Seal Tray Dryer quickly lyophilizes dry bulk samples and vacuum seals them; compatible with Labconco FreeZone Freeze Dryers equipped with Lyo-Works OS (2017 and later)
  • Prevents premature degradation of large volume, oddly shaped and individually packaged samples
  • Processes up to eight Lyph-Seal Samples bags
  • 3-way valve features: enables simple drying, sealing and venting conditions within chamber
  • •  Includes: 4 independently monitored heated shelves and sample temperature probe
  • Required: #7584500 Vacuum Pump Displacement: 98 L/min or Larger Displacement
  • Optional: Zipper-sealed sample bags #7592100 conform to shape of sample to create vapor barrier and block humidity; extends sample shelf life
  • Applications: sample preparation, test kit preparation, bio material engineering, artifact preservation
  • Sample types: bulk samples, microplates, electronic, food
  • Conformance: CAN/CSA C22.2
  • Easily seals objects excluded from glass vial stoppering
  • Enables dry and seal in final container; eliminates handling of samples outside of a controlled environment
  • Color touchscreen display and Ethernet
  • Provides stoppering/sealing of non-rigid container
  • Features and Benefits of Independently Heated Shelves:
  • Temperature setpoints between -20°C and +60°C in 1-degree increments
  • Expands control and optimizes lyophilization process
  • Independently controlled to temperature setpoint prevents shelf-to-shelf variability when thermal
  • Temperature setpoints from -20°C and +60°C in 1-degree increments,
  • Provides expanded control and optimization of lyophilization process
  • Removable to accommodate larger samples
  • Lyo-Works features: sets up to 30 programs to record, chart and store data, provides real-time display of parameters
  • Enables drying and sealing in the final container without handling outside of a controlled environment
  • Seals objects previously excluded from glass vial stoppering

Manufactured by: Labconco

Manufacturer SKU: 780401010

Unit of Measure: EA

Electrical Specifications: 230 V, 2 A, 50/60 Hz

Weight, Product: 138.01 lb

Dimensions, Product: 15.6" W x 19.2" D x 17.9" H

Package Type: Vendor

Freeze Dryers

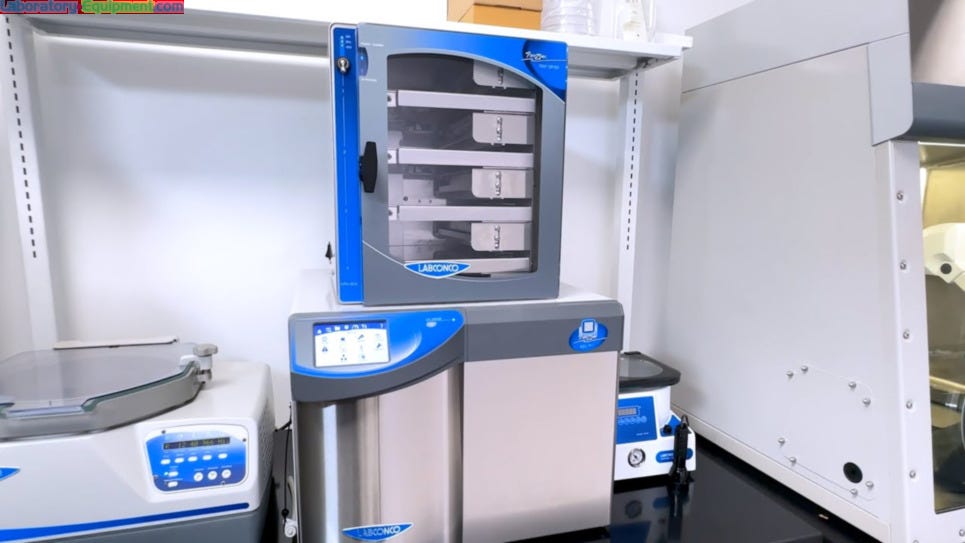

  • Lyph-Seal Tray Dryer Video by Labconco Lyph-Seal Tray Dryer Video by Labconco
Lyph-Seal Tray Dryer Video by Labconco

Features and Benefits

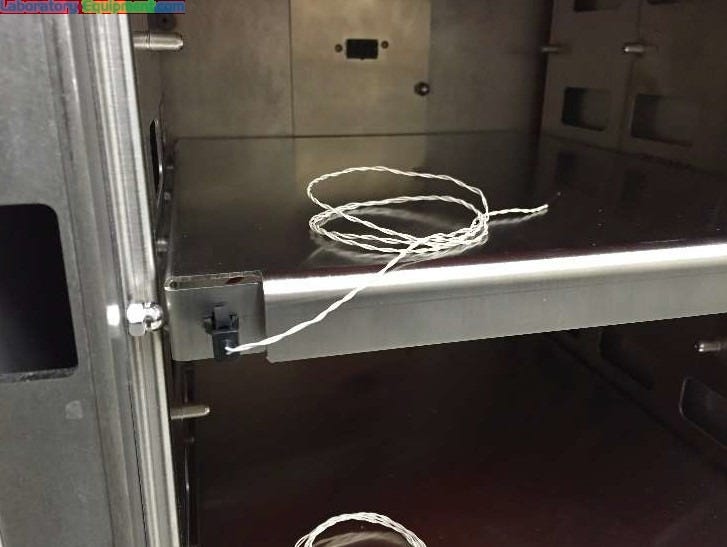

Sample Probe

Included sample probe monitors samples during the freeze-drying process ideal for developing new protocols

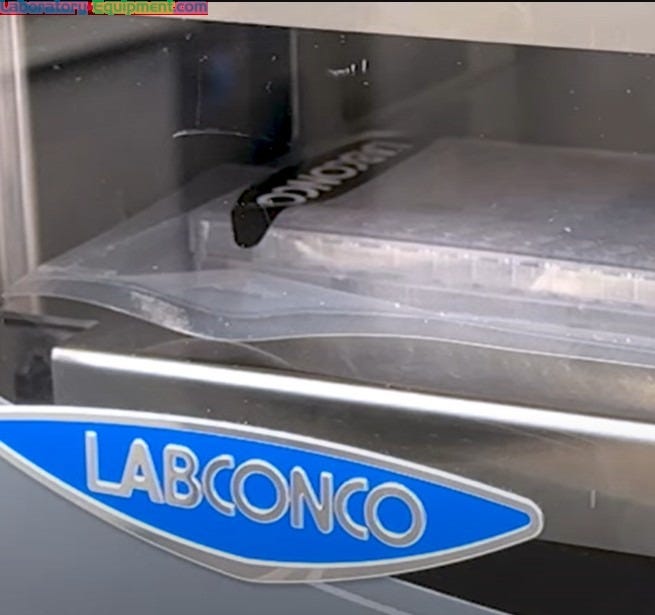

Bulk Samples

Designed for freeze drying bulk samples in a vacuum sealed bag for extended long-term storage

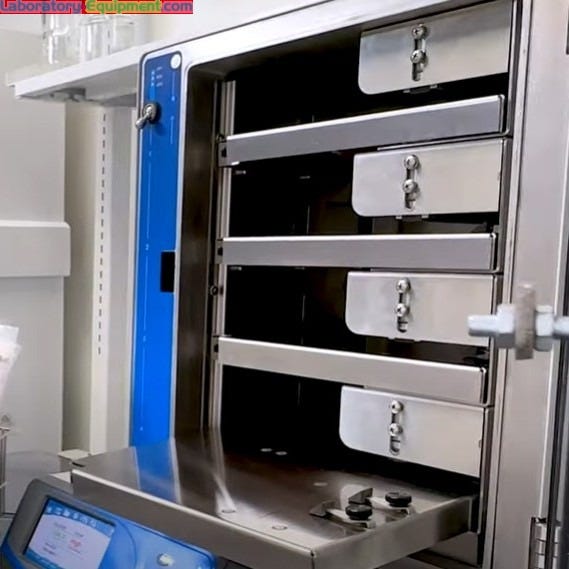

Speeds up Lyophilization Process

Includes 4 independently heated sample shelves (removable) with temperature setpoints from -20° C to 60° C in 1-degree increments for fast freeze drying
