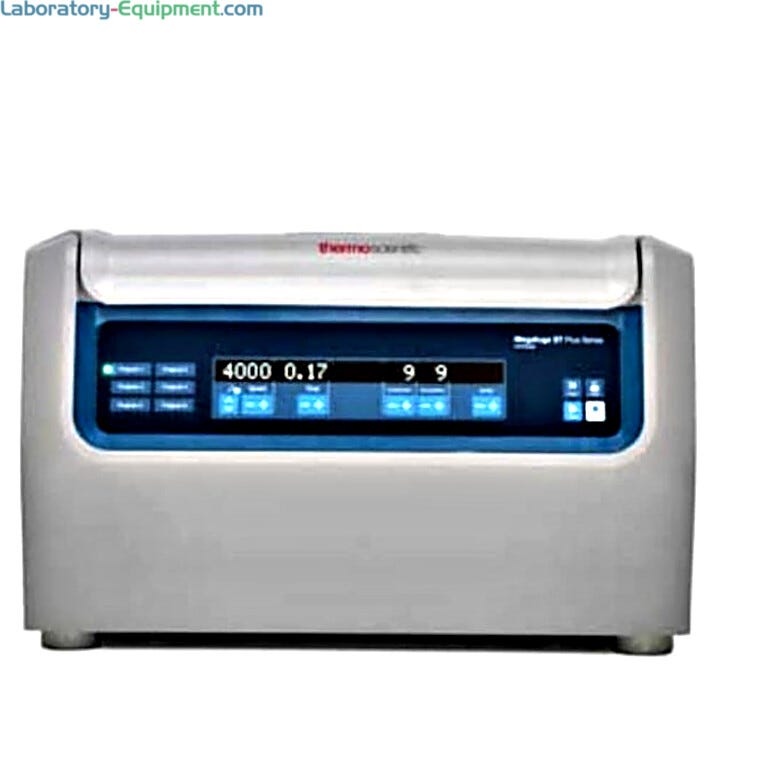

4L Megafuge ST4 Plus Centrifuge by Thermo Fisher Scientific for IVD processing with autolock for easy rotor exchange and a variety of optional rotors | 1717-58 displayed
Lab Centrifuges
Product Group:
1717-PP-02
1717-PP-02 79581

Megafuge 4L ST4/ST4R Plus Centrifuges by Thermo Fisher Scientific

  • FDA listed Megafuge ST4 and ST4R Plus 4-liter capacity clinical centrifuges in ventilated and refrigerated models
  • AUTO-LOCK III Rotor Exchange for easy rotor change without tools and optional Certified ClickSeal™ biocontainment lids for operator safety
  • Temperature range for refrigerated ST4 R model: -10°C to +40°C
  • Processes up to 76x5/7 ml blood tubes and 16x50 ml conical tubes
  • Swinging and fixed-angle rotors sold separately
Read more
cULus Logo
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Configuration

Sort Order:
Capacity

Sort Order:
Maximum Speed

Sort Order:
Temperature Control

Sort Order:
Model

Sort Order:
Rotor Type

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
120 V Benchtop Multi tube 15200 rpm Refrigerated Megafuge ST4R Plus-MD Swing-Out 75009519 1717-59 79583 $12,491 10-14 Days 2
120 V Benchtop Multi tube 15200 rpm Ventilated Megafuge ST4 Plus-MD Swing-Out 75009504 1717-58 79582 $8,855 10-14 Days 3
Voltage
Configuration
Capacity
Maximum Speed
Temperature Control
Model
Rotor Type
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • FDA listed Megafuge ST4 and ST4R Plus 4-liter capacity clinical centrifuges in ventilated and refrigerated models
  • AUTO-LOCK III Rotor Exchange for easy rotor change without tools and optional Certified ClickSeal™ biocontainment lids for operator safety
  • Temperature range for refrigerated ST4 R model: -10°C to +40°C
  • Processes up to 76x5/7 ml blood tubes and 16x50 ml conical tubes
  • Swinging and fixed-angle rotors sold separately
  • Applications: clinical, chemistry, pathology, clinical and molecular microbiology, clinical immunology, pediatrics
  • Stores up to six saved programs and push-button operation ideal for routine applications
  • Refrigerated model features: CFC-free refrigeration, <64 dB(A) Rotor F15-8x50c; 14500 RPM
  • Safety features: SMARTSpin Imbalance detection, finger-pinch prevention, crash-proof construction
  • Swinging bucket rotors specifications:
  • Maximum capacity: 4 x 1000 mL with TX-1000 rotor
  • Maximum speed: 5300 rpm with BIOShield 1000A rotor
  • Maximum RCF: 5590 x g with BIOShield 720 rotor
  • Fixed-angle rotors specifications:
  • Maximum capacity: 6 x 100 mL with F15-6x100 or F10-6x100 rotor
  • Maximum Speed 15200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
  • Maximum RCF: 25830 x g with Microliter 30x2
  • Megafuge ST4 and ST4R Plus centrifuge features: ergonomic design, microprocessor control, direct/brushless induction low profile motor, 9 acceleration/10 deceleration rates, LCD display, intuitive controls simplify operation, 6 programs, up to 9 hr. 59 minutes run time, count-down timer, G-force increments in 100 x g, time setting (hour/min and continuous mode), fixed pulse button, bucket selection based on last four digits of product number, error message code, external logging, RS232 port, open access mode
  • Motorized lid latch for one-finger downward motion (closing and locking of lid)
  • Easy-to-clean and access rotor chamber
  • System certified by CAMR™ in Porton Down, UK.
  • 40% energy savings on standard protocols:  blood separation or conical tubes processing
  • SMARTSpin™ Technology: maximizes acceleration, braking and residual load imbalance (for rotor and bucket option
  • ClickSeal™ Bucket Sealing System: Biocontainment solution eliminates screw caps and complicated clips, glove-friendly operation
  • Auto-Lock™ III Rotor System: allows convenient push-button installation and removal of rotors for easy application switches
  • Certifications/Compliance: EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15
  • Standards: ISO 14971, ISO 13485, ISO 9001
  • Material: PC-ABS painted with 2k PUR-based lacquer, metal housing, cold rolled steel with powder paint and rubber feet
  • Stainless steel centrifuge bowl
  • Includes printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord, declaration of conformity
  • List of optional rotors:
  • TX-1000 Swinging Bucket Rotor #75003017
  • TX-750 Swinging Bucket Rotor #75003180
  • BIOShield 1000A Swinging Bucket Rotor #75003182
  • TX-400 Swinging Bucket Rotor #75003181
  • BIOShield 720 Swinging Bucket Rotor #75003183
  • TX-200 Swinging Bucket Rotor #75003658
  • HIGHPlate 6000 Swinging Bucket Rotor #75003606
  • Fiberlite H3-LV Swinging Bucket Rotor #75003665
  • M-20 Swinging Bucket Rotor #75003624
  • H-Flex 1 Swinging Bucket Rotor #75003300
  • H-Flex HS4 Swinging Bucket Rotor #75003330
  • Fiberlite F15-6x100y Fixed Angle Rotor #75003698
  • Fiberlite F10-6x100 LEX Fixed Angle Rotor #75003340
  • CLINIConic Fixed Angle Rotor #75003623
  • 8 x 50 Individually Sealed Fixed Angle Rotor #75003694
  • HIGHConic II Aluminum Fixed Angle Rotor #75003620
  • MicroClick 18x5 Aluminum Fixed Angle Rotor #75005765
  • Fiberlite F21-48x2 Fixed Angle Rotor #75003664
  • Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602
  • MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
  • Microliter 30 x 2 Aluminum Fixed Angle Rotor #75003652
Show more

Show more
Features & Benefits

Features and Benefits

Autolock Rotor Exchange

Convenient push-button rotor exchange in as little as 3-seconds for trouble-free installation and removal without tools; easy-to-clean design minimizes risk of contamination

Convenient Biocontainment

ClickSeal Biocontainment lids minimize contamination and are ergonomically designed for one-handed open/close operation with gloves

Comprehensive Rotor Portfolio

Thermo Scientific clinical centrifuges are compatible with a variety of rotors from 120mL-4L that accommodate 1.5-50mL sample tubes, microplates and 10mL standard syringes
