Select Product
Voltage

Camera Included

Model

Manufacturer SKU

Imager Application

Terra Part # Price Ships in
115 V BioCam 900 iBox Scientia 97-0615-01 Fluorescence and Bioluminescence 1017-21 80776 $174,385 20-25 Days 2
115 V OptiChemi 695 iBox Scientia 97-0729-01 Fluorescence 1017-23 80778 $69,937 20-25 Days 3
230 V BioCam 900 iBox Scientia 97-0615-02 Fluorescence and Bioluminescence 1017-22 80777 $179,230 20-25 Days 4
230 V OptiChemi 695 iBox Scientia 97-0729-02 Fluorescence 1017-24 80779 $70,869 20-25 Days 5
Voltage
Camera Included
Model
Manufacturer SKU
Imager Application
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

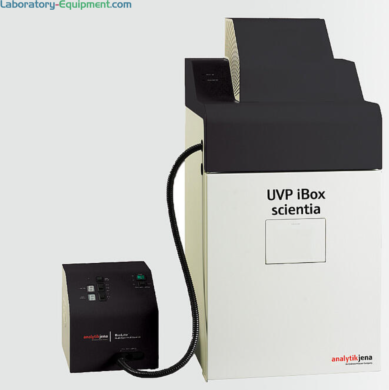

  • UVP iBox Scientia In Vivo Imaging Systems with choice of high resolution, high sensitivity CCD BioCam 900 or OptiChemi 695 cameras
  • Non-invasive small animal imager with matched emission/excitation filter; eLITE produces intense fluorescent signals
  • Motorized optics sets aperture, zoom and focus; unique UV blocking viewing window enables quick sample inspection
  • Automated control of five position emission filter array for VIS, IR and UV spectral requirements
  • Provides fluorescence and bioluminescence in vivo imaging of up to 10 mice with a 20 x 29 cm thermal plate (with BioCam 900 model)
  • Bioluminescence and fluorescence applications: In vivo, cancer research, tumor studies, heart disease, inflammation, metastasis, immunology, small animal imaging, bacterial/viral infections, gene expression
  • Camera options:
  • BioCam 900: optimized for ultra-fast capture in bioluminescent and fluorescent in vivo applications, 1024 x 1024, 1.0 Megapixels, >90% (Visible), 25mm f/0.95 motorized lens, USB 2.0 PC Connection
  • OptiChemi 695: optimized for fluorescent in vivo application 2750 x 2200, 6.05 Megapixels, 25mm f/0.95 motorized lens, USB 2.0 PC Connection, Real time, live preview of images
  • Product features of UVP iBox Scientia bioimaging systems:
  • Emission Filters - Five Positions: Green Fluorescent Protein (GFP), Red Fluorescent Protein (RFP)
  • One-touch, pre-set or user-defined controls
  • Accurate, repeatable imaging
  • Adjustable power lift with a ten-inch travel range automates calibrating home position synchronizes power lift at start up
  • Warming plate maintains regulated temperature of small animals to prevent hypothermia
  • Stable temperature for consistent day-to-day results
  • Darkroom Features: Light tight for optimum imaging conditions, wide access door with UV safety shutoff, gel viewing window, sliding tray for optional
  • Transilluminator, epi white and UV illumination (365 nm and 480 nm)
  • Stage:
  • Temperature: 33°C - 40°C, factory preset to 37°C
  • Temperature over limit switch: Prevents unit from going above 41°C
  • Accuracy: 1°C of readout temperature
  • Variance: Not to exceed 2°C over marked area
  • Display: LCD, digital, non-illuminating
  • Physical Dimensions (HxWxD): 3.5” x 11.5” x 8” (8.89 x 29.21 x 20.32 cm)
  • UVP eLITE MultiSpectral Light Source:
  • Power source housing external to darkroom
  • 150 watt light source
  • Fiber optic bundles connect to either epi or transillumination light sources
  • Eight excitation filter positions - GFP and RFP included (additional filters available)
  • Manual or software controlled
  • Software (requires Microsoft Windows 7, 8, or 10 (32-bit or 64-bit) operating systems):  VisionWorks Acquisition and Analysis Software, Interface for automated controls
  • Optional UVP anesthesia kit for immobilizing small animals #98-0098-01
