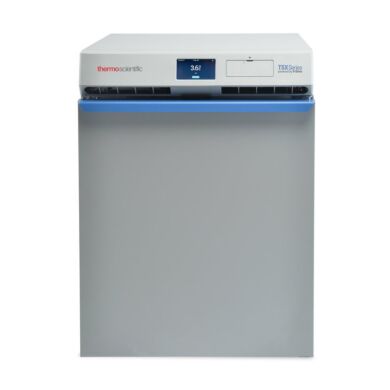

TSX Series High-Performance Undercounter Lab Refrigerators with solid steel door | 1620-44A displayed
Refrigerators (4°C)

TSX505SA High-Performance Undercounter Refrigerator, 5.5 cu. ft., Solid Door, Thermo Fisher Scientific, 120/240 V

  • TSX505SA TSX High-Performance Lab-Grade Undercounter Refrigerator with redundant cooling, low noise, high storage capacity and universal voltage
  • 5.5 cu. ft. (156L) single solid door model certified to NSF/ANSI 456 vaccine storage standard
  • Powered by V-Drive featuring STeM Technology, features CFC and HFC free insulation, and uses up to 77% less energy
  • Temperature range: 3°C to 7°C / 0.1°C
  • Includes three adjustable wire shelves and leveling feet

• Manufacturer SKU: TSX505SA

• Capacity: 5.5 cu. ft.

• Configuration: Undercounter

• Brand: TSX High-Performance

• Specialty: Laboratory

• Type: Refrigerator

• Internal Dimensions: 23" W x 19.5" D x 20.5" H

• Door Style: Single Solid

• Refrigerator Temperature Range: 3° to 7°C

• Set Point Temperature: 5°C

• Unit of Measure: EA

Read more
cULus Logo CE Mark Logo Energy Star
Manufacturer SKU: TSX505SA
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty for Parts and Labor; Seven-Years on PHP Part
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1620-44A
Terra Part # 1620-44A
$5,845
Usually ships in 11-17 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 1620-44A
73592
TSX505SA High-Performance Undercounter Refrigerator, 5.5 cu. ft., Solid Door, Thermo Fisher Scientific, 120/240 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • TSX505SA TSX High-Performance Lab-Grade Undercounter Refrigerator with redundant cooling, low noise, high storage capacity and universal voltage
  • 5.5 cu. ft. (156L) single solid door model certified to NSF/ANSI 456 vaccine storage standard
  • Powered by V-Drive featuring STeM Technology, features CFC and HFC free insulation, and uses up to 77% less energy
  • Temperature range: 3°C to 7°C / 0.1°C
  • •  Includes three adjustable wire shelves and leveling feet
  • Industry applications: vaccines, pharmacies, biological, diagnostics and reagents, molecular biology, clinical, industrial testing
  • Vaccine storage capacity: 45 Boxes per Level (9 x 5 Pattern), 225 Boxes per Shelf (5 Levels per Shelf, 2 Shelves per Unit), +45 Boxes (1 Additional Level Above Top Shelf)
  • Certifications/Compliance: NSF/ANSI 456, SNAP, CE, REACH, RoHS, UL, EU F-GAS regulations, US EPA ENERGY STAR
  • 4.3” color touchscreen LCD display with LED backlighting
  • Tested to GMP Clean Room Class A / ISO 7  (ISO EN 14644-1)
  • Easy-to-clean surfaces support USP 797 and USP 800  hazardous drug compounding and other clean room environments
  • Factory setpoint: 5°C
  • Sound level: 35 dBA
  • Universal voltage (100-240v, 50/60hz)
  • Variable speed control with thermoelectric devices deliver ideal conditions for vaccine storage and other demanding applications
  • Compressor-free V-Drive Technology with Synchronized Temperature Management (STeM):
  • Dual refrigeration system features cold wall and fan-assisted recovery
  • Detects usage patterns
  • Monitors cabinet temperature
  • Constantly monitors and adjusts temperature during door openings keeps temperature stable
  • Tight internal air circulation eliminates freezing, ideal for vaccine storage
  • Keeps temperature consistent at all shelf levels
  • Refrigerant Configuration:
  • Cooling System: 125W Thermoelectric Heat Pump Devices
  • Evaporator Type: Hybrid cold wall / forced air with R-744 (CO2) as refrigerant
  • Condenser Type: Forced Air Heat-pipe Fin Tube With Water As Refrigerant
  • Defrost Method: Pre-programmed Automatic, Option for Manual Initiation Available
  • Refrigerant: R-744 for cold side; R-718 for hot side
  • Features: air and glycol temperature display, electronic lock, interior led lighting, ADA handles, reversible doors, built-in data logger (accessible via USB device), 1” rear access port, and alarms (system, door ajar, probe failure, temperature, low battery, and love memory)
  • Plug Type: NEMA 5-15P, 1.828 Meters (6 Feet)
  • Ambient Operating Temperature: 15° C - 32° C (60° F - 90° F)
  • Compatible with wireless monitoring systems (Smart-Vue) and remote alarm contacts
  • Energy consumption: 0.99 kWh/day 1
  • Compact and streamlined designed devoid of internal protrusions increase storage capacity
Show more

• Manufacturer SKU: TSX505SA

• Capacity: 5.5 cu. ft.

• Configuration: Undercounter

• Brand: TSX High-Performance

• Specialty: Laboratory

• Type: Refrigerator

• Internal Dimensions: 23" W x 19.5" D x 20.5" H

• Door Style: Single Solid

• Refrigerator Temperature Range: 3° to 7°C

• Set Point Temperature: 5°C

• Unit of Measure: EA

• Marks & Listings: CE, UL, REACH, RoHS

• Electrical Specifications: 120/240 V, 50/60 Hz

• Weight, Product: 119 lb

• Dimensions, Product: 31.8" W x 23.6" D x 26" H

• Weight, Shipping: 145 lb

• Package Type: Crate

Show more
