Physical Dimensions: 25 ± 0.2 mm x 76 ± 0.3 mm x 0.940 mm ± 0.025 mm
Material: silicon dioxide proprietary glass
Barcode: None
Atomic smoothness: ±25 Å
Precision corner chamfer (1.4 mm)
Glass cleaning procedure: Dual temperature, triple phase atomic
Moisture content: Low
Optical QC procedure: 5-tier inspection and laser scanning
Minimum microarray feature size: 5 µm
Maximum microarray feature number (22 x 72 mm area): 15,840,000
NHS Ester Surface Density: 3 x 10^12 per mm^2
Uniform NHS Ester Density: +/-2% across substrate surface
Quantity: 25
Ideal for whole cell assays, proteomics, glycomics, high-throughput drug screening
Homogenous NHS ester treatment provides superior reactivity
Binds whole cells, proteins, carbohydrates and small molecules
Two-dimensional, highly transparent surface chemistry
Advanced tri-functional polymer chemistry activates glass surface
First function group produces a highly-durable polymer coating resistant to a broad range of temperature and reaction conditions
Second function of polymer contains highly reactive n-hydroxysuccinimide (NHS) ester reactive groups, which forms avid covalent bonds with primary amines and other nucleophiles present on the surface of whole cells, proteins, carbohydrates, small molecules and other printed sample molecules
Third function is a polymer moiety containing hydrophilic functionality that shields the glass surface from nonspecific binding that produces low background
Homogenous SiO2 groups provide superior silane reactivity photolithography and contact printing
Use as starting point for gel and membrane coatings (e.g. Polyacrylamide and nitrocellulose)
High electrostatic binding capacity
Electrostatically immobilizes long oligos and cDNAs for gene expression and genotyping assays
Low background fluorescence
Widely-used for ex situ and in situ synthesis
Manufactured in Class 1 cleanrooms
Custom sizes, laser and chrome fiducials available (contact us for details)
Compatible with scanners and microarrayers from Arrayit and other brands
Complete protein coupling minutes after printing
Eliminates need for cross-linking or baking during coupling
Anti-static packaging
Shelf Life: stable when stored at room temperature (20-25°C) for 3 months from date of receipt

• Manufacturer SKU: SMNHS

• Unit of Measure: EA

• Weight, Product: 2 lb

• Weight, Shipping: 4 lb

• Package Type: Box

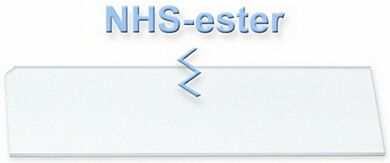

SuperNHS Microarray Substrate Slides (Box of 25)
