SpotLight™ 2 and SpotLight™ Turbo Microarray Fluorescence Scanners by Arrayit

SpotLight 2 Fluorescence Microarray Scanner ideal for quantitative differential expression studies | 3031-38 displayed

*Actual product may vary

Microarray Products

SpotLight™ 2 and SpotLight™ Turbo Microarray Fluorescence Scanners by Arrayit

Manufactured By: Arrayit

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Detection Channels All 2 6 Sort Order: Descending Ascending	Detection Wavelength All 488 nm 570/670 nm Variable Sort Order: Descending Ascending	Detection Modes All Fluorescent Sort Order: Descending Ascending	Slide Capacity All 1 Slide Sort Order: Descending Ascending	Manufacturer SKU All SLMS2 SLMS2B SLMST Sort Order: Descending Ascending	Terra Part #	Price	Ships in
2	488 nm	Fluorescent	1 Slide	SLMS2B	3031-38-B	$39,020	15-21 Days	2	Ships Free Free shipping in contiguous USA
2	570/670 nm	Fluorescent	1 Slide	SLMS2	3031-38	$37,734	15-21 Days	3	Ships Free Free shipping in contiguous USA
6	Variable	Fluorescent	1 Slide	SLMST	3031-39-T	$66,269	15-21 Days	4	Ships Free Free shipping in contiguous USA

Detection Channels

Detection Wavelength

Detection Modes

Slide Capacity

Manufacturer SKU

* *

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Products similar to this one

Buy Accessories

Product Details

SpotLight 2 and SpotLight Turbo Microarray Scanners provide affordable microarray detection ideal for quantitative differential expression studies
Cool excitation and high-sensitivity light capturing technology features provide efficient, accurate and cost-effective solutions for high-quality microarray fluorescence scanning
Scans all types of slide based microarrays
High-sensitivity light capturing technology increases detectivity, reduces background noise and provides faster capture times
Compatible with all types of surface chemistries including glass, plastic, hydrogels, nitrocellulose and nylon
Resolution: 10 µm
2-color models detect Cy3, Cy5 and FITC (Blue Edition #SLMS2B)
6-color turbo model detect Cy3, Cy5, FITC and 3 additional channels
2-color models compatible with MAPIX®, GenePix® and other software packages
2-color Blue Edition model with blue excitation source for FITC 488 nm detection
6-color model with proprietary high numerical aperture lenses captures more signals
Signal-to-background up to 10X higher versus other commercial scanners
Optional detection labels: chemiluminescent and colorimetric
Custom filter sets (sold separately)
Includes: scanner, test microarrays, BioBlue Mini Computer, LED flat panel display, keyboard, mouse, mouse pad, power supply and cables

Features & Benefits

Features and Benefits

Microarray Scanner Sensitivity and Range

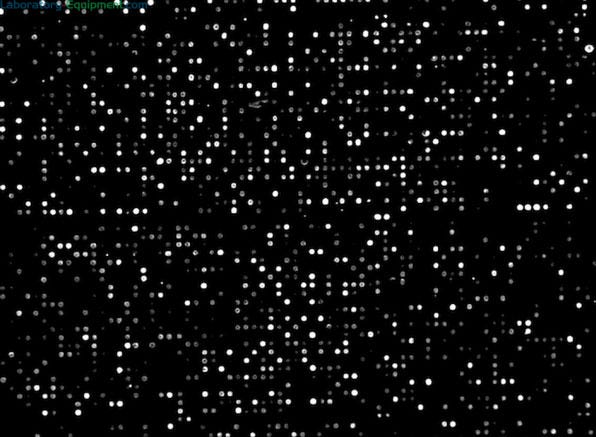

16-bit TIFF image of data acquired from a single-channel, fluorescence scan shows the sensitivity and dynamic range of the SpotLight™ 2 Scanner

Software Detection of Cy3 and Cy5 dyes

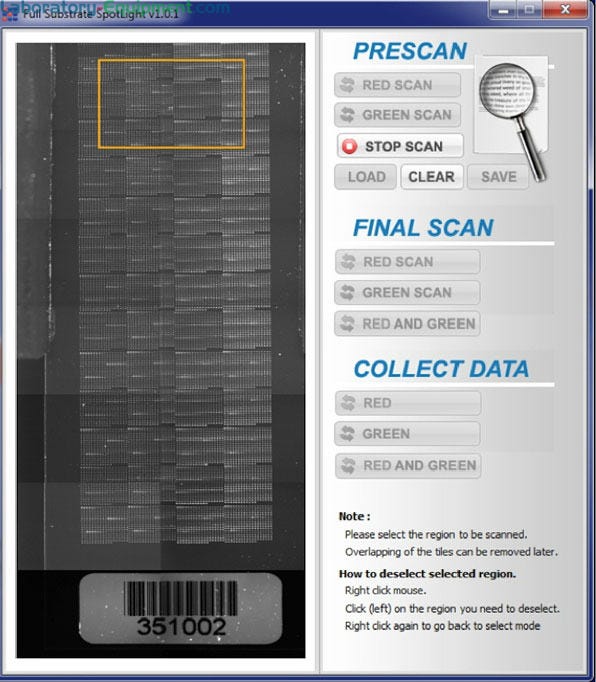

SpotLight 2 Microarray Scanner software pre-scans microarray substrate slide for easy identification of the microarray location before final scan mode

High-Performance Instrument Cleaner--InnoScan 910 Microarray Scanners

Arrayit High-Performance Instrument Cleaner for use with InnoScan 910 Series Microarray Scanners removes, particulates, fingerprints, dust and other contaminants from microarray device.

Other products you may find relevant

Buy Accessories

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information

Model	SpotLight™ 2 Microarray Scanner #SLMS2 and #SLMS2B (Blue Edition)	SpotLight™ Turbo Microarray Scanner #SLMST
Dimensions	14.25W x 13.25D x 19.4H in (360 x 340 x 490 mm)	14.25W x 17.5D x 19.4H in (460 x 300 x 460 mm)
Number of Channels	2-color	6-color
Microarray Format	standard glass slide 1 x 25 x 76 mm	25 x 76 mm
Software Requirements	Windows 7	Win 2000, Win XP
Excitation Wavelength	#SLMS2: 570 nm and 670 nm #SLMS2B: FITC 488 nm	FITC 488 nm, 532 nm, 635 nm and 3 additional channels
Product Components	SpotLight™ 2 Personal Two-Color Fluorescence Microarray Scanner Power supply with Voltage Appropriate Power Cable High-Speed Firewire Cable High-Speed USB Cable High-Speed Ethernet Cable BioBlue High-Speed Personal Computer SpotLight™ 2 Controller Software (Pre-Loaded on Computer) SpotLight™ 2 LED Flat Panel Display with DVI Monitor Cable and Power Cord Computer Power Cord with Voltage Appropriate Connector Computer Keyboard, Mouse and Mouse Pad Microarrays for Test Scanning	SpotLight™ Personal Two-Color Fluorescence Microarray Scanner Power supply with Voltage Appropriate Power Cable High-Speed Firewire Cable High- Speed USB Cable High- Speed Ethernet Cable BioBlue High-Speed Personal Computer SpotLight™ Controller Software (Pre-Loaded on Computer) SpotLight™ Flat Panel Display with Monitor Cable and Power Cord Computer Power Cord with Voltage Appropriate Connector Computer Keyboard, Mouse and Mouse Pad Microarray for Test Scanning
Software Compatibility	MAPIX®, GenePix® and other software packages
Resolution	10 µm
Standard Detection Wavelengths	Cy3 (532 nm) and Cy5 (635 nm)
Optional Detection Wavelengths	455 nm, 470 nm, 488 nm, 505 nm, 590 nm, 617 nm, 625 nm and white light
Standard Filter Sets	Cy3 and Cy5
Optional Filter Sets	fluorescein and fluorescein analogs, TRITC (Rhodamine), APC, ethidium bromide, Alexa dyes, and several GFP variants
Standard Detection Label	Fluorescent
Optional Detection Labels	chemiluminescent and colorimetric
Sensitivity	<0.1 fluors per square micron and <1,000 fluors per spot
Signal to Background	up to 10X higher than some commercial scanners
Dynamic Range	>10,000 fold
Single Image Scan Size	1392 x 1024 pixels
Single Image File Size	2.7 MB
Max. Scan Area	25 x 76 mm
Computer Hardware Requirements	P IV-2.0 GHz, 256 megs RAM, 20 GB drive
Image File Format	Standard 16-bit TIFF (0-65, 536)
Electrical requirements	100 or 240 Vac and 50-60 Hz
