120/240 V FTIR No Peltier Stabilizer L160000F 5102-63 62866 Request Quote 10-16 Days 2
120/240 V FTIR No Standard L160000A 5102-62 62865 Request Quote 10-16 Days 3
120/240 V FTIR Yes Peltier Stabilizer L160000M 5102-65 62868 Request Quote 10-16 Days 4
120/240 V FTIR Yes Standard L160000I 5102-64 62867 Request Quote 10-16 Days 5
Voltage
Spectrometer Type
21 CFR Part 11
Peltier Detector
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

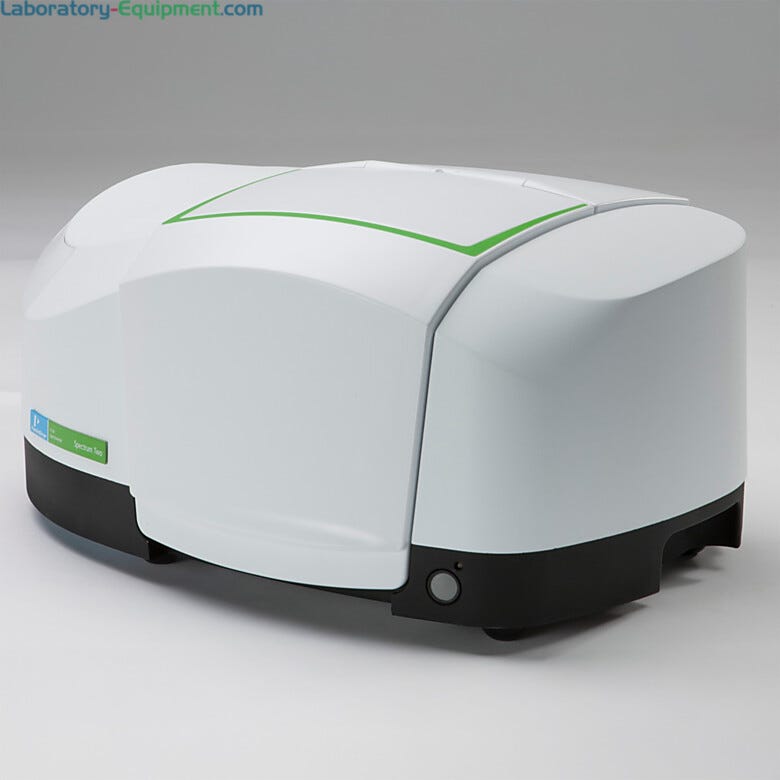

  • Portable Spectrum Two FTIR Spectrometers by PerkinElmer ideal for everyday analysis in onsite and remote testing environments
  • Low maintenance spectrometer available as a standard unit or with a Peltier stabilized detector
  • Ideal for QA and QC analysis in pharma labs, nutraceuticals, waste water monitoring and academia
  • Provides fast and accurate infrared analysis of sample identity, composition, quality and consistency
  • Features: optical system with KBr windows for data collection, Dynascan interferometer, OpticsGuard technology, Atmospheric Vapor Compensation™ (AVC) and Sigma-Delta Conversion for accurate, reproducible results by improving dynamic range, reducing spectral artifacts and increasing ordinate linearity
  • Includes: Spectrum Touch software
  • Detector: LiTaO3 (lithium tantalate) MIR detector with a SNR of 9,300:1
  • Operating Range: 5 - 45 °C
  • Wavelength: 8
  • Signal-to-noise ratio: 9,300:1 (LiTaO3 detector), 14,500:1 (Peltier stabilized detector)
  • Wavelength Length Range: 8,300 - 350 cm-1
  • Modes: ratio, single-beam and interferogram
  • Accessories and Options: Portability Pack, Universal ATR Sampling, HATR Sampling, Portability Options, Training Software, Documentation, Services and Warranties, Spectrum 10 ES software.
Features & Benefits

Features and Benefits

Learn More: Spectrum Two Spectrometers

More Information

Patented Features for Consistent Performance of Spectrum Two FTIR Spectrometers

Dynascan fixed mirror-pair interferometer for error compensation eliminates the need for dynamic alignment OpticsGuard technology protects the instrument from humidity during operation in more demanding environments and increasing the time between maintenance cycles; long-life desiccant for maximum instrument uptime.

Atmospheric Vapor Compensationâ„¢ (AVC) compensate CO2 and H2 in real-time to ensure instrument reliability across multiple measurements.

Optional Absolute Virtual Instrument (AVI) uses gas phase spectra for accurate calibration, standardizes (to a higher degree of accuracy) wavenumber and line shape for precise transfer between instruments side-by-side or remote locations.

Additional Options:

Temperature-stabilized, high-performance DTGS (deuterated triglycine sulfate) MIR detector with a SNR of 14,500:1. Ideal for low-light, high throughput applications

Absolute Virtual Instrumentâ„¢ (AVI) allows standardization of instruments via a gas spectra reference for increased inter-equipment and inter-site reliability

Automatic Performance Verification features an integrated, fully automatic filter wheel with traceable reference materials and ZnSe windows, for data collection over a spectral range of 6,000-550 cm-1 highly humid environments.

Applications

Fourier-Transformation Infrared (FTIR) Spectroscopy is used in a host of applications from quality control to polymer research. FTIR scans a solid, liquid, or gas to determine a unique molecular fingerprint. Application pack add-ons are available; inquire for pricing and product details.

  • Pharmacy and Nutraceuticals
  • Academia
  • Polymer identification and quantification of additives
  • In-service lubricants and fuels for construction and mining
Pharmacy and Nutraceuticals
Academia
Polymer identification and quantification of additives
In-service lubricants and fuels for construction and mining

Spectrum Two FTIR Spectrometer

Portability options for Spectrum Two FTIR Spectrometers allow unit operation without connection to a main power supply

Spectrum Two FTIR Spectrometer Software

Spectrum Two FTIR Spectrometers include the Spectrum Touch software that provides minimal decision points, intuitive-one-click operation, robust touchscreen interface and multilingual options; ideal for new and advanced users.

Environmentally Friendly Features

Perkin Elmer designed the Spectrum Two with environmental friendly features: 76% less energy usage with new power management system, 90% less packaging, 75% recyclable, 79% lighter by weight and lead-free circuit boards for lower lead pollution.

Quick Analysis of Hydrocarbons

Spectrum Two FTIR Spectrometers by PerkinElmer quickly analyze and determine hydrocarbon levels in the atmosphere, petroleum hydrocarbons, oil and grease in water and soil.
