• Dimensions, Product: 17.28"W x 12.99"D x 0.5"H
• Weight, Product: 2 Lbs
• Weight, Shipping: 5 Lbs
• Unit of Measure: EA
Want it faster ? Read about FasTrak
• Compatible with Heratherm Adv. Protocol Microbiological Incubator #51028067 (IMH100/IMH100-S)

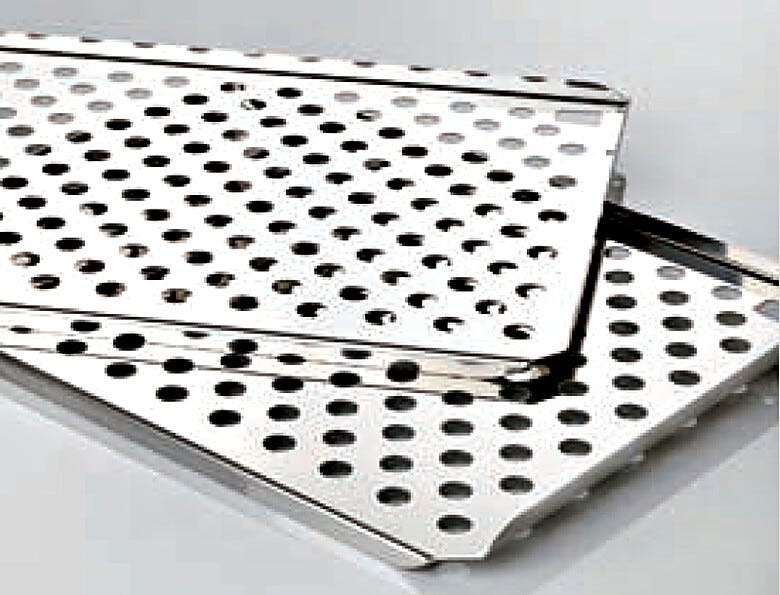

• Stainless steel shelf includes 2 shelf supports
• Incubator unit accommodates maximum of 16 shelves
• Dimensions, Product: 17.28"W x 12.99"D x 0.5"H
• Max Shelf Load: 55 lbs. (20 kg)
• Dimensions, Product: 17.28"W x 12.99"D x 0.5"H
• Weight, Product: 2 Lbs
• Weight, Shipping: 5 Lbs
• Unit of Measure: EA
Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
Heratherm Large Capacity Microbiological Incubators
Thermo Scientific Microbiological Incubators
Gravity convection introduces heated air into the bottom of the incubator and gravity causes the warmer air to rise and be distributed throughout the incubator. With less air being displaced, there is no need for a fan because gravity provides the force needed to distribute the warm air that gently heats samples. This convection mode prevents samples from drying out during incubations. Gravity convection technology is ideal for incubation of bacterial and eukaryotic cell cultures, but is limited by the degree to which air can be heated and the time it takes for an incubator to recover after the door is opened.
Mechanical convection utilizes a fan that delivers heated air throughout the incubator creating a uniform temperature distribution throughout the unit. This method provides optimal temperature uniformity and stability due to the rapid distribution of air, which is ideal for bacterial cultures. In addition, mechanical convection is capable of quickly warming samples that have been transferred directly from the refrigerator to the incubator. Many laboratories choose mechanical convection incubators during sample drying to prevent the evaporation of growth media.
| Part Number | 51028066 | 51028067 | 51028068 |
|---|---|---|---|
| Model | IMH60 | IMH100 | IMH180 |
| Chamber Volume | 2.3 cu. ft. (66L) | 3.67 cu. ft. (104L) | 6.3 cu. ft. (178L) |
| External Dimensions | 22.2"W x 20.9"D x 28.3"H (565 x 530 x 720 mm) | 25.2"W x 32.3"D x 22.2"H (640 x 820 x 565 mm) | 25.2"W x 36.2"D x 29.1"H (640 x 920 x 738 mm) |
| Internal Dimensions | 14.5"W x 13.9"D x 20"H (368 x 354 x 508 mm) | 18.3"W x 23.9"D x 14.5"H (464 x 608 x 368 mm) | 18.3"W x 27.9"D x 21.4"H (464 x 708 x 543 mm) |
| Footprint | 3.2 sq. ft. (0.3m2) | 3.9 sq. ft.(0.9m2) | 5.1 sq. ft. (0.47m2) |
| Rated power | 600 Watts | 840 Watts | 1020 Watts |
| Max Current | 5 amps | 7 amps | 8.5 amps |
| Energy Consumption at 37°C | 23 Watts | 30 Watts | 36 Watts |
| Number of Shelves | 2 included (13 max) | 2 included (16 max) | 2 included (19 max) |
| Max Shelf Load | 55 lbs. (25kg) | 55 lbs. (25kg) | 65lbs. (30kg) |
| Temperature Range | Ambient 5 °C to 105 °C | ||
| Convection Technology | Dual Convection (Gravity and Mechanical) | ||
| Spatial Temperature Deviation | ± 0.6°C at 37°C (uniformity) | ||
| Electrical (plug standard) | 100 - 240 50/60hz (NEMA 5-15) | ||
| Temperature Deviation Over Time (Stability) | ± 0.1°C | ||
| Material | Stainless steel interior (AISI 304) for corrosion resistance | ||
| Interface | RS232 | ||
| Certifications/Compliance | cCSAus, CE | ||
| Warranty | Two-Year Manufacturer Warranty | ||
| Features | Dual convection, interior socket, 6-speed fan, rounded corners, microprocessor control, automatic overtemperature alarm, access port, stackable, RS232 interface, internal glass door, easy calibration, timer(weekly/daily/real time), stackable | ||
