- Type: Vacuum Pick-up
• Type: Vacuum Pick-up
• Features: Pen Style
• Application: Wafer Handling
• Unit of Measure: EA
Roto-Pic System; Complete Package, for Hybrid Assembly and Wafer Fabrication
Read more
Warranty: 30 day Warranty
9301-00
Terra Part # 9301-00
$2,250
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Terra Part # 9301-00
23574
$2,250
Other products you may find relevant
-
Some ship in 5 - 7 days Some ship in 1 - 3 days- High-Precision Microelectronics Tweezers for Every Need!
Full range of high-precision tweezers includes models for wafers, chips and other sensitive parts. Shown: Swiss-made tapered tweezer with very fine points, 400 | 9302-47 displayed High-Precision Microelectronics Tweezers for Every Need! Full range of high-precision tweezers includes models for wafers, chips and other sensitive parts. Shown: Swiss-made tapered tweezer with very fine points, 400 series (magnetic) stainless steel for die attaching or wire bonding in microelectronic assembly.Features and Benefits
Learn More: Roto-Pic SystemPrint Copy CopiedRoto-Pic® System

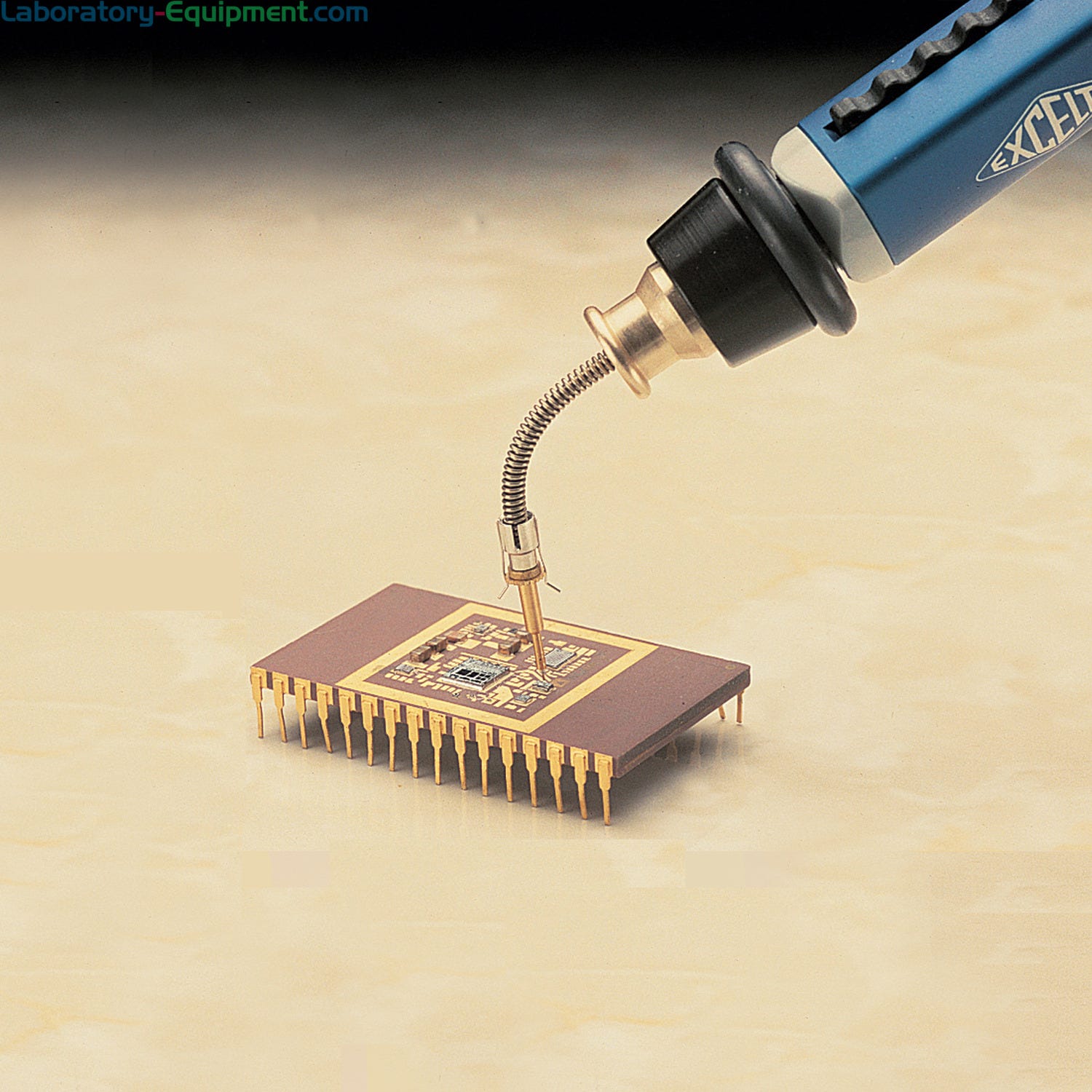

The most revolutionary vacuum pickup available: designed to reduce manual handling of both chips and wafers. Roto-Pic® has a smooth, positive hold-and-release slide bar that allows operator to lift finger without dropping object being handled.
Round nose wheel rotates 360° so that chip can be picked up and aligned with ease.
Easily replaceable tips come in various sizes. Silicone rubber cups can be inserted on Roto-Pic for pickup and manipulation. Wafers can be picked up on coated back side without any apparent contamination. Roto-Pic is so versatile that it can pick up from trays, as well as boats.
Complete Roto-Pic® Kit
Complete Roto-Pic® Vacuum Kit. Includes the following:
- Roto-Pic® Handpiece 9301-02
- 3' (914 mm) Plastic Hose
- Vacuum Pump
- Probe Tip Kit 9301-12
- Vacuum Cup Kit 9301-05
- Vacuum Tip Kit 9301-18
The most revolutionary vacuum pick-up kit available. Designed to reduce manual handling of both chips and wafers. Roto-Pic® has a smooth, positive hold-and-release slide bar. Round nose wheel rotates 360° so components can be picked up and aligned with ease.
Roto-Pic® Handpiece
Roto-Pic® Handpiece for use with Roto-Pic® Vacuum System. The most revolutionary vacuum pick-up available. Designed to reduce manual handling of both chips and wafers. Roto-Pic® has a smooth, positive hold-and-release slide bar. Round nose wheel rotates 360° so components can be picked up and aligned with ease. Easily replaceable tips come in a variety of sizes. Silicon rubber cups can be inserted on Roto-Pic® for pick-up and manipulation. Made in USA.
Roto-Pic System
The Roto-Pic system has a round nose wheel that rotates 360° so that the chip can be picked up and aligned with ease. Complete Roto-Pic Kit
Roto-Pic Kit features a smooth, positive hold-and-release slide bar. Package includes hand piece, vacuum pump, assortment of tips, cups.Popular AccessoriesFor a full list of accessories, select a product then click Choose Accessories on that product page.-
Probe Tips
Available individually or in kits: Probe Tips: 180° straight, 90° angle, 60° angle, 45° angle, 45° angle short; Vacuum Cups: 6, 10, 13 mm cups, Circo-Vac and Verto-Vac with support; Teflon Vacuum Tips: 0.1, 0.2, 0.3, 0.9, 1.4 mm tips. -
Vacuum Cups
Available individually or in kits: Probe Tips: 180° straight, 90° angle, 60° angle, 45° angle, 45° angle short; Vacuum Cups: 6, 10, 13 mm cups, Circo-Vac and Verto-Vac with support; Teflon Vacuum Tips: 0.1, 0.2, 0.3, 0.9, 1.4 mm tips -
Vacuum Tips
Available individually or in kits: Probe Tips: 180° straight, 90° angle, 60° angle, 45° angle, 45° angle short; Vacuum Cups: 6, 10, 13 mm cups, Circo-Vac and Verto-Vac with support; Teflon Vacuum Tips: 0.1, 0.2, 0.3, 0.9, 1.4 mm tips
