120 V Refrigerated Epoxy-Coated Steel 6.1 cu. ft. Ambient -10°C to 60°C Forced Air Resistance Temperature Detector (RTD) Heratherm PR205745R 6 to 12 cubic feet 5321-72 64473 $4,743 10-20 Days 2
Voltage
Type
Material
Capacity
Temperature Range
Convection Type
Sensor Type
Model
Manufacturer SKU
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Precision Low Temperature BOD Refrigerated Incubators are designed for a wide range of Biochemical Oxygen Demand (BOD) testing applications

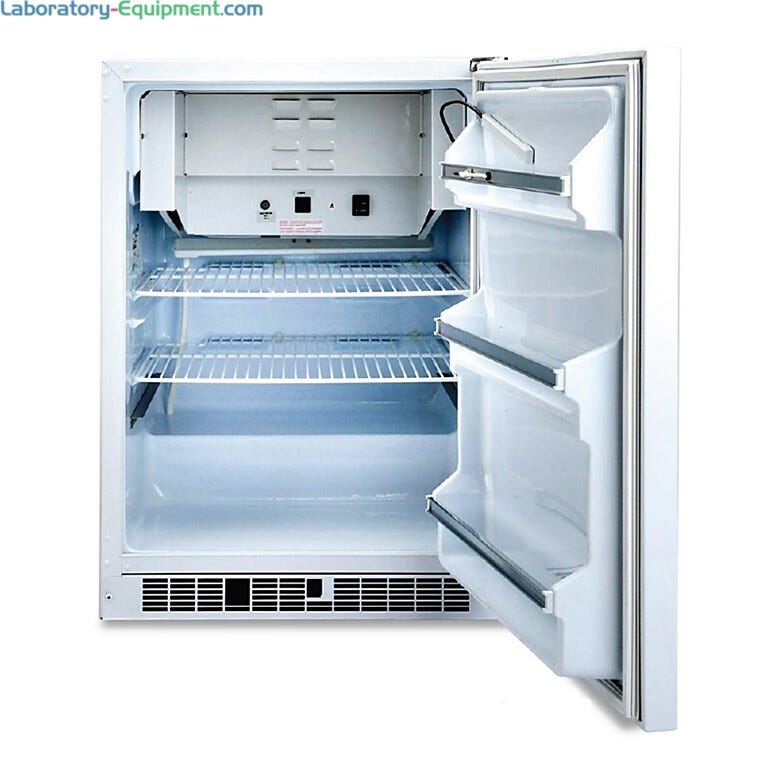

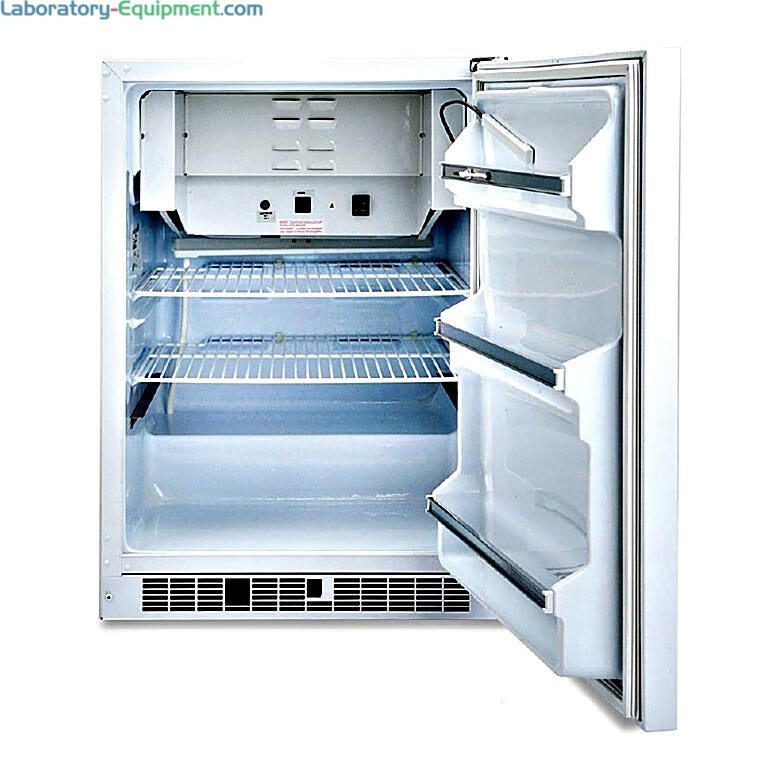

  • 6.1 cu. ft. undercounter model: economical undercounter models with 3 cooling modes, high/low safety thermostat backups, 4 adjustable leveling feet and 2A outlet for connecting apparatus inside the incubator chamber
  • 20. cu. ft. floor-model: designed for BOD applications accepts over 300 BOD bottles, simple calibration of temperature set point, dual lamp fluorescent lighting
  • Microprocessor control shows actual temperature within 0.1°C
  • Push-button control for temperature and set point selection

Incubators

  • Thermo Fisher Scientific 566 Liter Precision Low Temperature BOD Refrigerated Incubator Thermo Fisher Scientific 566 Liter Precision Low Temperature BOD Refrigerated Incubator
  • Thermo Fisher Scientific 566 Liter Precision Low Temperature BOD Refrigerated Incubator Shelves Thermo Fisher Scientific 566 Liter Precision Low Temperature BOD Refrigerated Incubator Shelves
Features & Benefits

Features and Benefits

Learn More: BOD Applications

BOD Applications for Precision Refrigerated Incubators

  • BOD water pollution testing
  • Mycology experimentation
  • Seed germination
  • Bacterial research
  • Fish/insect breeding
  • General sample storage
Model PR205745R - 173L undercounter model PR505755R - 566L model  Ideal for BOD testing

Benefits
  • Three cooling modes simplify operation: high precision with cooling; high precision without cooling; and frost-free with variable cooling
  • Dual thermostat backup for high and low temperatures
  • Economical under-counter design with adjustable leveling feet for stable setup
  • 2 amp outlet for use of instrumentation inside of the incubator
  • Includes 2 shelves (4 maximum)
  • Ideal forBOD testingand incubations at or below ambient temperatures
  • Holds over 300 x 300 mL BOD bottles
  • Safety relay and alarm LED alert to over/under-temperature conditions
  • Access port for independent sensors/connection of equipment inside unit
  • Cooling on/off switch provides high temperature accuracy and saves energy at temperatures above ambient
  • Data management: RS-232 and recorder jacks
  • Includes 4 shelves (6 maximum)
  • Dual lamp fluorescent lighting option for plant growth applications and studies, day/night cycles, programmable lighting conditions
External Dimensions 24"W x 24.5"D x 34.5"H
(610 x 622 x 876 mm)
34"W x 31"D x 77"H
(864 x 787 x 1956 mm)
Internal Dimensions 20.5"W x 20.5"D x 28"H
(520 x 520 x 700 mm)
26.5"W x 20"D x 57"H
(673 x 508 x 1448 mm)
Chamber Volume 6.1 cu. ft. (173L) 20 cu. ft. (566L)
Number of Shelves 2 supplied (4 max) 4 supplied (6 max)
Temperature Range -10° to +60°C -10° to +50°C
Temperature Uniformity at 37°C/20°C ± 0.6°/1.0°C ± 0.5°/0.9°C
Insulation CFC-free foamed polyurethane
Electrical 120 volts, 60Hz
Certifications cCSAus
Warranty Two-year manufacturer warranty

Thermo Fisher Scientific 173 Liter Precision Low Temperature BOD Refrigerated Incubator Shelves

Additional shelves for 6.1 cu. ft. Precision Low Temperature BOD Refrigerated Incubator by Thermo Fisher Scientific; unit accepts a maximum of 4 shelves
