3700-85
Terra Part # 3700-85
$5,076
Usually ships in 15-25 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3700-85
34068

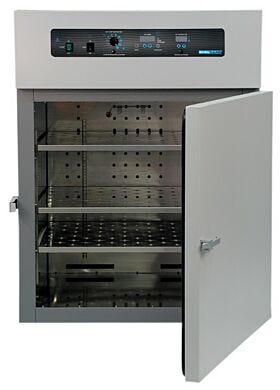

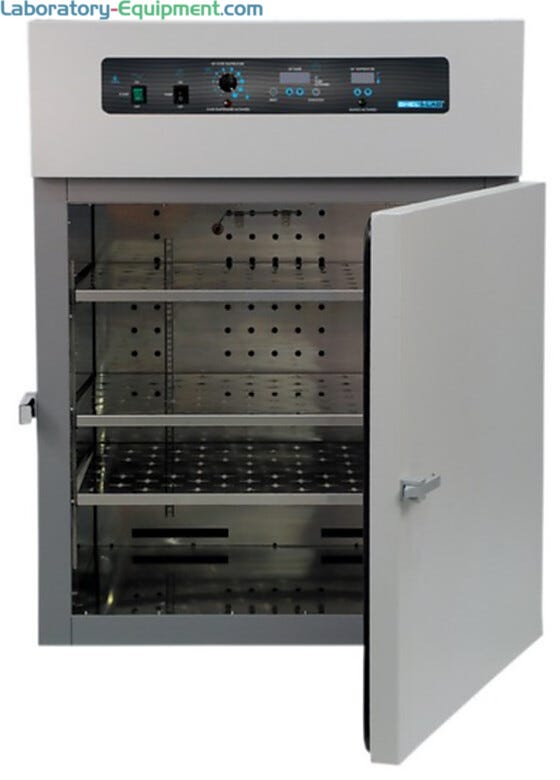

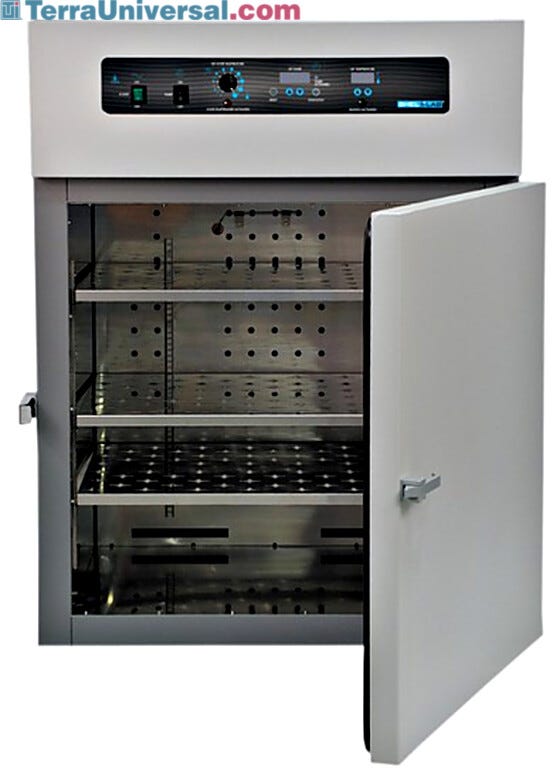

Oven; 14 cu. ft., Forced Air Multi-Purpose, Large Capacity, Digital Temperature Control, Stainless Steel, 240 V
Product Details
  • Maximum Temperature: 260°C
  • Interior: 31"W x 25"D x 31"H (787 x 635 x 787 mm)
  • 3 stainless steel shelves
  • Temperature Range: 15ºC above ambient to 260ºC
  • Shelves: 24" x 30" (610 x 762 mm)
  • Minutes to heat up: 24 to 150ºC
  • Uniformity: ±3ºC@110ºC

Type: Large Capacity

Maximum Temperature: 260°C

Material: Stainless Steel

Capacity: 14 cu. ft.

Convection Type: Forced Air

Controls: Digital

Model: Large Capacity

Manufacturer SKU: SMO14-2

Capacity Range: 9 to 15 cubic feet

Unit of Measure: EA

Electrical Specifications: 240 V, 16.5 A, 3,800 W, 1 Ph, 50 Hz

Weight, Product: 360 Lbs

Dimensions, Product: 37"W x 34"D x 47"H

Weight, Shipping: 400 Lbs

Dimensions, Shipping: 45"W x 41"D x 57"H

Package Type: Palletized

Buy Accessories
  1. Equipment Testing
    Request Quote
    Increase Down Increase Up

  • Large Capacity Forced Air Multi-Purpose Oven Forced Air Multi-Purpose Oven
  • Forced Air Multi-Purpose Oven; 14 Cu. Ft., Digital Temperature Control Large Capacity Forced-Air-Multi-Purpose Oven
  • Forced Air Oven; 28 Cu. Ft., Digital Temperature Control Forced Air Oven; 28 Cu. Ft., Digital Temperature Control

Features and Benefits

Learn More: Forced Air Ovens

Specifications for Large Capacity Forced-Air Multi-Purpose Ovens

  • Temperature Recovery:  8 minutes at 150°C(SMO14-2);  10 minutes at 150°C(SMO28-2)
  • Temperature Uniformity: ±3°C @ 110°C (SMO14-2);  +/- 3.5°C at 150°C (SMO28-2)
  • Temperature Range: Ambient +15ºC to 260ºC
  • Electronic Timer Range:1 minute to 99 hours/59 minutes
  • Control Sensitivity: ± 0.05°C
  • Electrical: 220/240VAC, 50/60 Hz
  • Control/displays: Microprocessor/digital LED
Applications and Industry use for Large Capacity Forced-Air Ovens by Shel Lab
  • Drying glassware, textiles, paper and pulp, non-flammable crystalline chemicals, solid materials and tissue
  • Industry use in biochemical research, drug metabolism research, moisture content analysis, pre-heating containers, moisture elimination, chemical precipitation and digestion of proteins and starch
