Select Product

Assay Type

Number of Printing Pins

Slide Capacity

Manufacturer SKU

PriceUsually
ships in
Nucleic Acid 16 Pins 60 Slides LM60-2 Request Quote20-26 Days
Whole Cell 48 Pins 210 Slides LM210-2 Request Quote20-26 Days
Assay Type
Number of Printing Pins
Slide Capacity
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

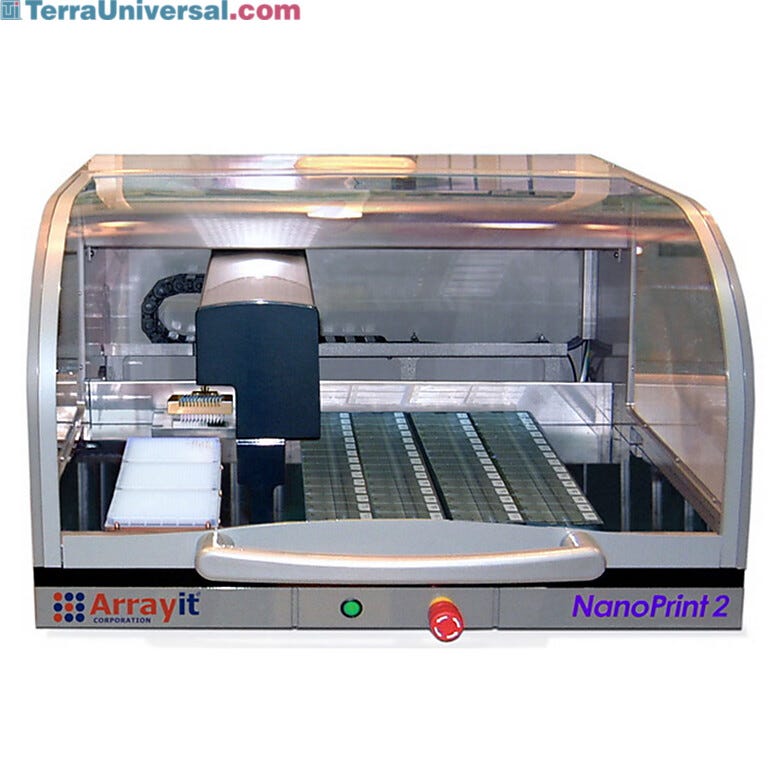

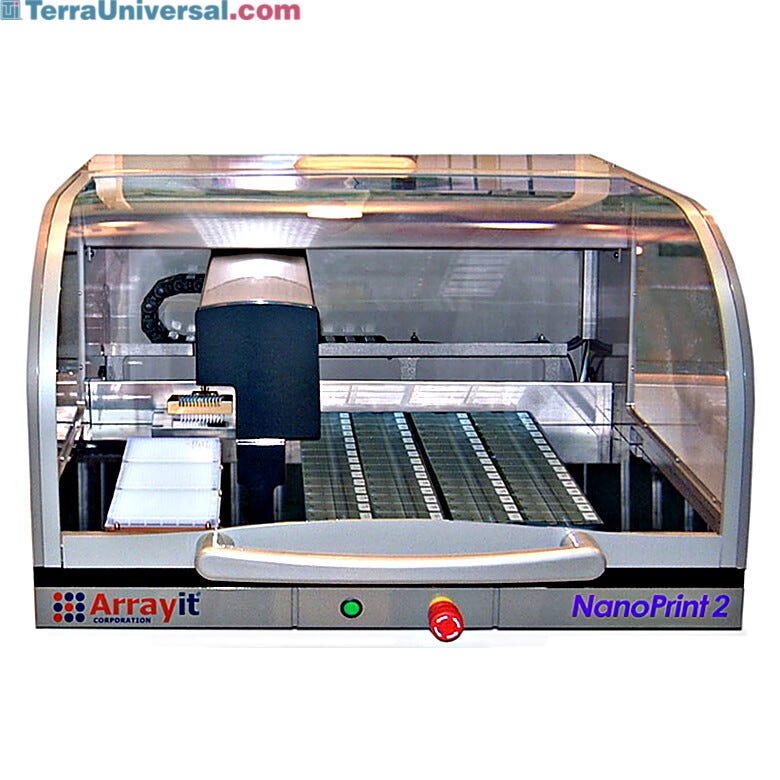

• NanoPrint™ 2 Microarray printers available in Standard and Enterprise Level models provide the most advanced platforms for high-throughput microarray manufacturing applications

• Compatible with various microarrayers from ArrayIt and other manufacturers

• Cutting edge linear drive servo motors for nanometer scale positional accuracy

• High throughput patented contact printing technology offers sub-nanoliter dispensing capabilities

• Intuitive graphical user interface for easy set-up and execution of printing protocols

• Used in Class 1 cleanrooms

• Printing speed: 48 spots per second or 192 spots second using "192" Series Pins and Printheads

• Prints onto 96 and 384-well plates and plate sized glass using the modular deck system

• Positional resolution: 500 nanometers using linear drive Warp1 control

• Substrate capacity: 60 or 210

• Environmental control: Fully enclosed, HEPA filtration and user-defined humidity control

• Ideal in research, diagnostic and pharmaceutical settings

• Applications: DNA and protein microarrays nucleic acid, protein, whole cell lysates, or any other type of biomolecules

• Options and accessories available

Features & Benefits

Features and Benefits

NanoPrint2 Features and Options

More Information

Additional Features and Options for the NanoPrint™ 2 Microarray Printer
  • 192 Pin Printhead (48 Pin Professional Printhead provided as standard)
  • Anti-vibration table
  • Peltier-driven microplate cooling
  • Microplate printing worktables
  • Worktable conveyor
  • Microplate stackers, refrigerated with lid removal and barcode reader
  • Dehumidification
  • Ideal in research, diagnostic and pharmaceutical settings
  • Uses patented contact printing technology
  • Compatible with any standard microarray surface
  • Prints onto 96 and 384-well plates and plate sized glass using the modular deck system
  • Superior Z-Axis Resolution for Optimum Spot Morphology
Options for NanoPrint™ 2 Microarray Printer
  • Custom work tables for proprietary printing cassettes, biochips and cartridges
  • Extended service warranty
  • Optional Peltier cooling plate, humidity monitoring and control
  • Peltier-driven microplate cooling
  • Microplate printing worktables
  • Worktable conveyor
  • Microplate stackers, refrigerated with lid removal and barcode reader
  • Dehumidification
Benefits of Linear Servo Motor Technology
  • Nanometer scale positional accuracy
  • No vibration and quiet operation
  • No heat generation or motor dust
  • Superior accuracy
  • Almost maintenance-free operation
  • High speed and high load capacity
  • Zero "sagging with loss of power
  • Safer and more durable compared to stepper motors
Model NanoPrint 2 LM60-2 NanoPrint 2 LM210-2
Number of Substrates 60 slides 210 Slides
Number of Microplates 15 (96-well microplates) 45 (96-well microplates)
Size W" x D" x H" (mm) 43.3 x 33.5 x 22.1
(1100 x 850 x 560)
64.6 x 33.5 x 22.1
(1640 x 850 x 560)
Includes 60 slide capacity, 16 microarray printing pins, professional series printhead, 4 x 25 (100) SuperEpoxy 3 microarray substrate slides, 1 x 50 ml Micro Spotting Solution Plus, 10 x MMP 384-well microplates 210 slide capacity, 48 microarray printing pins, professional series printhead, 10 x 25 (250) SuperEpoxy 3 microarray substrate slides, 2 x 50 ml Micro Spotting Solution Plus, 20 x MMP 384-well microplates
All models include 3 microplate, anti-vibration table, 1-year comprehensive performance warranty (pins and printhead excluded), accessory control module (ACM), environmental control,reagent carboys, tubing, connectors, fittings, tubing, high-speed computer, intuitive graphical user interface (GUI), 22” LED display, keyboard, mouse, and mouse pad.
Positional Resolution 500 nanometers using linear drive Warp1 control
Printing Speed 48 spots per second or 192 spots second using
"192" Series Pins and Printheads
Destination Microarray substrates, glass slides, microplates, custom
Printing Technology ArrayIt Pro, 946 or Stealth pins and printheads
Number of Pins Configurable 1 to 48 at 4.5 mm centers or 1 to 192 at 2.25mm
Spot diameter 65 microns or larger to meet all applications
Minimum spot spacing 50 microns
Pre-printing User definable
Wash/Dry station Ultrasonic with 2 wash positions and a dry station
Number of microplates Three standard 384-well, customizable
Microplate type 96-well or 384-well microplates
Microplate cooling Cool 1-3 microplates, for protein microarray applications, or use the refrigerated stacker for higher throughput and hands free automation.
Environmental Control Fully enclosed, HEPA filtration and user-defined humidity control
Software specifications
  • Interface: Intuitive and Graphic Windows 10 User Interface
  • User Management: Password Protected access levels for User, Manager and Administrator
  • Data Files: Imports and exports data files compatible with all current microarray detection instruments
  • Version Control: Complete tracking of all methods, version and backups
  • Automatic Method Validation: Automatically validates for compatible method parameters
  • Sample and Printing Views: Each available in real time during operation
  • Method Creation Wizard: Only minimal information required to create microarray printing protocols
  • Simulation Mode: Pretest print methods in software prior to running programs
  • Flexible: Microarray design, pin configuration, worktable layout, source and destination type, offsets, speed profiles, wash/dray parameters and preprint location

Fully Automated Microarray Printing System

Integrate Arrayit NanoPrint 2 Printers with a microarray worktable to create a fully automated conveyor for loading and unloading glass substrates and microplates

Microarray Printer with Flexible Deck Configuration

NanoPrint 2 Microarray Printer with modular deck for printing on standard glass substrates and plate-sized glass substrates of varying surface chemistries

Easy-to-Clean NanoPrint 48 Pin Printhead

48-pin print head is easily removed from robot for cleaning, no recalibration necessary.

Printing Pin Tip "End On" View Photograph

Image shows 75um tip and sample channel. Pin tip dimensions and pin length are controlled to 2.5 um consistent dwell time and spot size.
