Select Product
Voltage

Temperature Range

Speed Range

Plug Type

Model

Manufacturer SKU

Terra Part # Price Ships in
110-240V Ambient -20 to 105°C 200 to 3000 rpm EU Plug MultiTherm Touch H5100-HCT-E 5323-60 80756 $3,424 4-6 Days 2
Ships Free Free shipping in contiguous USA
110-240V Ambient -20 to 105°C 200 to 3000 rpm US Plug MultiTherm Touch H5100-HCT 5323-59 80739 $3,424 4-6 Days 3
Ships Free Free shipping in contiguous USA
Voltage
Temperature Range
Speed Range
Plug Type
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

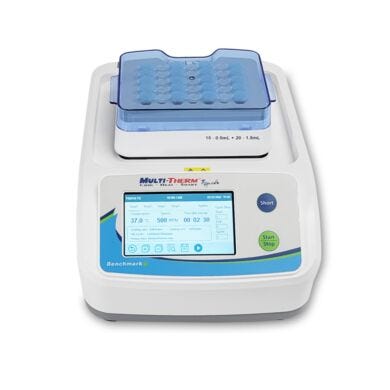

  • Easy-to-use MultiTherm Touch Shakers with tool less quick block exchange meet various applications
  • Large 4.3” full-color touchscreen display for programming and viewing of status
  • “Short” button for immediate mixing at maximum speed
  • •  Advanced programming: adjustable ramp rates, preheat and clockwise/counterclockwise mixing
  • •  Accessories: 15 block options for samples from 0.2ml to 50ml and plates; Heated Lid prevents condensation
  • Applications: from denaturation of DNA to keeping samples cold (4°C) at the end of a protocol
  • Features of MultiTherm Touch Shaker with mixing mode:
  • Wide temperature and speed range for application flexibility
  • Touchscreen display enables easy entering of parameters
  • Insulation protects users and helps maintain block temperature
  • Graphical interface of touchscreen display
  • Speed range: 200 to 3000 rpm (depending on block used)
  • Orbit: 3mm
  • Temperature range: Ambient -20 to 105°C
  • Temperature uniformity: ±0.5°C
  • Timer: 1s-99h:59m:59s or continuous
  • Stores 50 programs up to five steps each
  • Program features: Adjustable ramp rate, automatic block recognition, mix mode, mix start, power failure restart, and heated lid temp, quick button, pause, import/export data and programs
  • Optional Heated Lid and Blocks:
  • H5100-HL: Heated Lid for tubes up to 5ml and microplates ideal for delicate samples used with most blocks
  • H5100-05: 24 x 0.5ml (2,000rpm) compatible with Heated Lid
  • H5100-15: 35 x 1.5ml (2,000rpm) compatible with Heated Lid
  • H5100-20: 35 x 2ml (2,000rpm) compatible with Heated Lid
  • H5100-CMB 15 x 0.5 and 20 x 1.5ml (2,000rpm) compatible with Heated Lid
  • H5100-5MT: 8 x 5ml (1,000rpm) compatible with Heated Lid
  • H5100-12 :24 x 12mm dia (2,000rpm)
  • H5100-2CR: 24 x 1.5/2ml cryovials (2,000rpm)
  • H5100-150: 8 x 15ml (1,000rpm)
  • H5100-500: 4 x 50ml (1,000rpm)
Features & Benefits

Features and Benefits

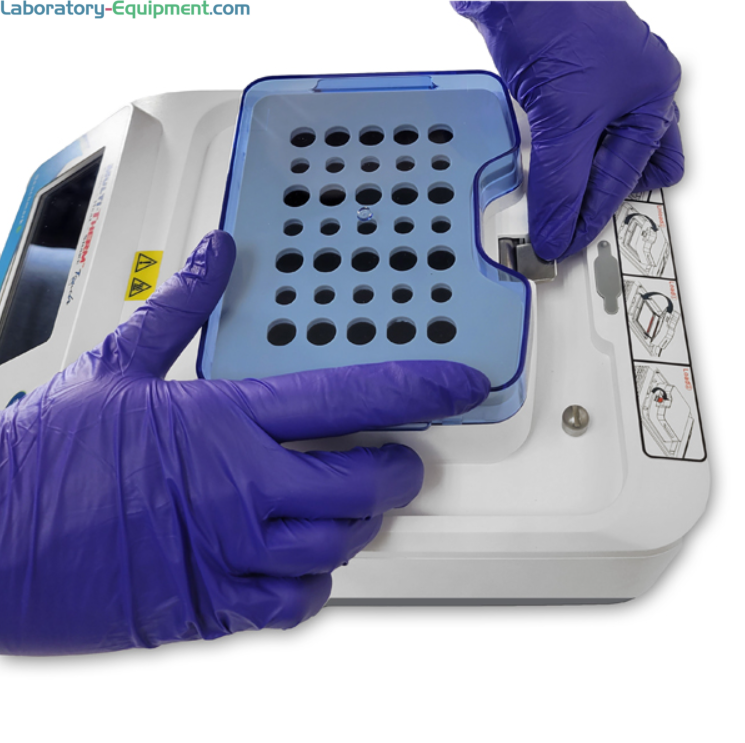

Easy Block Exchange

Convenient toolless block exchange for quick and easy insertion and removal of 15 block options

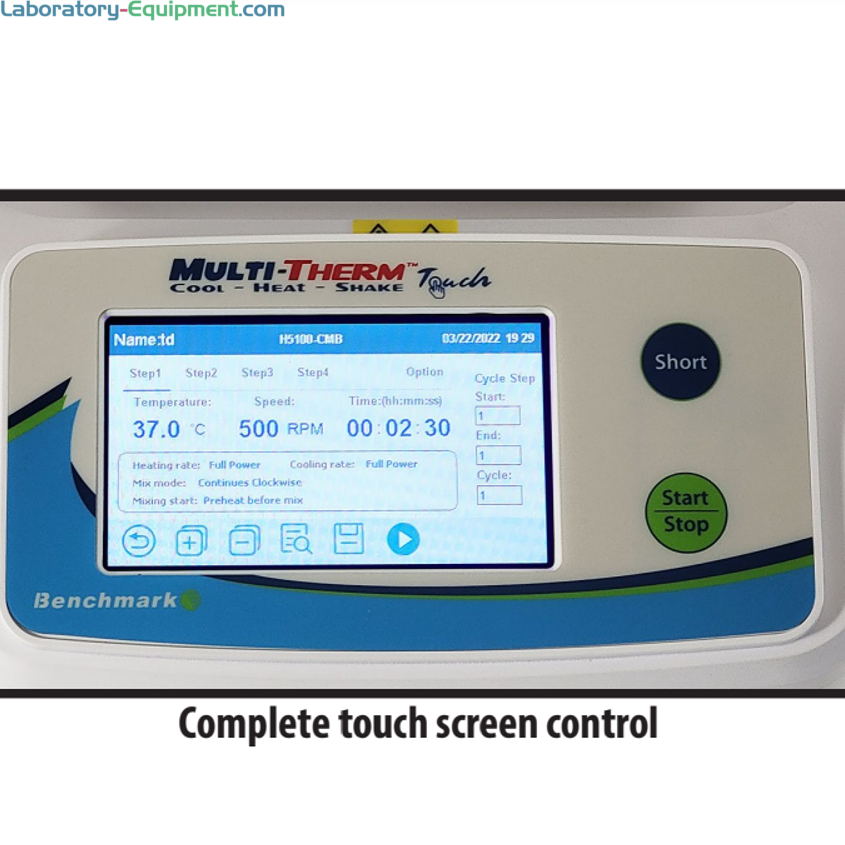

Touchscreen Display

4.3” Full-color touchscreen control for easy entering and viewing of operating parameters; stores up to 50 programs (including up to five steps)

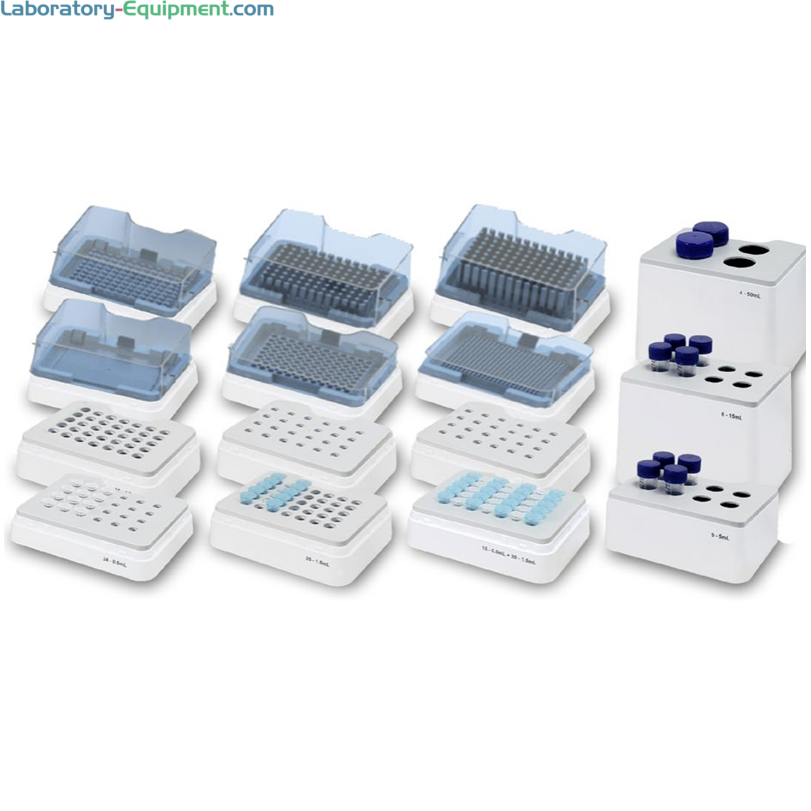

15 Block Options

Available block options accommodate sample tubes from 0.2ml to 50ml, PCR plates, microplates and deep well plates
