Select Product


Filter Size


Side Access Door

Manufacturer SKU

Terra Part #PriceShips in
115DNA/ Protein GelsNoN/A470NoYesNo97-0202-01 1016-49 67066 $4,99110-14 Days2
115DNA/ Protein GelsYes20254NoYesYes97-0197-04 1016-41 67058 $7,73810-14 Days3
115DNA/ Protein GelsYes20302NoYesYes97-0193-04 1016-37 67054 $6,83910-14 Days4
115DNA/ Protein GelsYes20302NoYesYes97-0194-04 1016-38 67055 $5,68710-14 Days5
115DNA/ Protein GelsYes20302NoYesYes97-0192-04 1016-36 67053 $6,57510-14 Days6
115DNA/ Protein GelsYes21254NoYesYes97-0198-04 1016-42 67059 $6,75310-14 Days7
115DNA/ Protein GelsYes21302NoYesYes97-0196-04 1016-40 67057 $8,38910-14 Days8
115DNA/ Protein GelsYes21302NoYesYes97-0195-04 1016-39 67056 $7,11410-14 Days9
Transilluminator Included
Filter Size
Printer Included
Camera Included
Side Access Door
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
  • MultiDoc-It Imaging Systems available in Benchtop UV, FirstLight UV Transilluminator or with UV Lamp
  • 3-door models available for easy manipulation and transfer of gels
  • Compact darkroom apparatus design for easy placement and removal of gels
  • Includes high-resolution digital camera with 17.9 megapixel
  • Capture software requires external PC
  • White light option for colorimetric measurements
  • Blue light option for excitation of gels in the 460-470nm range
  • Modular design allows the addition of overhead UV lamps for TLC analysis
  • Software controls the camera functions, image capture and image enhancement
  • Live preview of image for optimization of imaging parameters
  • Software allows generation of reports
  • Options: Converter Plates and Gel-Tools
  • Applications: Colorimetric, fluorescence and Thin Layer Chromatography (TLC)
  • Includes the powerful 17.9 megapixel DigiCam 130 color camera, capture software dark room apparatus and transilluminator (on select models)
  • Variety of filter sizes and single or multiple UV wavelengths available
Features & Benefits

Features and Benefits

Learn More: Compatible Transilluminators

Benchtop UV and FirstLight UV Transilluminators for MultiDoc-It

Benchtop UV Transilluminators
Applications: Gel Electrophoresis, DNA Fluorescence, Protein Fluorescence
  • Increased ultraviolet output and intensity
  • No light flicker
  • Wider intensity range with variable selection (select models)
  • Fast lamp start up
  • Universal power supply
  • Reduced electrical consumption
  • Longer tube life
  • Lighter weight
  • Improved gel visualization and gel documentation
  • Selection of 365nm, 302nm and 254nm UV Wavelength
  • Five filter sizes available
  • 8-watt models are a low cost alternative to the High Performance UV Transilluminators
  • Hinged, clear UV blocking cover, included with each transilluminator adjustable for access to the filter surface
FirstLight® UV Illuminator
Applications: Electrophoretic separation and quantitation of 1D and 2D protein separations, Solid phase immunoassay, DNA quantitation, RNA quantitation
  • High sensitivity and dynamic range consistent across the illumination surface
  • Software correction of uniformity no longer required
  • Accurate gel to gel comparison
  • Uniformity supplies <5% coefficient of variance (CV) across the full filter area
  • When used with UVP’s BioImaging System and CCD camera, the configurations provide a low cost solution compared to laser scanning
  • Construction design includes an electronic ballast for increased stability and reduced power consumption
  • Compact size
  • Illuminator includes a Gel-Cutter, Focus Target and UV Blocking Cover
  • 302nm UV Wavelength
  • Three filter sizes available
Converter Plates expand the capabilities of MultiDoc-It by converting standard 302 nm UV wavelength to white, blue, or long wavelength UV light.
  • Choose White Light, Visi-Blue and UV to UV converter plates
  • Two filter sizes available
  • Three wavelength filters meet a myriad of applications
  • Scratch-resistant plastic material is mounted in a housing for durability
  • Handles on both sides for easy handling
Gel Tools for MultiDoc-It Imaging Systems: Gel-Cutter, Gel-Ruler, Gel-Scooper, Small Gel-Tray, Large Gel-Tray and Gel-Tool Kit
Hood Dimensions14W x 12.7D x 19H in. (356 x 323 x 483mm)
Electrical115 volts, 60 Hz
CameraDigiCam 130 color
Imaging Resolution17.9 megapixels
Camera Power SupplyDC power
Camera InterfaceUSB
Transilluminator Wavelength (nm)254, 302, or 365
Transilluminator Filter Size
  • 20 x 20
  • 21 x 26
  • 25 x 26
Emission FiltersEtBr Red 570-640nm
Software Requirements Microsoft Windows 8, Windows 7 or Vista (32-bit or 64-bit)
  • Gel imaging of stained gels
  • Thin Layer Chromatography (TLC) gel imaging with overhead UV lamps
  • Add a white light plate for colorimetric imaging
  • Add a blue light plate for excitation of gels in the 460-470nm range

MultiDoc-It Side Access Doors

MultiDoc-It Imaging Systems by UVP includes three side access panels for easy manipulation and transfer of gels; units available transilluminator or UV lamp

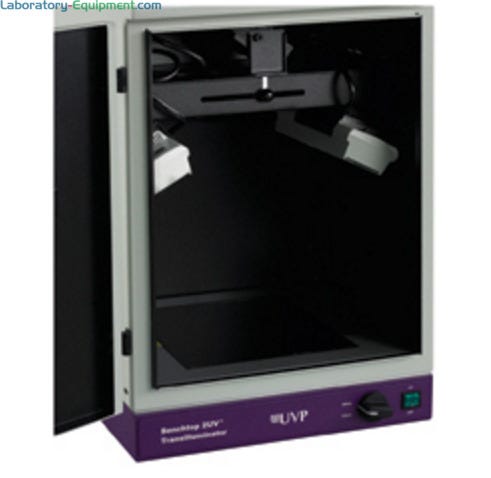

UVP Overhead UV lighting of MultiDoc-It

Modular MultiDoc-It Imaging Systems by UVP feature an overhead UV lighting for Thin Layer Chromatography applications

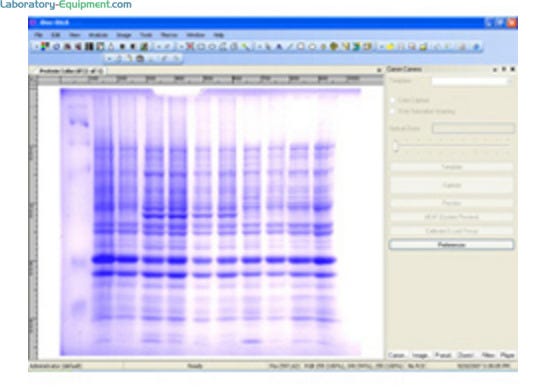

MultiDoc-It Gel Imaging Software

Specialized software allows generation of reports, controls camera functions, image capture and image enhancement; Capture software requires an external PC.

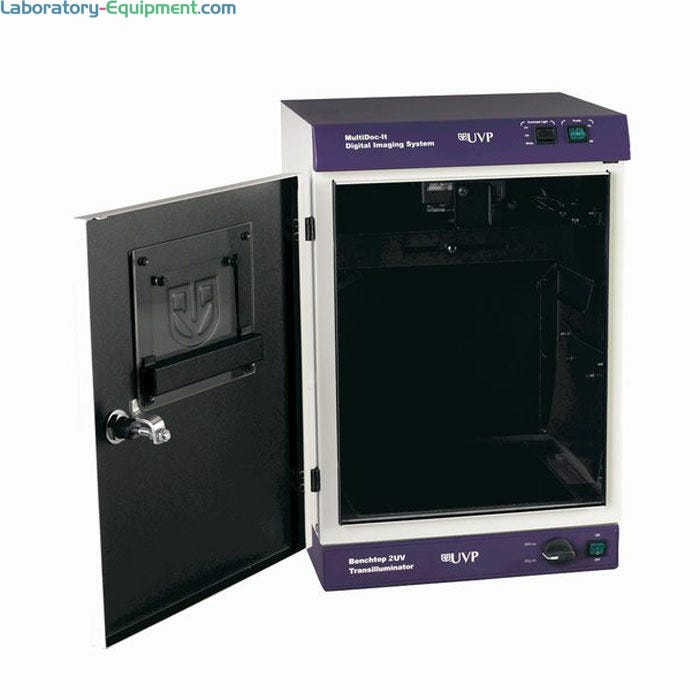

MultiDoc-It Gel Imaging System Access Door

Large main access door for easy placement and removal of gel samples
