Select Product
Assay Type

Number of Printing Pins

Slide Capacity

Chiller Bath

Manufacturer SKU

Terra Part # Price Ships in
No Protein 16 Pins 14 Slides No SBX 3031-00 61020 $40,501 25-31 Days 2
Ships Free Free shipping in contiguous USA
No Protein 16 Pins 14 Slides Yes SBXPRO 3031-01 61021 $50,773 25-31 Days 3
Ships Free Free shipping in contiguous USA
Complete Hybridization Station
Assay Type
Number of Printing Pins
Slide Capacity
Chiller Bath
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

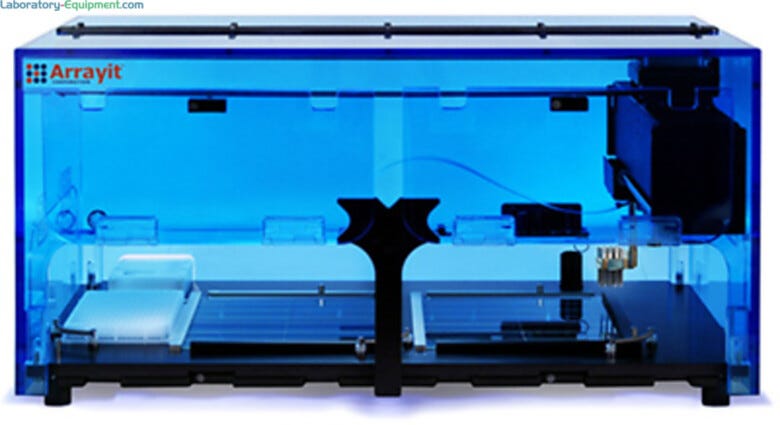

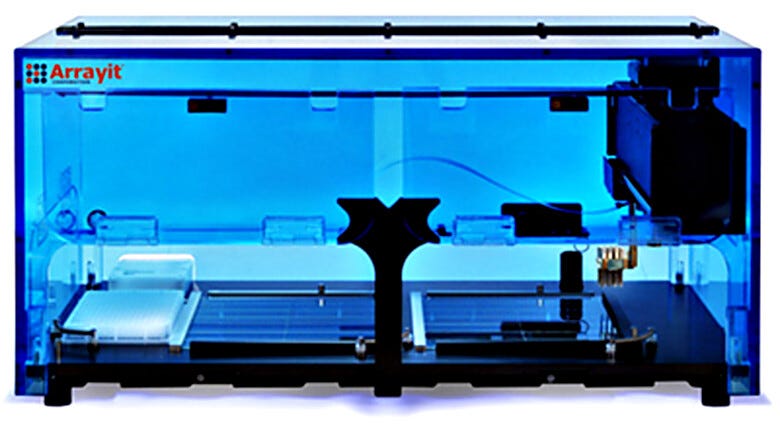

  • SpotBot Extreme Microarray Spotters are available in Standard(SBX) and Protein (SBXPRO) systems
  • Ideal for core research facilities and microarray manufacturing applications
  • Recommended for all ex situ microarray manufacturing applications, including oligonucleotides, cDNA, carbohydrate, antigen, antibody, peptide, and reverse-phase microarrays
  • SBXPRO equipped with chiller bath that has platen cooling to 4Ā°C for maximum cooling uniformity, speed and efficiency; enables antigen, antibody, peptide, lysate and reverse phase protein microarrays
  • Compatible with entire line of Arrayit Microarrayers
  • 2 printing zones of 14 substrate slides each
  • Deck capacity of 2 standard microplates (96-well or 384-well), 28 glass substrates (25 x 76 mm)
  • Prints up to 10,000 samples onto glass substrate slides in less than 12-hours
  • Prints up to 50,000 samples onto each 25 mm x 76 mm substrate slide
  • Printhead holds 16 microarray pins (4 x 4 grid) at 4.5 mm spacing
  • Unsurpassed printhead precision, micro-machines to Ā± 1.3 Āµm
  • Low buffer consumption of less than 1 liter per hour
  • SBX and SBXPRO models include: Arrayit BioBlue mini computer humidity control from 10-80% relative humidity, megasonic wash station, LED flat panel display
  • Optional Extended Warranty: One-Year, Two-Year and Three-Year
Features & Benefits

Features & Benefits

Learn More: SpotBot Spotters

More Information

  • Recommended for all ex situ microarray manufacturing applications, including oligonucleotides, cDNA, carbohydrate, antigen, antibody, peptide, and reverse-phase microarrays
  • Compatible with human, rat, Drosophila, Arabidopsis, C. elegans, yeast, bacteria, and viruses
  • Supports VIP genotyping and other diagnostic applications
  • Improved precision, speed and durability with heavy duty overhead gantry
  • Printing routines allow up to 5 technical replicates per sample
  • Low buffer consumption of less than 1 liter per hour
  • Printed microarrays are compatible with Arrayit microarray scanners, labeling-and-purification kits, hybridization, and wash-and-blocking buffers
  • Printhead compatible with entire line of Stealth, 946, Green, and professional microarray pins
  • All systems arrive pre-calibrated and ready-to-use
  • 1-hour customer installation time; comprehensive technical support
  • Superior axis resolution and repeatability provide uniform spot-spacing for easy quantification
  • Forced air stream pin drying for improved pin cleaning and sample loading
  • Advanced robotics for performance and reliability; Micro-robotics for low thermal emission, energy savings and quiet operation
  • On-board humidity control module tightly controls system humidity within 1% relative humidity at steady-state and minimizes sample evaporation
  • Sample evaporation also minimized due to low air turbulence
  • Private label and OEM agreement available for volume purchases
  • Instrument and accessory vibration dampeners allows printing in any lab setting
  • Utilizes Windows 7 operating system
Blue Bio Mini shown with the SBXPRO SpotBot Extreme Protein Edition

ADA compliant and undercounter models feature a microprocessor based controller and an LED digital display interface.

Robot Dimensions (H x L x W) 21" x 12" x 10" (540 x 300 x 270 mm)
Electrical Requirements 110V or 220V, 50-60Hz
Deck Capacity 2 microwell plates (96-well or 384-well)
Substrate Deck Capacity 2 decks of fourteen 25 mm x 76 mm glasssubstrates
Printhead Configuration 16 microarray printing pins in a 4 x 4 pattern
Printhead Pin Spacing 4.5 mm
Axis Resolution Ā± 10 Āµm
Humidity Control 10 ā€“ 80% RH
Humidity Control Speed 5% RH per minute and Ā± 1% at steady-state
SBXPRO Cooling Deck Capacity Ambient to 4Ā°C
Cleanroom Compatibility ISO 3
Robot Weight 24 lbs. (11.4 kg)
