3033-70
Terra Part # 3033-70
Request Quote
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3033-70
64159
Microarray Printer, NanoPrint-2, LM210-2
Product Details
  • Positional resolution: 500 nanometers using linear drive Warp1 control
  • Printing speed: 48 spots per second or 192 Spots second using “192” Series Pins and Printheads
  • Capacity: 384-well sample microplates and 210 standard glass slide substrate slides
  • Printing technology: Arrayit Pro, 946 or Stealth pins and  printheads
  • Number of pins: Configurable 1 to 48 at 4.5 mm centers or 1 to 192 at 2.25mm
  • INCLUDES:
  • 3 microplate and 210 slide capacity, anti-vibration table, accessory control module (ACM), environmental control, 48 microarray printing pins, professional series printhead, 10 x 25 (250) SuperEpoxy 3 microarray substrate slides, 2 x 50 ml Micro Spotting Solution Plus, 20 x MMP 384-well microplates, reagent carboys, tubing, connectors, fittings, tubing, high-speed computer, intuitive graphical user interface (GUI), 22” LED display, keyboard, mouse, and mouse pad
  • Destination: Microarray substrates, glass slides, microplates, custom
  • Spot diameter: 65 microns or larger to meet all applications
  • Minimum spot spacing: 50 microns
  • Pre-printing: User definable
  • Wash/Dry station: Ultrasonic with 2 wash positions and a dry station

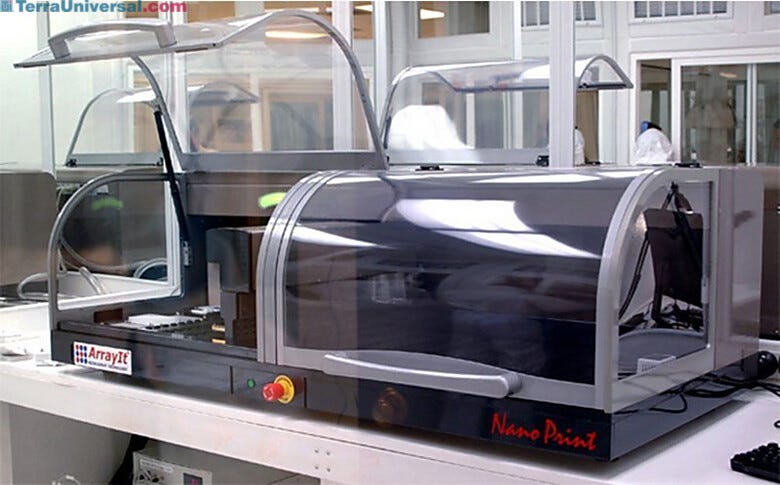

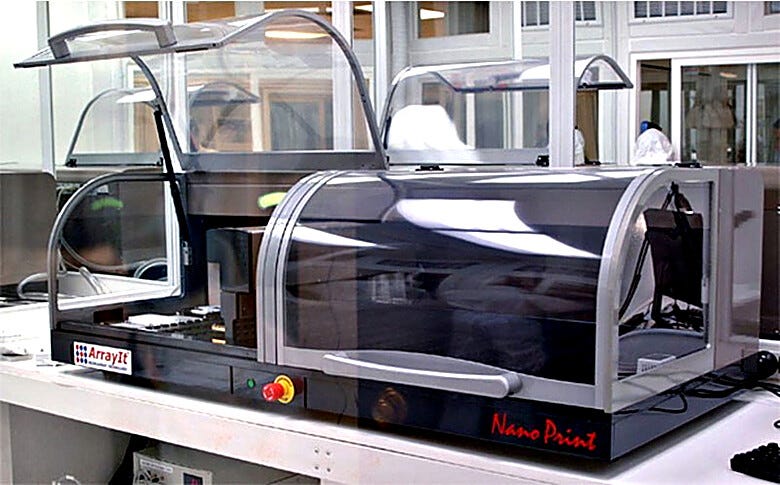

  • Number of microplates: Three standard 384-well, customizable
  • Number of substrates: 210 Slides
  • Number of microplates: 45 96-well microplates
  • Microplate type: 96-well or 384-well microplates
  • Microplate cooling: Cool 1-3 microplates, for protein microarray applications, or use the refrigerated stacker for higher throughput and hands free automation.
  • Environmental control: Fully enclosed, HEPA filtration and user-defined humidity control
  • OPTIONS:
  • 192 Pin Printhead (48 Pin Professional Printhead provided as standard)
  • Anti-vibration table
  • Peltier-driven microplate cooling
  • Microplate printing worktables
  • Custom worktables for proprietary printing cassettes, biochips and cartridges
  • Worktable conveyor
  • Microplate stackers, refrigerated with lid removal and barcode reader
  • Dehumidification

Equipment Type: Printer

Slide Capacity: 210 Slides

Number of Printing Pins: 48 Pins

Assay Type: Whole Cell

Manufacturer SKU: LM210-2

Unit of Measure: EA

Weight, Product: 441 Lbs

Dimensions, Product: 64.6"W x 33.5"D x 22.1"H

Weight, Shipping: 500 Lbs

Package Type: Crate

Buy Accessories

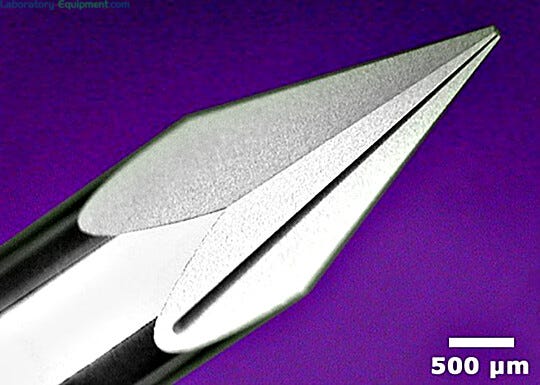

  1. For perfect block alignment and faster data analysis.  |  3033-17 displayed
    Professional Series PRO 3 Microarray Printing Pin Ships Free Free shipping in contiguous USA
    $1,138
    Increase Down Increase Up
  2. For perfect block alignment and faster data analysis.  |  3033-17 displayed
    Professional Series PRO 3S Microarray Printing Pin Ships Free Free shipping in contiguous USA
    $1,138
    Increase Down Increase Up
  3. For perfect block alignment and faster data analysis.  |  3033-17 displayed
    Professional Series PRO 4 Microarray Printing Pin Ships Free Free shipping in contiguous USA
    $1,138
    Increase Down Increase Up
  4. Product Training/In-Service
    Request Quote
    Increase Down Increase Up
  5. Planned Maintenance Service
    Request Quote
    Increase Down Increase Up
  6. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: NanoPrint2

More Information

Additional Features and Options for the NanoPrint™ 2 Microarray Printer
  • 192 Pin Printhead (48 Pin Professional Printhead provided as standard)
  • Anti-vibration table
  • Peltier-driven microplate cooling
  • Microplate printing worktables
  • Worktable conveyor
  • Microplate stackers, refrigerated with lid removal and barcode reader
  • Dehumidification
  • Ideal in research, diagnostic and pharmaceutical settings
  • Uses patented contact printing technology
  • Compatible with any standard microarray surface
  • Prints onto 96 and 384-well plates and plate sized glass using the modular deck system
  • Superior Z-Axis Resolution for Optimum Spot Morphology
Options for NanoPrint™ 2 Microarray Printer
  • Custom work tables for proprietary printing cassettes, biochips and cartridges
  • Extended service warranty
  • Optional Peltier cooling plate, humidity monitoring and control
  • Peltier-driven microplate cooling
  • Microplate printing worktables
  • Worktable conveyor
  • Microplate stackers, refrigerated with lid removal and barcode reader
  • Dehumidification
Benefits of Linear Servo Motor Technology
  • Nanometer scale positional accuracy
  • No vibration and quiet operation
  • No heat generation or motor dust
  • Superior accuracy
  • Almost maintenance-free operation
  • High speed and high load capacity
  • Zero "sagging with loss of power
  • Safer and more durable compared to stepper motors
Model NanoPrint 2 LM60-2 NanoPrint 2 LM210-2
Number of Substrates 60 slides 210 Slides
Number of Microplates 15 (96-well microplates) 45 (96-well microplates)
Size W" x D" x H" (mm) 43.3 x 33.5 x 22.1
(1100 x 850 x 560)
64.6 x 33.5 x 22.1
(1640 x 850 x 560)
Includes 60 slide capacity, 16 microarray printing pins, professional series printhead, 4 x 25 (100) SuperEpoxy 3 microarray substrate slides, 1 x 50 ml Micro Spotting Solution Plus, 10 x MMP 384-well microplates 210 slide capacity, 48 microarray printing pins, professional series printhead, 10 x 25 (250) SuperEpoxy 3 microarray substrate slides, 2 x 50 ml Micro Spotting Solution Plus, 20 x MMP 384-well microplates
All models include 3 microplate, anti-vibration table, 1-year comprehensive performance warranty (pins and printhead excluded), accessory control module (ACM), environmental control,reagent carboys, tubing, connectors, fittings, tubing, high-speed computer, intuitive graphical user interface (GUI), 22” LED display, keyboard, mouse, and mouse pad.
Positional Resolution 500 nanometers using linear drive Warp1 control
Printing Speed 48 spots per second or 192 spots second using
"192" Series Pins and Printheads
Destination Microarray substrates, glass slides, microplates, custom
Printing Technology ArrayIt Pro, 946 or Stealth pins and printheads
Number of Pins Configurable 1 to 48 at 4.5 mm centers or 1 to 192 at 2.25mm
Spot diameter 65 microns or larger to meet all applications
Minimum spot spacing 50 microns
Pre-printing User definable
Wash/Dry station Ultrasonic with 2 wash positions and a dry station
Number of microplates Three standard 384-well, customizable
Microplate type 96-well or 384-well microplates
Microplate cooling Cool 1-3 microplates, for protein microarray applications, or use the refrigerated stacker for higher throughput and hands free automation.
Environmental Control Fully enclosed, HEPA filtration and user-defined humidity control
Software specifications
  • Interface: Intuitive and Graphic Windows 10 User Interface
  • User Management: Password Protected access levels for User, Manager and Administrator
  • Data Files: Imports and exports data files compatible with all current microarray detection instruments
  • Version Control: Complete tracking of all methods, version and backups
  • Automatic Method Validation: Automatically validates for compatible method parameters
  • Sample and Printing Views: Each available in real time during operation
  • Method Creation Wizard: Only minimal information required to create microarray printing protocols
  • Simulation Mode: Pretest print methods in software prior to running programs
  • Flexible: Microarray design, pin configuration, worktable layout, source and destination type, offsets, speed profiles, wash/dray parameters and preprint location
