1617-PP-01
Terra Part # 1617-PP-01
Request Quote
Usually ships in 45-54 business days

Want it faster ? Read about FasTrak

Terra Part # 1617-PP-01
71916
Request Quote
Usually ships in 45-54 business days

Want it faster ? Read about FasTrak

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Product Details
  • Three controller modes: Single set-point, programmable (multi-segment/multi-program), programmable with RS485 communications port (multi-segment/multi-program, software sold separately)
  • Molybdenum di-silicide heating elements require minimal maintenance and are easy to replace
  • Increased resistance to thermal shock, ideal for rapid cycling over long time periods

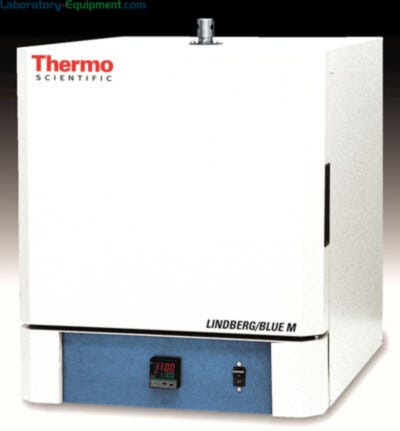

  • Moldatherm high-temperature ceramic fiber insulation and hearth plate protects chamber from spills and provides structural support for loads
  • Integrated cooling fans keep the exterior surface at a safe temperature
  • Applications: Composite and high-temperature research, powder metallurgy, precious and exotic metals treatment
  • Programmable models can store up to 30 programs and up to 99 segments per program (ramp/dwell)
  • Optional digital Over-Temperature Control (OTC) system overrides the main controller in the event of primary control circuit failure
  • Heating elements shut off when door opens
  • PID controller prevents overshooting the set-point
  • Max Temperature: 1700°C
  • 0.375in inlet port for air or inert gas
  • Requires hardwiring (power cord not included)

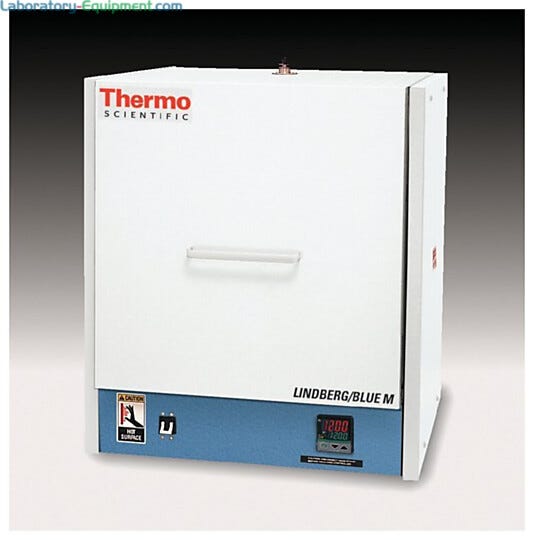

  • Lindberg/Blue M™ 1700°C Furnaces by Thermo Fisher Scientific Lindberg/Blue M 1700°C Furnace by Thermo Fisher Scientific

Features & Benefits

Learn More: Lindberg Blue M Furnaces

Additional Features

Digital with 1 Setpoint
  • Ideal for repeated processes

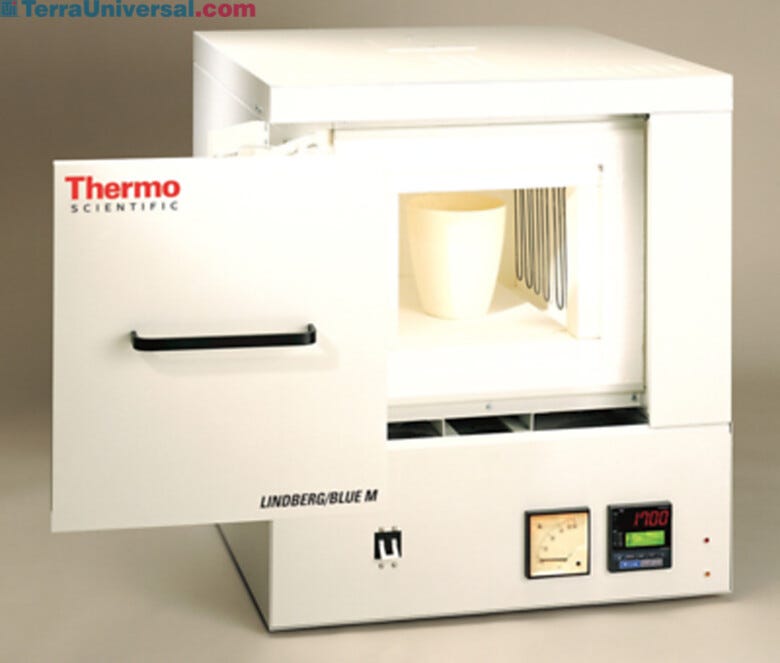

  • Microprocessor-based PID control prevents overshoot>
  • Single segment, single setpoint, one ramp to setpoint
  • Adjustable high limit over temperature protection
  • Simultaneous LED display of actual temperature vs. setpoint in °C or °F
Multisegment/ Multiprogram
  • Programmable and ideal for diverse processes
  • Microprocessor-based PID control prevents overshoot
  • 30 programs and 300 segments for ramp (up and down) and dwell (timed hold) temperature control; up to 99 segments per program
  • Simultaneous LED display of actual temperature vs. setpoint in °C or °F
Multisegment/ Multiprogram/ Communications
  • Provides traceability documentation and FDA and ISO 9001 compliance
  • RS-485 data port (communications card and port) connects to remote computer
  • Enables date transfer, modification and interrogation of instrument control and configuration parameters
  • Connects 30 units to one PC
  • Software sold separately
Model 0.6 cu. ft./17L Capacity 0.9 cu. ft./25.5L Capacity
Interior Dims. 11W x 10.5D x 9H in. (279.4 x 266.7 x 228.6 mm) 11W x 15.5D x 9H in. (279.4 x 393.7x 228.6 mm)
Exterior Dims. 28W x 24D x 31H in (711.2 x 609.6 x 787.4 mm) 28W x 30D x 31H in. (711.2 x 762 x 787.4 mm)
Electrical 208/240V 50/60Hz, 5900w 208/240V 50/60Hz, 7100w
Shipping Weight 350 lbs. (159 kg) 370 lbs. (168 kg)
Max Temperature 1700°C
Atmosphere Port 0.375in. diameter, for fresh air or inert gas inlet (located at back wall, bottom)
Power module With ammeter, circuit breaker, transformer and front panel indicator lights for
“Ready Element” and “Main Power Applied”
Safety Power Disconnect Switch Cuts power to heating elements when door is opened
Side Swing Door Provides easy chamber access and protection from heat surge
Cooling Fan Hi-volume cooling fan reduces exterior shell temperatures, reduces exterior shell temperature, saves energy and improves operator safety
Panels Removable and provides easy access to samples, replaceable heating elements and thermocouples
Includes Long-life type “B” thermocouples with 10ft. compensated lead wire
Polarized plug for accurate high-temperature measurement
Required but not included Power cord and hardwiring
Option Software
