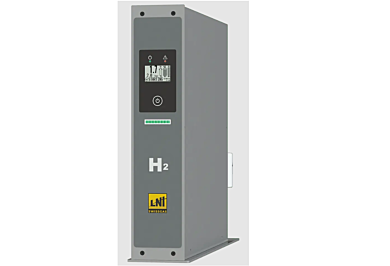

HG ST BASIC PEM Hydrogen Generators by LNI Swissgas in 6 flowrate capacities up to 600 cc/min, 10 bar pressure, static dryer, PEM technology and a 0.3L internal

HG ST BASIC 160 PEM Hydrogen Generator, 160 cc/min flowrate, 10 bar (145 psi), LNI Swissgas, 6920.05.016

  • Available Certified ISO Grade Designs: ISO 8
  • Compact and quick-to-install HG ST BASIC 160 PEM Hydrogen Gas Generator with PEM technology eliminates the need for acids and alkaline solutions
  • Flowrate of 160 cc/min, 10 bar pressure, and a purity up to 99.9999%
  • Maintenance-free static drying system ensures maximum grade of hydrogen purity
  • Applications: GC-FID, GC-NPD, GC-FPD, THA
  • Included: static dryer and a 0.3L internal tank

• H2 Flowrate: 160 cc/min

• Model: HG ST BASIC 160

• Manufacturer SKU: 6920.05.016

• Pressure: 10 bars (145 psi)

• Certified ISO Grade Design: ISO 8

• Available Certified ISO Grade Designs: ISO 8

• Drying System: Static Dryer

• Dew Point: -25C°

• Unit of Measure: EA of 0

Read more
ISO 8 Icon<br/>
Warranty: One-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
7200-05
Terra Part # 7200-05
Request Quote
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Terra Part # 7200-05
81738
Request Quote
Save For Later
Usually ships in 15-20 business days

Want it faster ? Read about FasTrak

Usually ships in 15-20 business days

Want it faster ? Read about FasTrak

Details & Specs
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 8
  • Compact and quick-to-install HG ST BASIC 160 PEM Hydrogen Gas Generator with PEM technology eliminates the need for acids and alkaline solutions
  • Flowrate of 160 cc/min, 10 bar pressure, and a purity up to 99.9999%
  • Maintenance-free static drying system ensures maximum grade of hydrogen purity
  • •  Applications: GC-FID, GC-NPD, GC-FPD, THA
  • Included: static dryer and a 0.3L internal tank
  • Features:
  • Long-life multilayer electrolytic cell with a polymeric membrane
  • Connects up to 20 units in parallel mode with the use of an external control box (sold separately)
  • H2 Flowrate cc/min: 160
  • Outlet Pressure: 10 bars (145 psi)
  • Communication: RS485/USB (standard); optional LAN
  • H2 Purity: >99.9999% (< -25°C (< -13°F), Atmospheric Dew Point (ADP))
  • Electronically controlled high-pressure GLS (patented)
  • Humidity safeguard protects GC
  • Continuous operation (24-hours per day)
  • On-board CPU provides full safety with constant control of operating parameters  and automatically checks for internal leaks
  • Intuitive touch screen LCD display enables easy management of all functions
  • Software functions: parallel mode (ready on board), and automatic tank refill
  • Required water quality: Deionized, ASTM II, <0.1µS
  • Supply pressure (min, Max): 0 bars (0 psi), 0.5 bar (7.25 psi)
  • Supply flow rate: 0.1 l/min (minimum), 1.5 l/min (maximum)
  • Internal tank: 0.3 liter
  • Type of connection IEC 320-C14
  • Fuse rating (5x 20 mm) 4A (250VAC – T)
  • Hydrogen outlet: 1/8" compression fitting
  • Water Quick release push-in fitting
  • Options and Consumables for HG ST BASIC 160 #6920.05.016:
  • Deionizer water filter #6930.00.091
  • LAN
  • Speak with a Terra Product Specialist for pricing and details
  • Options and Consumables for HG ST BASIC 160 #6920.05.016:
  • Deionizer water filter #6930.00.091
  • LAN
  • Speak with a Terra Product Specialist for pricing and details

• H2 Flowrate: 160 cc/min

• Model: HG ST BASIC 160

• Manufacturer SKU: 6920.05.016

• Pressure: 10 bars (145 psi)

• Certified ISO Grade Design: ISO 8

• Available Certified ISO Grade Designs: ISO 8

• Drying System: Static Dryer

• Dew Point: -25C°

• Unit of Measure: EA of 0

• Electrical Specifications: 100-240V, 4 A, 350 W, 50/60 Hz

• Weight, Product: 41.88 lb

• Dimensions, Product: 3.74" W x 18.89" D x 17.32" H

Show more
Other products you may find relevant
  1. Workstations & Tables
    Workstations & Tables
  2. Chairs & Stools
    Chairs & Stools
  3. Metro Shelving Systems
    Metro Shelving Systems
  4. Carts
    Carts
  5. Biocontainment laboratories by Germfree offer ISO-rated modules configured in multi-building, multi-level layouts.
    Biocontainment Laboratories by Germfree
    Request Quote
  6. Shown is an all stainless-steel USP797 compounding room, including ante-room and buffer room | 2900-94-SS displayed
    Group of 5 products
    USP 797 BioSafe® All-Steel Cleanrooms From
    As low as $50,022
    Some ship in 25 - 31 days
  7. Modular, custom built Dry Rooms for lithium and automotive hybrid batteries, medical device, material and processing applications | 6604-99 displayed
    Dry Rooms by Scientific Climate Systems
    Request Quote

  • nitrogen purge cabinet with automatic humidity control and nitrogen generator A Reliable Nitrogen Source for Desiccator Cabinets
  • desiccator cabinet on top of automatic height adjusting table with nitrogen generator ISO 7 Smart® Desiccator Cabinet on Automatic Height Adjustable Workstation
  • stainless steel glovebox on automatic height adjusting table with N2 generator Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
  • Small, medium, and large laboratory nitrogen generator systems Laboratory Nitrogen Generator
  • High-Capacity Nitrogen Generator with Storage Tank High-Capacity Nitrogen Generator
  • HG Pro 4000 PEM Hydrogen Generators by LNI SwissGas HG Pro 4000 PEM Hydrogen Generators by LNI SwissGas
  • HG Mini PEM Hydrogen Generators by LNI SwissGas HG Mini PEM Hydrogen Generators by LNI SwissGas
  • HG Basic PEM Hydrogen Generators by LNI Swissgas HG Basic PEM Hydrogen Generators by LNI Swissgas
  • Compare PEM Hydrogen Generators by LNI Swissgas Compare PEM Hydrogen Generators by LNI Swissgas

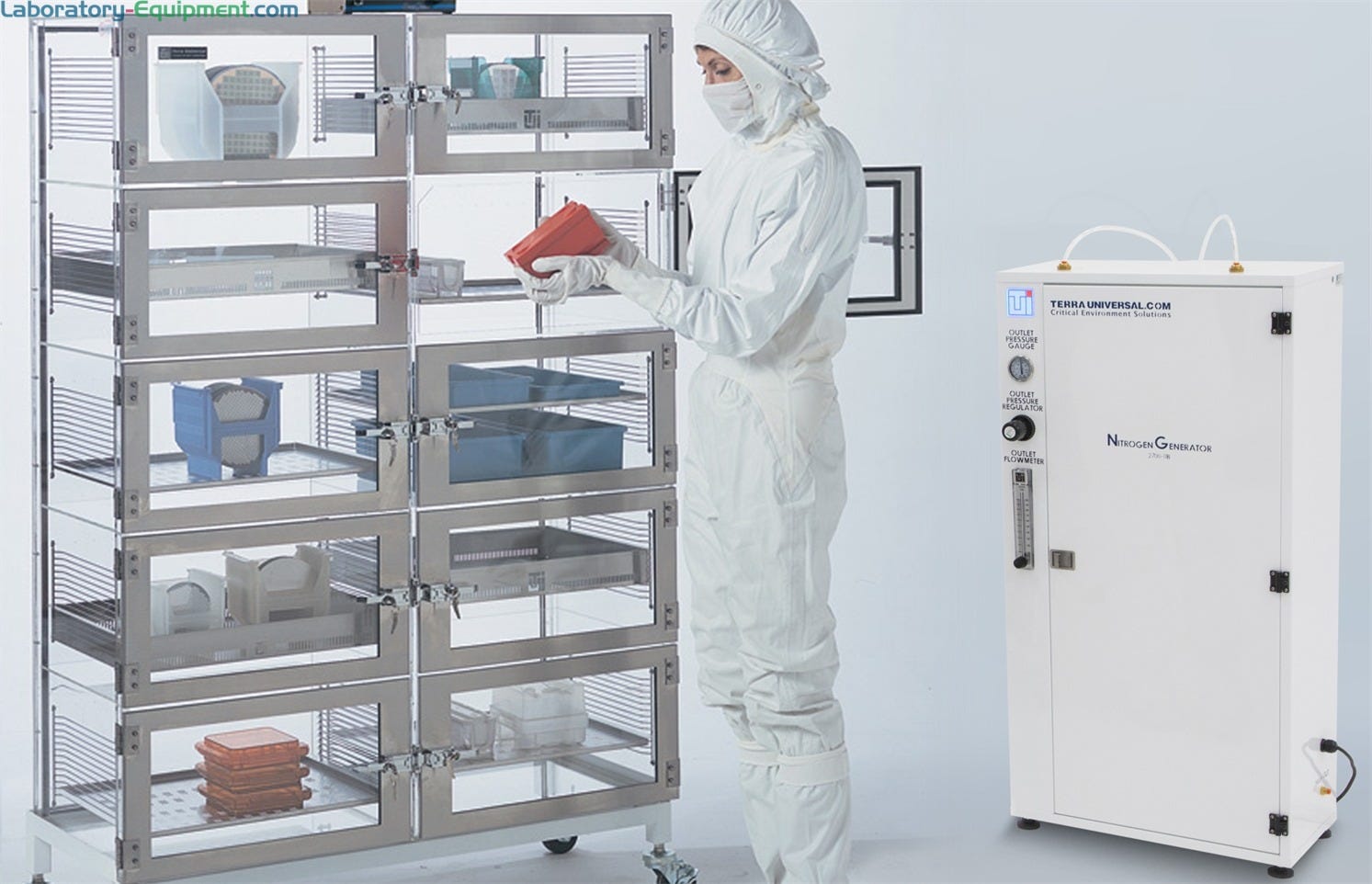

nitrogen purge cabinet with automatic humidity control and nitrogen generator
Nitrogen generators can be installed to desiccator cabinets to eliminate reliance on bulky gas canisters | 2700-11B displayed A Reliable Nitrogen Source for Desiccator Cabinets Available in three several capacities, nitrogen generators provide a reliable source of up to 99% pure nitrogen for purging desiccator cabinets, glove boxes and other process enclosures.

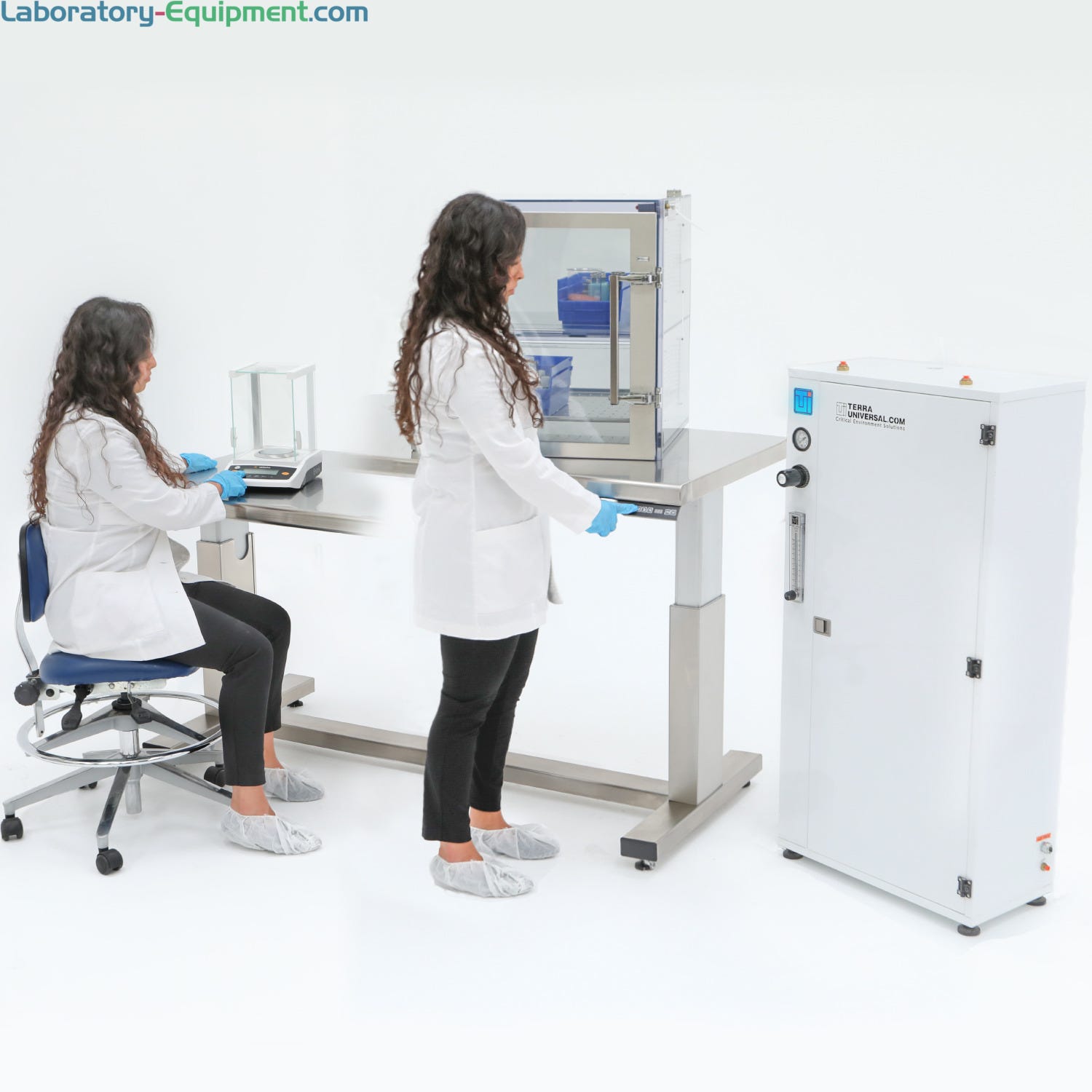

desiccator cabinet on top of automatic height adjusting table with nitrogen generator
Automatic height adjusting workstations allow users to quickly alternate between comfortable sitting and standing positions while performing different tasks | 3504-02A displayed ISO 7 Smart® Desiccator Cabinet on Automatic Height Adjustable Workstation Automatic height adjusting workstations allow users to quickly alternate between comfortable sitting and standing positions while performing different tasks with heavy equipment on the workspace, such as this Smart® Desiccator Cabinet connected to a Nitrogen Generator.
stainless steel glovebox on automatic height adjusting table with N2 generator
Stainless steel Smart® Glove Box mounted on BioSafe® automatic height adjusting table (28"-43"H), with Nitrogen Generator | 3305-34A displayed Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator Gloveboxes can easily mount to an automatic height adjusting table (28"-43"H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.

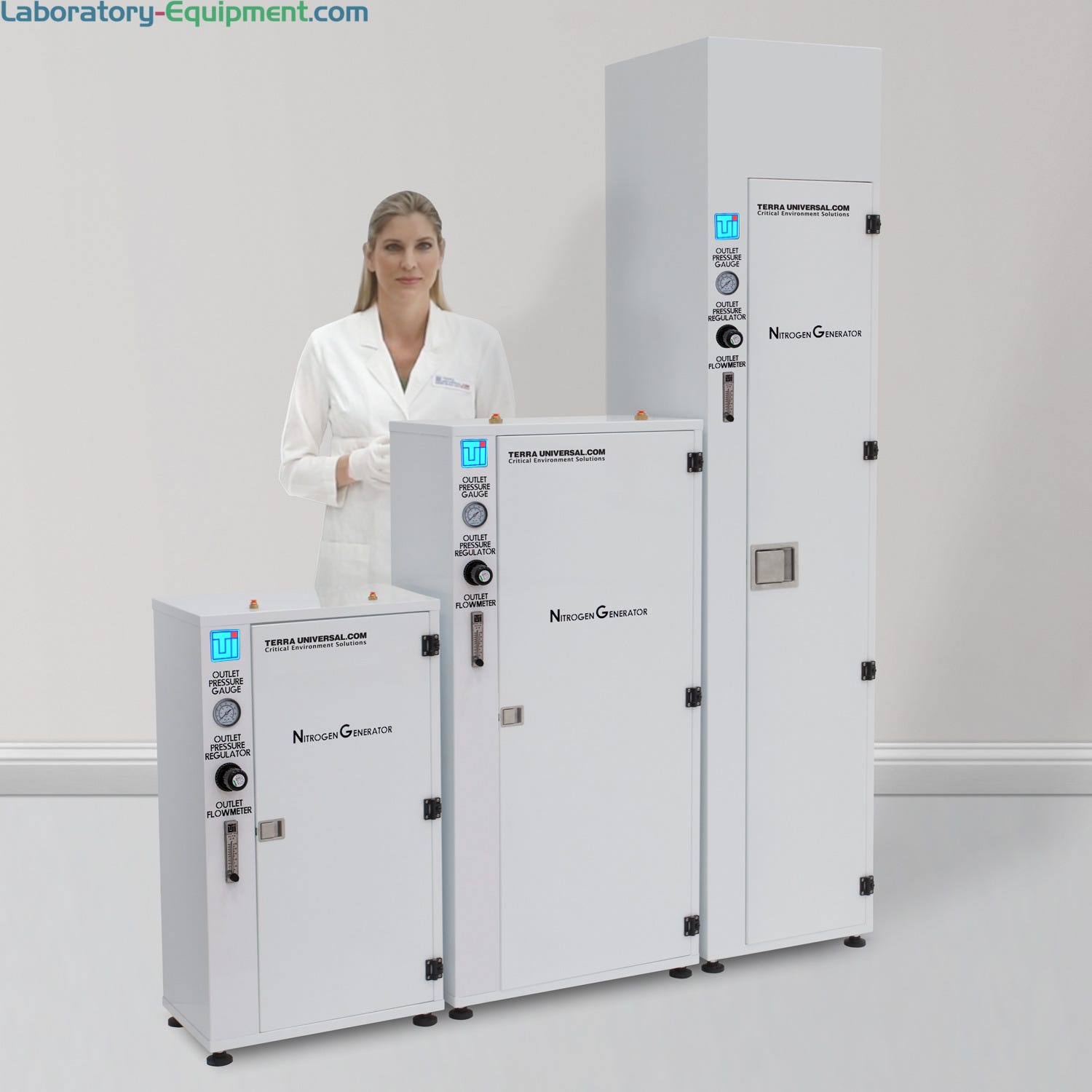

Small, medium, and large laboratory nitrogen generator systems
Nitrogen Generators are available in several capacities to provide a reliable source of clean nitrogen up to 99% pure Laboratory Nitrogen Generator Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.

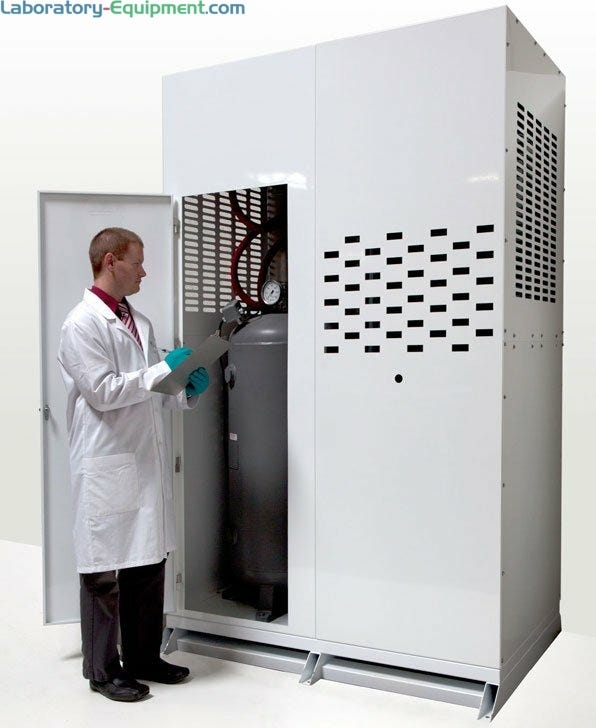

High-Capacity Nitrogen Generator with Storage Tank
High-capacity nitrogen generator system includes holding tank for a continuous gas supply | 2701-32 displayed High-Capacity Nitrogen Generator High-capacity nitrogen generator system includes holding tank for a continuous gas supply without continuous operation (order compressor separately).

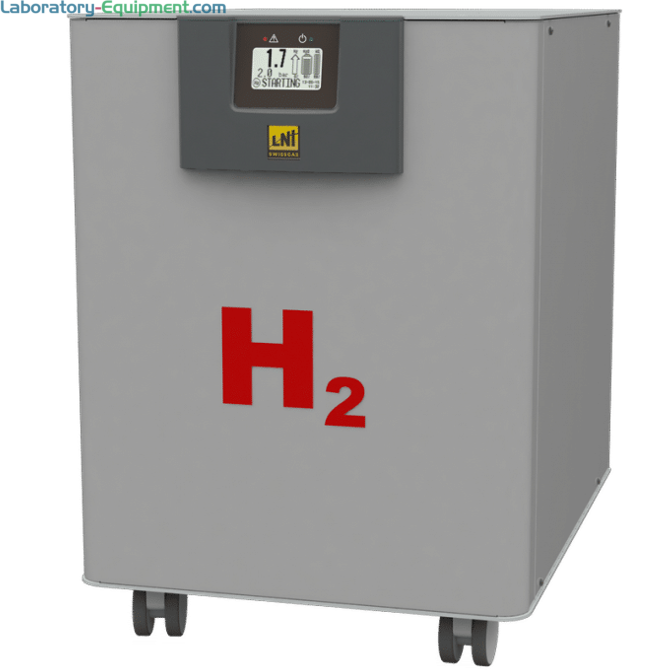

HG Pro 4000 PEM Hydrogen Generators by LNI SwissGas
HG Pro 4000 PEM Hydrogen Generators by LNI Swissgas with a 4000 cc/min flowrate, a 16 bar (232 psi), a 20L tank, a multilayer PEM cell and a high pressure GLS | 7200-PP-03 displayed HG Pro 4000 PEM Hydrogen Generators by LNI SwissGas

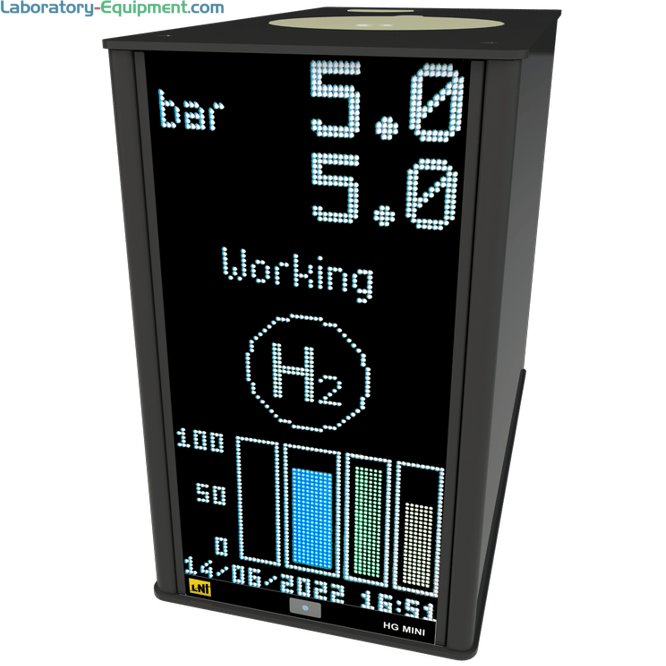

HG Mini PEM Hydrogen Generators by LNI SwissGas
HG Mini PEM Hydrogen Generators by LNI Swissgas with up to 300 cc/min flowrate, 10 bar (145 psi), a 1L tank,, and an electrolytic cell with a polymeric membrane | 7200-PP-01 displayed HG Mini PEM Hydrogen Generators by LNI SwissGas

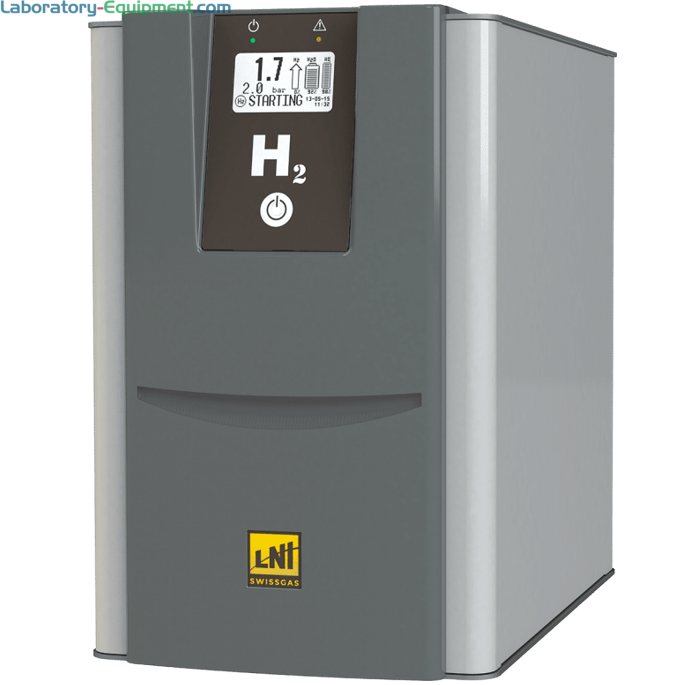

HG Basic PEM Hydrogen Generators by LNI Swissgas
HG Basic PEM Hydrogen Generators by LNI Swissgas with up to 300 cc/min flowrate, 10 bar (145 psi), a 3L tank, and an electrolytic cell with a polymeric membrane | 7200-PP-02 displayed HG Basic PEM Hydrogen Generators by LNI Swissgas
Compare PEM Hydrogen Generators by LNI Swissgas
PEM hydrogen Gas Generators with a multilayer PEM cell include an internal tank and choice of static dryer, desiccant column of PSA and PSA/TSA drying systems Compare PEM Hydrogen Generators by LNI Swissgas

Features and Benefits

Learn More: High-Capacity Nitrogen Generators
Print Copy Copied

High-Capacity Nitrogen (N2) Applications

Nitrogen's inert properties make it a necessity for many industries. It's widely used for drying, purging, cooling, and to create protective barriers between sensitive parts and the damaging environment.

In pharmaceutical or life science laboratories, N2 works within desiccators and glove boxes to protect moisture-sensitive parts and samples. Other industries that rely on the drying properties of N2 are semi-conductor and electronics.

Food packaging lines are a good example of where high volumes of nitrogen are used to protect consumables from spoiling by contact with oxygen. The N2 creates a protective barrier. The same idea can be applied to flammable raw materials: contact with oxygen would be harmful.

Nitrogen is incorporated into heat-treating, welding and laser-cutting processes in the steel and aerospace industries. For chemicals production, pressurized N2 can propel liquids through pipelines and help remove volatile organic chemicals (VOCs) from manufacturing environments.

Nitrogen is the most abundant gas present in the air we breathe. By separating it into a pure gas, many useful applications have been developed. Generating large quantities of N2 as needed is a convenient, cost-effective practice.

N2 Generator System Components:
  • 1. 200-gallon compressed air holding tank
  • 2. 60-gallon nitrogen holding tank
  • 3. Hydrocarbon filter
  • 4. Two (2) nitrogen membranes and one (1) exit filter
  • 5. Coalescing pre-filters
  • 6. High-volume rotary screw compressor
Specifications
  • Nitrogen Purity: 99%+ (depending on inlet pressure)
  • Power Requirements (compressor): 208/230/460 VAC, 60Hz, 3-phase, prewired for 460V operation
  • Power Requirements (generator): 120VAC / 240VAC
  • Generator Max. Power: 4kW
  • Footprint: 60"W x 44"D (generator); 90W" x 72"D (generator and compressor)
  • Maximum height: 96"
  • Generator Tank Capacity N2 holding tank: 60 gal.; Compressed air storage: 200 gal.
  • Compressor* pressure range: 217 psig
  • Compressor* Capacity: 157 ACFM
  • Compressor* Motor Power: 50 HP
  • Compressor* Dimensions: 78.375"L x 40.5"W x 67"H
  • Compressor Weight: 2,458 lb
High-Capacity Nitrogen Membrane Performance
Test # Inlet Pressure (psi) Pressure Entering N2 Membrane (psi) Pressure in N2 Holding Tank (psi) Outlet Flow Rate (cfm) % N2 Comments
1 120 120 25 13 99 0% RH
2 120 120 35 18 99 0% RH
3 120 120 80 30 99 0% RH
4 120 100 60 18 99 0% RH
5 120 100 50 15 99 0% RH
6 120 90 50 20 99 0% RH
7 120 90 40 13 99 0% RH
