SmartDoc 2.0 Gel imaging systems allows the operator to use a smart phone to take high quality shots of the gels | 2808-17 displayed
Gel Transilluminators

Gel Imaging; SmartDoc 2.0, Blue Light Illumination, Accuris-Benchmark, 120V

  • Economical system for DNA gel visualization, band cutting and imaging
  • Captures quality digital images with any smart phone( iPhone, Samsung, LG, HTC and more)
  • Visible blue light safer for operators and will not damage DNA
  • Ideal for common safe stains (SmartGlow, SYBR Green, GelGreen, etc.)
  • Includes gel prep platform, blue light illumination base, orange photo filter and cover, enclosure

• Visible or UV Light Source?: Visible Light

• Viewing Surface Dimensions: 6.6" x 4.8"

• Wavelength Channels: 465 nm

• Filter Cover: Clear, UV Blocking

• Brand: SmartDoc

• Specific Light Source: Visible Light

• Manufacturer SKU: E5001-SDB

• Unit of Measure: EA

Read more
Stocked Ships Free
Manufacturer SKU: E5001-SDB
Manufactured By: Benchmark
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
2808-18
Terra Part # 2808-18
$700
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Accessories related to Terra Part # 2808-18
68630
Gel Imaging; SmartDoc 2.0, Blue Light Illumination, Accuris-Benchmark, 120V
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Ships Free Free shipping in contiguous USA In stock
Usually ships in 5-5 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Economical system for DNA gel visualization, band cutting and imaging
  • Captures quality digital images with any smart phone( iPhone, Samsung, LG, HTC and more)
  • Visible blue light safer for operators and will not damage DNA
  • Ideal for common safe stains (SmartGlow, SYBR Green, GelGreen, etc.)
  • Includes gel prep platform, blue light illumination base, orange photo filter and cover, enclosure
  • Maximum gel size: 150 x 150 mm
  • Excitation Source: 230 high intensity blue LED and blue filters
  • Orange photo filter: Orange PMNA, 12 nm aperture
  • Orange viewing cover: Orange PMNA, 180 x 180 mm
  • Includes 12 VDC power supply
  • Included orange photo filter optimized for ethidium bromide stains and for use with blue light transilluminator
  • Accommodates multiple gel sizes and thicknesses
  • Designed for safe viewing of nucleic acids in agarose gels and capturing quality digital images with smart phones
  • Included orange cover acts as a filter in absorption of blue light
  • Visualizes fluorescing samples
  • Angle placement of cover for accessing and cutting out DNA bands
  • Removable extender piece for close up image

• Visible or UV Light Source?: Visible Light

• Viewing Surface Dimensions: 6.6" x 4.8"

• Wavelength Channels: 465 nm

• Filter Cover: Clear, UV Blocking

• Brand: SmartDoc

• Specific Light Source: Visible Light

• Manufacturer SKU: E5001-SDB

• Unit of Measure: EA

Show more
Other products you may find relevant
  1. Workstations & Tables
    Workstations & Tables
  2. Chairs & Stools
    Chairs & Stools
  3. Metro Shelving Systems
    Metro Shelving Systems
  4. Carts
    Carts
  5. myGel Mini includes gel box, safety lid, 6 gel trays, casting stands and 2 double-sided combs | 2830-00 displayed
    Group of 2 products
    myGel™ Mini Electrophoresis Systems by Accuris From
    As low as $574
    Some ship in 5 - 5 days
  6. Simplifies nucleic acid electrophoresis when used with myGel Mini | 2830-01 displayed
    EZ Pack; Agarose Tablet,; 1000 tablets (500g), for myGel Mini
    $547
    Usually Ships in 5 - 5 days
  7. Simplifies nucleic acid electrophoresis when used with myGel Mini | 2830-01 displayed
    EZ Pack; Agarose Tablets, 200 tablets (100g), for myGel Mini
    $180
    Usually Ships in 5 - 5 days
  8. Accuris myVolt Touch Electrophoresis Power Supply with an auto-rotating LCD display features a 2 x 2 inch touchscreen control panel | 2808-08 displayed
    Group of 2 products
    myVolt Touch Electrophoresis Power Supply by Accuris From
    As low as $578
    Some ship in 5 - 5 days
  9. Economical myVolt Mini Electrophoresis Power Supply in US and EU Plugs are ideal for use in basic, constant voltage applications | 2808-07 displayed
    Group of 2 products
    myVolt™ Mini Electrophoresis Power Supply by Accuris From
    As low as $227
    Some ship in 5 - 5 days

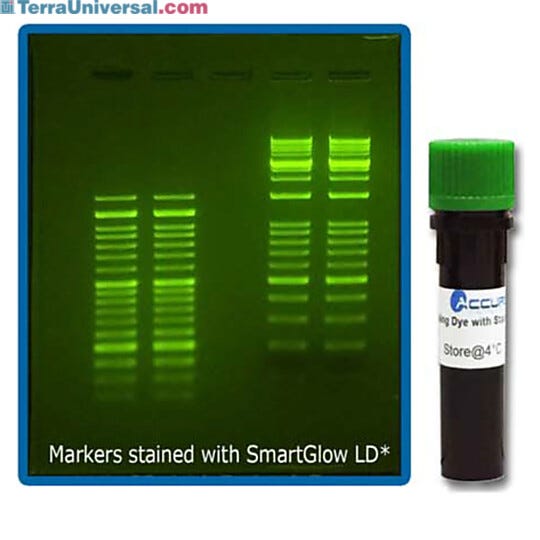

  10. SmartGlow nucleic acid pre-stain and Loading Dye are safe and economical alternatives to using Ethidium Bromide | 2808-10 displayed
    SmartGlow Pre-stain for nucleic acid gels, 1ml
    $108
    Usually Ships in 5 - 5 days
  11. #E4500-LD replaces ethidium bromide in agarose and gel electrophoresis | 2808-11 displayed
    SmartGlow loading dye with stain for nucleic acid gels, 1ml, Accuris
    $108
    Usually Ships in 5 - 5 days
Buy Accessories
  1. Filter, Narrow Band; 535 nm, SmartDoc 2.0, Accuris-Benchmark
    Filter, Narrow Band; 535 nm, SmartDoc 2.0, Accuris-Benchmark Ships Free Free shipping in contiguous USA In stock
    $119
    Increase Down Increase Up
  2. Filter, Narrow Band; 590 nm, SmartDoc 2.0, Accuris-Benchmark
    Filter, Narrow Band; 590 nm, SmartDoc 2.0, Accuris-Benchmark Ships Free Free shipping in contiguous USA In stock
    $119
    Increase Down Increase Up
  3. Extended Product Warranty
    Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: Blue Light and Non-Toxic Dyes
Print Copy Copied

SmartDoc 2.0 Helps Ensure Lab Safety with Blue Light and Non-Toxic Dyes

535 nm Narrow Band Pass Filter
  • Peak emission: 535 nm
  • 40 nm bandwidth
  • Compatible DNA stain Type: SmartGlow™ SYBR® Green
  • Excitation source: UV transilluminator
590 nm Narrow Band Pass Filter
  • Peak emission: 590 nm
  • 60 nm band width
  • Compatible DNA stain Type: Ethidium Bromide
  • Excitation source: Blue illumination base

Ethidium Bromide (EtBr) a known carcinogen and mutagen has traditionally been used by laboratories in conjunction with UV light for staining DNA agarose gels. Exposure to UV light has been demonstrated to cause DNA lesions, which are associated with an increased incidence of cancer.

The SmartDoc 2.0 Gel Imaging System with blue light illumination (E5001-SDB) protects lab personnel by eliminating the need for EtBr and UV light. The E5001-SDB uses safe blue light and non-toxic green dyes for gel imaging purposes.

10 kb DNA ladder, stained with a green dye and imaged with 535nm filter
SmartDoc Gel 2.0 compatible with a UV or a blue light transilluminator
Diagram shows placement of peak transmission and band width of 535 nm and 590 nm band pass filters

SmartDoc Compatible with Smartphones

Place smartphone on top of the SmartDoc 2.0 Gel Imaging System platform for instant high quality images

Removable Extender

Remove the extender to lower the platform for closer imaging

SmartDoc Illumination Base

Orange cover is optimized for smartphone imaging and blocks blue light for visualization of fluorescent samples and band cutting.

UV Transilluminator by Accuris

The SmartDoc 2.0 can be placed onto an Accuris UV Transilluminator (sold separately)

Included Blue Light Enclosure Base

Standard blue light illuminator protects operator and DNA samples by eliminating use of EtBr or UV light

Compact Gel Imaging System

Instantly capture gel images using an iPhone®, iPad®, or Android® device.

Special Benchmark Pricing & Promotions

Terra offers special pricing and promotions on Benchmark products. Ask your sales specialist for more information.
