3646-00-220
Terra Part # 3646-00-220
$6,102
Accessories related to Terra Part # 3646-00-220
44982
Fume Hood; Basic 47, 47" W x 25" D x 53" H, Labconco, 230 V
Usually ships in 18-22 business days

Want it faster ? Read about FasTrak

Product Details
  • By-pass design maintains stable face velocity as air sash is closed
  • Curved air foil lifts off for easy cleaning
  • Blower module provides safe ventilation (requires ductwork)
  • Removable front panel provides easy access to electrical wiring
  • Designed for ducting of exhaust to in-house exhaust system
  • Basic Laboratory Hoods feature a by-pass design that makes them ideal for use with delicate instruments
  • Air enters the enclosure through by-pass openings at the top of the work area and below the curved air foil

• Depth: 25"

• Hood Design: Benchtop

• Frame Material: Powder-Coated Steel

• Height: 53"

• Lighting: Vapor-Proof

• Manufactured by: Labconco

• Manufacturer SKU: 2247301

• Max Opening: 27" H

• Model: Basic 47

• Sash Design: Manual/Sliding

• Sash Height: 20"

• Type: Ducted

• Width: 47"

• Work Area Dimensions: 43.2"W x 18.5"D

• Unit of Measure: EA

• Dimensions, Product: 47" W x 25" D x 53" H

• Dimensions, Shipping: 44" W x 56" D x 60" H

• Electrical Specifications: 230 V, 5.6 A, 1,288 W, 50 Hz

• Marks & Listings: ASTM E-84-01, ASHRAE 110, NFPA 45, ANSI Z9.5,

• Package Type: Vendor

• Weight, Shipping: 370 lb

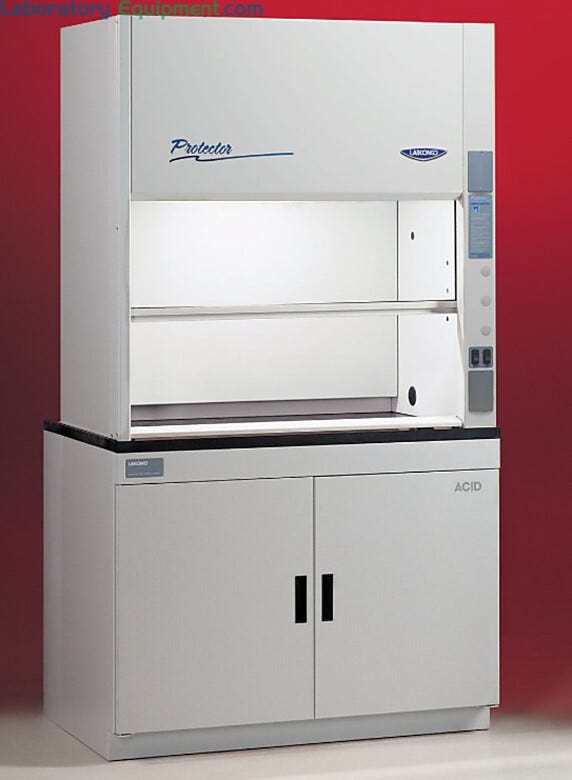

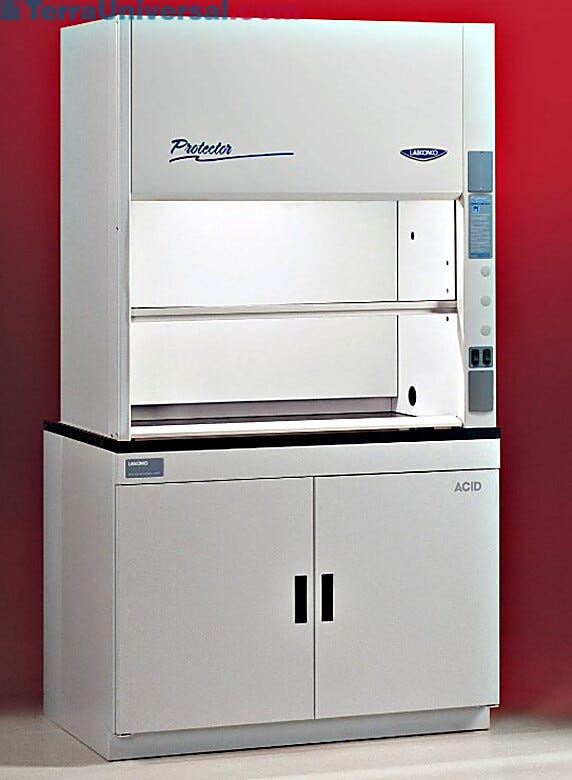

  • Basic Laboratory Fume Hood with cupboard from Labconco Basic Laboratory Fume Hoods from Labconco
Basic Laboratory Fume Hood with cupboard from Labconco

Features and Benefits

Learn More: Basic Laboratory Fume Hoods Compliances

Basic Laboratory Fume Hoods

Compliance
  • EFA 1-2005
  • ANSI Z9.5-2003
  • NFPA 45-2004
  • UL 3101-1/61010-1
  • SEFA 1-2005
  • ANSI Z9.5-2003
  • NFPA 45-2004
  • UL 3101-1/61010-1

Basic 70 Inch Fume Hood

Designed for ducting of exhaust to in-house exhaust system, these Basic Laboratory Hoods feature a by-pass design that makes them ideal for use with delicate instruments that require a stable air velocity.

Ducted Fume Hoods

These fume hoods are designed to be connected to an in-house exhaust system, typically with an external blower to support the outward flow of air.

Labconco Basic Fume Hood

Labconco Fume Hoods are compliant with SEFA 1-2005, ANSI Z9.5-2003, NFPA 45-2004, UL 3101-1/61010-1, ASTM E84-01, CAN/CSA C22.2 No. 1010.1, and ASHRAE 110-95.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Digital Airflow Monitor

    The Guardian 1000 Airflow Monitor measures the air speed within the fume hood and alerts users to unsafe conditions.
  • Labconco Solvent Storage Cabinet

    Solvent storage cabinets are insulated and include two vent connections to ensure safe storage of flammable liquids. Double-wall construction uses epoxy-coated steel for durability. Models with self-closing doors are available.
  • Labconco Logic Cart and Turntable

    Ergonomically designed and energy efficient, these biosafety cabinets provide safety and comfort to users working with hazardous particulates that require Biosafety Level 1, 2 or 3 containment.
  • Labconco Solid Work Surface

    Solid black epoxy work surfaces are chemical resistant and feature a "dished" surface to contain spills. 304-grade stainless steel work surfaces with 1"-deep front spill trough are also available.
