Terra Part # 2860-09
$2,131
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

In stock
Accessories related to Terra Part # 2860-09
46469
Freezer; General Purpose, 4.5 cu. ft., Undercounter, Marvel, 120 V
  • Dimensions, Product: 23.875"W x 24"D x 34"H
  • Internal Dimensions: 19"W x 18.25"D x 24.75"H
  • Accurate electronic temperature control of contents within +2°/ -2°C of set point.
  • Recommended ambient temperature 18.3°C to 32.2°C (65°F to 90°F)
  • Large, easy-to-read digital temperature display with resolution to 0.1°C
  • User selectable high and low temperature alarm values
  • User selectable alarm delay time period
  • Visual and audible alarms for over temperature, under temperature, and door ajar events
  • Alarm silence and automatic ring back functions
  • Keypad lock-out to prevent unintended control inputs
  • Basic high and low temperature logging with reset capability
  • Visual diagnostic error codes
  • Outstanding cooling capacity and temperature stability
  • Front vented through the toe space grill for true built in installations
  • Powerful compressor for fast pull-down time and temperature recovery after door opening or content loading
  • Manual defrost eliminates temperature excursions and dehydration
  • “Box Style” door for easy mounting of inventory management system hardware
  • Discrete top edge mounted door handle
  • Cam-assisted door close hinge system to reduce “door-ajar“ events
  • New triple-seal energy efficient door gasket system seals in the cold, reducing energy consumption
  • 1″ diameter probe port in rear cabinet wall (standard)
  • 4 leveling legs for easy height adjustment
  • Extra-long, jacketed commercial power cord with hospital grade plug to meet stringent hospital and clinical use standards

Manufacturer SKU: MS24FAS2RW

Capacity: 4.5 cu. ft.

Configuration: Undercounter

Brand: Marvel

Door Style: Single Solid

Plug Type: US Plug

Specialty: General Purpose

Type: Freezer

Set Point Temperature: -25°C

Internal Dimensions: 19"W x 18.25"D x 24.75"H

Capacity Range: <6 cubic feet

Freezer Temperature Range: -12° to -25°C

Unit of Measure: EA

Marks & Listings: UL

Electrical Specifications: 120 V, 3.3 A, 379.5 W, 1 Ph, 60 Hz

Dimensions, Product: 23.875"W x 24"D x 34"H

Weight, Shipping: 120 Lbs

Dimensions, Shipping: 26"W x 26"D x 36"H

Package Type: Crate

Buy Accessories
  1. Lock; Right Hinge door, for Undercounter Fridge or Freezer, AGA Marvel
    $100
    Increase Down Increase Up
  2. Extended Product Warranty
    Request Quote
    Increase Down Increase Up
  3. Equipment Testing
    Request Quote
    Increase Down Increase Up

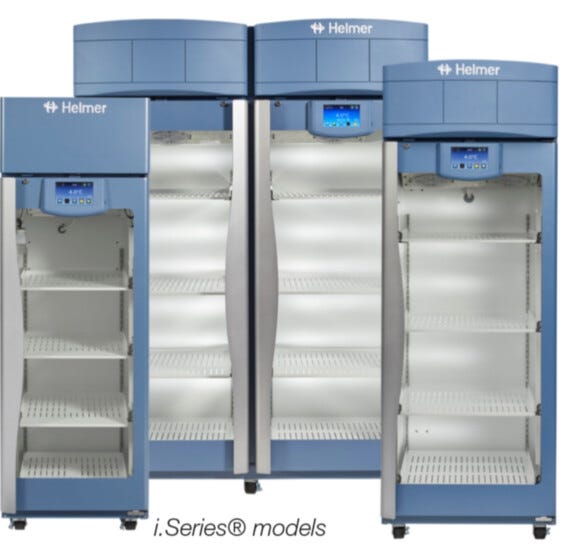

  • GX i.Series Upright Lab Refrigerators by Helmer Scientific GX i.Series Upright Lab Refrigerators by Helmer Scientific
  • Revco Pharmacy Refrigerators by Thermo Fisher Scientific in four capacity sizes Revco Pharmacy Refrigerators by Thermo Fisher Scientific
  • Complete line of Revco Plasma Freezers by Thermo Fisher Scientific for Regulated Labs Revco Plasma and Blood Bank Freezers for Regulated Labs
  • Thermo Fisher Scientific Value Lab Undercounter Freezers with fixed shelves Thermo Fisher Scientific Value Lab Undercounter Freezers
  • MLR102 Countertop Lab Pharmacy Refrigerator Closed Door MLR102 Medical Grade Countertop Pharmacy Refrigerator by Helmer

Features and Benefits

Revco High-Performance Lab Freezers by Thermo Fisher Scientific

Industry and Applications for -30°C Revco High-Performance Plasma Freezers

Automatic (-30°C) and Manual Defrost (-20°C) models in various sizes
Standard features of automatic and defrost models: advanced microprocessor-controlled setpoints for precise temperature regulation, icon based controls and easy-to-read digital display, On/Off keyed switch with setpoint security, TempTest electronic probe/alarm test, built-in remote alarm contacts and lockable, spring-loaded self-closing door stays open at 90° and 1” insulated access port

Features of Automatic Defrost Models
  • Temperature factory-preset at-30°C
  • Provides uniform temperature control with forced air circulation
  • Fast temperature recovery after door opens
  • Non-invasive defrost (time and temperature guided cycle)
  • Applications: General storage, plasma, test samples, biologicals and vaccines
Features of Manual Defrost Models
  • Temperature factory-preset at-20°C
  • Manual defrost provides optimum control
  • Temperature uniformity with cold wall convection cooling
  • Applications: General storage, enzymes and temperature sensitive materials, test samples, biologicals, patient medication, vaccines, PCF, reagents and primers
Specifications
  • Microprocessor Control Microprocessor with audible/visual warning for overtemperature, undertemperature or power failure OFF/ON/ALARM on master switch for setpoint security, Push-button alarm test, Remote alarm contacts, Alarm Silence, ring back and auto reset, Controller battery backup system
  • Refrigerant CFC-free
  • Insulation 2" thick CFC-free urethane foam (protects against ambient temperature fluctuations)
  • Cabinet Scratch-resistant painted steel
  • Chamber Scratch-resistant painted steel
  • Door Single-doors hinged on right; full length door handle and key lock; spring-loaded self-closing door that stays open at 90°
  • Other Undercounter models with 1″ (2.5cm) dia. access port with plug Interior volumes are nominal; clearance tolerances and usable capacities may be offset by drawers, shelves, blower coils or cabinet protrusions.
  • Display Easy-to-read digital displays with audio and visual alarm; service parameters defaults for troubleshooting
